The Mexen Hades bathroom radiator not only provides excellent heating but also features an elegant appearance thanks to its anthracite coating RAL 7016. Made of high-quality steel, it offers a heating power of 570 W. Its compact dimensions of 1200x500 mm fit every bathroom, and various connection options (45 cm bottom, 5 cm middle) enhance installation flexibility. With a corrosion-resistant coating and a maximum operating temperature of 95 °C, the Mexen Hades is a durable and reliable choice. Includes hangers, installation kit, and other accessories.

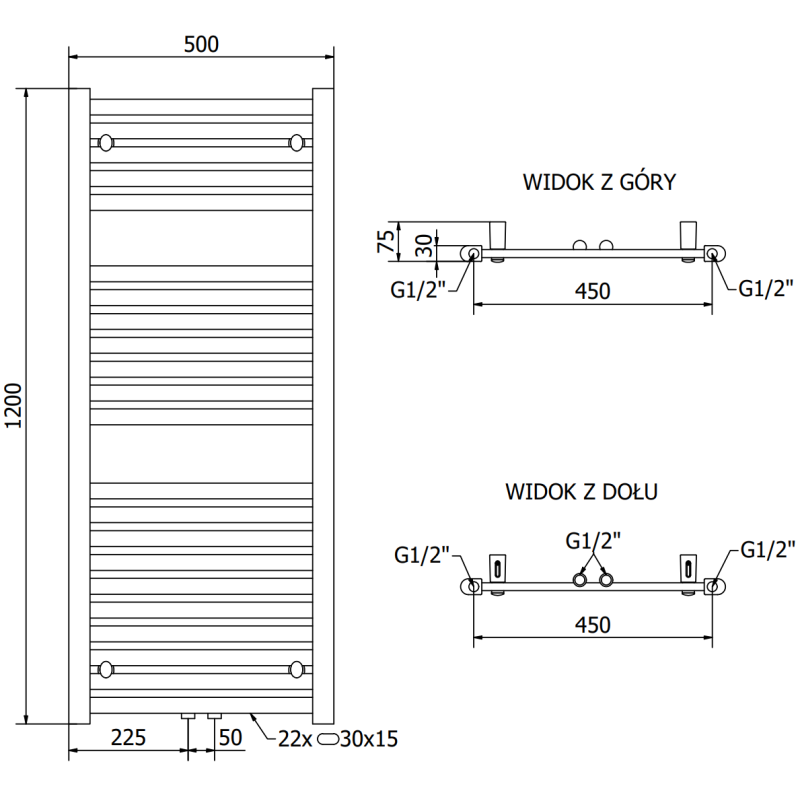

Technical data:

Height: 1200 mm

Width: 500 mm

Depth: 30 mm

Connection spacing:

- 45 cm (bottom) or 5 cm (middle)

Color: Anthracite RAL 7016

Material: Steel

Weight: 9.30 kg

Capacity: 5.1 l

Fire response: A1

Operating temperature: max 95 °C

Maximum operating pressure: 0.6 MPa

Heating power:

- 75/65/20 °C - 570 W

Connections:

- 2xG ½″ middle

- 4xG ½″ from the top and bottom on the right or left side

Possibility to mount a heater

High quality, durable, corrosion-resistant paint coating

Includes: hangers, installation kit, blanking plugs and air vent

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

Max. 0.6 Mpa

The maximum operating pressure is 0.6 Mpa (6 bar). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 95°C

The maximum temperature reached by the radiator during operation is 95°C. This allows for effective and efficient heating of the room, ensuring safety for users and the surfaces surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
Hades
Width
500 mm
Height
1200 mm
Depth
30 mm
Type
Ladder
Heating power
570 W
Color
Anthracite
Material
Steel
Mounting Orientation
Universal
Connection spacing
5 cm , 45 cm
Connection
Bottom , Center
Orientation
Vertical
