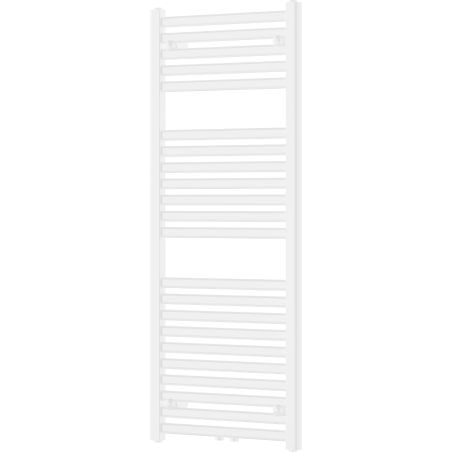

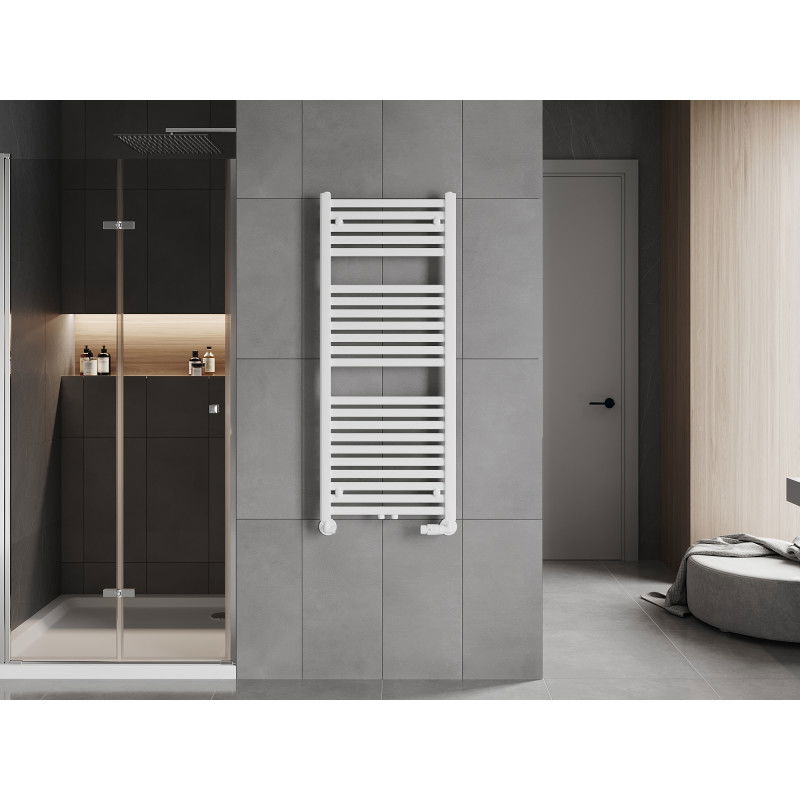

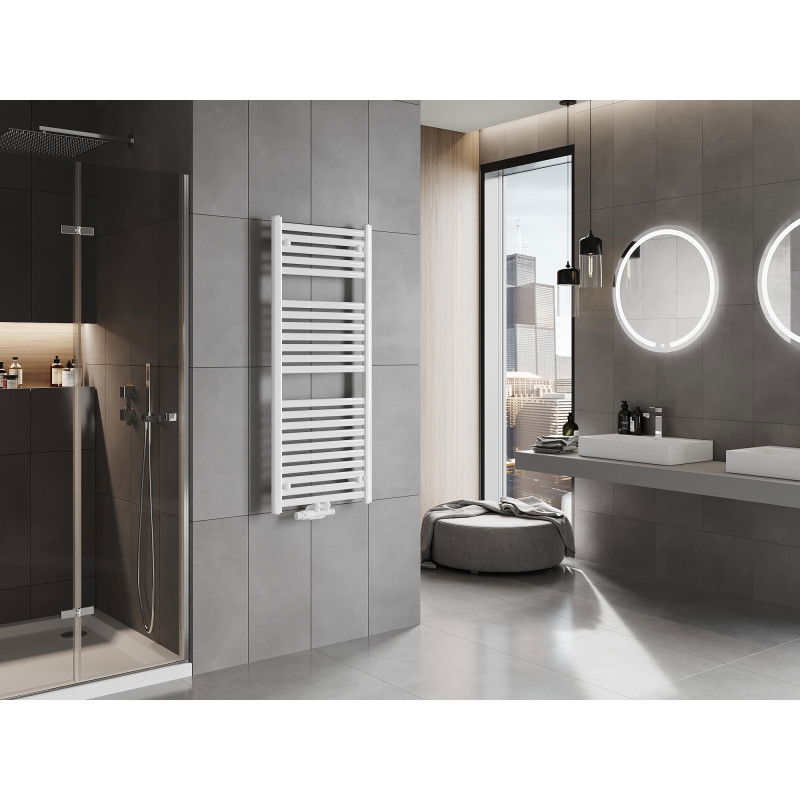

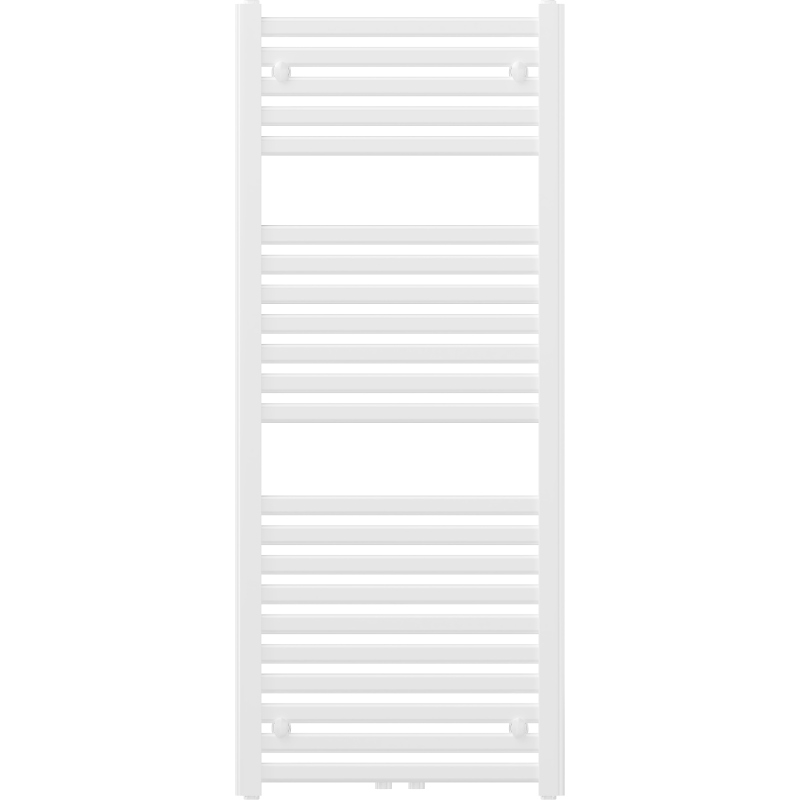

Mexen Hades bathroom radiator 1200 x 500 mm, 570 W, white - W104-1200-500-00-20

Mexen Hades bathroom radiator 1200 x 500 mm, 570 W, white - W104-1200-500-00-20
Mexen Hades bathroom radiator 1200 x 500 mm, 570 W, white - W104-1200-500-00-20
Product features
steel
steel
Max. 0.6 MPa
Max. 0.6 MPa
Max. 95 ° C
Max. 95 ° C
Brand: Mexen
Series: Hades
Ean: 5905315050373
Index: W104-1200-500-00-20
Color: White
Width: 500 mm
Heating Power: 570 W
Height: 1200 mm
Description

Mexen Hades bathroom radiator 1200 x 500 mm, 570 W, white - W104-1200-500-00-20

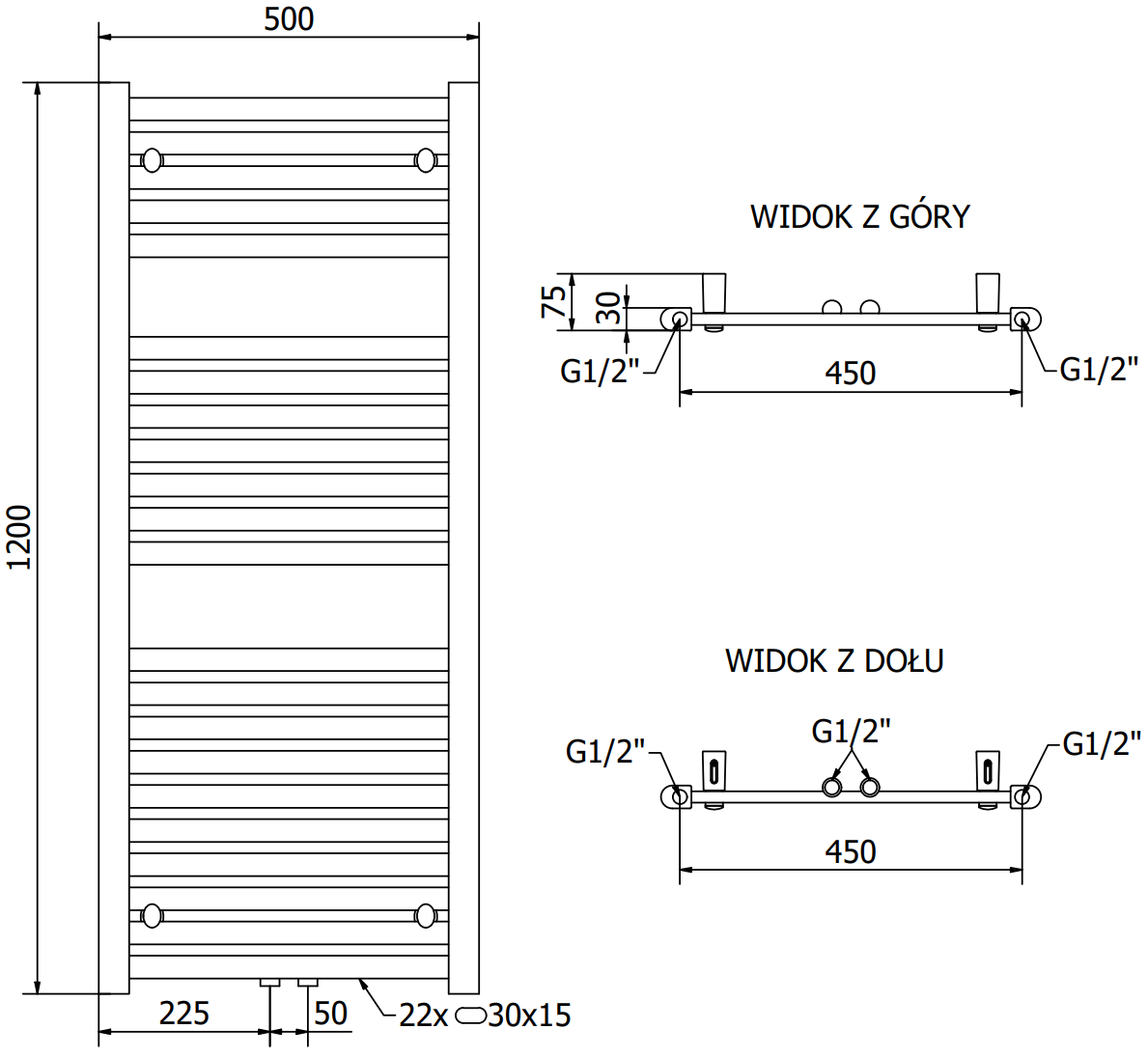

Technical data:

Height: 1200 mm

Width: 500 mm

Depth: 30 mm

Connection distance:

- 45 cm (side) or 5 cm (center)

Color: White RAL 9016

Material: Steel

Weight: 9.30 kg

Fire reaction: A1

Operating temperature: max 95 °C

Maximum operating pressure: 0.6 Mpa

Heating power:

- 75/65/20 °C - 570 W

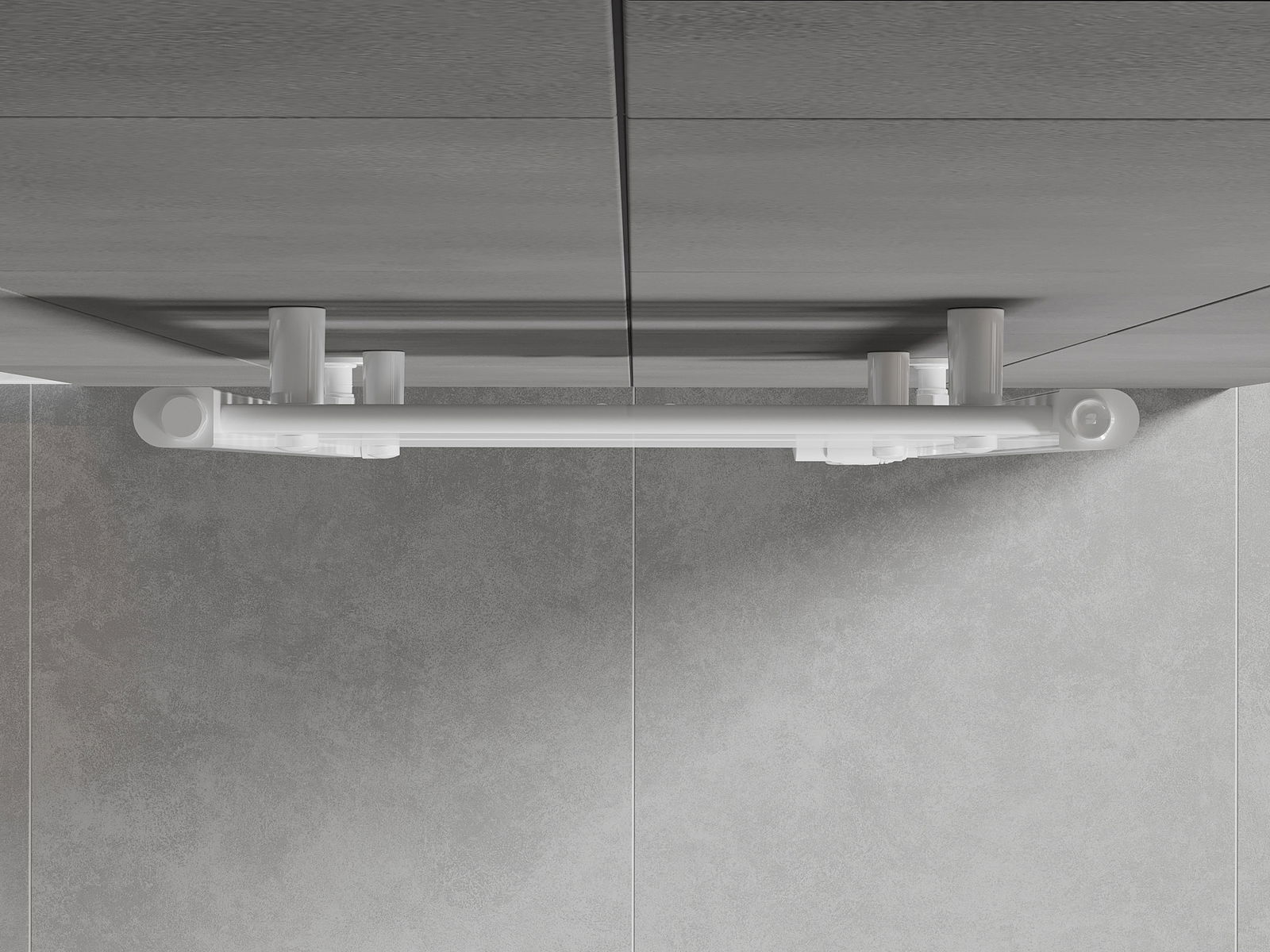

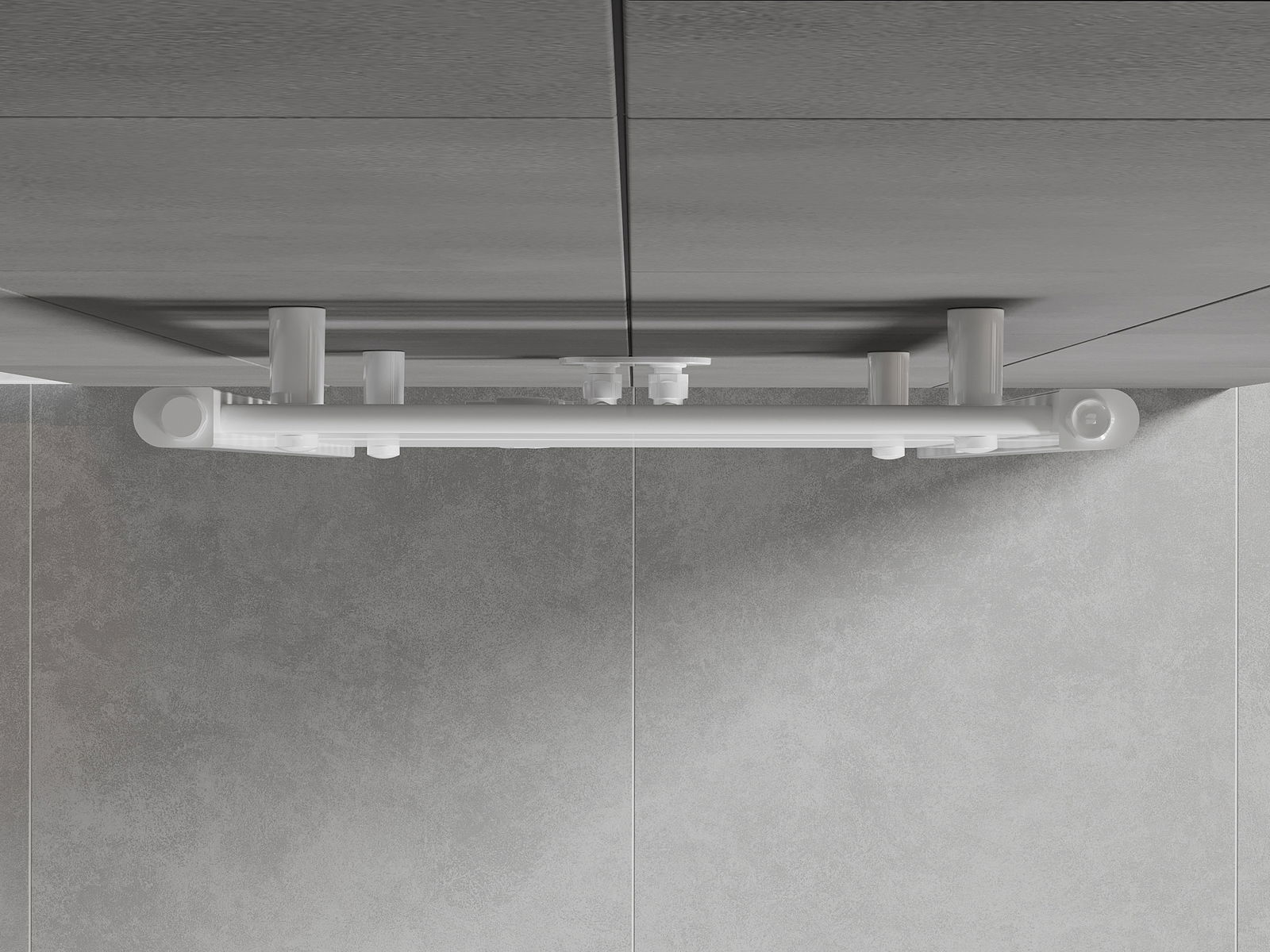

Connections:

- 2xG ½″ center

- 4xG ½″ from top and bottom right or left side

Possibility of installing the heating element

High quality, durable lacquer coating resistant to corrosion

Includes: suspension, assembly set, sealing plugs and air vent

Innovative solutions used in this product
steel

The product was made of high quality low -carbon steel, which not only affects the long life of the device and corrosion resistance, but also allows you to quickly heat the room and provides users with thermal comfort.

Max. 0.6 MPa

The maximum working pressure is 0.6 MPa (6 bars). This means that the radiator can work safely and effectively in standard conditions of use. It provides optimal thermal comfort and a pleasant room temperature.

Max. 95 ° C

The maximum temperature achieved by the radiator during operation is 95 ° C. It allows for effective and efficient heating of the room, while ensuring the safety of users and the surface of the surrounding radiator.

Resistance to matting and corrosion

The product is made of high quality materials resistant to matting and corrosion, thanks to which it maintains its attractive appearance and functionality for a long time, regardless of the level of humidity in the room.

10 years of warranty

The product is covered by a 10-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Feature tab
Series
Hades
Width
500 mm
Height
1200 mm
Type
Ladder
Heating Power
570 W
Color
White
Material
Steel
Strength
Universal
Depth
30 mm
Connection spacing
5 cm , 45 cm
Connection
Bottom , Middle
Orientation
Vertical
