Mexen EXS 100 bathroom fan, pull switch, white - W9604-100K-00

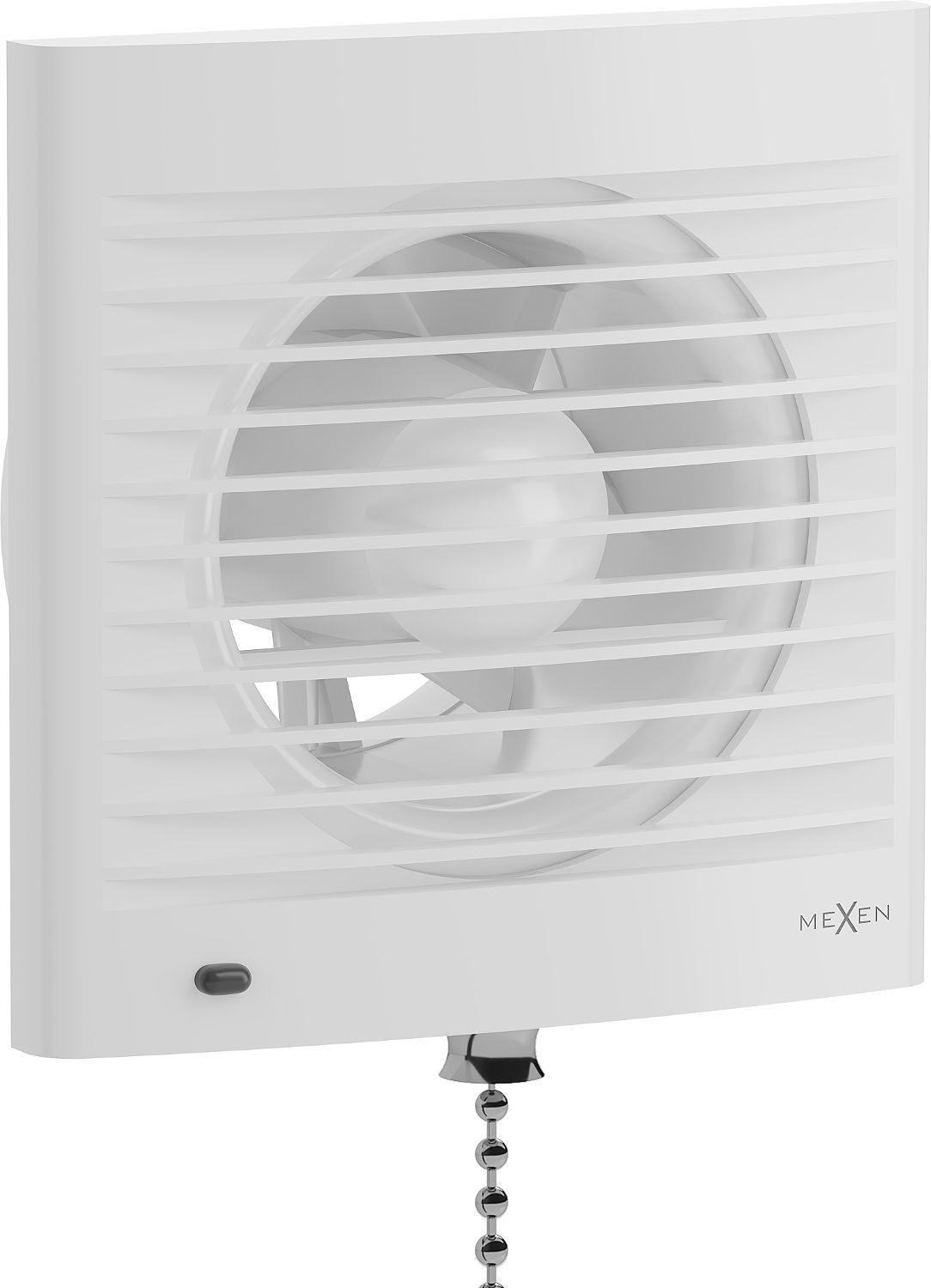

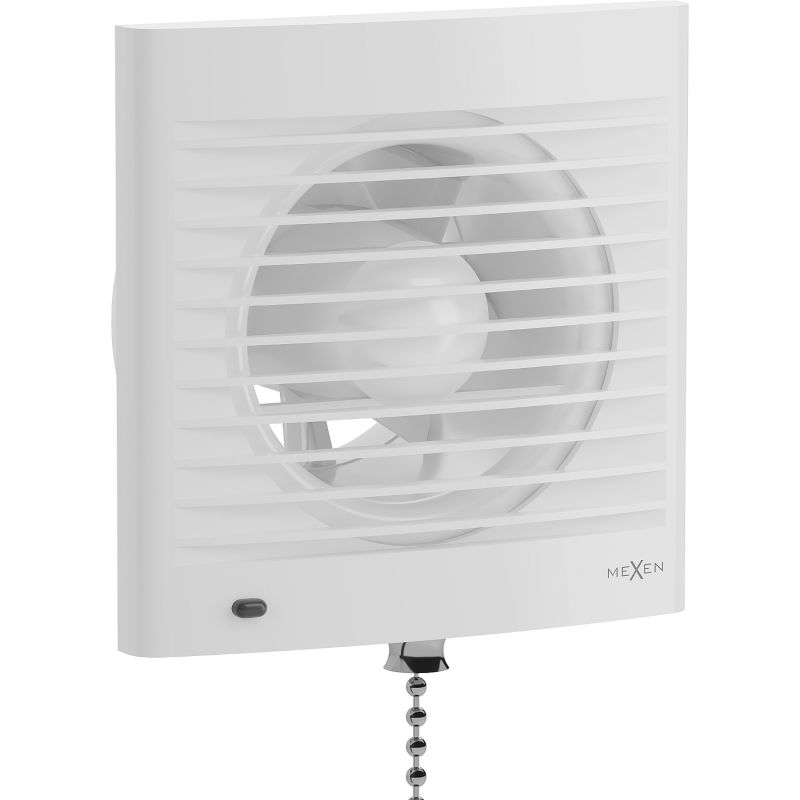

Mexen EXS 100 is a white bathroom fan with a diameter of 100 mm, offering a maximum airflow of 130 m3/h with a power consumption of 12 W. The fan operates quietly (34 dB at a distance of 3m) and is equipped with a pull switch, backdraft damper, and ball bearings which ensure long life and higher performance. It can be mounted on the wall or ceiling. With an IPX2 protection degree, it is a suitable choice for any bathroom.

Product specification:

Diameter: 100 mm

Color: White

Maximum airflow: 130 m3/h

Maximum power consumption: 12 W

Noise level at 3m distance: 34 dB

Power supply: 230 V/50 Hz

Protection degree: IPX2

Fan equipment:

- Pull switch for manual switching on or off

- Backdraft damper to prevent air from flowing back into the room from ventilation ducts

- Ball bearings for long life, higher performance, and flexibility in mounting in any position (on wall or ceiling)

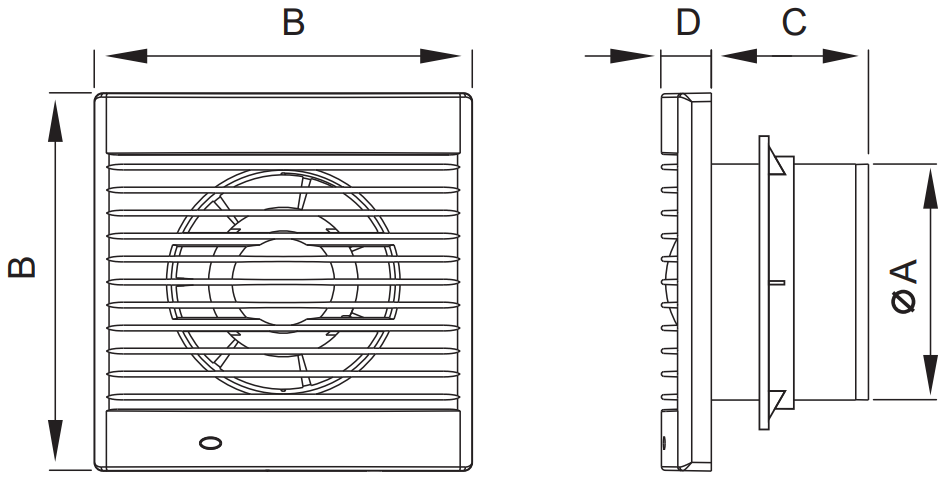

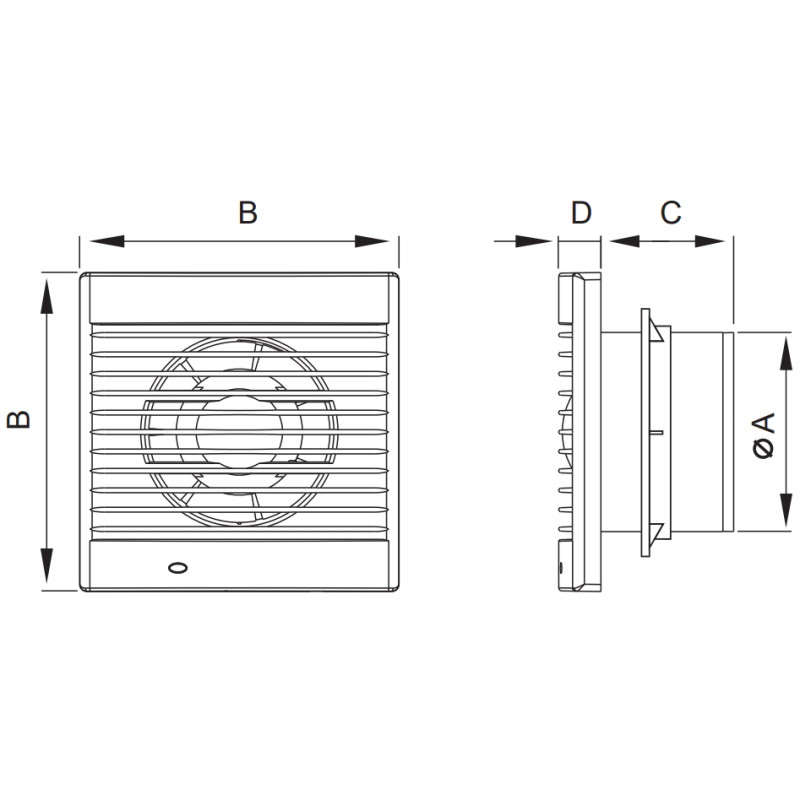

Dimensions:

A - 99 mm

B - 157 mm

C - 66 mm

D - 21 mm

Innovative solutions used in this product

Ball bearing

The use of a ball bearing in a bathroom fan has a huge impact on smooth operation and reduces engine wear. Thanks to this solution, the fan has better performance and a longer lifespan.

Quiet operation

The product is characterized by a low level of noise generation. It will be an excellent choice for bathrooms, where noise should not interfere with daily use, while the device effectively fulfills its ventilation role.

Effective Ventilation

High air exchange efficiency in a bathroom fan is a key factor ensuring effective ventilation, moisture elimination, and preventing the development of mould and fungi in the room.

Cord switch

A cord switch is a mechanism that allows you to start the fan by pulling a cord. It is mounted on the fan housing, which allows for easy operation of the device, even when there is no access to a traditional wall switch.

Backdraft Damper

The device is equipped with a mechanism that prevents air from flowing back into the room after the fan is switched off. It is especially useful in bathrooms, where preventing unwanted airflow can improve comfort and hygiene.

IPX2 Protection Level

The IPX2 protection level is adequate for bathrooms with low humidity and minor splashes, but it does not provide protection against intense conditions, such as direct contact with water or heavy splashing.

Wall or ceiling installation

A bathroom fan with the option for wall and ceiling installation is a very versatile solution that provides flexibility in installation and adaptation to different spatial arrangements in the bathroom.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Series
EXS
Diameter
100 mm
Color
White
Shape
Square
Humidity Sensor
No
Timer
No
Pull Switch
Yes
Motion Sensor
No
User manual
Download
Safety information
Download
Warranty conditions
Download
Manufacturer
See
