Mexen CV11 plate radiator 400 x 2400 mm, bottom connection, 1555 W, white - W611-040-240-00

The Mexen CV11 plate radiator is the ideal solution for those who value efficiency and elegance. This model, measuring 400 x 2400 mm with a heating power of 1555 W, is perfect for large rooms. Made of high-quality steel and covered with a durable paint coating RAL 9016, it combines aesthetics with resistance to damage. With 2xG ½″ bottom connection and 4xG ½″ side connection, installation is simple and flexible. Comes with a side cover, hangers, and installation kit, providing complete equipment.

Technical data:

Height: 400 mm

Width: 2400 mm

Depth: 59 mm

Connection spacing: 5 cm

Spacing of vertical water channels: 33.3 mm

Color: White RAL 9016

Material: Steel

Working temperature: max 110 °C

Maximum working pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 812 W

- 75/65/20 °C 1555 W

- 90/70/20 °C 1961 W

Connections:

- 2xG ½″ from the bottom right

- 4xG ½″ side

High-quality, durable paint coating - DIN 99500

Includes side cover and removable top cover

Complete with: hangers, installation set, sealing plugs, air vent, and valve insert

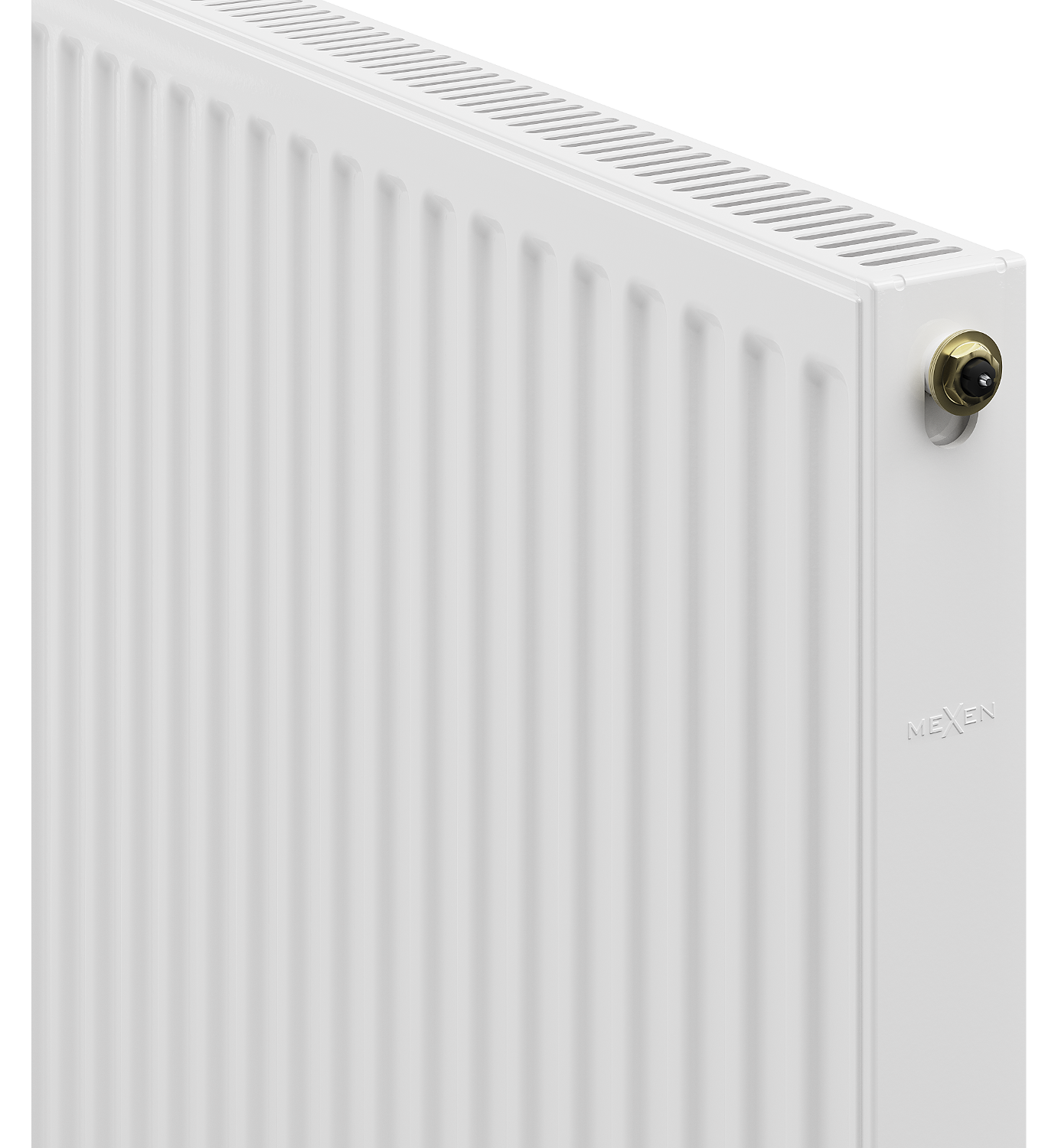

The pictures show a radiator in the size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

PZH Hygiene Certificate

The product has a certificate issued by the National Institute of Hygiene, confirming compliance with safety standards - it indicates that it does not negatively affect human health or the natural environment in any way. nr B.BK.60112.0464.2022 valid until 13.02.2028

Series
CV11
Width
2400 mm
Height
400 mm
Depth
59 mm
Type
Plate / Panel
Heating power
1555 W
Color
White
Material
Steel
Type
11
Mounting Strength
Right
Connection spacing
5 cm
Connection
Bottom
Orientation
Horizontal
