Mexen CV22 plate radiator 900 x 2200 mm, bottom connection, 5026 W, white - W622-090-220-00
The Mexen CV22 plate radiator ensures excellent thermal efficiency with a power of 5026 W at a temperature of 75/65/20 °C. Its compact dimensions of 900 x 2200 mm and bottom connection make it a perfect fit for any interior. The white RAL 9016 and steel construction guarantee durability and an elegant appearance. The radiator is equipped with hangers, installation kit, sealing plugs, vent, and valve insert. The maximum operating temperature is 110 °C and the working pressure is 10 bar.
Technical data:
Height: 900 mm
Width: 2200 mm
Depth: 103 mm
Connection spacing: 5 cm
Spacing of vertical water channels: 33.3 mm
Color: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 2584 W
- 75/65/20 °C 5026 W
- 90/70/20 °C 6373 W
Connections:
- 2xG ½″ from bottom right or left side
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500
Includes side cover and removable top cover
Complete with: hangers, installation kit, sealing plugs, vent, and valve insert

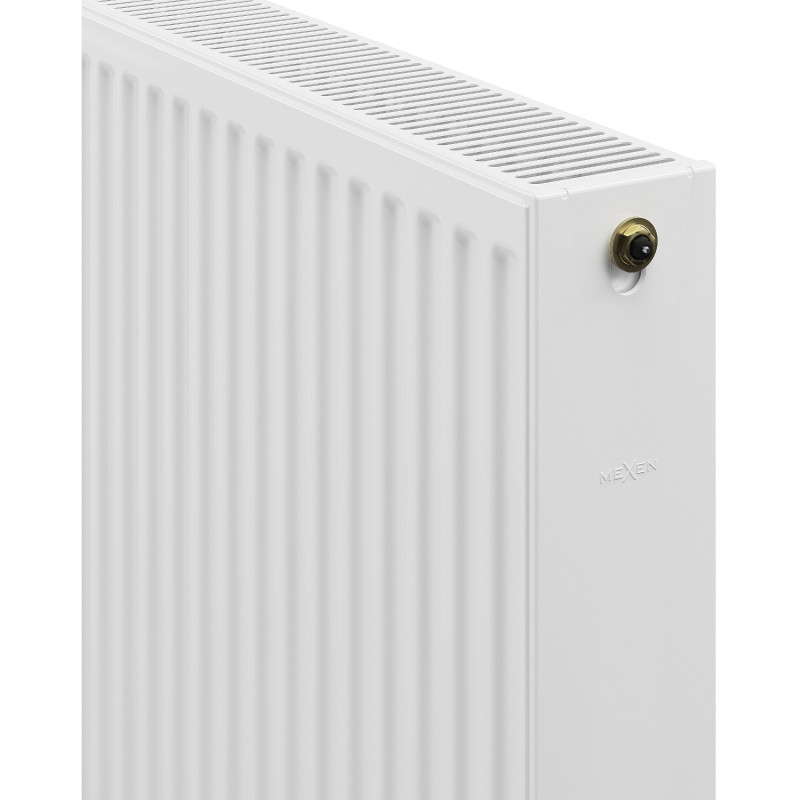

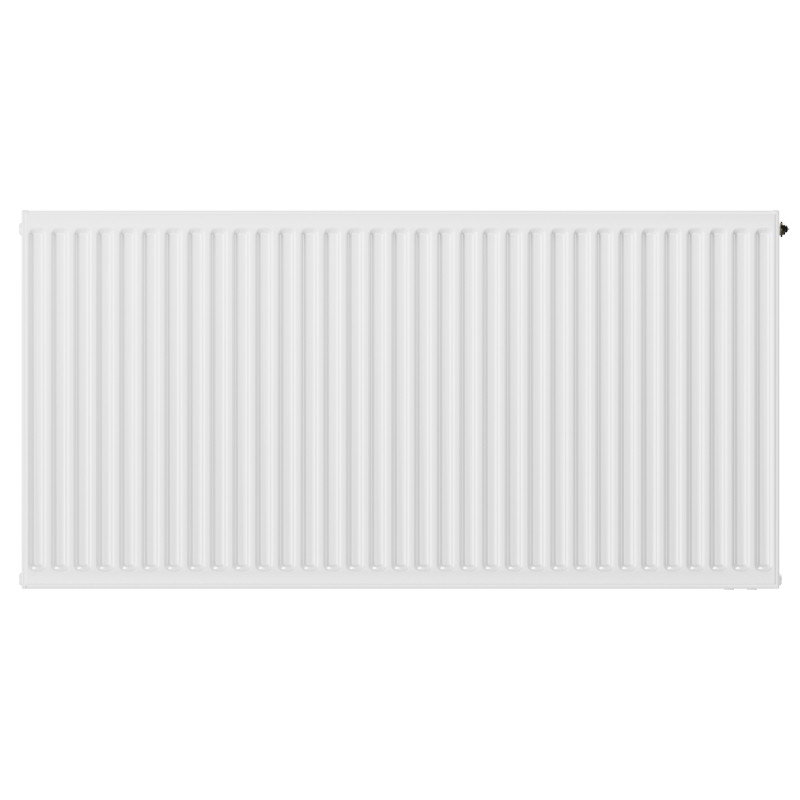

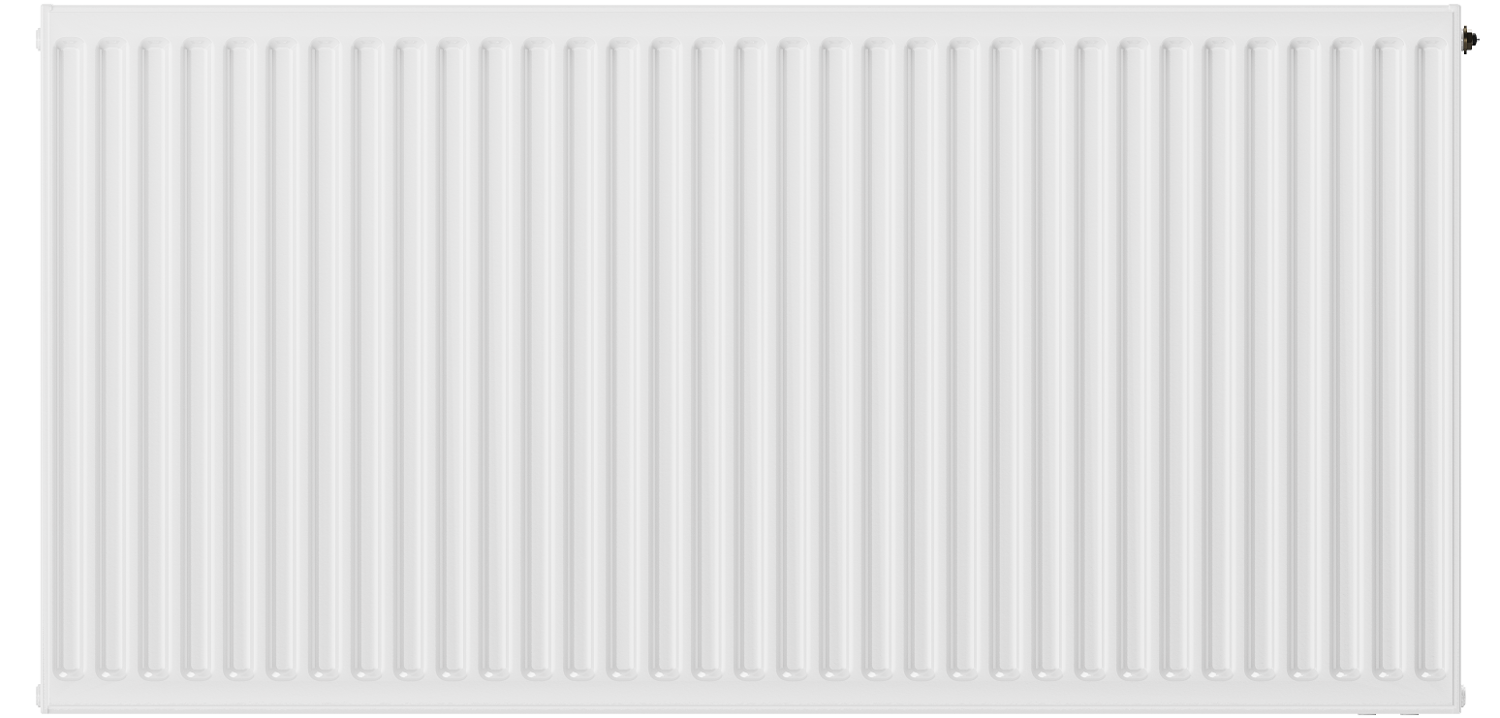

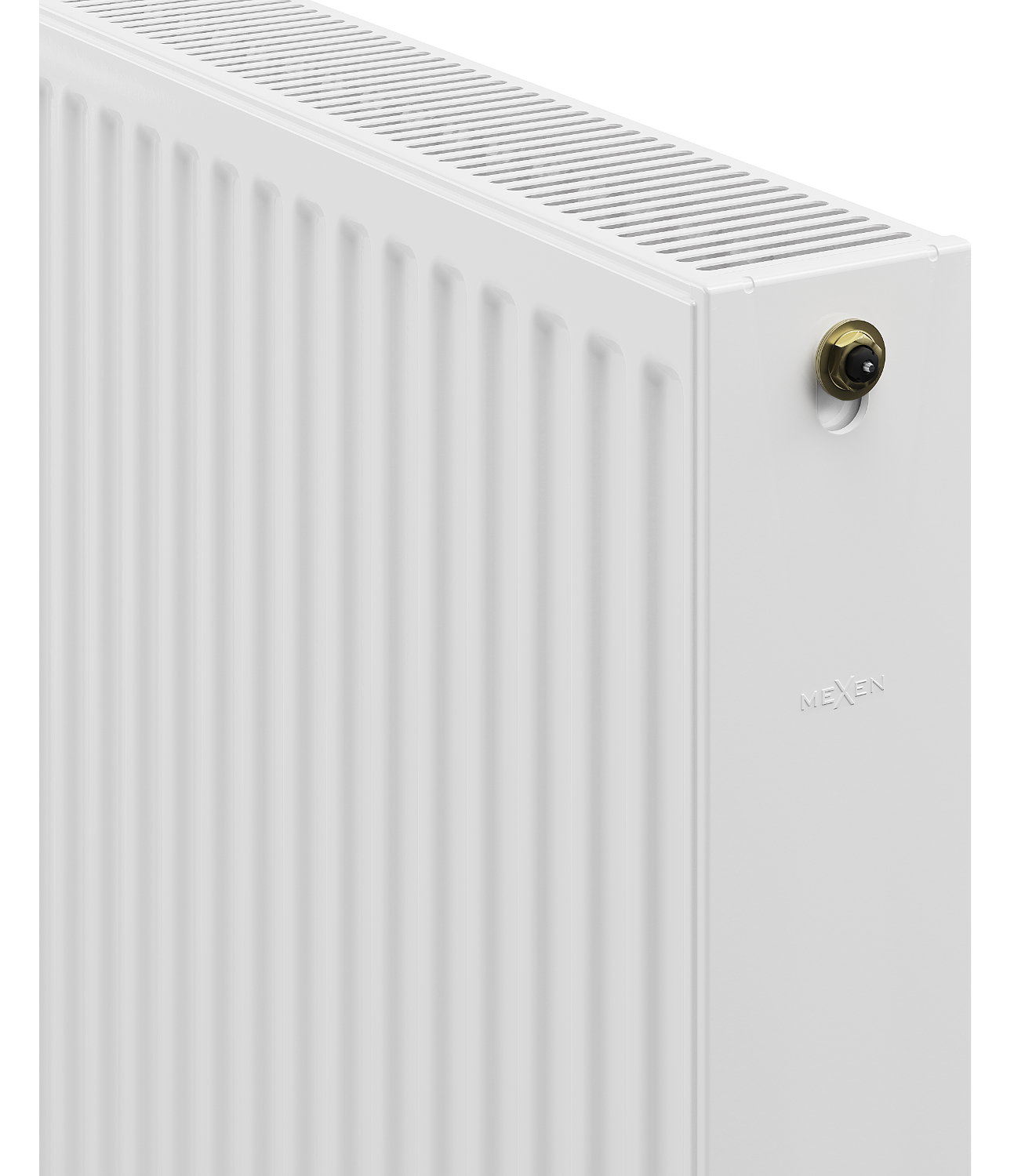

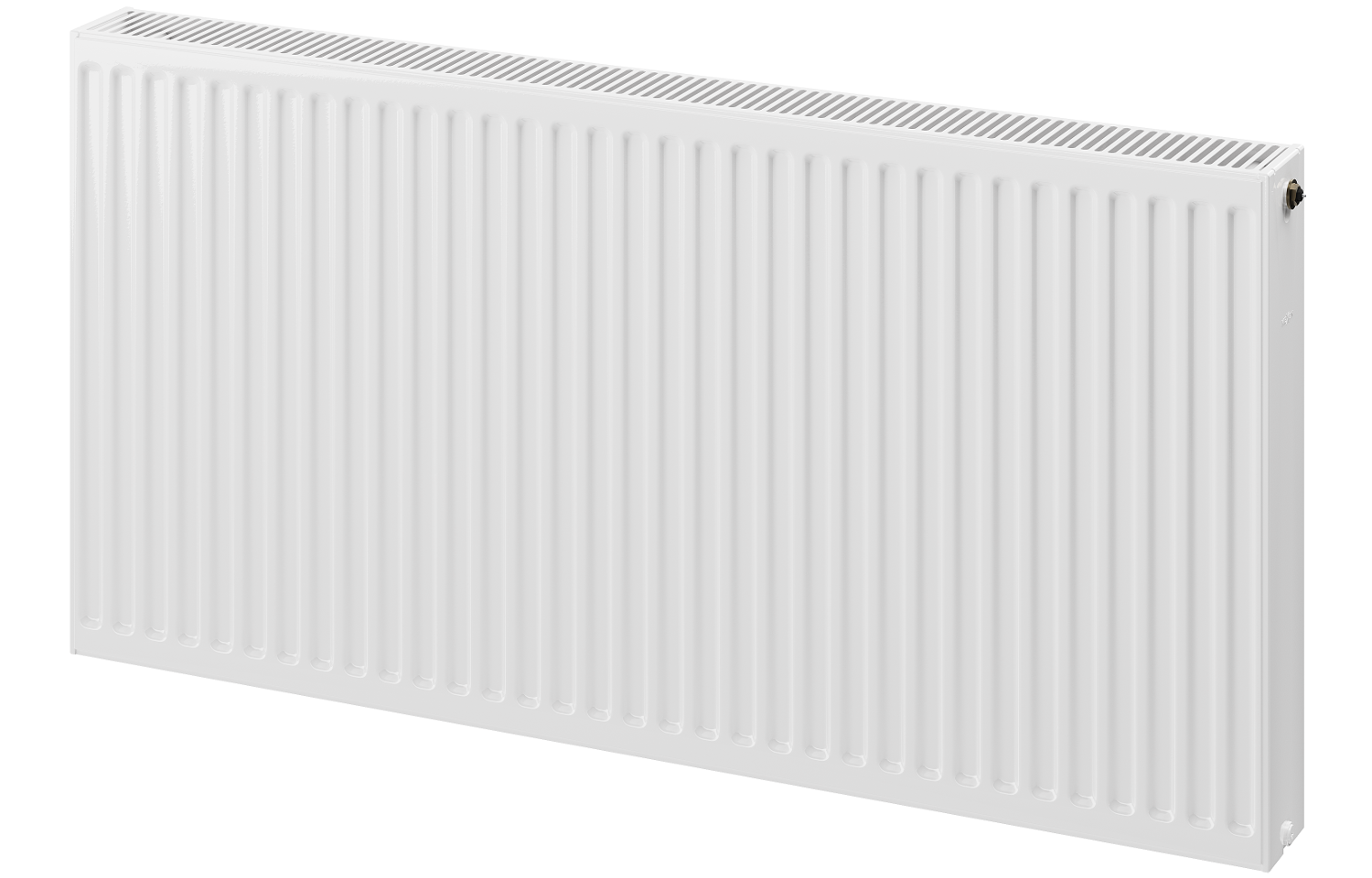

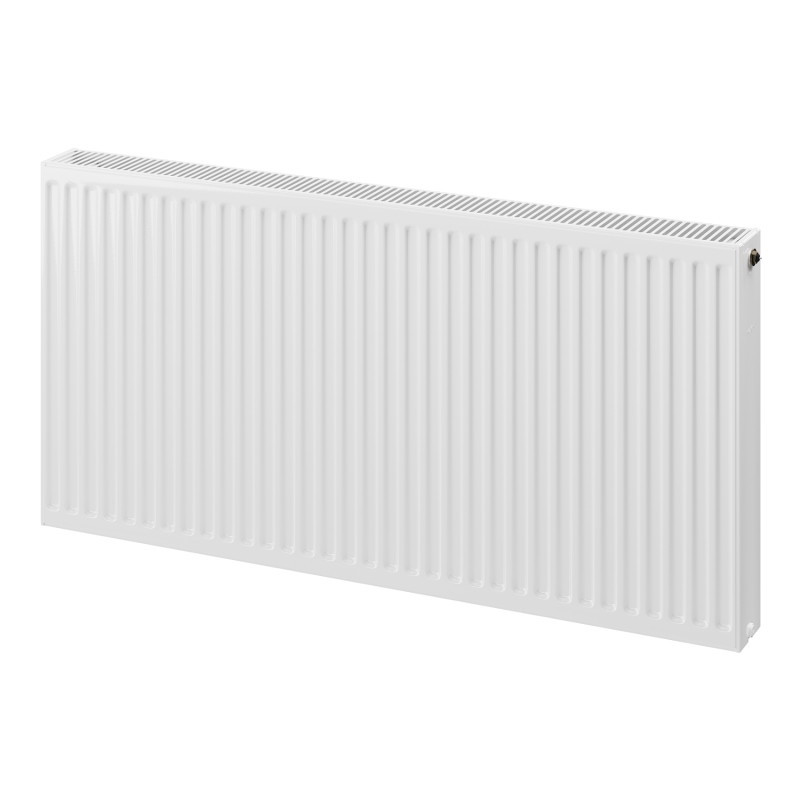

Pictures show radiator size 600 x 1200 mm.
