Mexen CV22 panel radiator 500 x 2200 mm, bottom connection, 3134 W, white - W622-050-220-00
Technical data:
Height: 500 mm
Width: 2200 mm
Depth: 103 mm
Connection spacing: 5 cm
Vertical water channel spacing: 33.3 mm
Colour: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 1622 W
- 75/65/20 °C 3134 W
- 90/70/20 °C 3964 W
Connections:
- 2xG ½″ from below on the right or left side
- 4xG ½″ lateral
High quality, durable paint coating - DIN 99500
Comes with a side cover and a removable top cover
Includes: supports, installation kit, blanking plugs, air vent, and valve insert

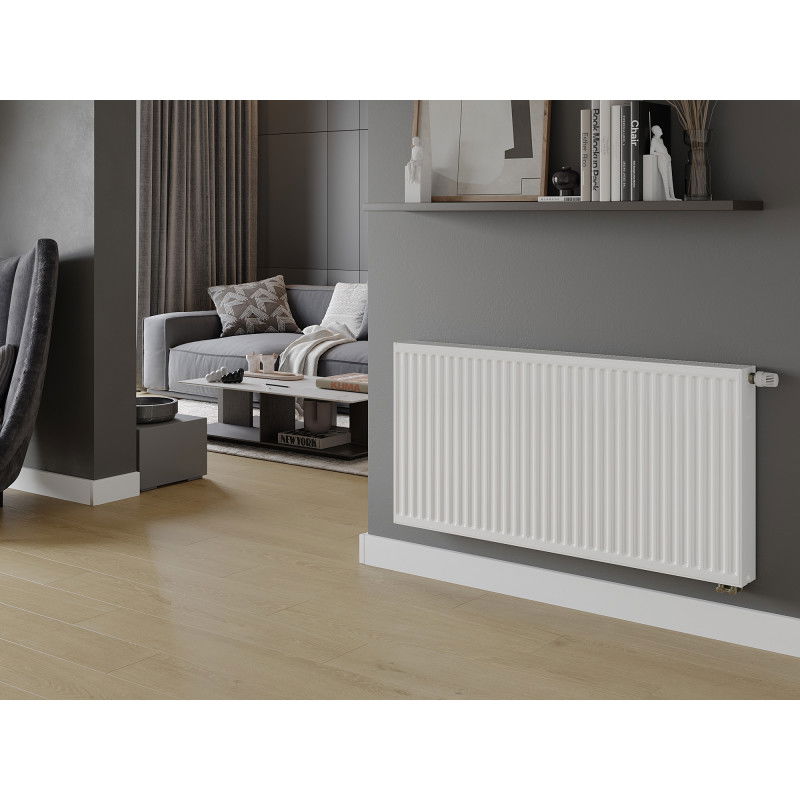

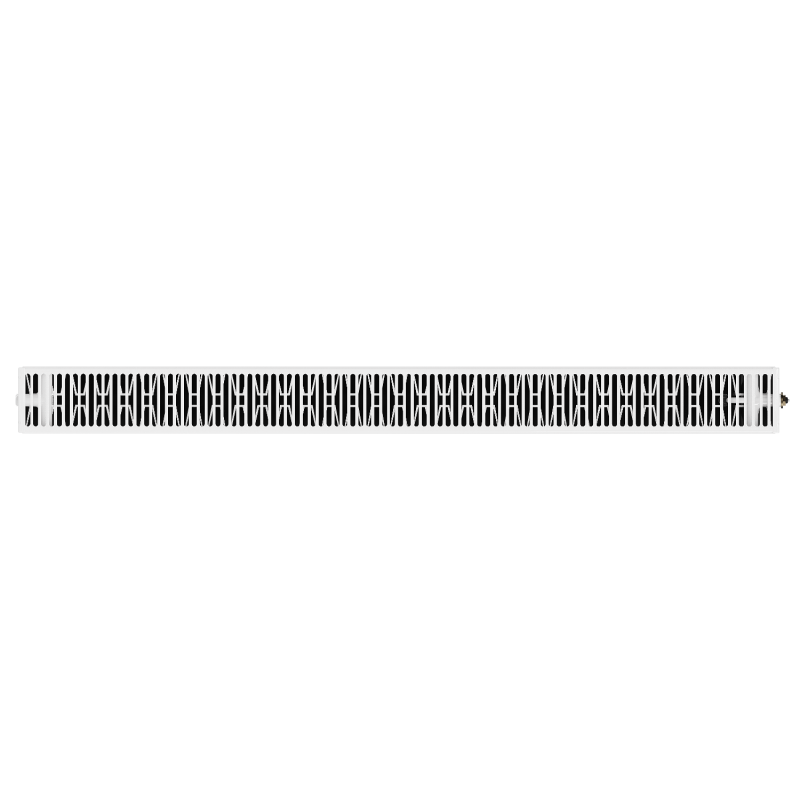

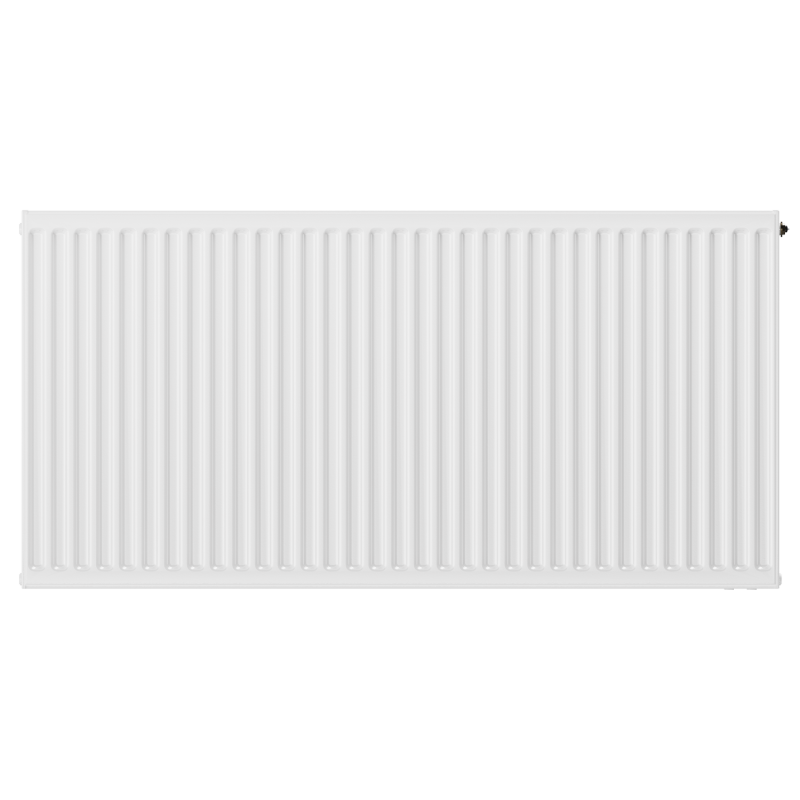

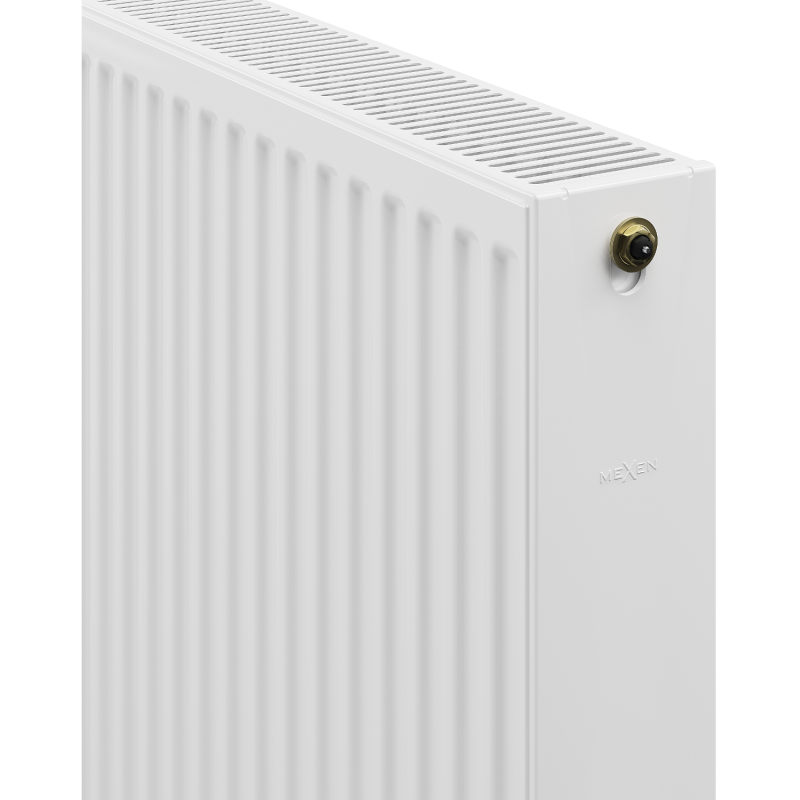

Photos show the radiator in size 600 x 1200 mm.
