Mexen CV22 panel radiator 500 x 1600 mm, bottom connection, 2279 W, white - W622-050-160-00

Mexen CV22 panel radiator 500 x 1600 mm, bottom connection, 2279 W, white - W622-050-160-00
Mexen CV22 panel radiator 500 x 1600 mm, bottom connection, 2279 W, white - W622-050-160-00
Product features
steel
steel
Easy cleaning
Easy cleaning
1 MPa
1 MPa
Brand: Mexen
Series: CV22
Ean: 5905315065094
Index: W622-050-160-00
Color: White
Width: 1600 mm
Height: 500 mm
Heating Power: 2279 W
Mexen CV22 panel radiator 500 x 1600 mm, bottom connection, 2279 W, white - W622-050-160-00
Mexen CV22 panel radiator 500 x 1600 mm, bottom connection, 2279 W, white - W622-050-160-00
€212.70 13,03%
€184.99
Cheaper by €27.71

Lowest price from the last 30 days: €184.99 Product price history

Tax included
Order by phone

Kalkulator kredytowy
Delivery cost €219.99
Availability: in stock
We will sendon Wednesday
people bought this product.
Add to wish list Remove from wish list
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

  Secure payments

(edit with the Customer Reassurance module)

Description

Mexen CV22 panel radiator 500 x 1600 mm, bottom connection, 2279 W, white - W622-050-160-00

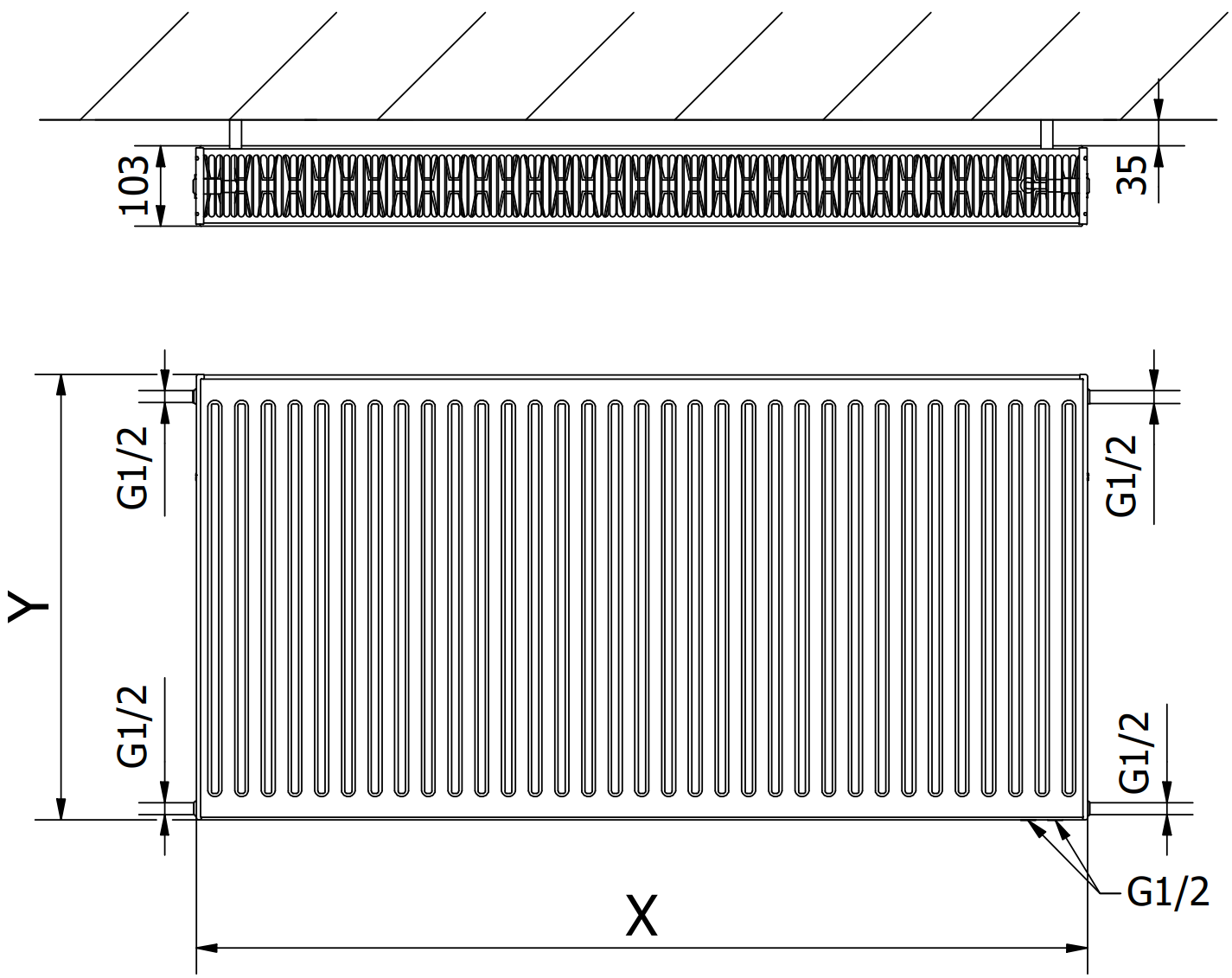

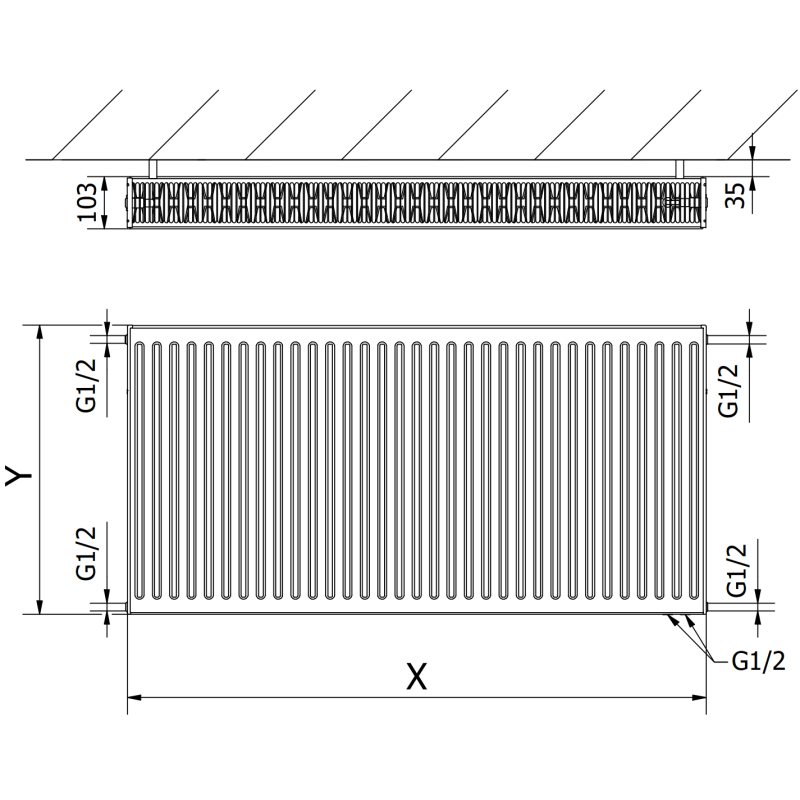

Technical data:

Height (Y): 500 mm

Width (X): 1600 mm

Depth: 103 mm

Connection distance: 5 cm

Distance of vertical water channels: 33.3 mm

Color: White RAL 9016

Material: Steel

Weight: 39.44 kg

Operating temperature: max 110 °C

Maximum working pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 1180 W

- 75/65/20 °C 2279 W

- 90/70/20 °C 2883 W

Connections:

- 2xG ½” from the bottom on the right or left side

- 4xG ½” side

High-quality, durable paint coating - DIN 99500

Has a removable top cover and a side cover

Included: suspension, assembly kit, sealing plugs, air vent, and valve insert

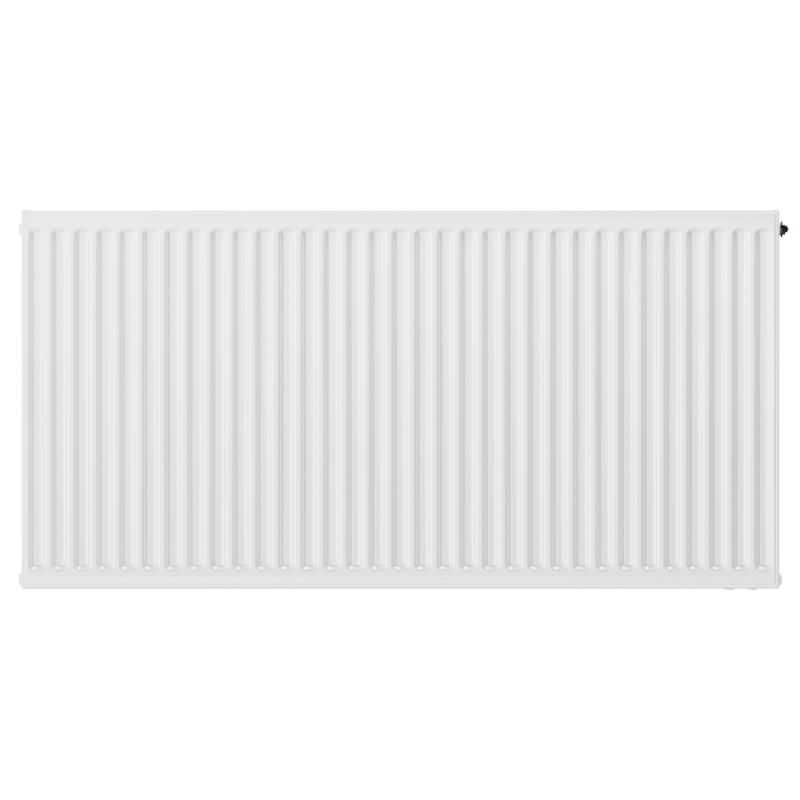

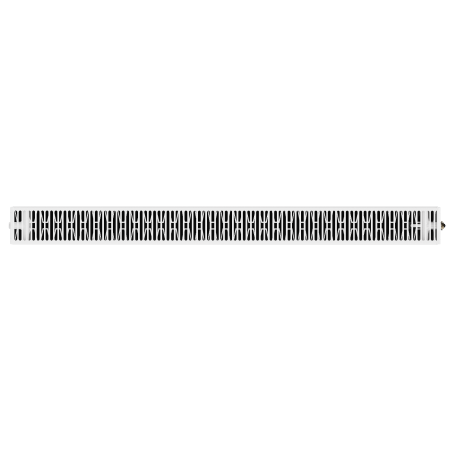

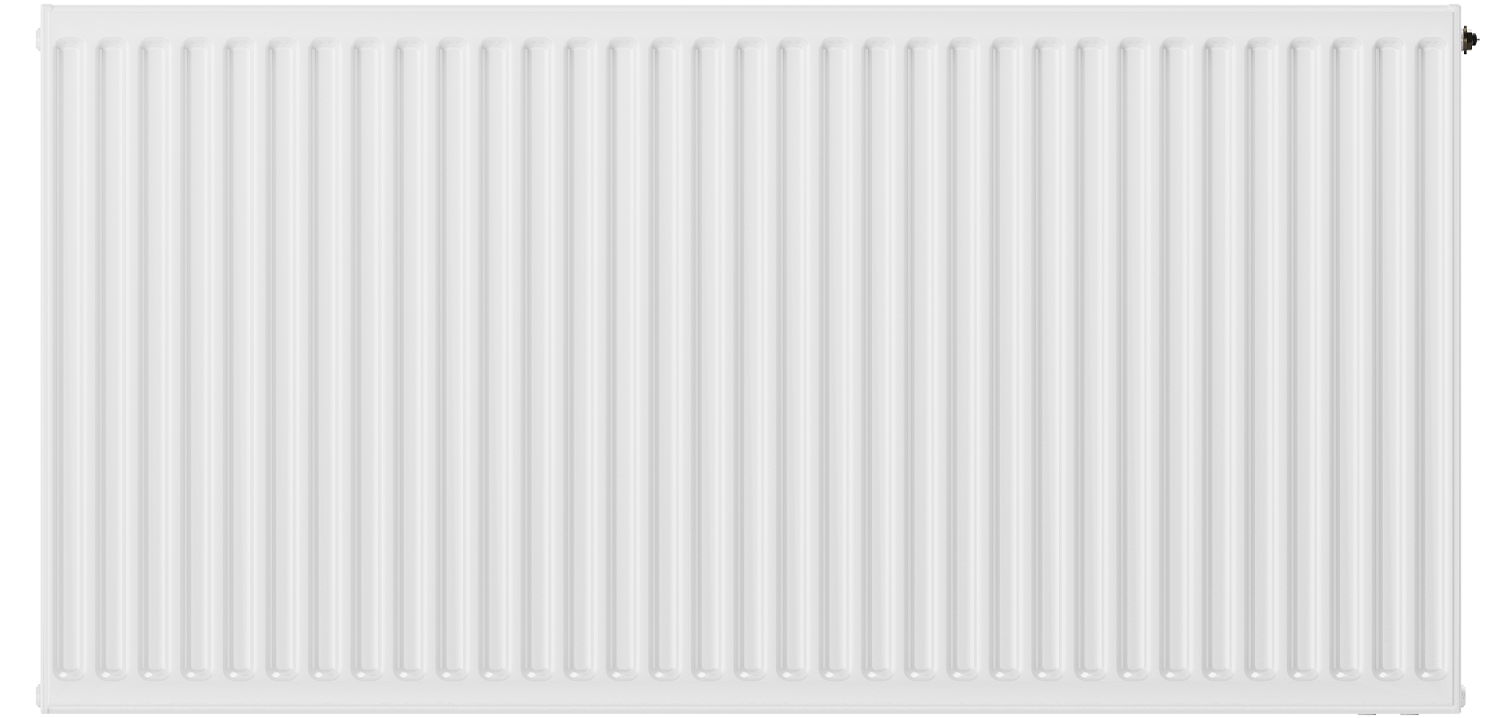

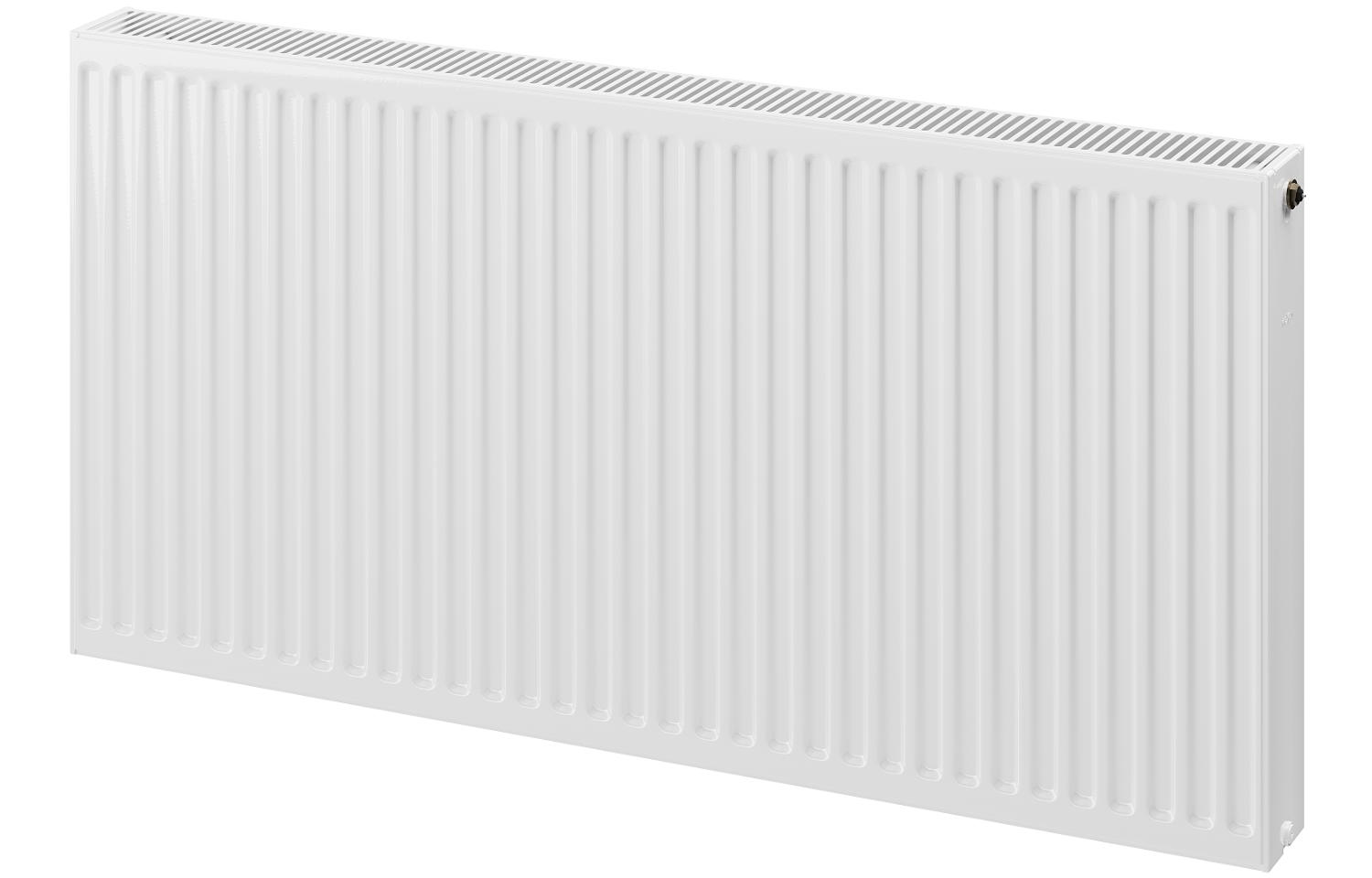

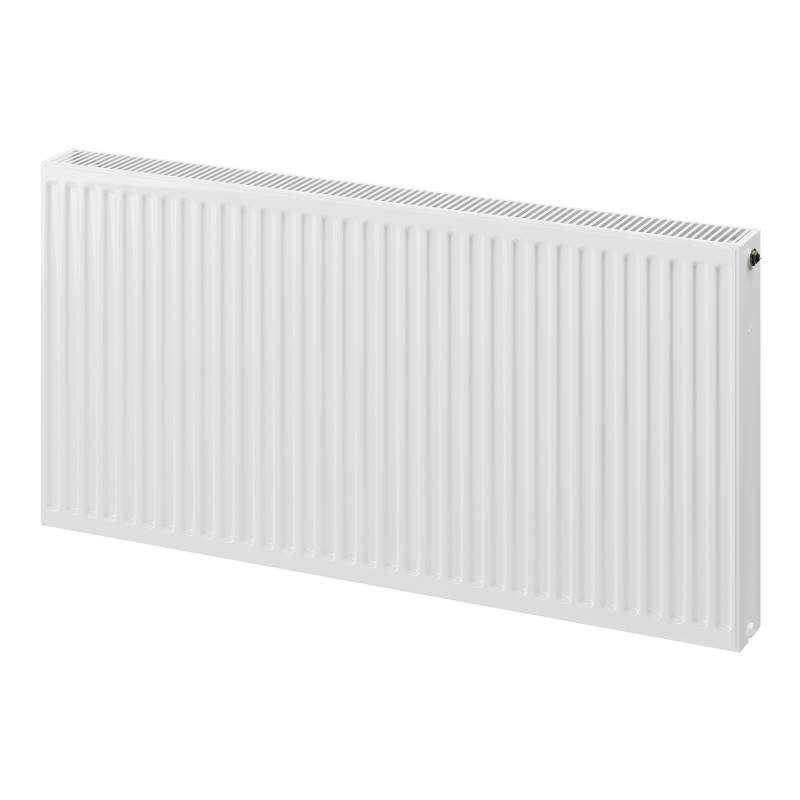

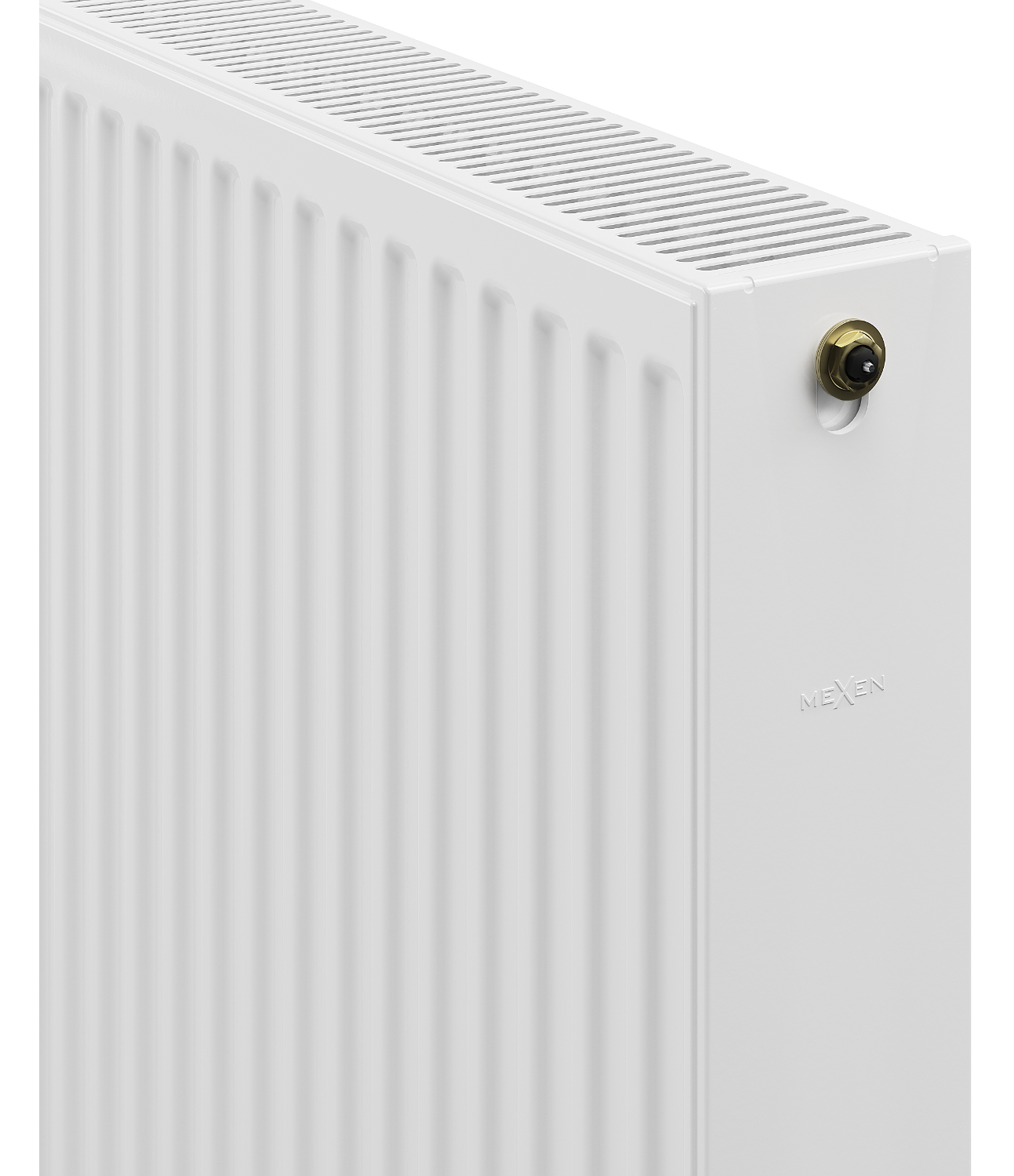

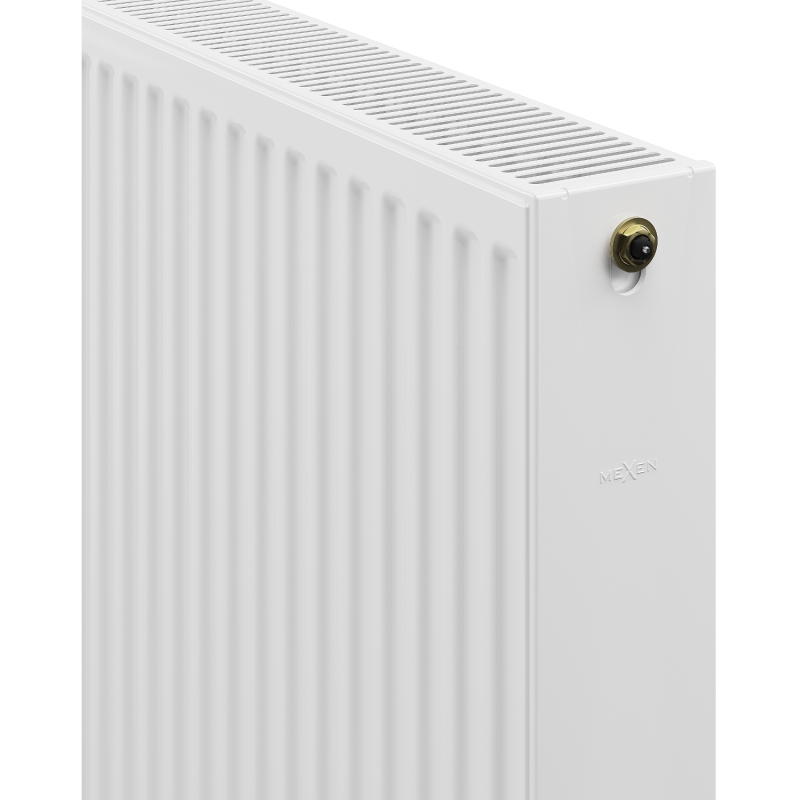

Pictures depict the radiator in size 600 x 1200 mm.

Innovative solutions used in this product
steel

The product was made of high quality low -carbon steel, which not only affects the long life of the device and corrosion resistance, but also allows you to quickly heat the room and provides users with thermal comfort.

Easy cleaning

The ability to remove the upper lid allows you to keep the radiator easier clean. Convenient access to the interior allows it to be cleaned, not only ensuring aesthetic appearance, but also greater user safety.

1 MPa

The maximum working pressure is 1 MPa (10 bar). This means that the radiator can work safely and effectively in standard conditions of use. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110 ° C

The maximum temperature achieved by the radiator during operation is 110 ° C. It allows for effective and efficient heating of the room, while ensuring the safety of users and the surface of the surrounding radiator.

Resistance to matting and corrosion

The product is made of high quality materials resistant to matting and corrosion, thanks to which it maintains its attractive appearance and functionality for a long time, regardless of the level of humidity in the room.

10 years of warranty

The product is covered by a 10-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Feature tab
Series
CV22
Width
1600 mm
Height
500 mm
Type
Panel / Panel
Heating Power
2279 W
Color
White
Material
Steel
Type
22
Strength
Universal
Depth
103 mm
Connection spacing
5 cm
Connection
Bottom
Orientation
Horizontal
