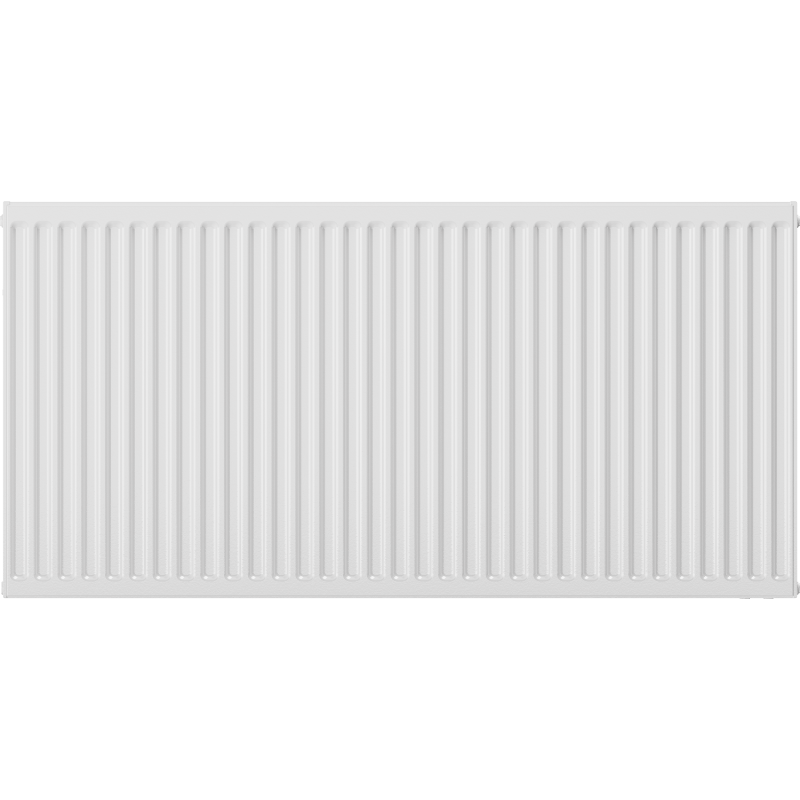

Mexen C21 Panel radiator 300 x 1200 mm, side connection, 883 W, white - W421-030-120-00
Mexen C21 is a high-quality panel radiator with dimensions 300 x 1200 mm and a heating output of up to 883 W. Made of steel, with a durable paint coating compliant with DIN 99500 in white RAL 9016. Equipped with side connection 4xG ½″, it is perfect for various interiors. With a maximum working pressure of 10 bar and an operating temperature of up to 110 °C, it ensures optimal performance. The set includes all necessary installation accessories and an air vent.
Technical data:
Height (Y): 300 mm
Width (X): 1200 mm
Depth: 73 mm
Connection spacing: 25 cm
Vertical water channel spacing: 33.3 mm
Color: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 461 W
- 75/65/20 °C 883 W
- 90/70/20 °C 1114 W
Connections:
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500
Features side cover and removable top cover
Includes: brackets, installation kit, blind plugs, and air vent

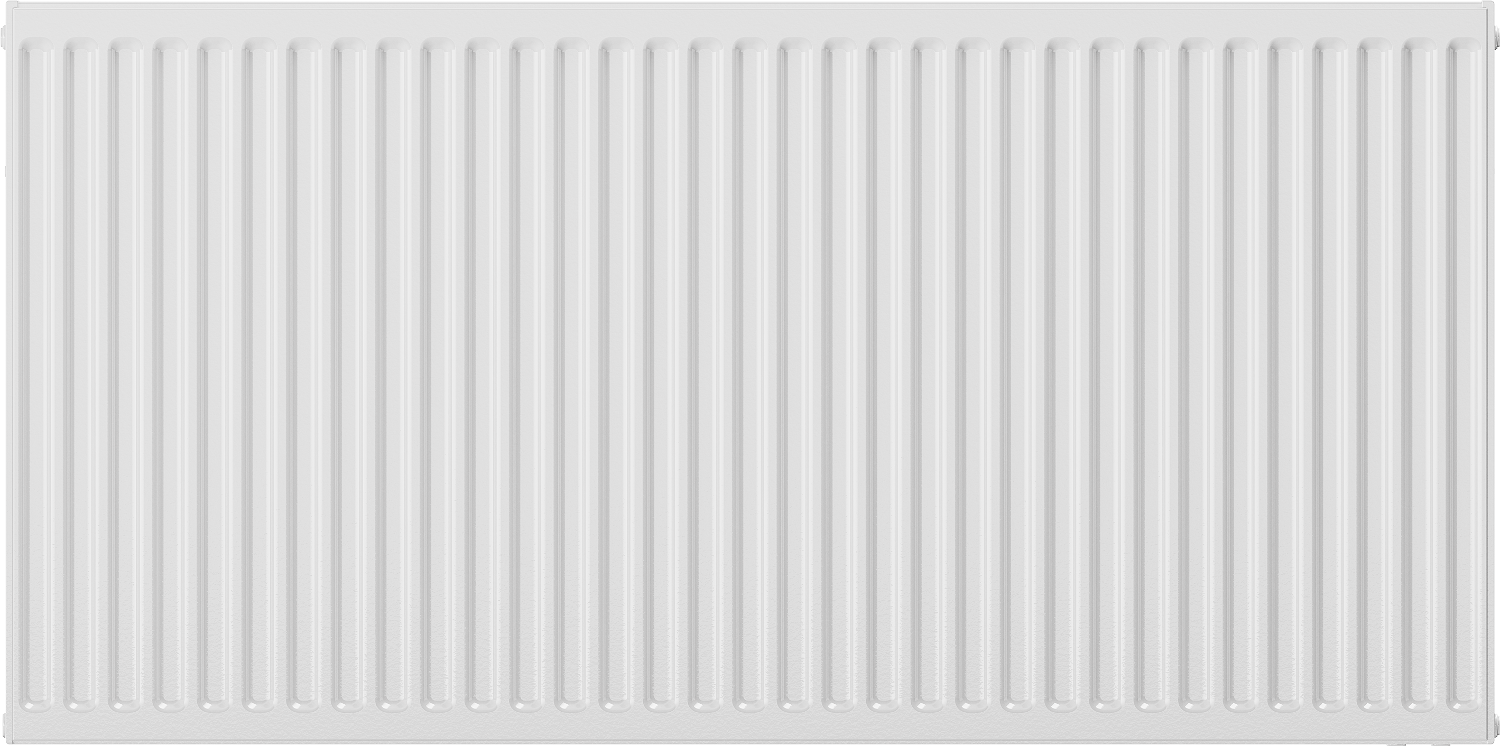

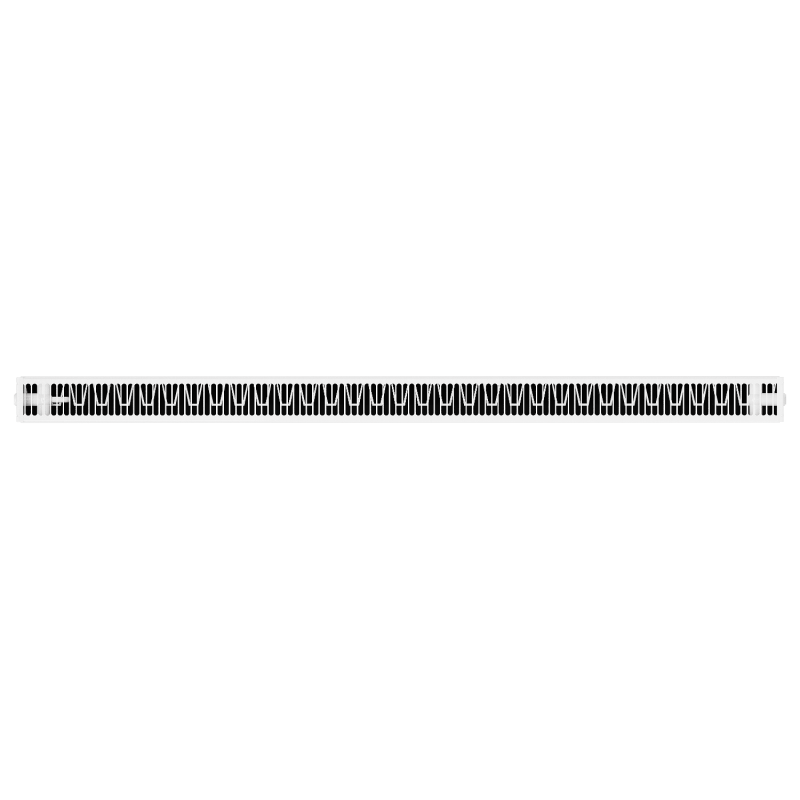

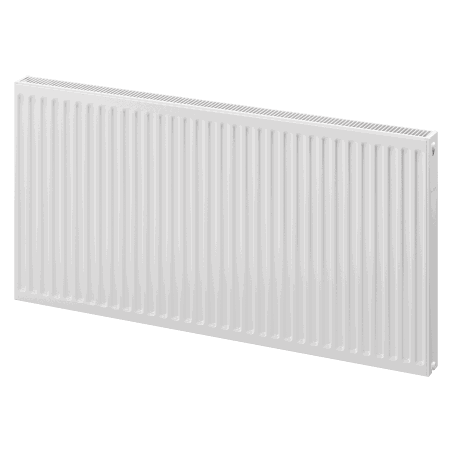

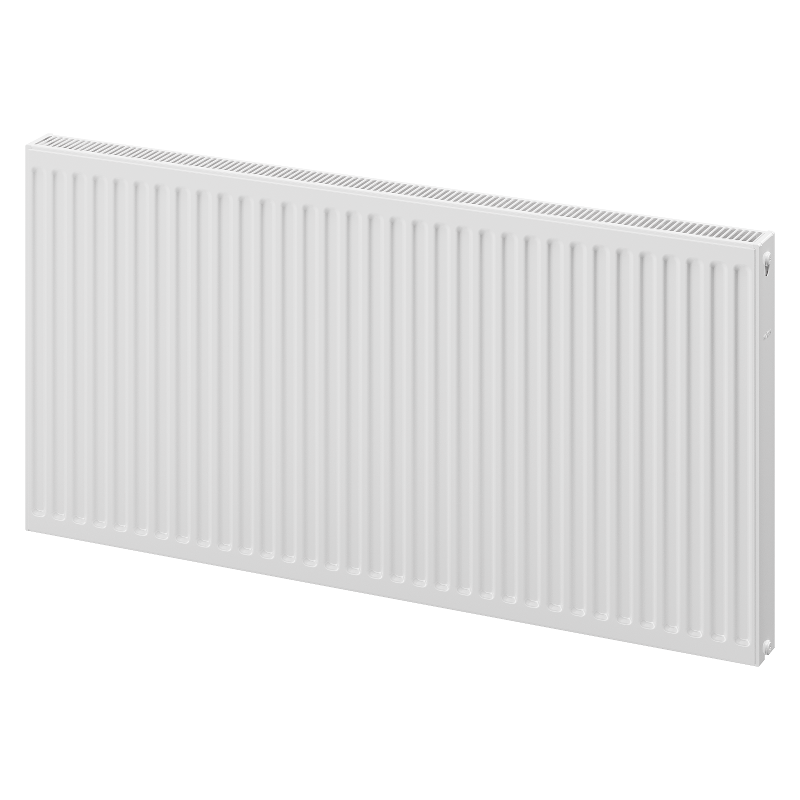

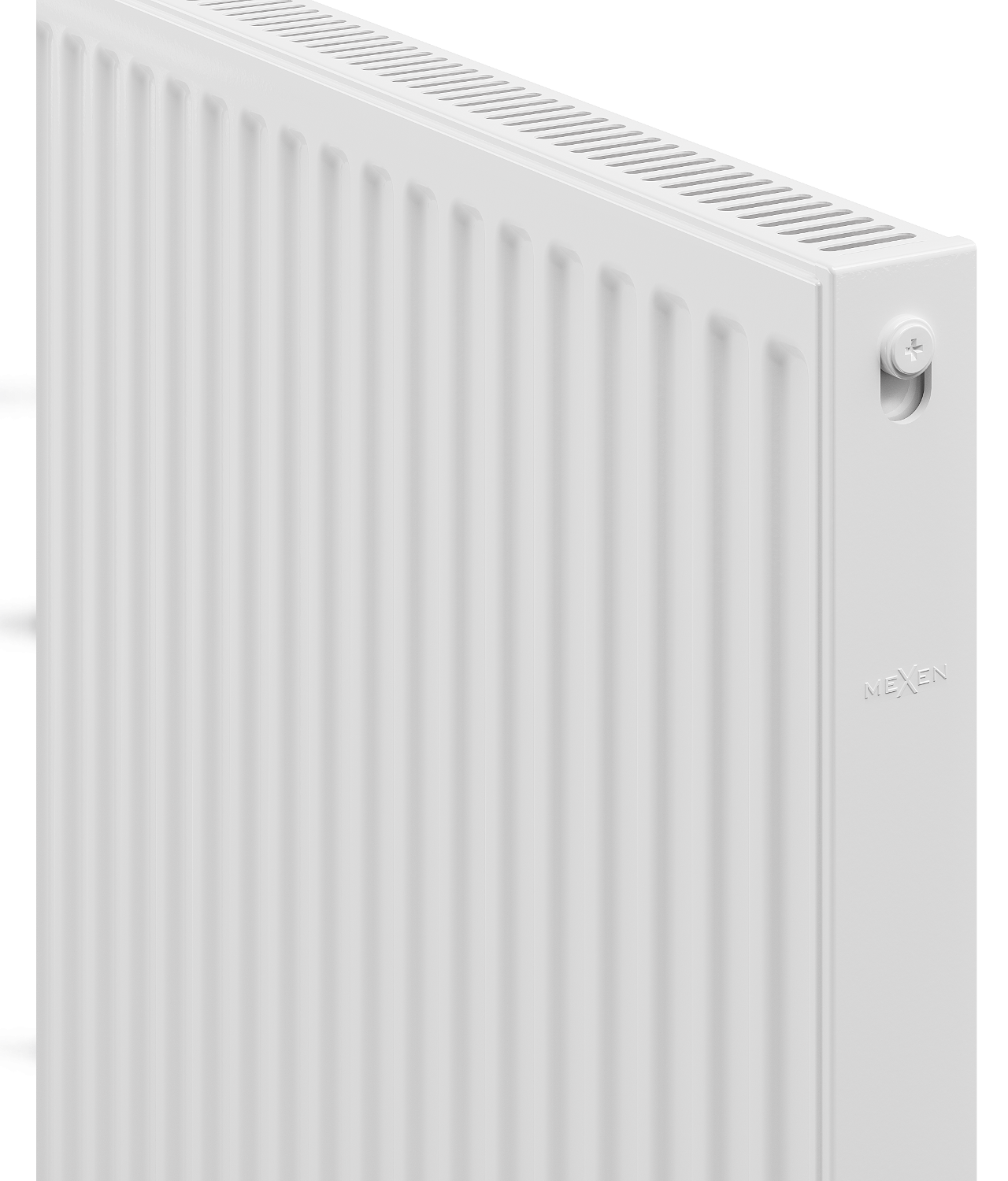

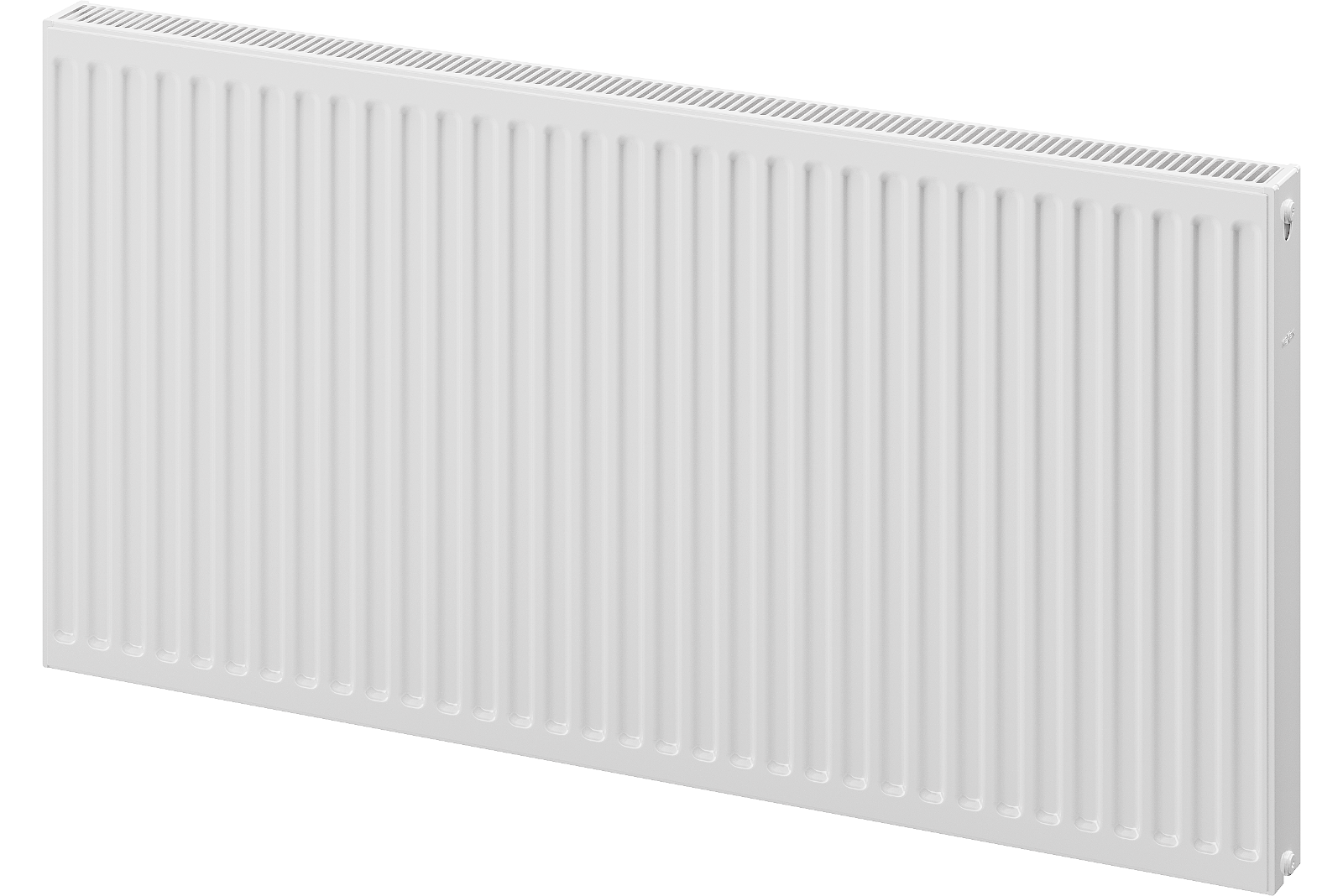

Pictures show a radiator size of 600 x 1200 mm.
