Mexen C22 panel radiator 600 x 900 mm, side connection, 1487 W, anthracite - W422-060-090-66
Technical data:
Height (Y): 600 mm
Width (X): 900 mm
Depth: 103 mm
Connection spacing: 55 cm
Vertical water channel spacing: 33.3 mm
Colour: Anthracite RAL 7016
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 769 W
- 75/65/20 °C 1487 W
- 90/70/20 °C 1882 W
Connections:
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500
Features side cover and removable top cover
Included: brackets, installation kit, sealing plugs, and air vent

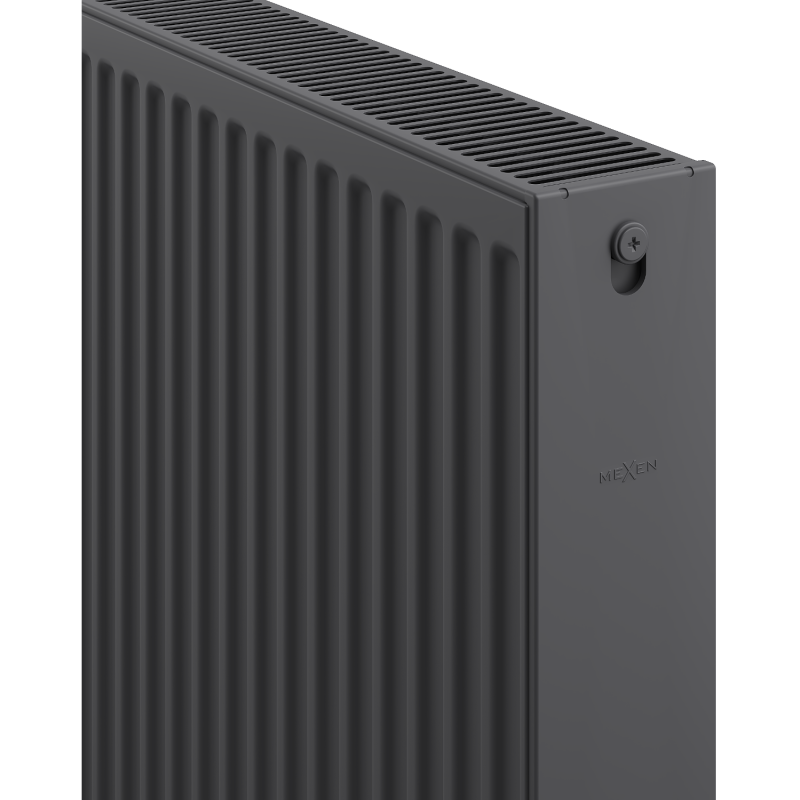

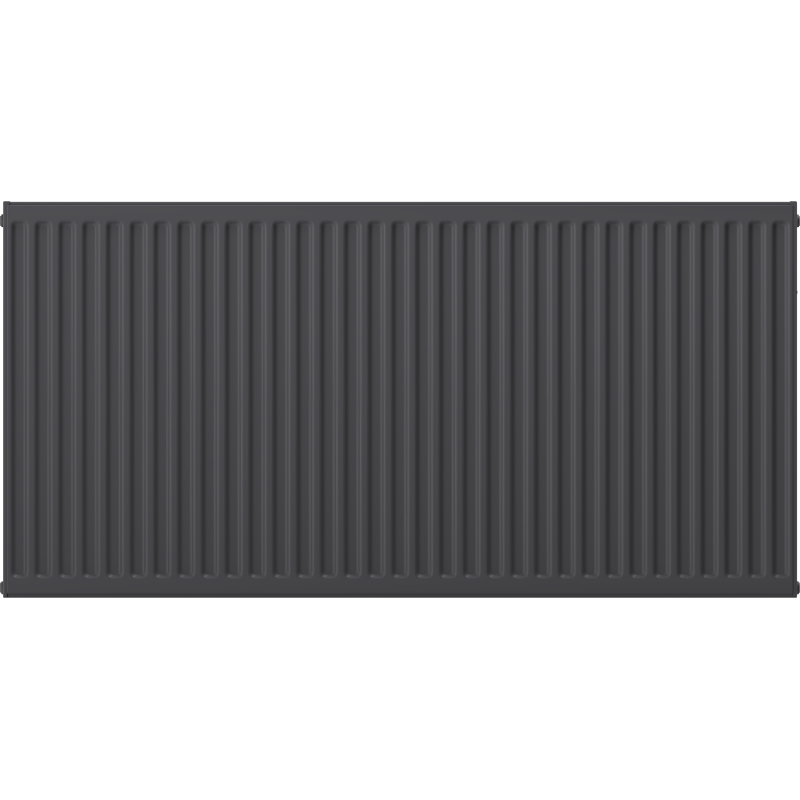

Pictures show the radiator in size 600 x 1200 mm.
