Mexen CVL11 Plate Radiator Line 500 x 1100 mm, Bottom Connection, 751 W, White - W611L-050-110-00

The Mexen Line CVL11 panel radiator is an ideal choice for those looking for an efficient and aesthetic heating solution. With dimensions of 500 x 1100 mm and a thickness of 59 mm, it is perfect for various spaces. The heating power reaches up to 751 W at 75/65/20 °C, allowing for quick room heating. The unique white color (RAL 9016) and steel construction ensure durability. The product is equipped with practical covers and a removable top cover, and the installation kit facilitates installation. Mexen Line CVL11 operates under a maximum pressure of 10 bar and temperature up to 110 °C, ensuring reliable operation.

Technical Data:

Height (Y): 500 mm

Width (X): 1100 mm

Depth: 59 mm

Connection Spacing: 5 cm

Vertical Water Channel Spacing: 33.3 mm

Color: White RAL 9016

Material: Steel

Operating Temperature: max 110 °C

Max Operating Pressure: 10 bar

Max Test Pressure: 13 bar

Heating Power:

- 55/45/20 °C 400 W

- 75/65/20 °C 751 W

- 90/70/20 °C 940 W

Connections:

- 2xG ½″ bottom right

- 4xG ½″ side

High-quality, durable paint coating - DIN 99500

Includes side cover and removable top cover

Includes: hangers, installation set, sealing plugs, air vent, and valve insert

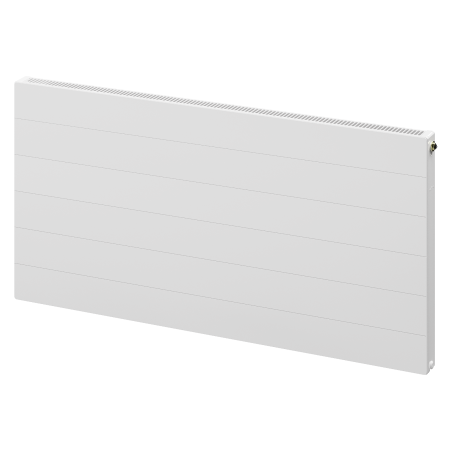

The pictures show a radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CVL11
Width
1100 mm
Height
500 mm
Depth
59 mm
Type
Plate / Panel
Heating power
751 W
Color
White
Material
Steel
Type
11
Installation Orientation
Right
Connection spacing
5 cm
Connection
Bottom
Orientation
Horizontal
