Mexen CL22 Line flat radiator 300 x 700 mm, side connection, 630 W, white - W422L-030-070-00
The Mexen Line CL22 is an excellent flat radiator measuring 300 x 700 mm, with a side connection and power of 630 W, finished in elegant white RAL 9016. Thanks to its compact size and solid steel construction, it is ideal for various interiors. It offers high thermal efficiency at temperatures from 332 W at 55/45/20 °C to 793 W at 90/70/20 °C. The radiator features side covers, a removable top cover, and a high-quality paint coating compliant with DIN 99500. The set includes all necessary elements. The maximum operating temperature is 110 °C, and the operating pressure is up to 10 bar.
Technical data:

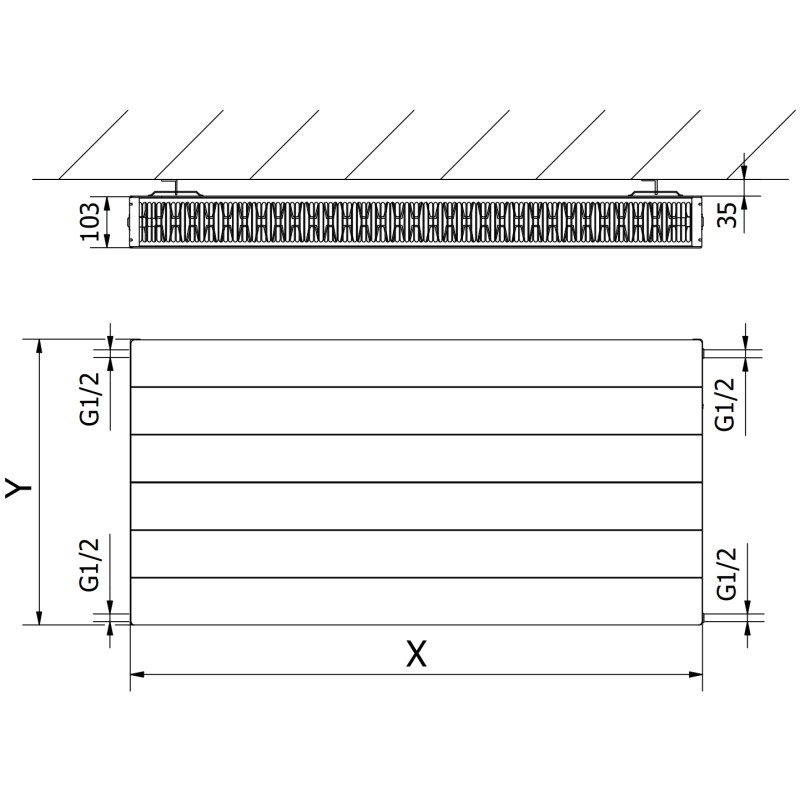

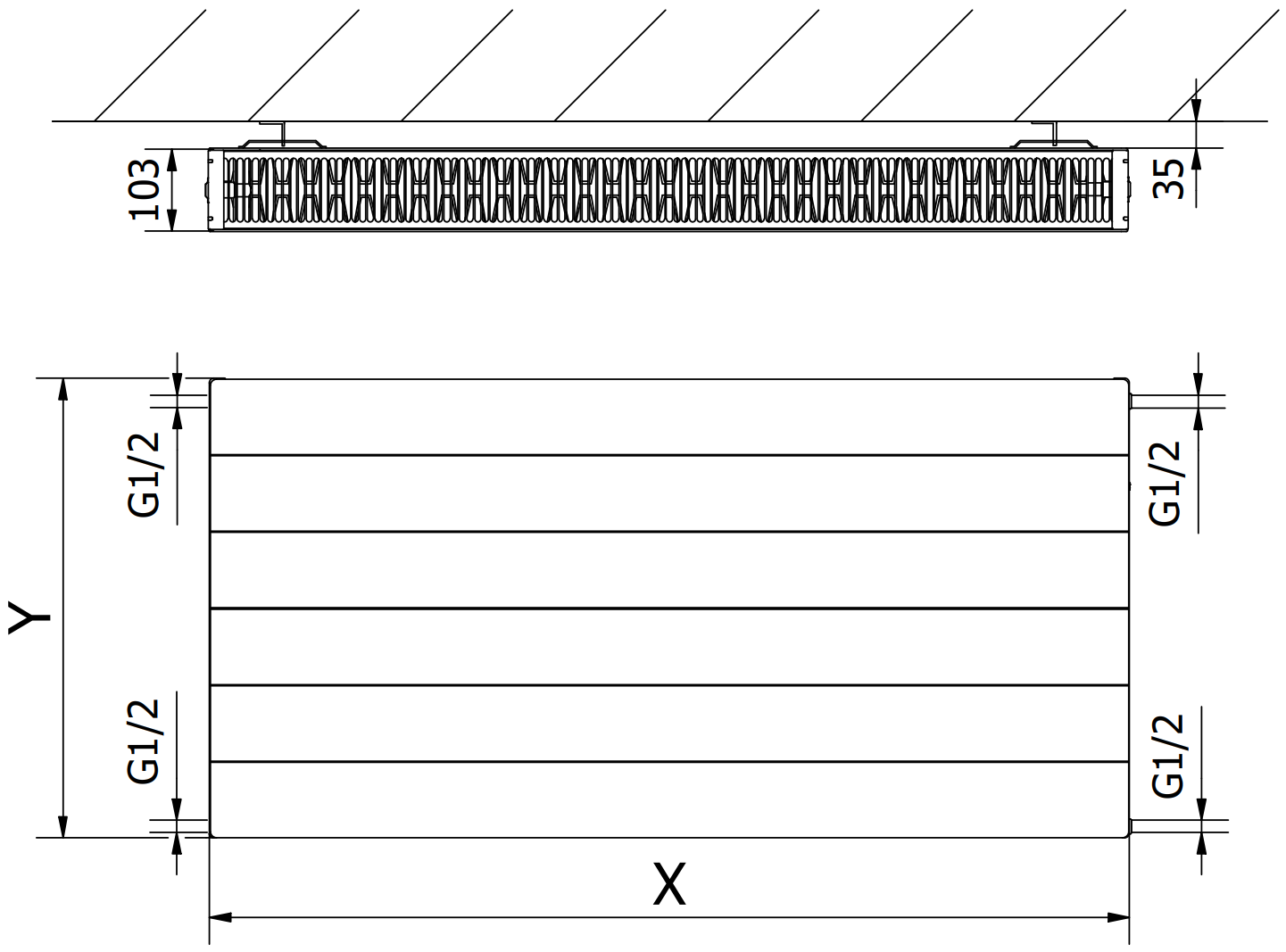

Height (Y): 300 mm
Width (X): 700 mm
Depth: 103 mm
Connection spacing: 25 cm
Spacing of vertical water channels: 33.3 mm
Color: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Maximum operating pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 332 W
- 75/65/20 °C 630 W
- 90/70/20 °C 793 W
Connections:
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500
Features side cover and removable top cover
Includes: hangers, installation kit, blanking plugs, and air vent

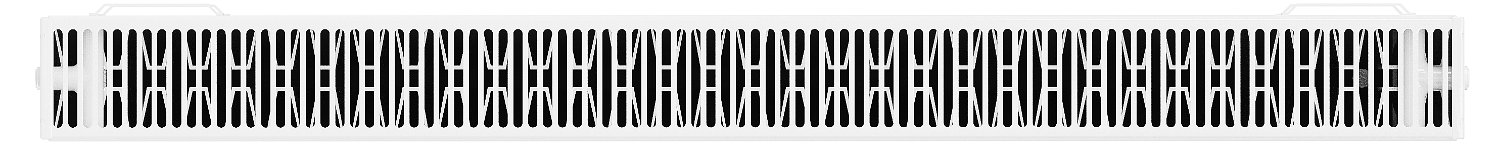

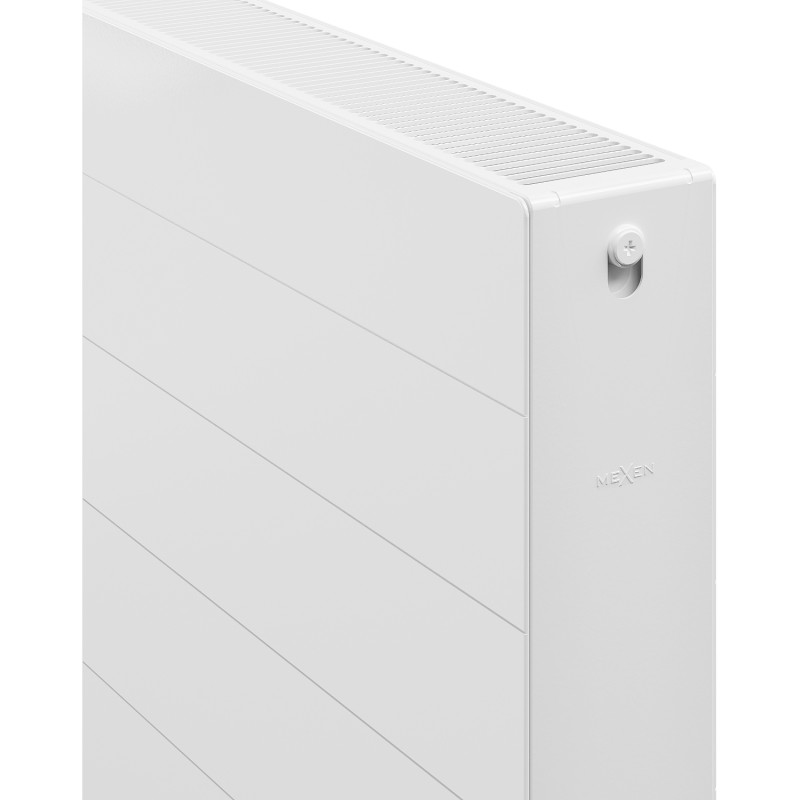

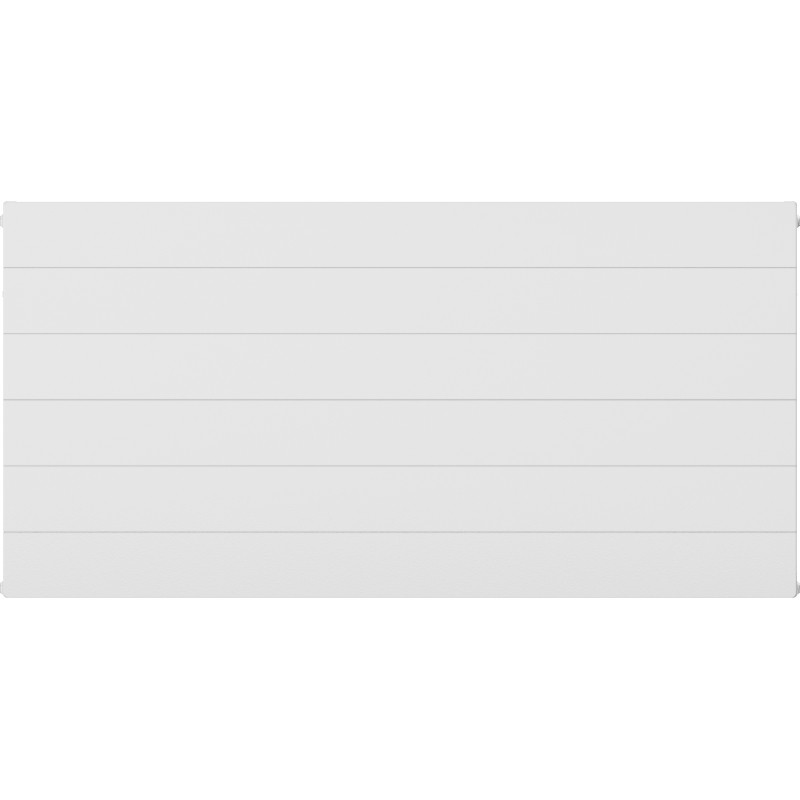

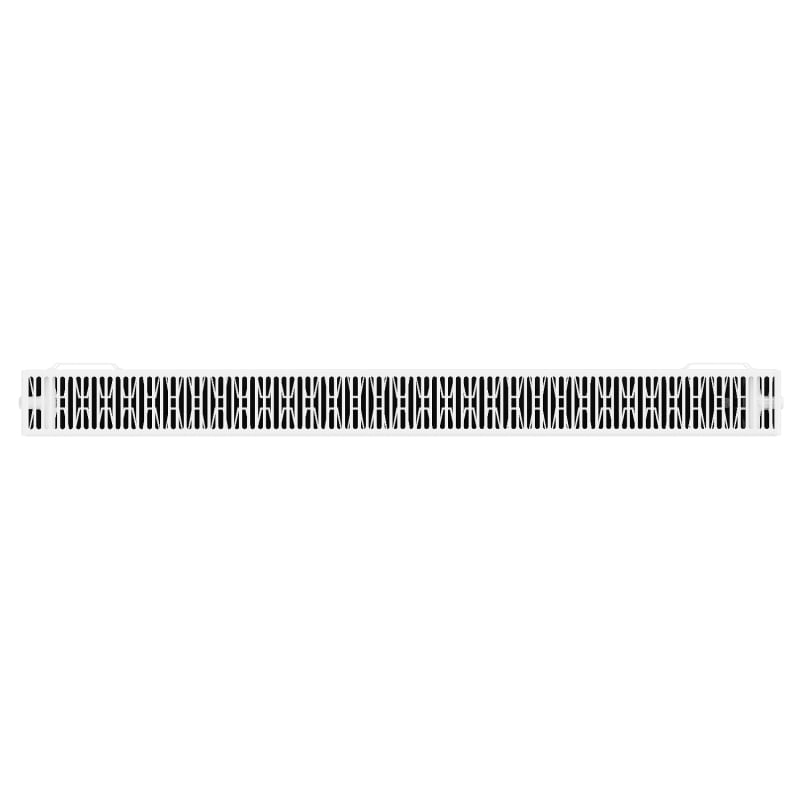

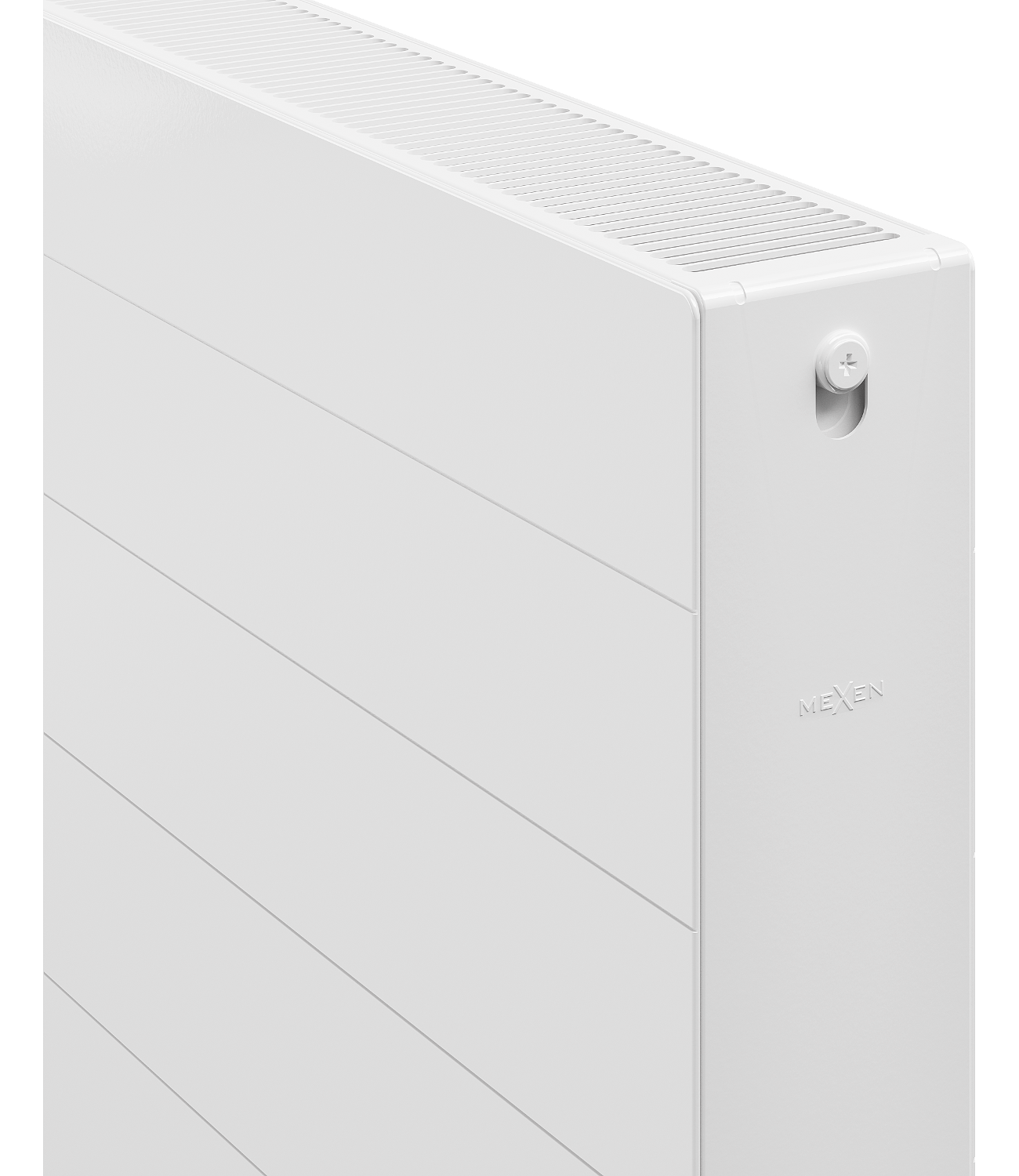

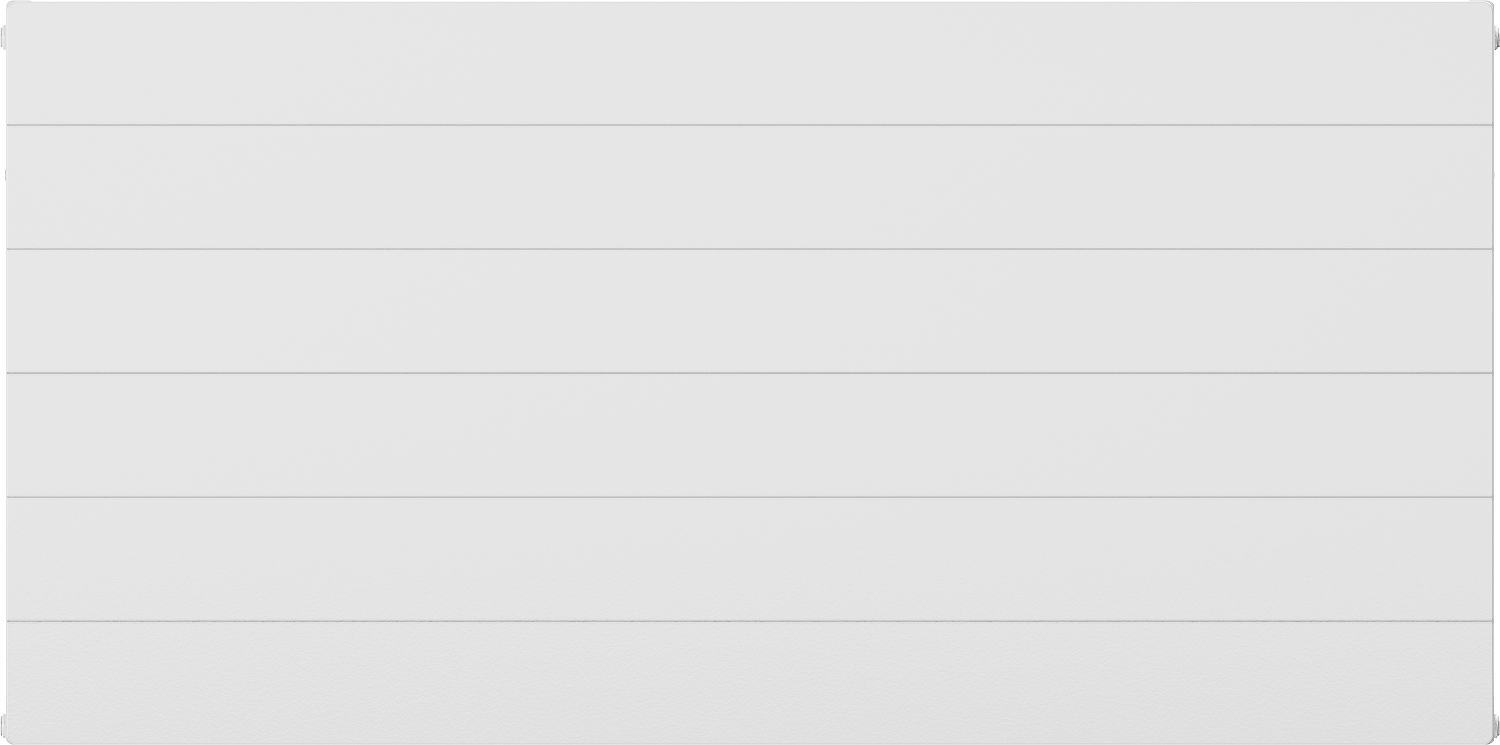

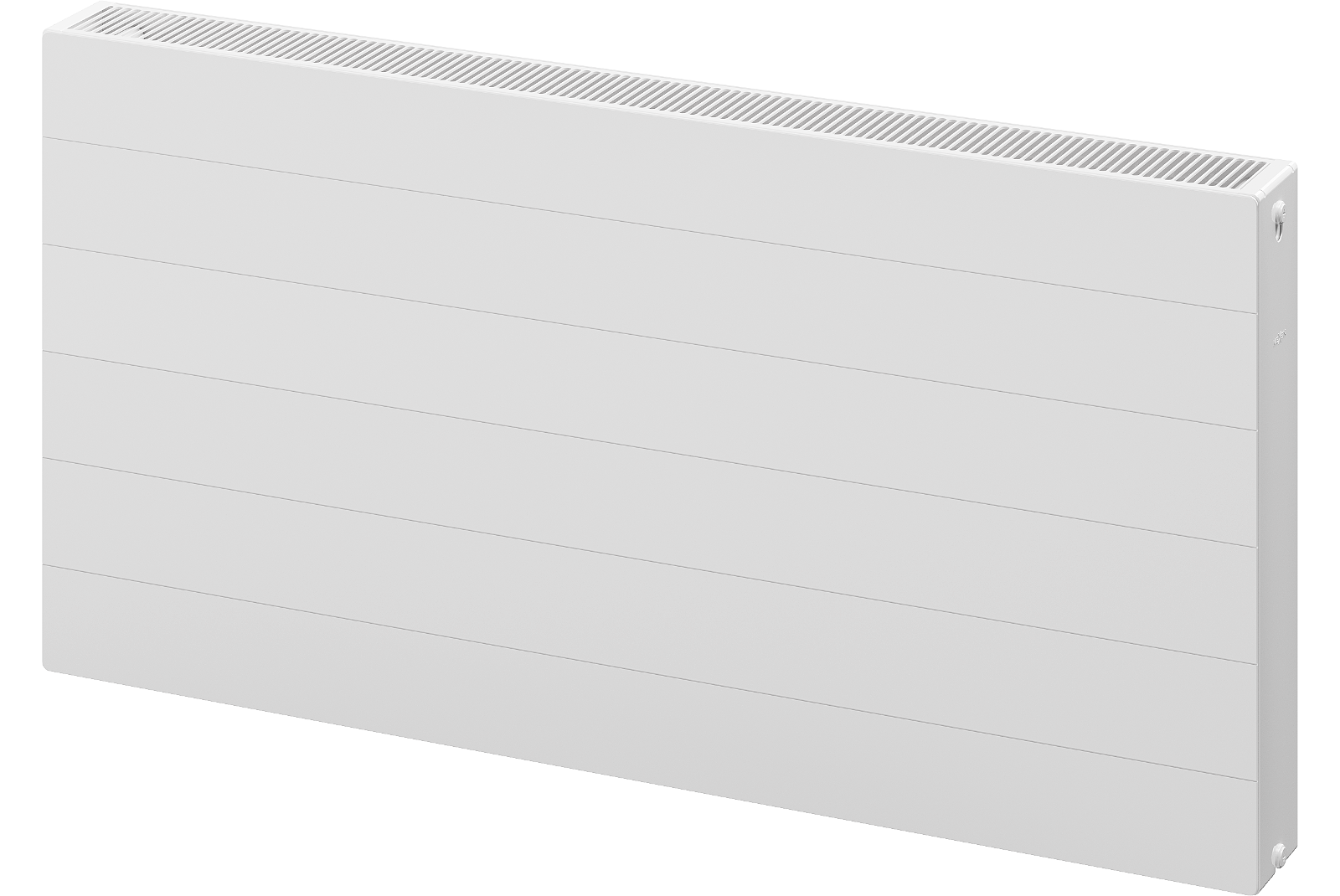

Photos show the radiator in size 600 x 1200 mm.
