Mexen CL21 Plate radiator line 900 x 1000 mm, side connection, 1589 W, white - W421L-090-100-00

Mexen Line CL21 is a plate radiator with dimensions of 900 x 1000 mm, whose white steel finish suits any interior. With side connection and 85 cm spacing, installation is simple and efficient. The radiator reaches a power of 1589 W at a temperature of 75/65/20°C, ensuring rapid room heating. The maximum working pressure is 10 bar, and the operating temperature reaches up to 110°C. The set includes hangers, a mounting kit, and an air vent, as well as a high-quality lacquer coating. The product is solid and aesthetic, ideal for modern spaces.

Technical data:

Height (Y): 900 mm

Width (X): 1000 mm

Depth: 73 mm

Connection spacing: 85 cm

Vertical water channel spacing: 33.3 mm

Color: White RAL 9016

Material: Steel

Operating temperature: max 110 °C

Maximum working pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 866 W

- 75/65/20 °C 1589 W

- 90/70/20 °C 1974 W

Connections:

- 4xG ½″ side

High-quality, durable lacquer coating - DIN 99500

Includes side cover and removable top cover

Includes: hangers, mounting kit, end caps, and air vent

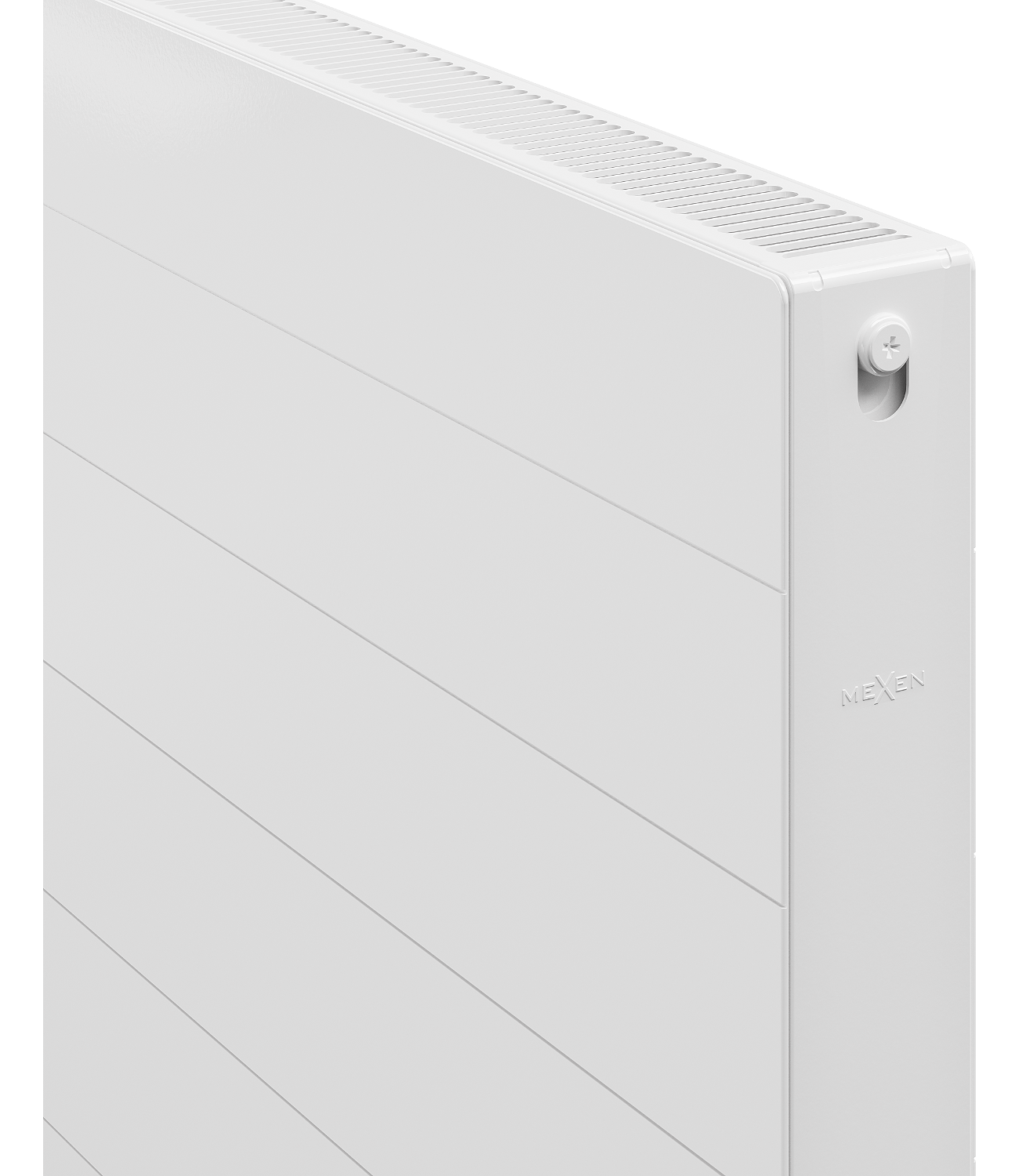

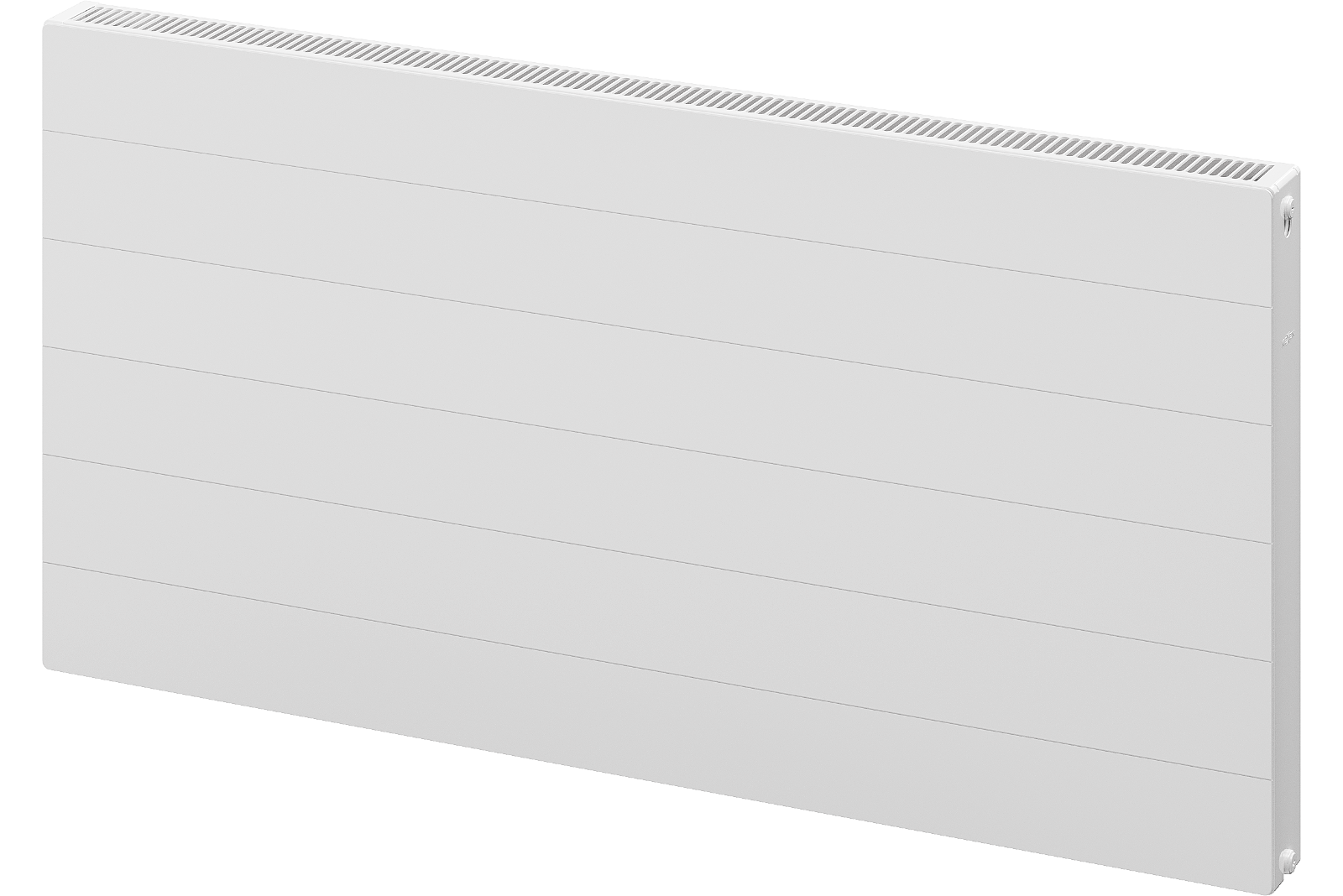

Pictures show the radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CL21
Width
1000 mm
Height
900 mm
Depth
73 mm
Type
Plate / Panel
Heating power
1589 W
Color
White
Material
Steel
Type
21
Installation Orientation
Universal
Connection spacing
85 cm
Connection
Side
Orientation
Horizontal
