Mexen CL22 Plate Radiator Line 500 x 1200 mm, Side Connection, 1637 W, White - W422L-050-120-00

The Mexen Line CL22 is a unique plate radiator with impressive parameters. This model, measuring 500 mm by 1200 mm, is ideal for modern interiors, thanks to its elegant white finish RAL 9016 and high-quality steel. Excellent heating power of 1637 W at 75/65/20 °C provides comfortable heating for larger rooms. Additional advantages include a durable lacquer coating DIN 99500, as well as 4xG ½″ side connections, making installation quick and simple. The set includes necessary installation accessories and an air vent.

Technical data:

Height (Y): 500 mm

Width (X): 1200 mm

Depth: 103 mm

Connection spacing: 45 cm

Spacing of vertical water channels: 33.3 mm

Color: White RAL 9016

Material: Steel

Working temperature: max 110 °C

Maximum operating pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 857 W

- 75/65/20 °C 1637 W

- 90/70/20 °C 2063 W

Connections:

- 4xG ½″ side

High quality, durable lacquer coating - DIN 99500

Includes side cover and removable top cover

The set includes: hangers, installation kit, blanking plugs and air vent

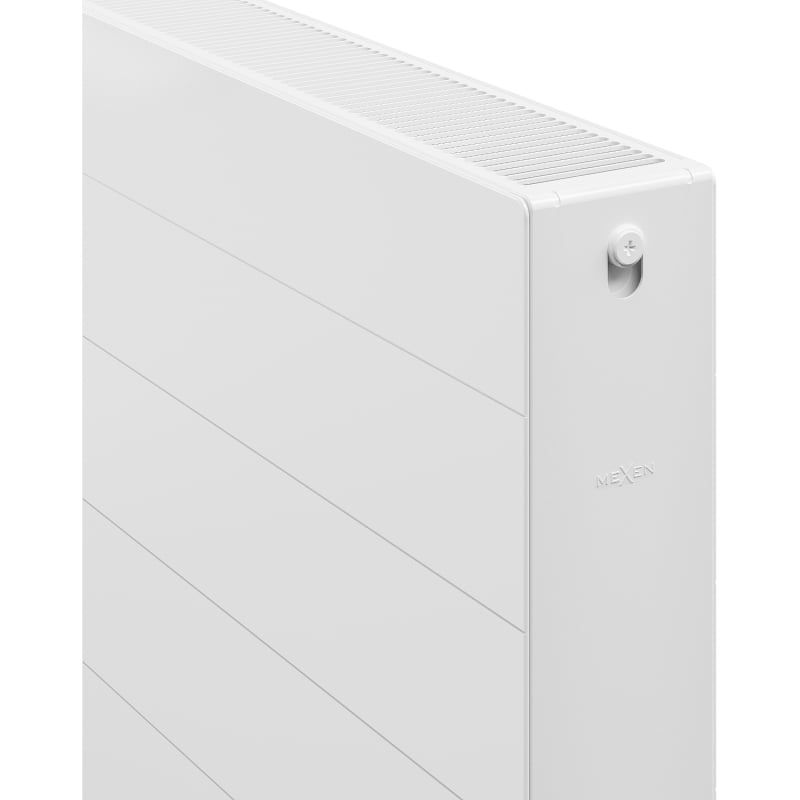

The photos show the radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CL22
Width
1200 mm
Height
500 mm
Depth
103 mm
Type
Plate / Panel
Heating power
1637 W
Color
White
Material
Steel
Type
22
Installation Orientation
Universal
Connection spacing
45 cm
Connection
Side
Orientation
Horizontal
