Mexen CVL22 Plate Radiator Line 300 x 1000 mm, Bottom Connection, 901 W, White - W622L-030-100-00

The Mexen Line CVL22 plate radiator stands out with its efficiency and modern design. With dimensions of 300 x 1000 mm and bottom connection, it guarantees a heating power of up to 1133 W at a temperature of 90/70/20 °C. Made of durable steel, finished in white color RAL 9016, it fits perfectly into various interiors. The radiator is highly resistant to temperatures up to 110 °C and operating pressure up to 10 bar, ensuring reliability. Thanks to the side cover and removable top cover, installation and maintenance are exceptionally easy.

Technical data:

Height (Y): 300 mm

Width (X): 1000 mm

Depth: 103 mm

Connection spacing: 5 cm

Vertical water channel spacing: 33.3 mm

Color: White RAL 9016

Material: Steel

Operating temperature: max 110 °C

Maximum operating pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 474 W

- 75/65/20 °C 901 W

- 90/70/20 °C 1133 W

Connections:

- 2xG ½” from below on the right or left side

- 4xG ½” side

High-quality, durable paint coating - DIN 99500

Includes side cover and removable top cover

Includes: brackets, mounting kit, sealing plugs, air vent, and valve insert

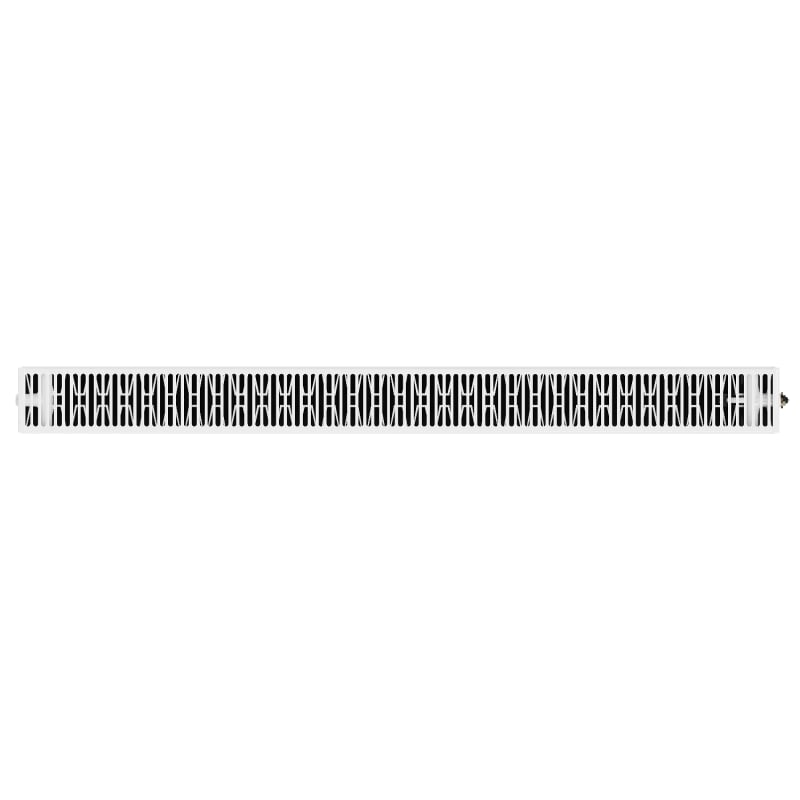

The pictures show a radiator of size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CVL22
Width
1000 mm
Height
300 mm
Depth
103 mm
Type
Plate / Panel
Heating power
901 W
Color
White
Material
Steel
Type
22
Installation Orientation
Universal
Connection spacing
5 cm
Connection
Bottom
Orientation
Horizontal
