Mexen Flat CF22 Panel Radiator 300 x 600 mm, Side Connection, 540 W, White - W422F-030-060-00
Technical Specifications:

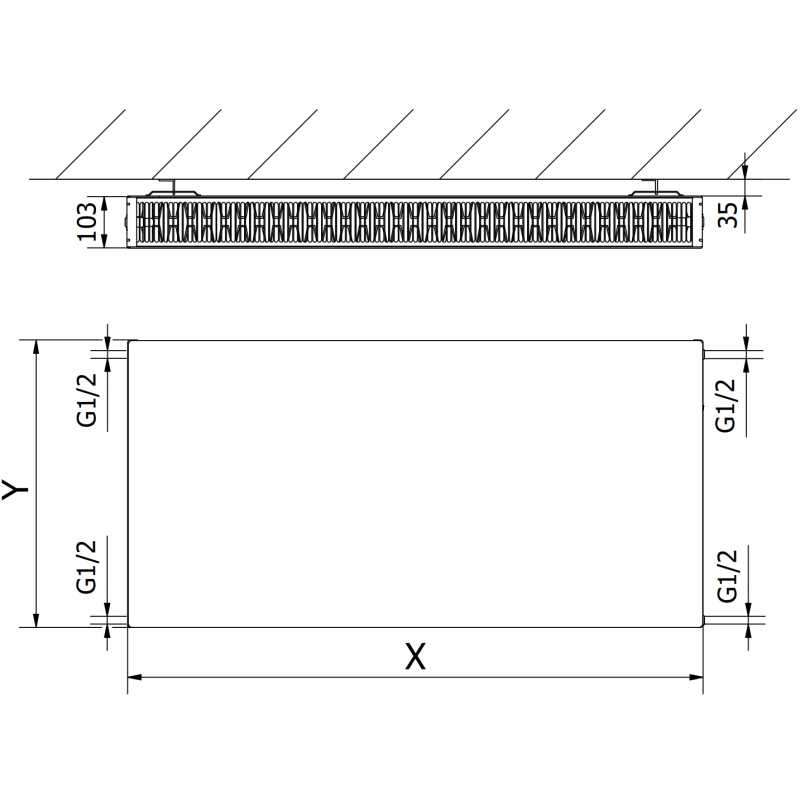

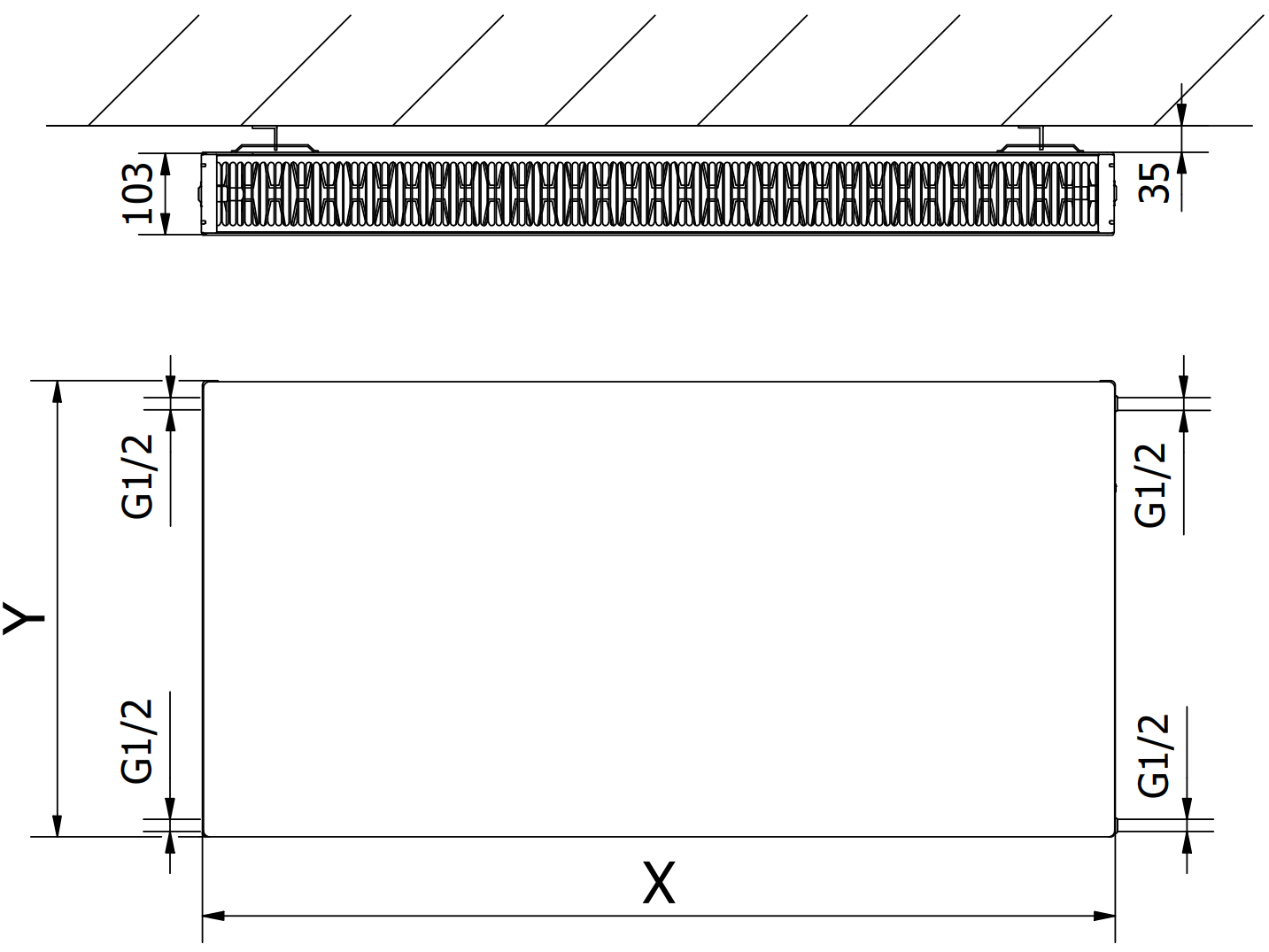

Height (Y): 300 mm
Width (X): 600 mm
Depth: 103 mm
Connection Spacing: 25 cm
Vertical Water Channel Spacing: 33.3 mm
Colour: White RAL 9016
Material: Steel
Operating Temperature: max 110 °C
Maximum Working Pressure: 10 bar
Maximum Test Pressure: 13 bar
Heating Power:
- 55/45/20 °C 284 W
- 75/65/20 °C 540 W
- 90/70/20 °C 680 W
Connections:
- 4xG ½″ side
High-quality, durable lacquer coating - DIN 99500
Includes side panel and removable top cover
Included: brackets, mounting kit, sealing caps, and air vent

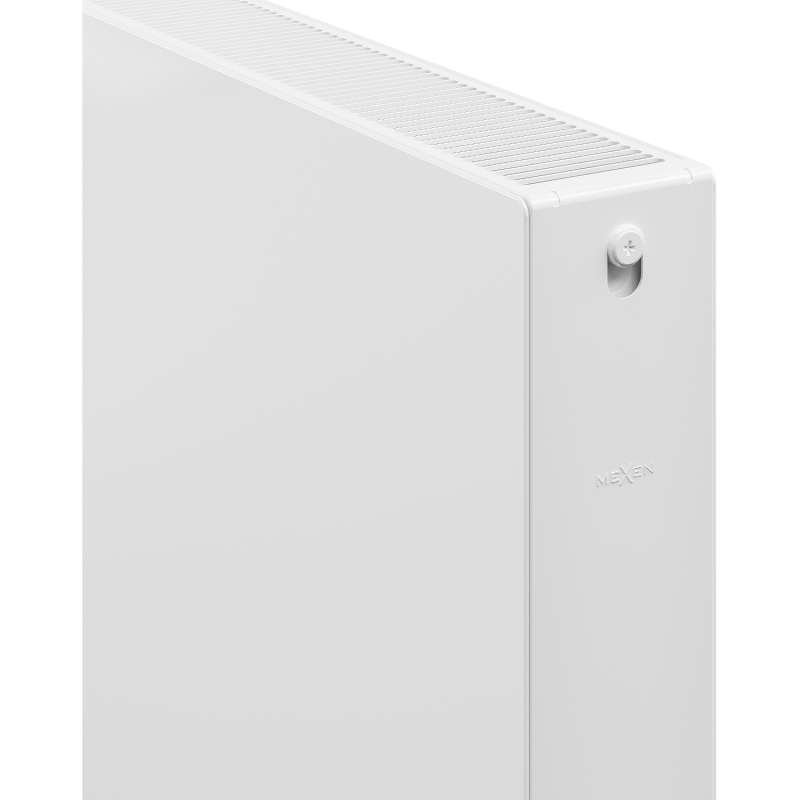

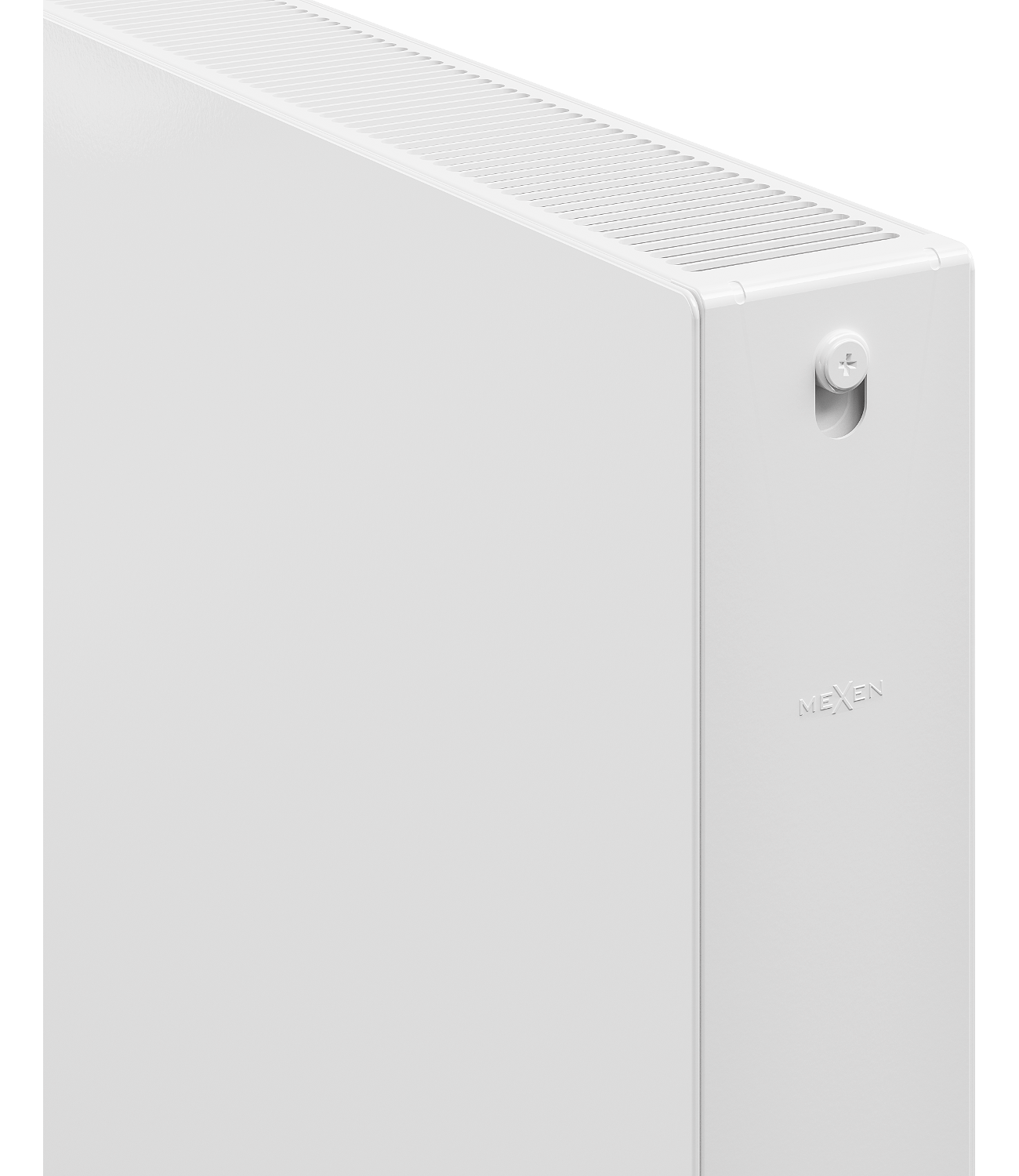

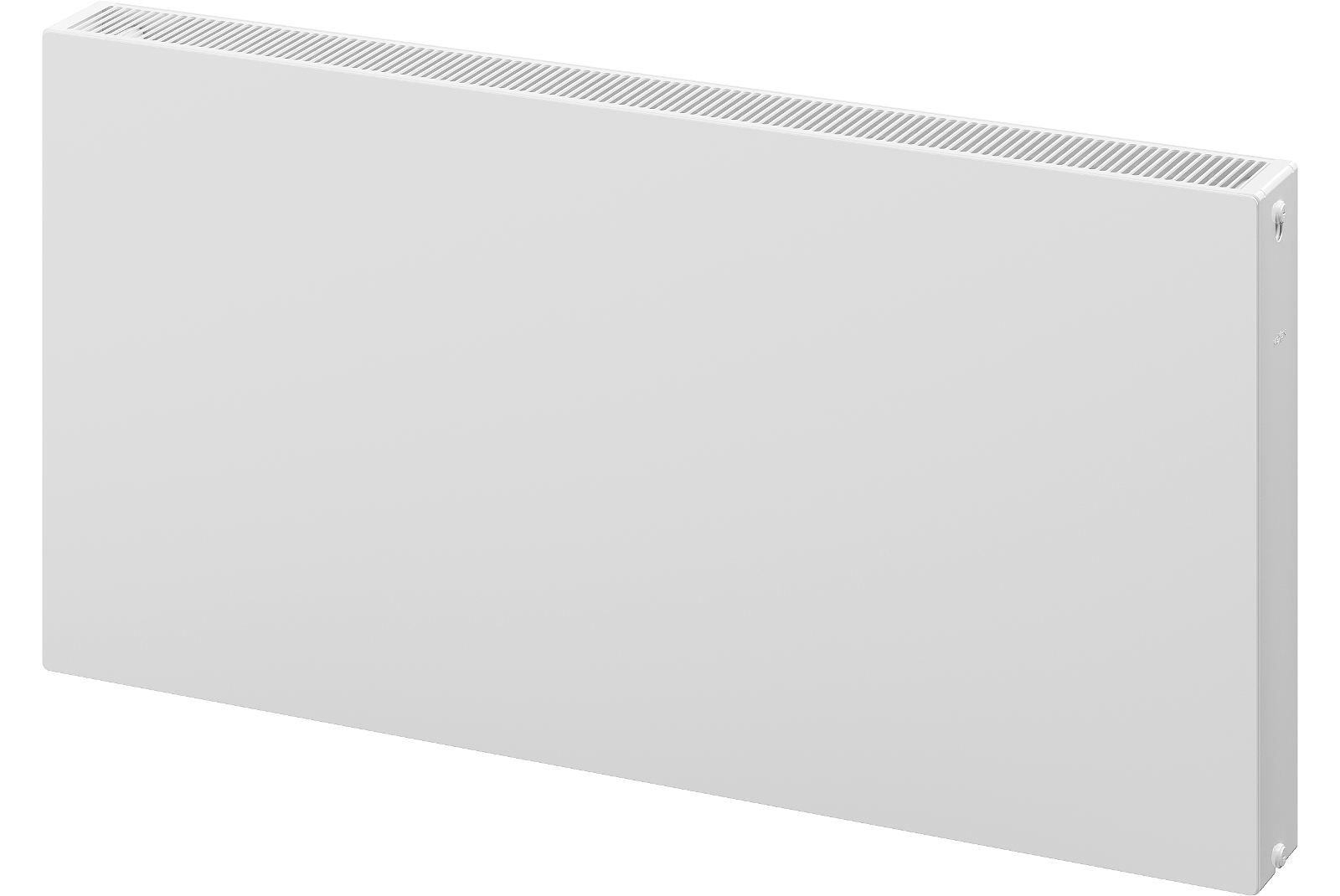

Photos show the radiator in size 600 x 1200 mm.
