Mexen Flat CF22 panel radiator 300 x 1000 mm, side connection, 901 W, white - W422F-030-100-00
Technical data:
Height (Y): 300 mm
Width (X): 1000 mm
Depth: 103 mm
Connection spacing: 25 cm
Spacing of vertical water channels: 33.3 mm
Colour: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 474 W
- 75/65/20 °C 901 W
- 90/70/20 °C 1133 W
Connections:
- 4xG ½″ side
High quality, durable coating - DIN 99500
Equipped with side cover and removable top cover
Includes: brackets, installation kit, sealing plugs and air vent

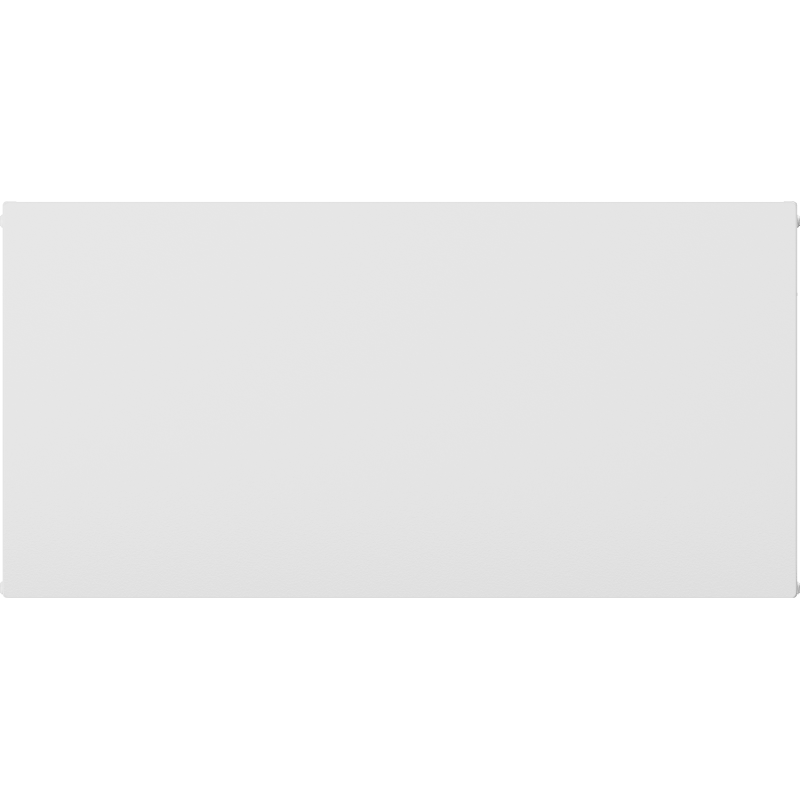

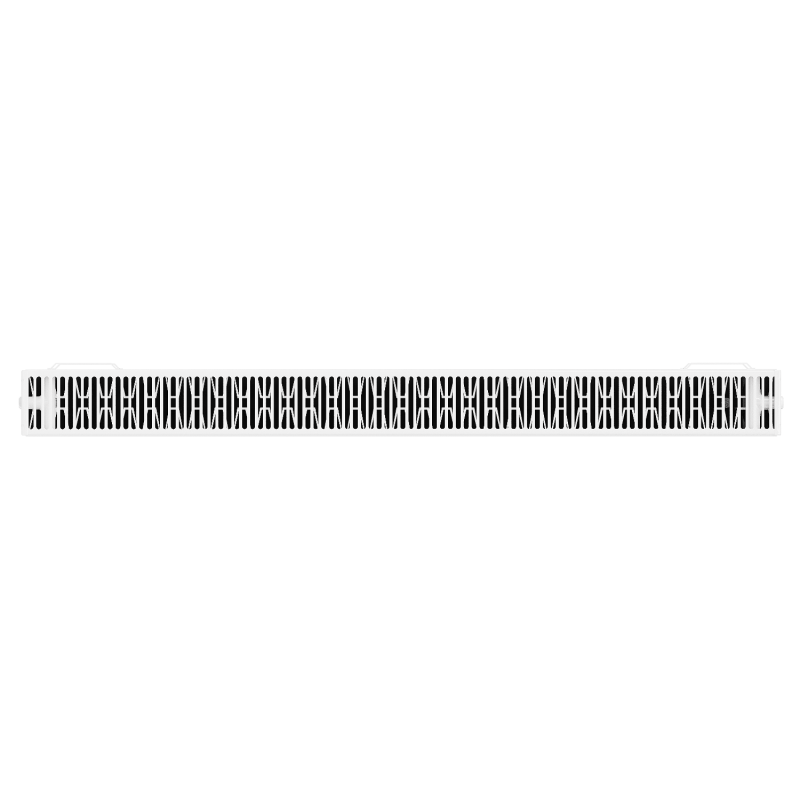

Images show the radiator in size 600 x 1200 mm.
