Mexen CF33 Flat panel radiator 300 x 1500 mm, side connection, 1860 W, white - W433F-030-150-00
The Mexen Flat CF33 panel radiator is an excellent solution for those seeking efficient and aesthetic heating. The model measures 300 x 1500 mm, features a side connection, and provides heating power up to 1860 W at 75/65/20 °C, ensuring effective room heating. Made of steel, covered with white paint (RAL 9016), ensuring durability and elegance. The maximum operating temperature is 110 °C, with a working pressure up to 10 bar. The set includes hangers, an installation kit, seal plugs, and an air vent. Thanks to the high-quality paint coating compliant with DIN 99500 and a removable top cover, the product combines functionality with modern design.
Technical data:
Height (Y): 300 mm
Width (X): 1500 mm
Depth: 164 mm
Connection spacing: 25 cm
Spacing of vertical water channels: 33.3 mm
Color: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Maximum operating pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 977 W
- 75/65/20 °C 1860 W
- 90/70/20 °C 2341 W
Connections:
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500
Includes side cover and removable top cover
Includes: hangers, installation kit, seal plugs, and air vent

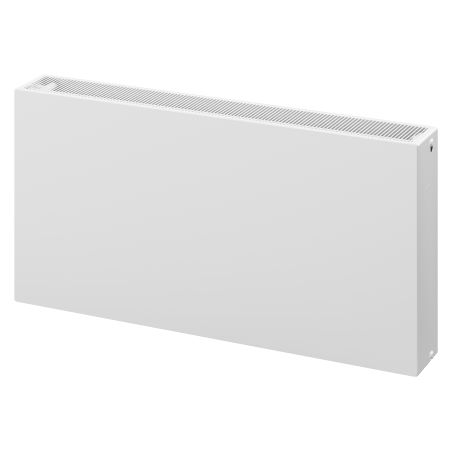

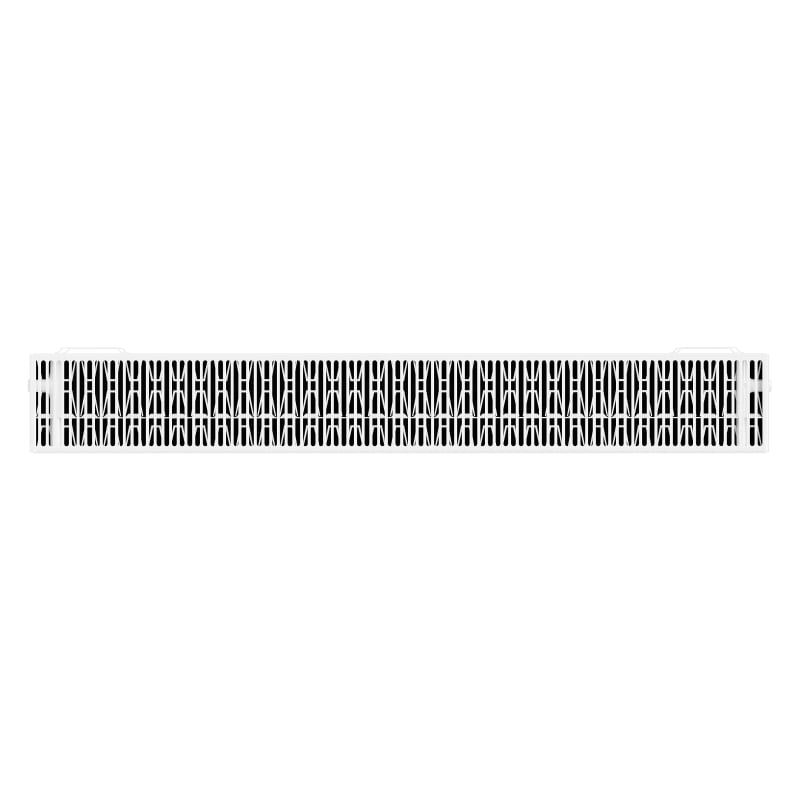

Photos show a radiator in the size 600 x 1200 mm.
