Mexen Flat CF33 is a modern plate radiator that, thanks to its dimensions of 300 x 2000 mm, is perfect for large rooms. The product is characterized by high heating power up to 2481 W, ensuring effective heating even on cold days. Made of steel with a durable paint coating, it provides reliability and longevity. The white color (RAL 9016) and side connections 4xG ½″ make it easy to fit into different interior designs. Additionally, the radiator offers a maximum operating temperature of 110 °C and withstands operating pressure up to 10 bar. The set includes necessary installation elements, facilitating installation.

Technical data:

Height (Y): 300 mm

Width (X): 2000 mm

Depth: 164 mm

Connection spacing: 25 cm

Vertical water channel spacing: 33.3 mm

Color: White RAL 9016

Material: Steel

Operating temperature: max 110 °C

Maximum operating pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 1303 W

- 75/65/20 °C 2481 W

- 90/70/20 °C 3121 W

Connections:

- 4xG ½″ side

High-quality, durable paint coating - DIN 99500

Includes side cover and removable top cover

Includes: brackets, installation kit, blind plugs, and air vent

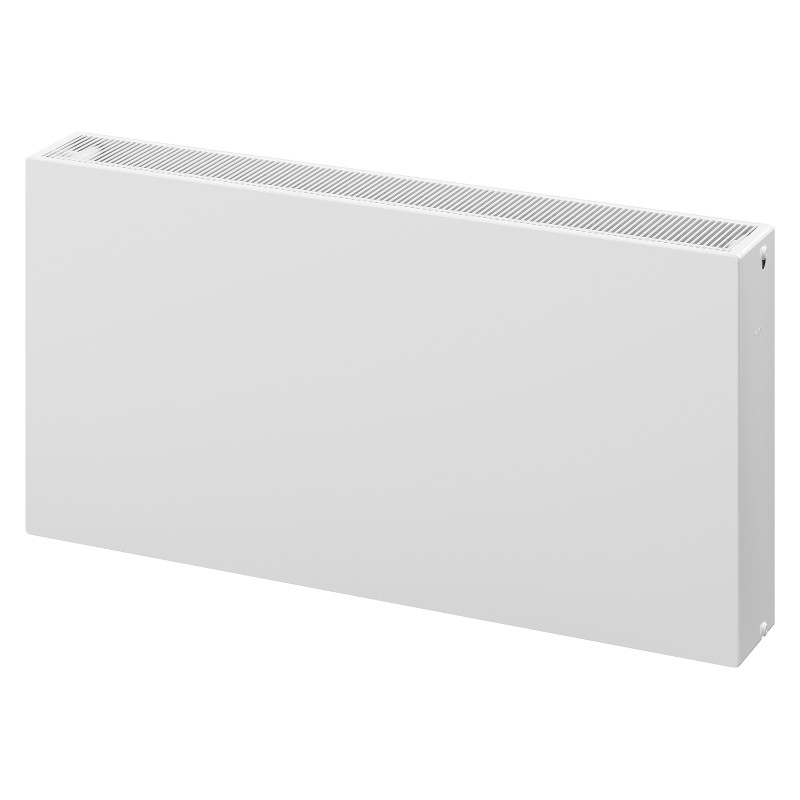

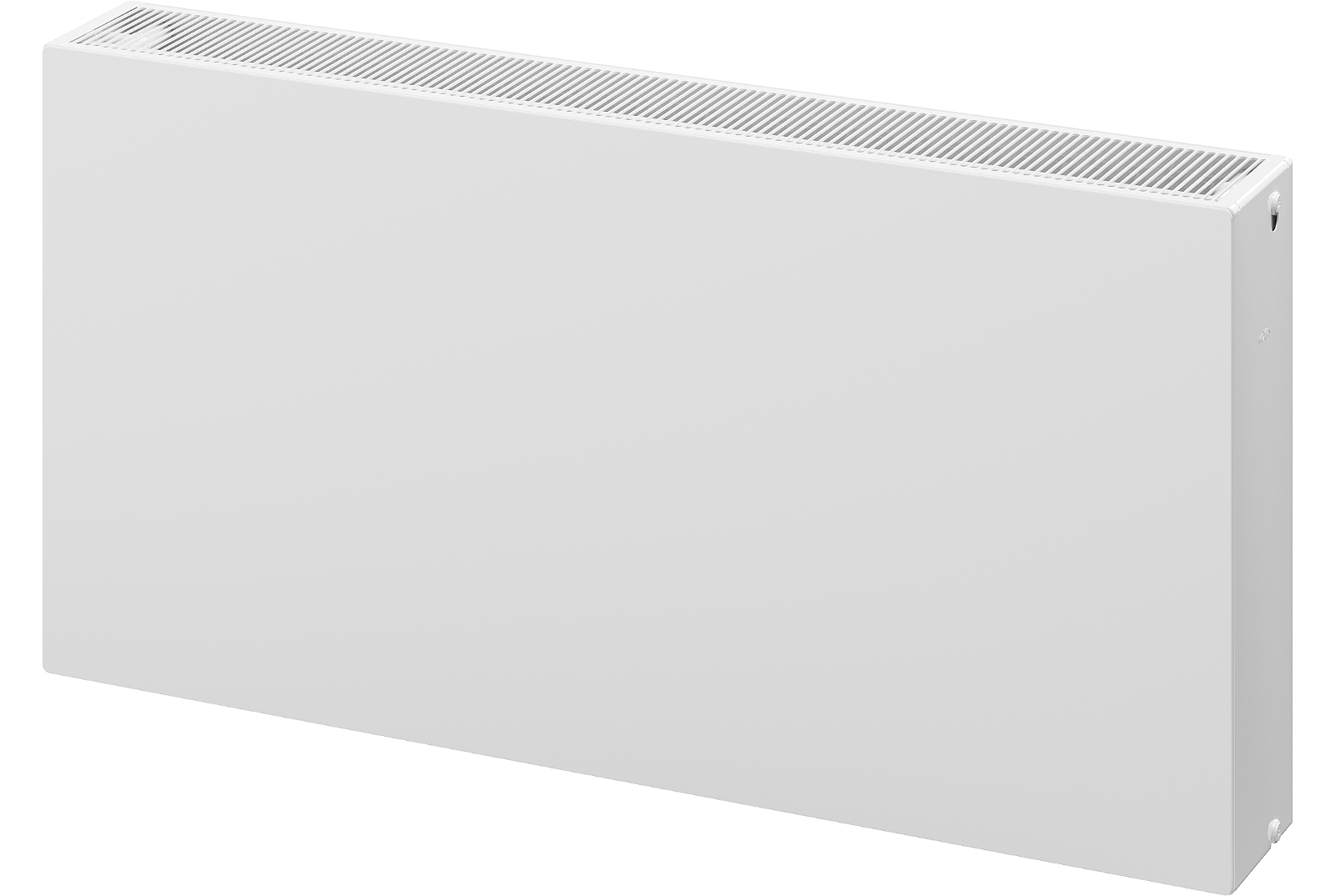

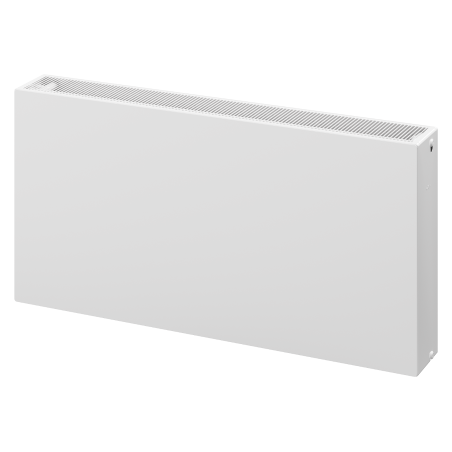

Photos show the radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CF33
Width
2000 mm
Height
300 mm
Depth
164 mm
Type
Plate / Panel
Heating power
2481 W
Color
White
Material
Steel
Type
33
Installation Orientation
Universal
Connection spacing
25 cm
Connection
Side
Orientation
Horizontal
