Mexen CF33 Flat Panel Radiator 400 x 1300 mm, Side Connection, 2056 W, White - W433F-040-130-00
The Mexen Flat CF33 radiator is characterized by efficiency and excellent design, ideal for modern interiors. Its white RAL 9016 color and solid steel construction ensure durability and aesthetics. With heating power up to 2056 W at 75/65/20 °C, it will effectively heat any room. The applied side connection system and 4xG ½″ connections guarantee easy installation. The product is resistant to high temperatures up to 110 °C and working pressure up to 10 bar. A complete installation kit is included, facilitating installation. This is a reliable choice for any home.
Technical data:
Height (Y): 400 mm
Width (X): 1300 mm
Depth: 164 mm
Connection spacing: 35 cm
Spacing of vertical water channels: 33.3 mm
Color: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 1075 W
- 75/65/20 °C 2056 W
- 90/70/20 °C 2591 W
Connections:
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500
Includes a side cover and a removable top cover
Included: hangers, assembly kit, sealing plugs, and air vent

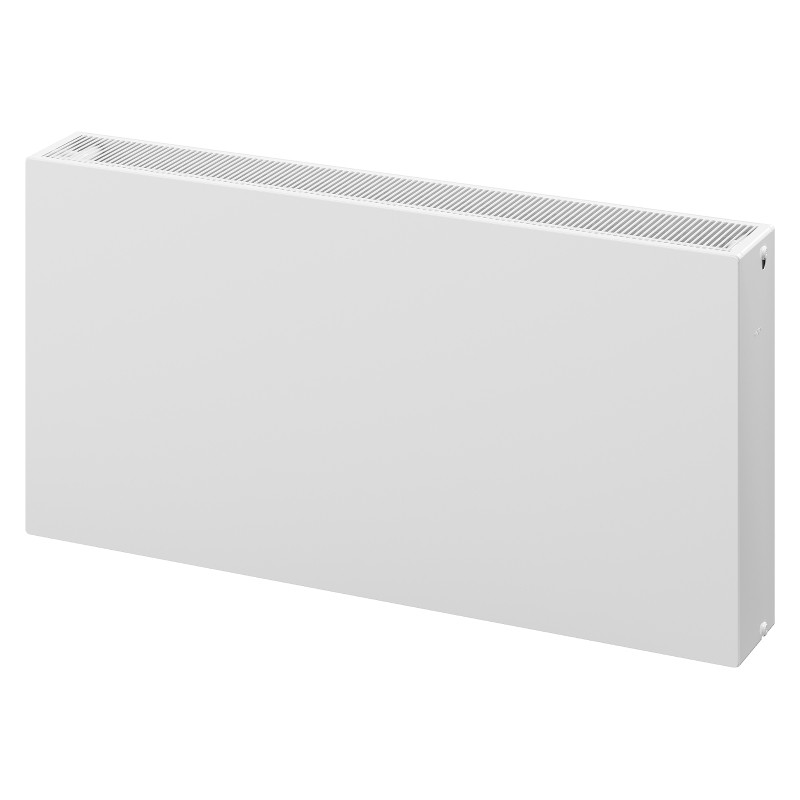

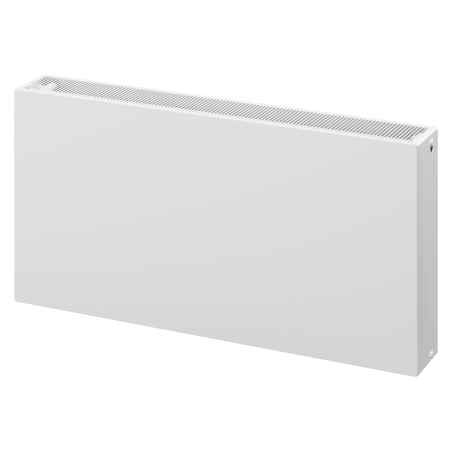

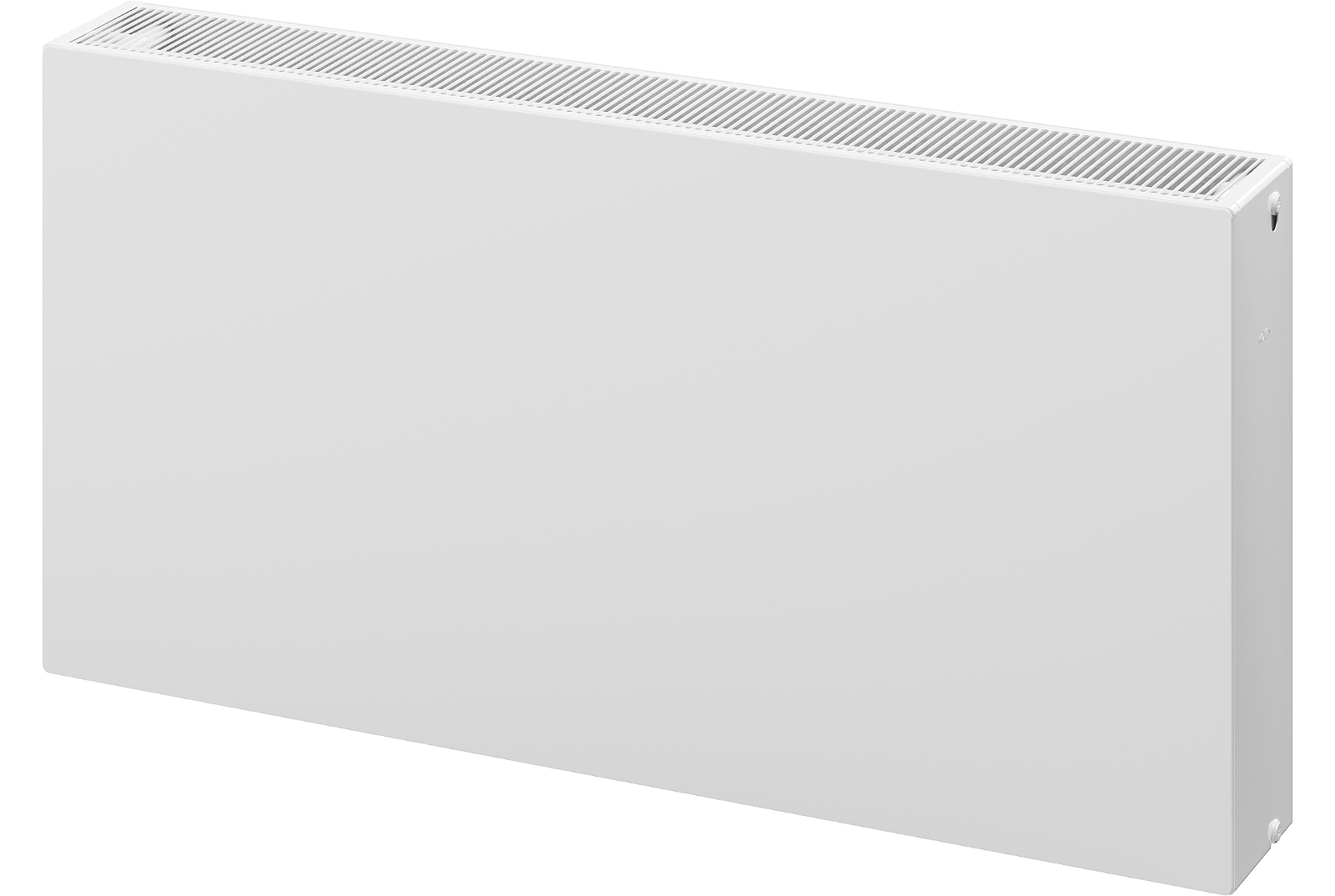

Photos show the radiator in size 600 x 1200 mm.
