The Mexen Flat is a compact and efficient panel radiator that adds modern style and warmth to any room. With a height of 500 mm and a width of 400 mm, it fits perfectly in smaller spaces. The heat output of up to 546 W at 75/65/20 °C ensures quick and effective heating. Made of steel with a durable paint finish DIN 99500, it is resistant to high temperatures up to 110 °C and working pressures up to 10 bar. The white finish RAL 9016 and options for bottom and side connections provide versatile installation. The set includes all necessary mounting elements for quick and easy installation.

Technical data:

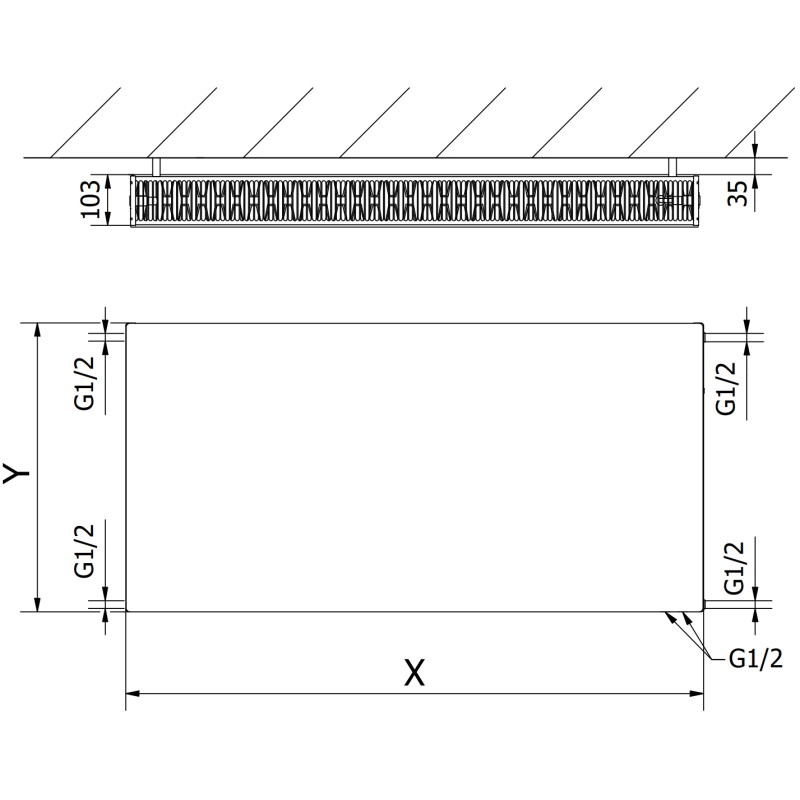

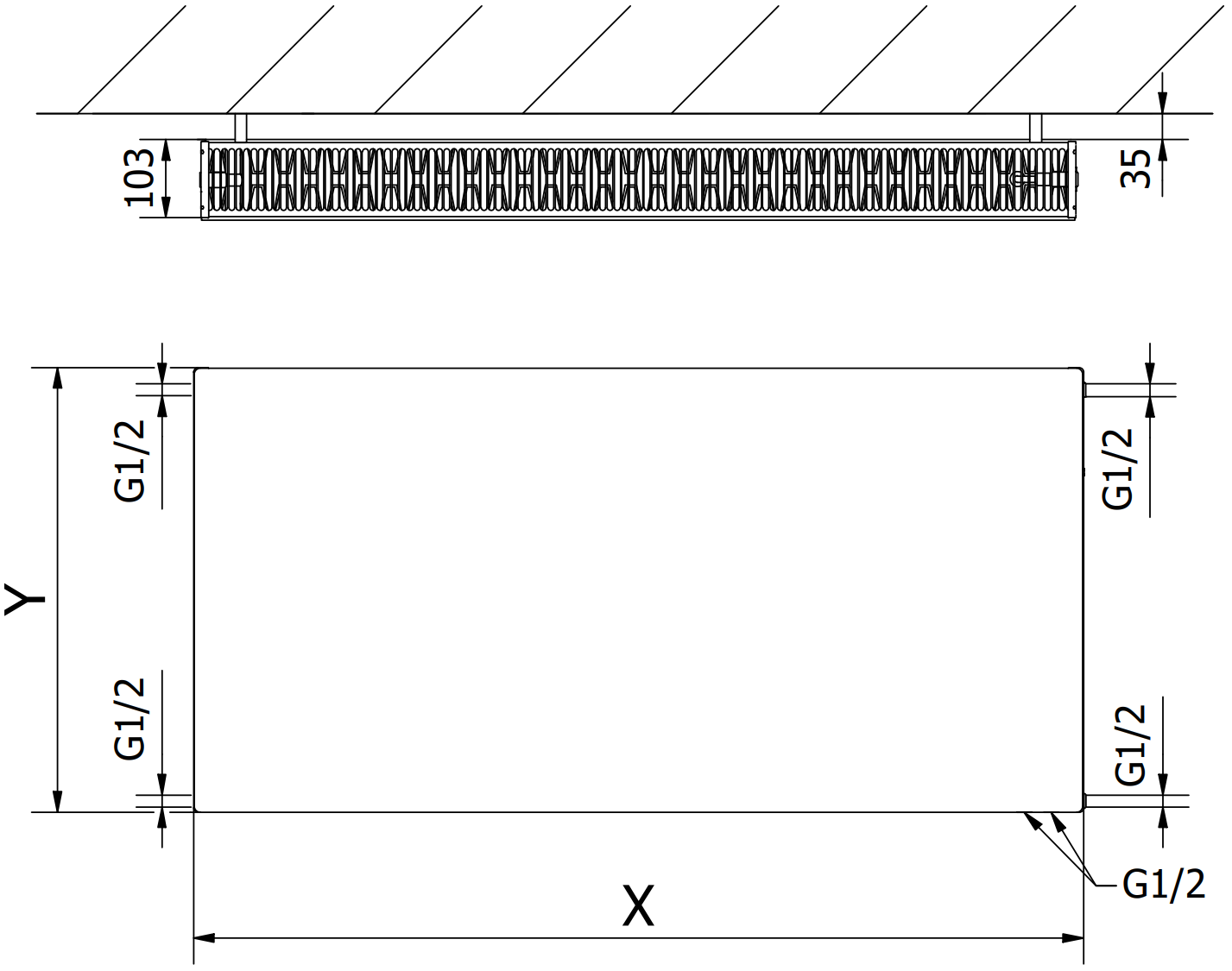

Height (Y): 500 mm

Width (X): 400 mm

Depth: 103 mm

Connection spacing: 5 cm

Vertical water channel spacing: 33.3 mm

Color: White RAL 9016

Material: Steel

Operating temperature: max 110 °C

Maximum working pressure: 10 bar

Maximum test pressure: 13 bar

Heat output:

- 55/45/20 °C 286 W

- 75/65/20 °C 546 W

- 90/70/20 °C 688 W

Connections:

- 2xG ½″ from the bottom on the right or left

- 4xG ½″ side

High-quality, durable paint coating - DIN 99500

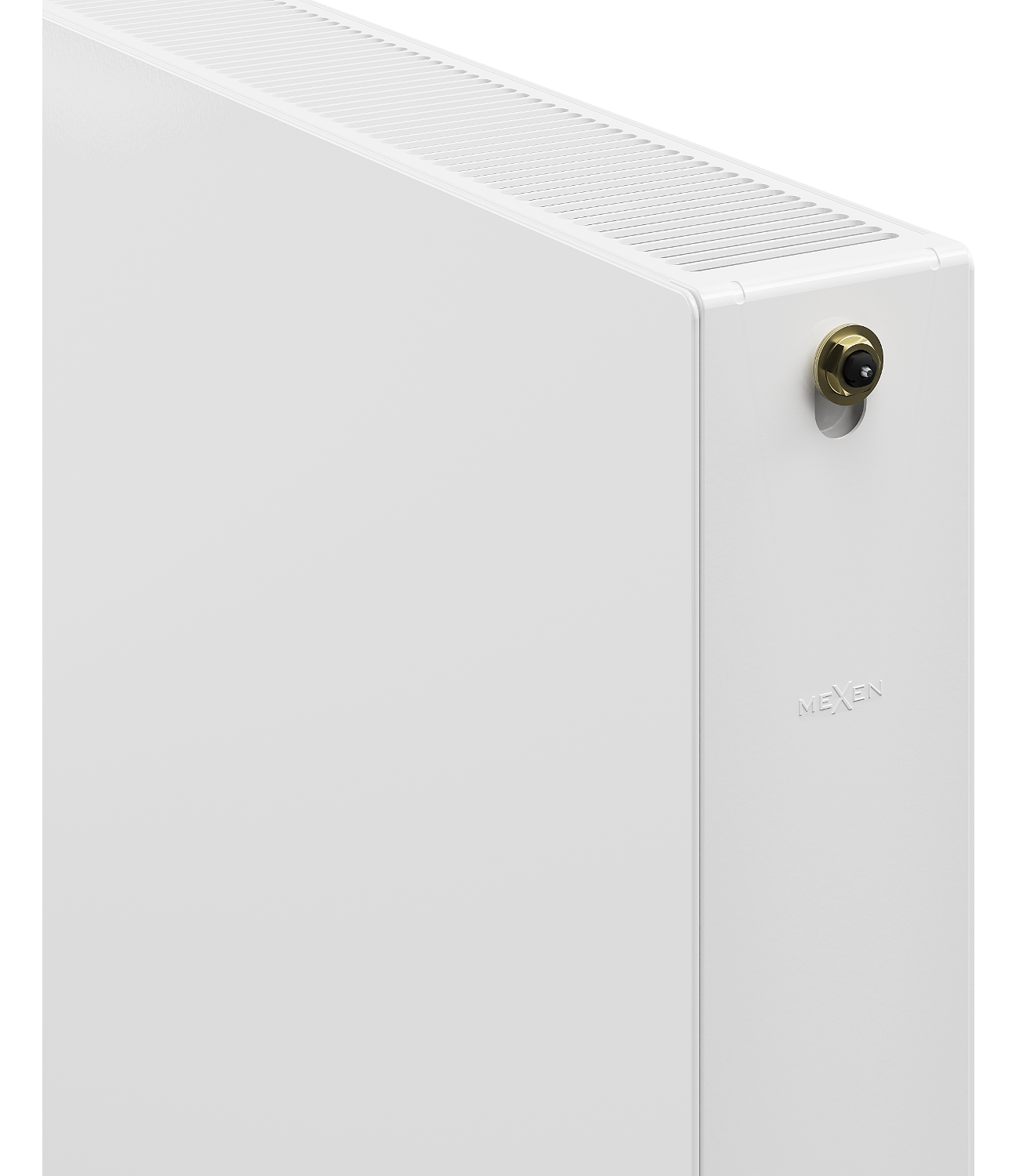

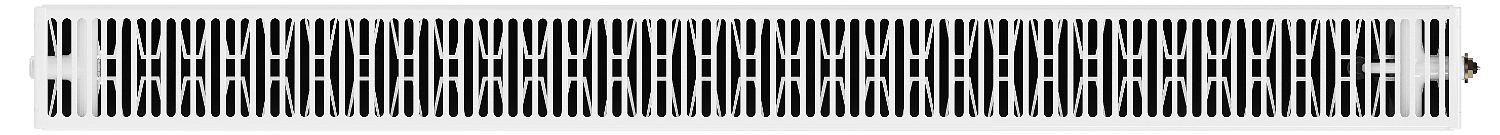

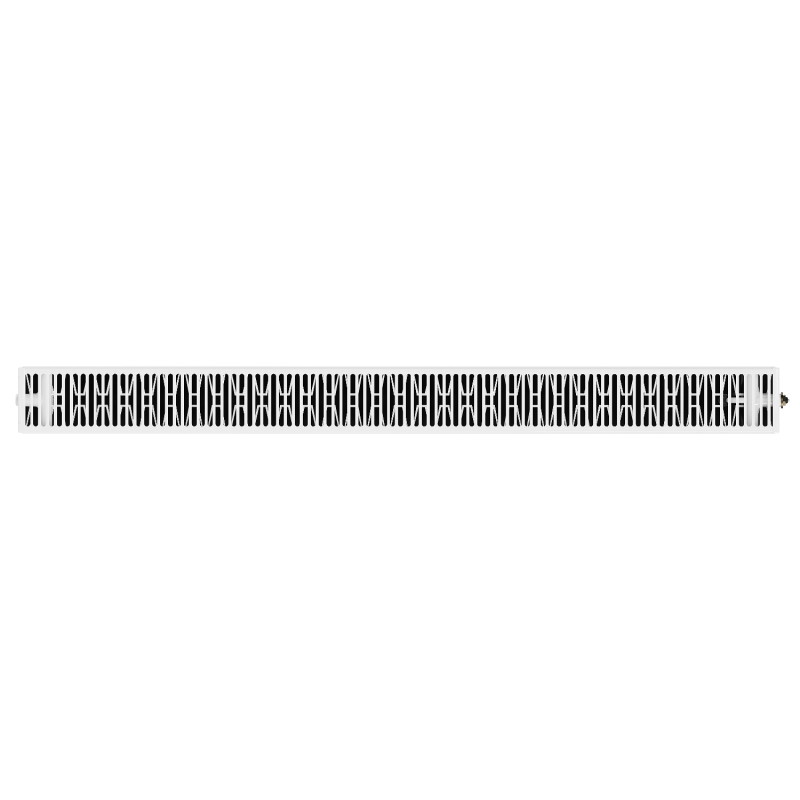

Features side covers and a removable top cover

Includes: brackets, installation kit, sealing plugs, air vent, and valve insert

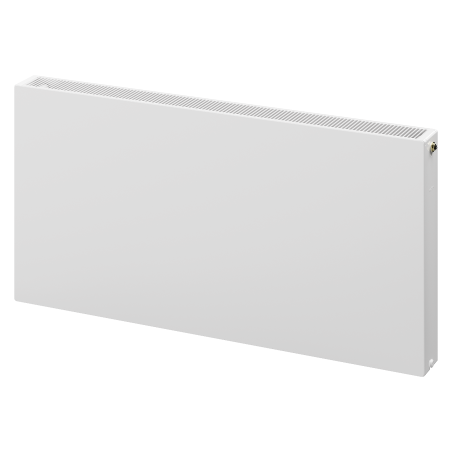

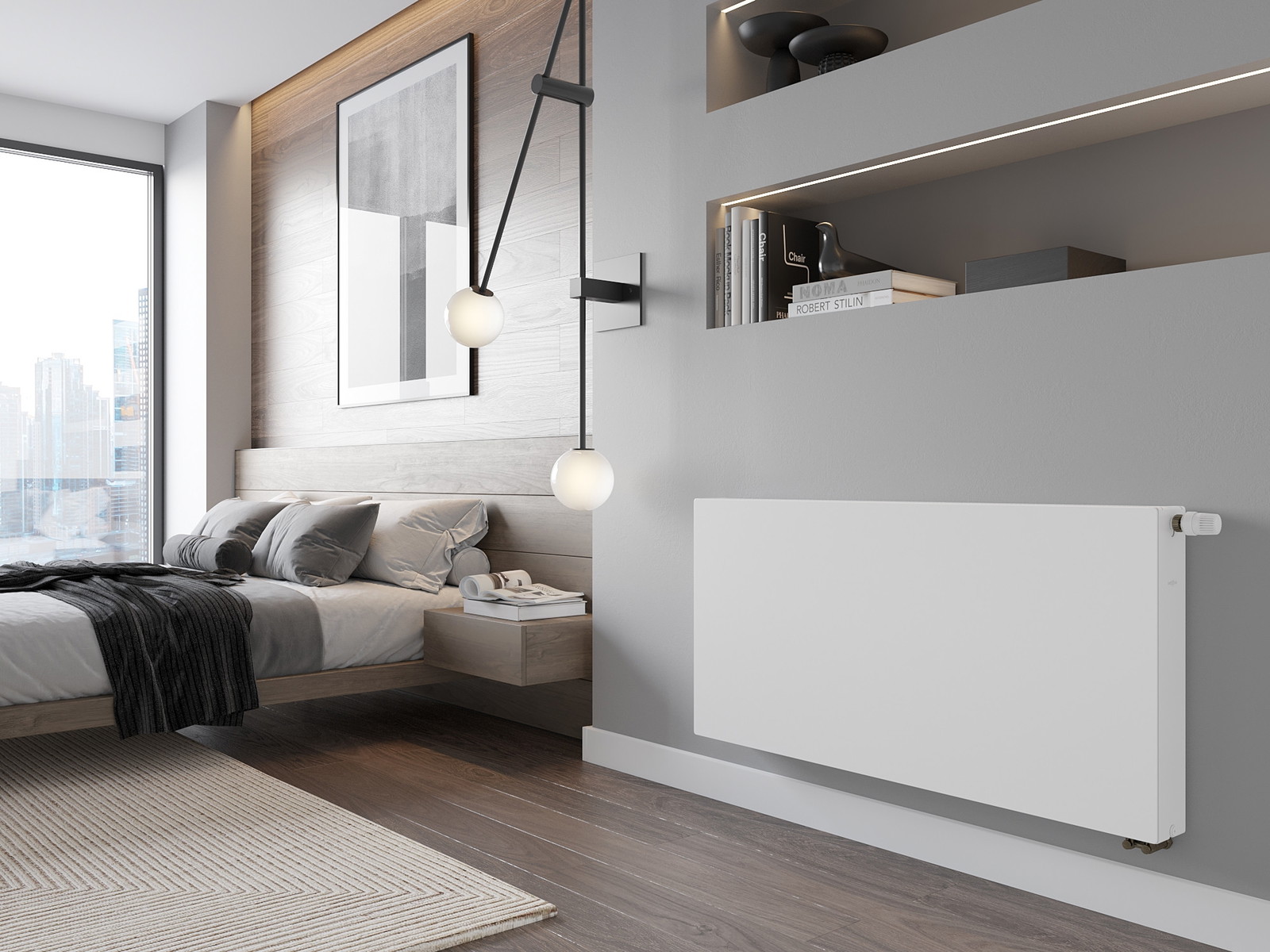

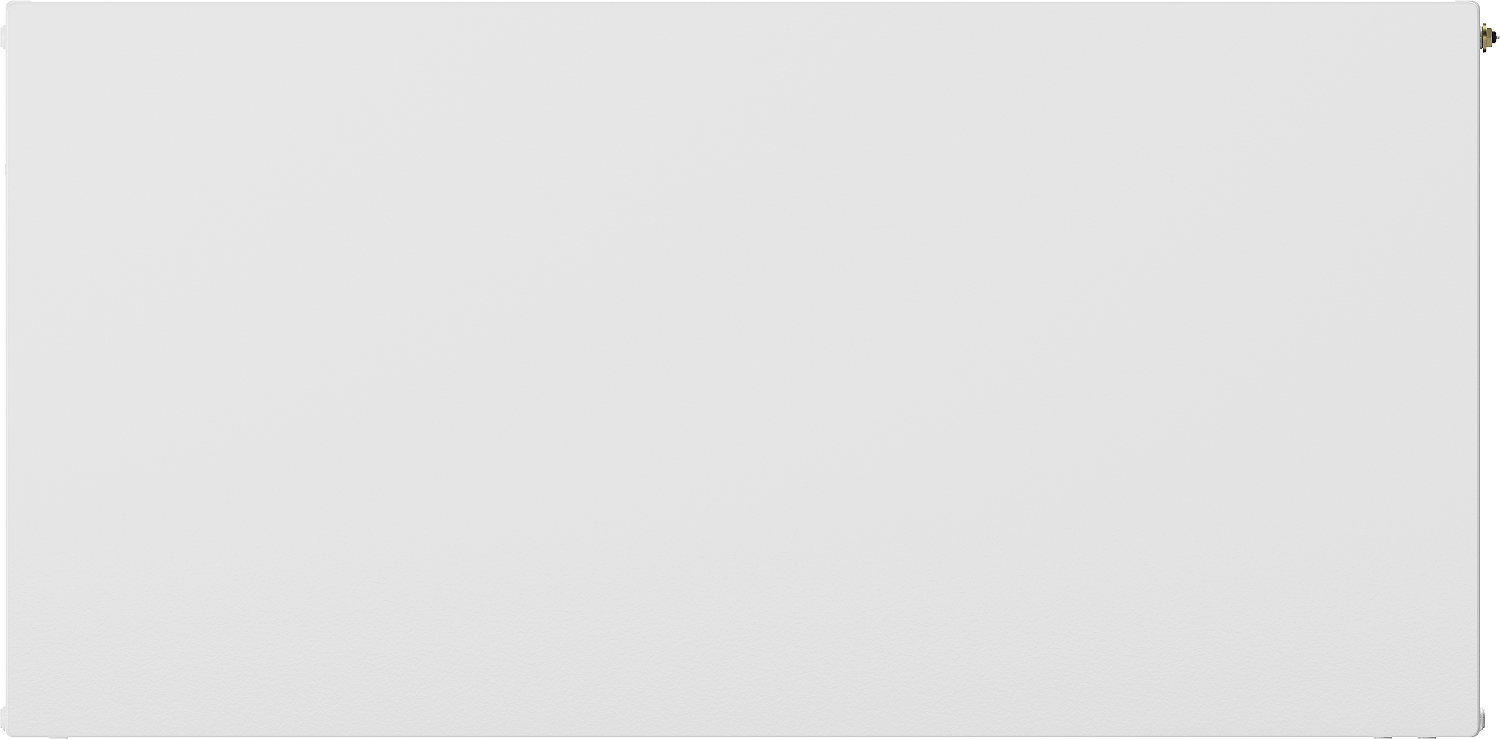

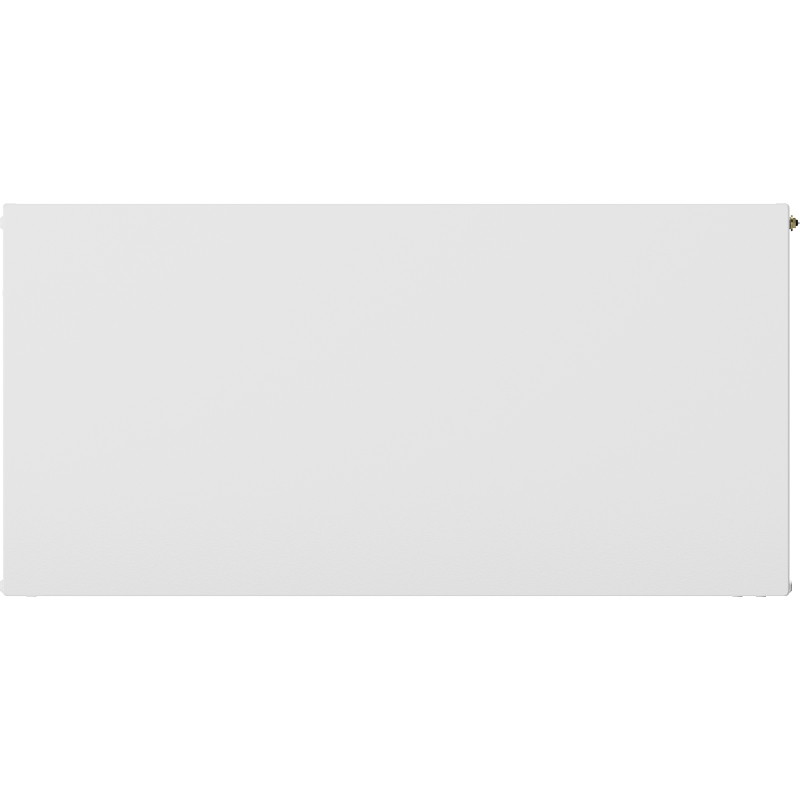

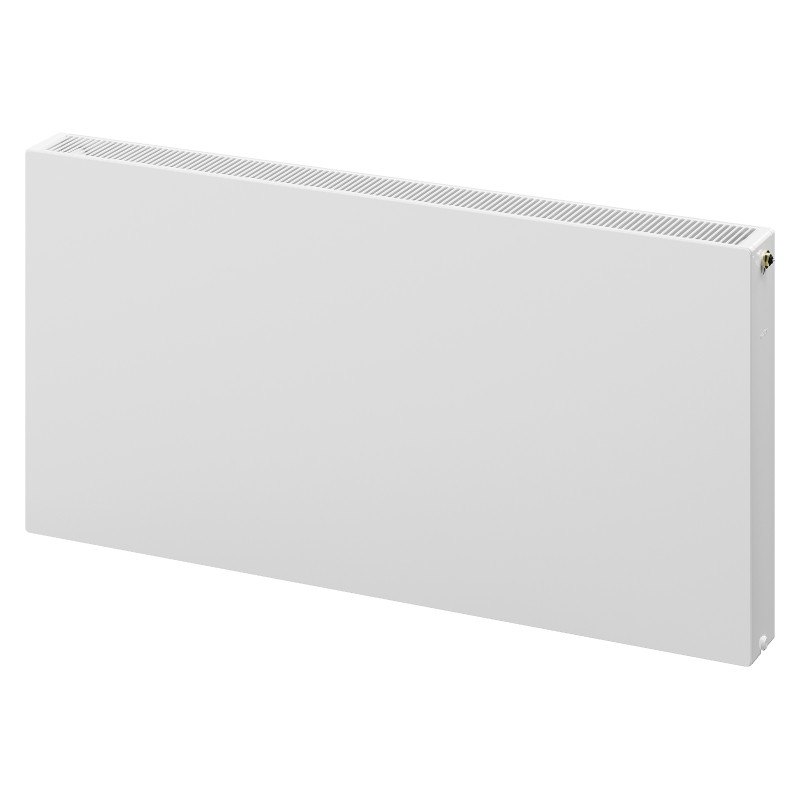

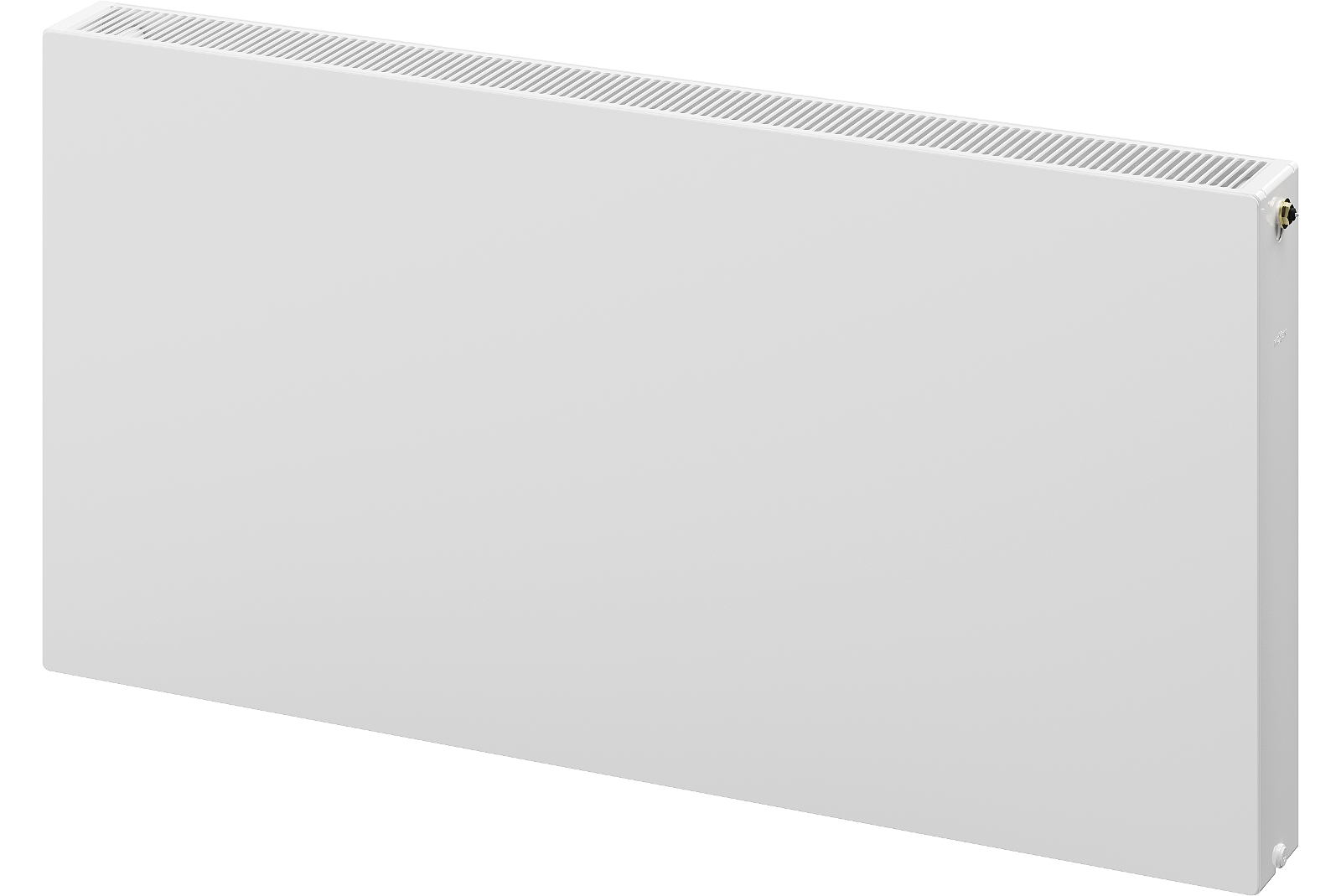

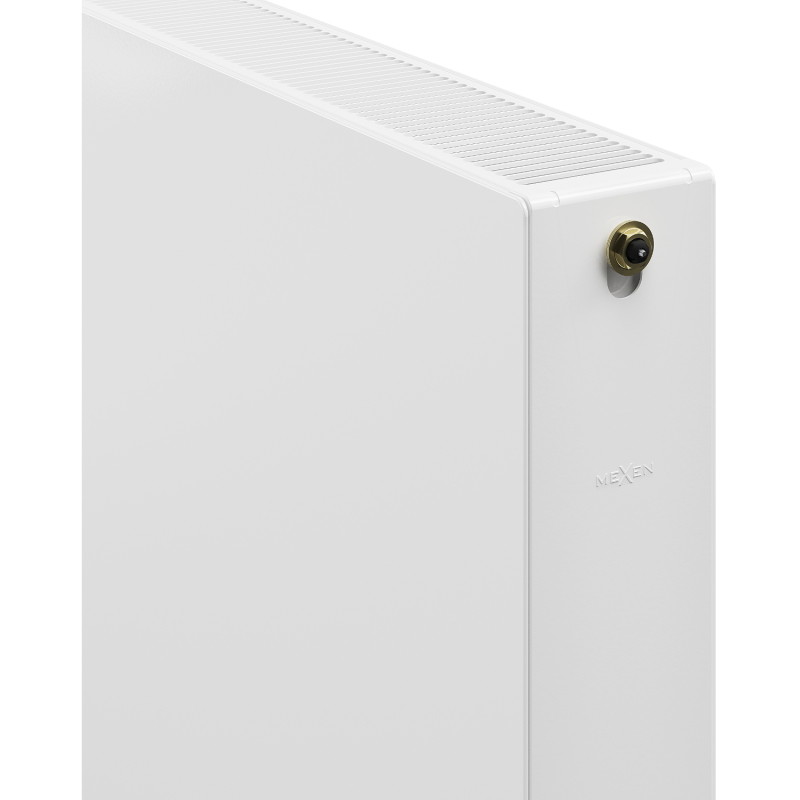

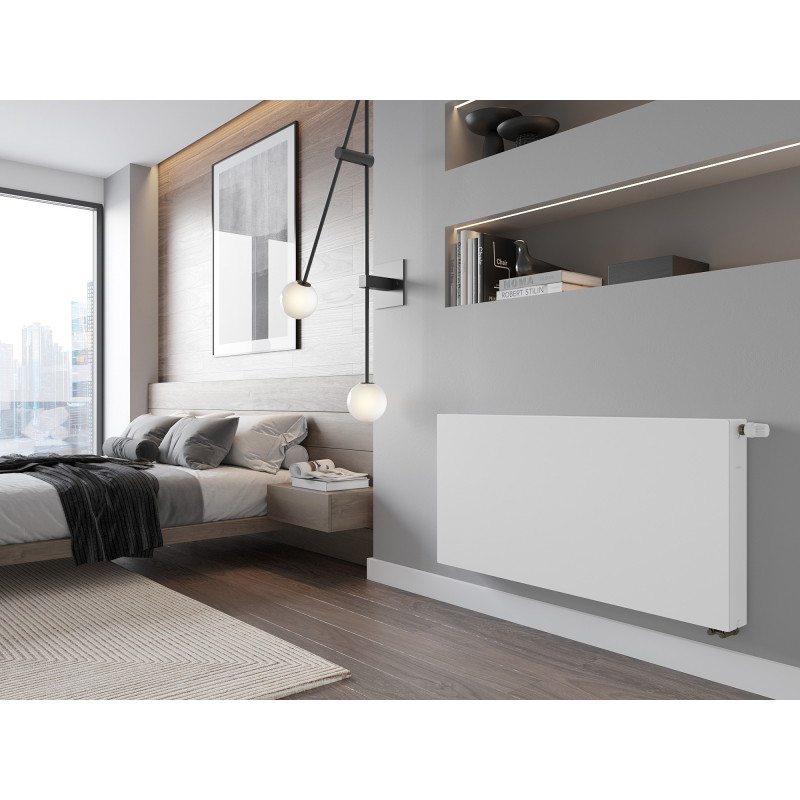

The photos show the radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CVF22
Width
400 mm
Height
500 mm
Depth
103 mm
Type
Plate / Panel
Heating power
546 W
Color
White
Material
Steel
Type
22
Installation Orientation
Universal
Connection spacing
5 cm
Connection
Bottom
Orientation
Horizontal
