Mexen Flat CF33 is a modern panel radiator measuring 300 x 500 mm, distinguished by its anthracite color RAL 7016 and side connection. Made of steel, it ensures high quality and durability thanks to an excellent paint coating compliant with DIN 99500. The heating power of this model is up to 620 W at parameters 75/65/20 °C, making it ideal for efficient room heating. The radiator features a maximum working pressure of 10 bar and a working temperature up to 110 °C. It offers a connection spacing of 25 cm and vertical water channel spacing of 33.3 mm. The set includes brackets, installation kit, blanking plugs, and air vent for quick and easy installation.

Technical data:

Height (Y): 300 mm

Width (X): 500 mm

Depth: 164 mm

Connection spacing: 25 cm

Vertical water channel spacing: 33.3 mm

Color: Anthracite RAL 7016

Material: Steel

Working temperature: max 110 °C

Maximum working pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 326 W

- 75/65/20 °C 620 W

- 90/70/20 °C 780 W

Connections:

- 4xG ½″ side

High-quality, durable paint coating - DIN 99500

Comes with a side cover and removable top cover

Includes: brackets, installation kit, blanking plugs, and air vent

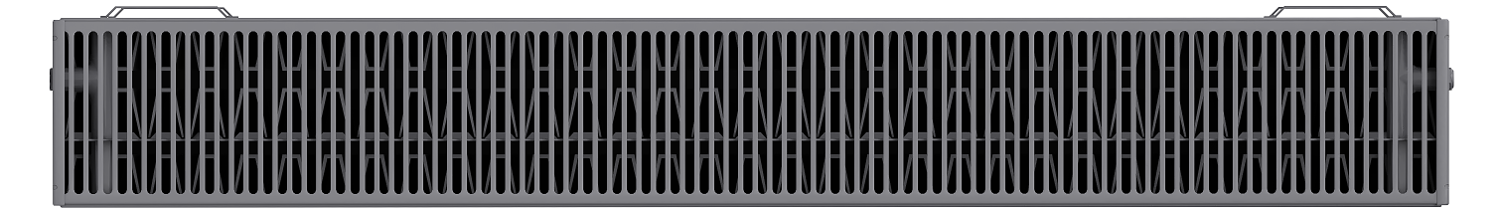

Photos show the radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CF33
Width
500 mm
Height
300 mm
Depth
164 mm
Type
Plate / Panel
Heating power
620 W
Color
Anthracite
Material
Steel
Type
33
Installation Orientation
Universal
Connection spacing
25 cm
Connection
Side
Orientation
Horizontal
