Mexen CV33 panel radiator 300 x 400 mm, bottom connection, 534 W, anthracite - W633-030-040-66

The Mexen CV33 panel radiator is an excellent choice for those who value modern and functional heating solutions. Its compact dimensions (300 x 400 mm) and anthracite color (RAL 7016) make it suitable for any interior. Made of steel, it offers high durability and resistance to damage. With a maximum heating power of 534 W, it quickly heats up a room. The radiator offers a bottom connection and side connections, increasing installation flexibility. This model features a high-quality paint coating and a maximum operating temperature of up to 110 °C. The set includes complete mounting accessories to facilitate installation.

Technical data:

Height (Y): 300 mm

Width (X): 400 mm

Depth: 164 mm

Connection spacing: 5 cm

Vertical water channel spacing: 33.3 mm

Color: Anthracite RAL 7016

Material: Steel

Operating temperature: max 110 °C

Maximum working pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 276 W

- 75/65/20 °C 534 W

- 90/70/20 °C 675 W

Connections:

- 2xG ½″ from the bottom right

- 4xG ½″ side

High-quality, durable paint coating - DIN 99500

Includes side cover and removable top cover

Includes: brackets, installation kit, blind plugs, air vent, and valve insert

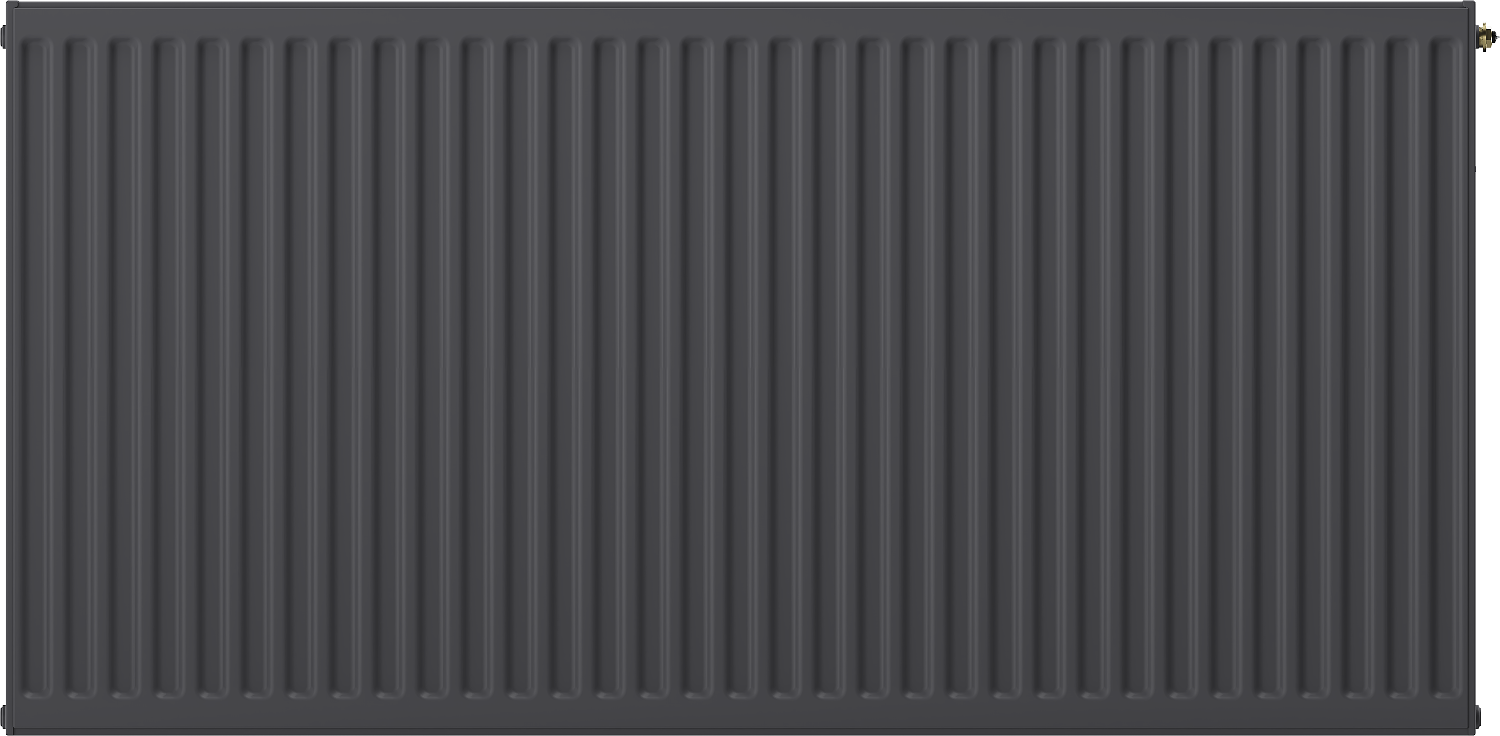

Photos show radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

PZH Hygiene Certificate

The product has a certificate issued by the National Institute of Hygiene, confirming compliance with safety standards - it indicates that it does not negatively affect human health or the natural environment in any way. nr B.BK.60112.0464.2022 valid until 13.02.2028

Series
CV33
Width
400 mm
Height
300 mm
Depth
164 mm
Type
Plate / Panel
Heating power
534 W
Color
Anthracite
Material
Steel
Type
33
Installation Orientation
Right
Connection spacing
5 cm
Connection
Bottom
Orientation
Horizontal
User manual
Download
Safety Information
Download
Warranty conditions
Download
PZH Certificate
Download
Manufacturer
See
