The Mexen Flat CVF11 panel radiator combines modern design with efficiency. With dimensions of 500 x 1000 mm and a power of 682 W (at 75/65/20 °C), it provides optimal heating in anthracite color RAL 7016, ideal for contemporary interiors. Its steel construction withstands working temperatures up to 110 °C and operating pressure up to 10 bar. The system of bottom and side connections (G ½″) facilitates installation. Equipped with mounting accessories and a removable cover, it guarantees durability thanks to the DIN 99500 coating.

Technical data:

Height (Y): 500 mm

Width (X): 1000 mm

Depth: 59 mm

Connection spacing: 5 cm

Distance between vertical water channels: 33.3 mm

Color: Anthracite RAL 7016

Material: Steel

Working temperature: max 110 °C

Maximum operating pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 364 W

- 75/65/20 °C 682 W

- 90/70/20 °C 854 W

Connections:

- 2xG ½″ from the bottom right

- 4xG ½″ side

High-quality, durable paint coating - DIN 99500

Features side cover and removable top cover

Includes: brackets, installation kit, sealing plugs, air vent, and valve insert

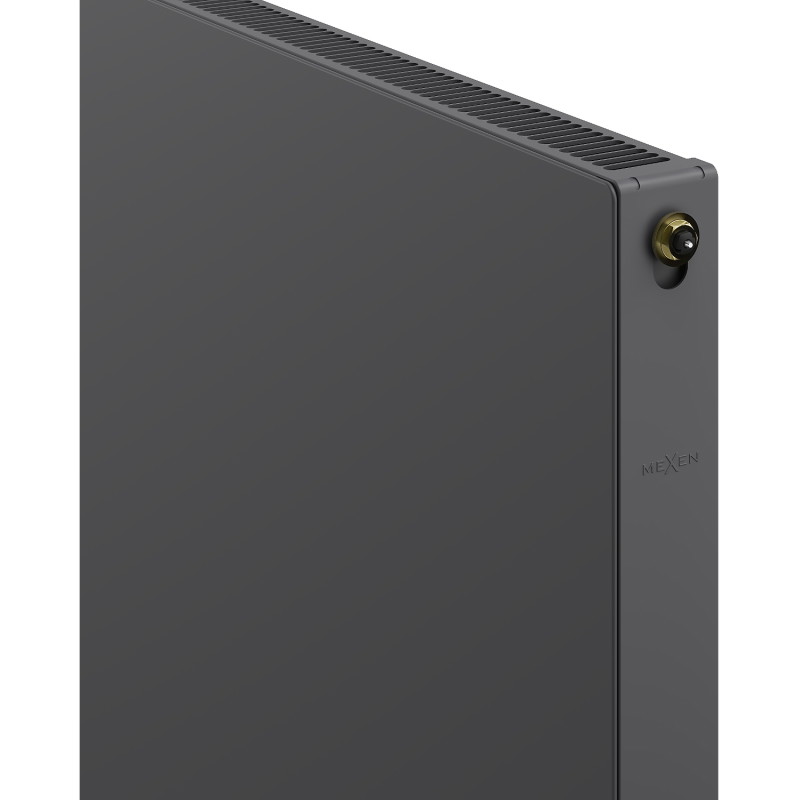

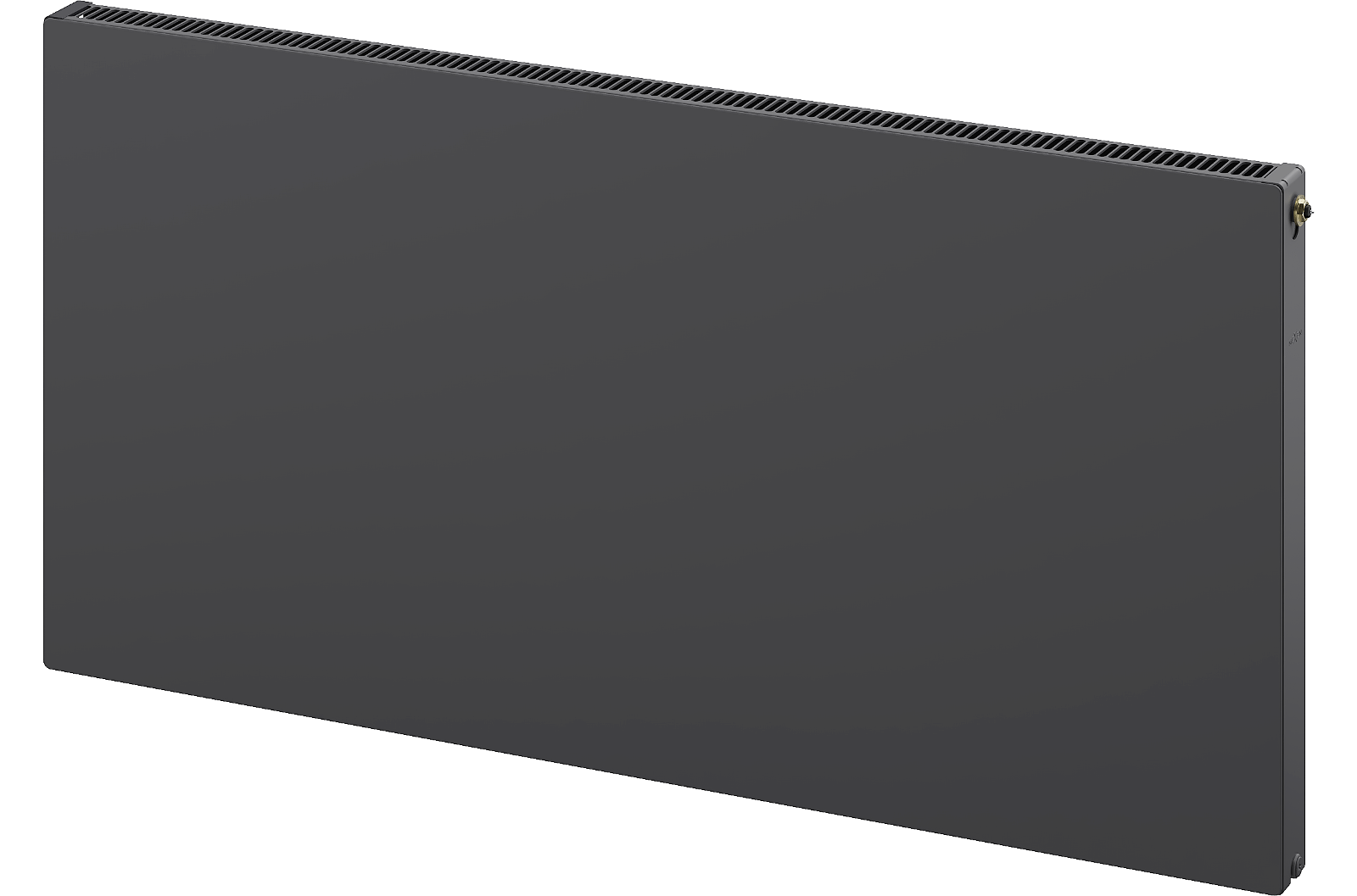

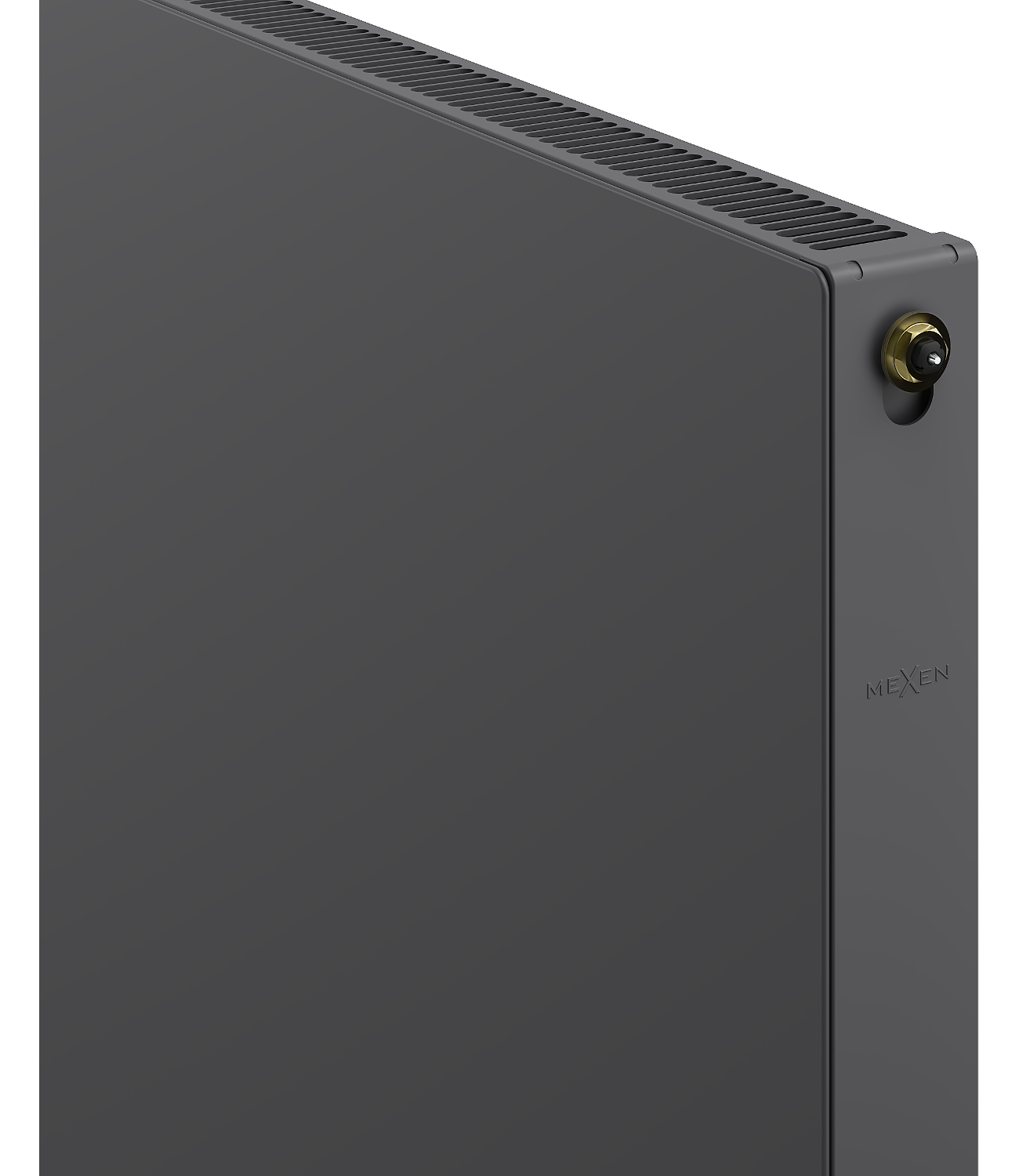

Images show the radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CVF11
Width
1000 mm
Height
500 mm
Depth
59 mm
Type
Plate / Panel
Heating power
682 W
Color
Anthracite
Material
Steel
Type
11
Installation Orientation
Right
Connection spacing
5 cm
Connection
Bottom
Orientation
Horizontal
