Mexen Uni-Term angled/straight radiator valve, Duplex, DN50, anthracite - W908-000-66

The Mexen angled/straight radiator valve, Duplex, DN50, anthracite is a universal supply and shut-off valve, ideal for angled and straight connections, regardless if they are in the wall or in the floor. Made of brass, with an anthracite finish and a connection diameter of G 1/2''. It supports a maximum operating temperature of up to 120°C and an operating pressure of up to 10 bar. It includes fittings for 16x2 mm multilayer pipes and 15 mm copper pipes, as well as the possibility to connect the cartridge from the left or right side.

Technical data:

Material: Brass

Colour: Anthracite

Connection diameter: G 1/2"

Thread for cartridge: M30 x 1.5 mm

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

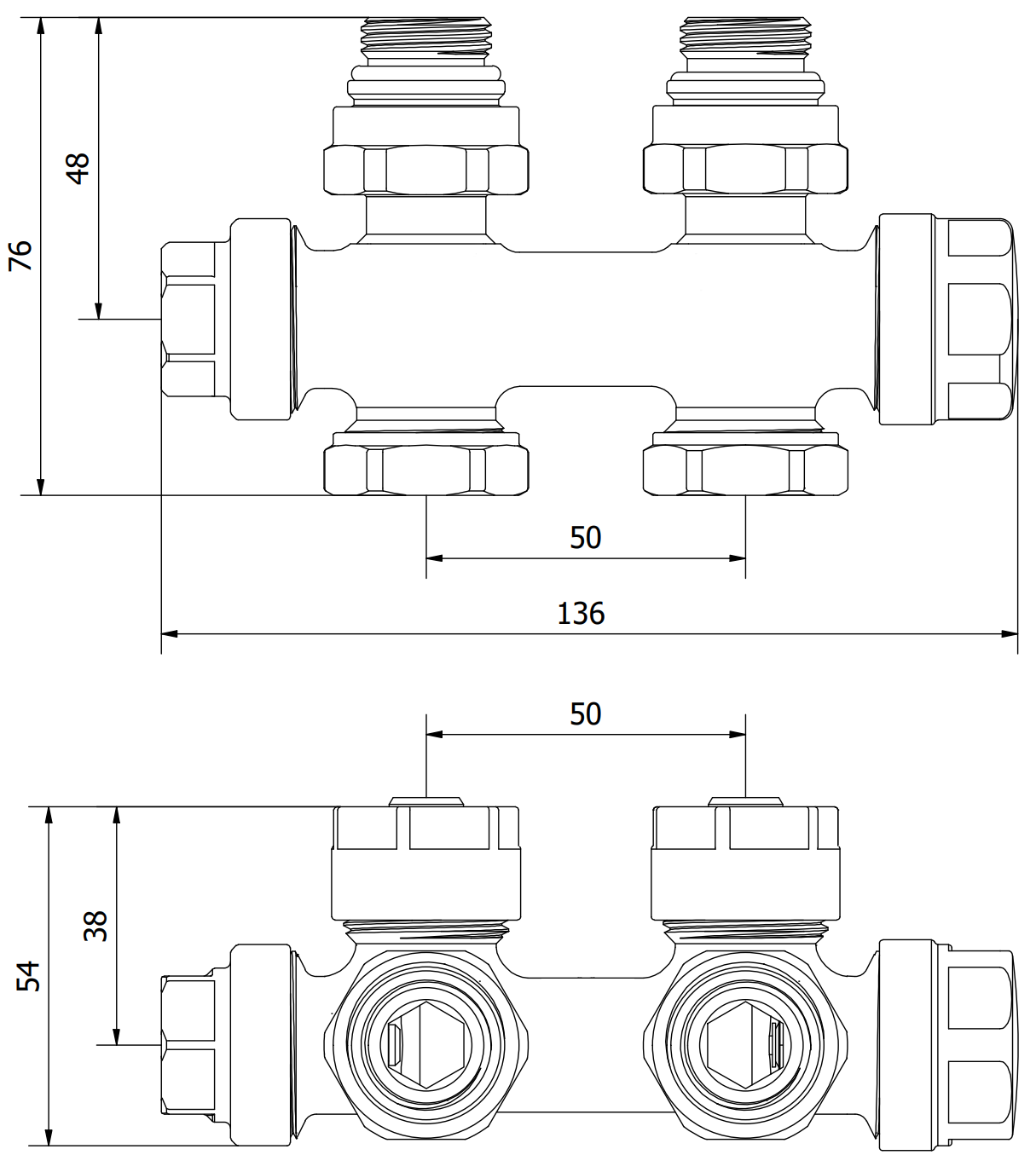

Bottom connection with a spacing of 50 mm

Possibility to connect the cartridge from the left or right side

Includes fittings for 16x2 mm multilayer pipes and 15 mm copper pipes

Universal supply and shut-off valve for angled and straight connections, regardless if the connection is in the wall or in the floor

Innovative solutions used in this product

Brass

Making the product from brass ensures its durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and fluctuating temperatures.

1 Mpa

The product is designed to operate in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Standard Connection

A 1/2" threaded connection is a commonly used standard component in internal water installations. This makes connecting and installing additional installation components much easier and more intuitive.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Series
Uni-Term
Type
Straight , Angle
Color
Anthracite
Inlet Diameter
G 1/2"
