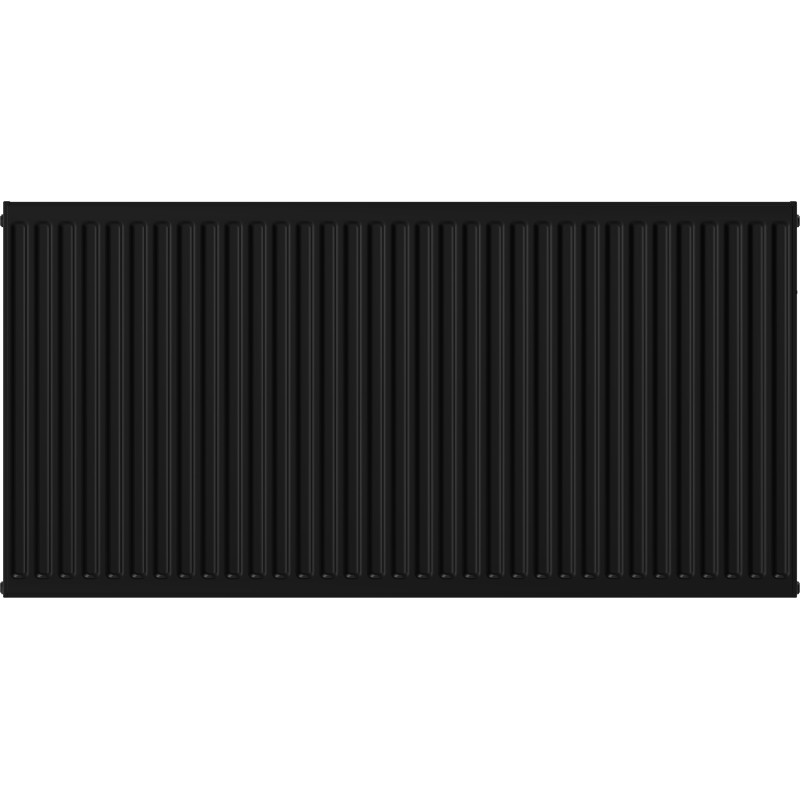

Mexen C22 panel radiator 500 x 1100 mm, side connection, 1567 W, black - W422-050-110-70

Mexen C22 is a modern panel radiator measuring 500 x 1100 mm, providing excellent heating efficiency up to 1567 W with side connection. The black color RAL 9005 and steel construction give it an elegant appearance, perfect for any interior. The radiator is designed to operate at a maximum temperature of 110°C and working pressure of 10 bar. With side connections 4xG½″ and a high-quality lacquered finish, Mexen C22 guarantees durability and reliability. The set includes brackets, an installation kit, and an air vent.

Technical data:

Height (Y): 500 mm

Width (X): 1100 mm

Depth: 103 mm

Connection spacing: 45 cm

Vertical water channel spacing: 33.3 mm

Color: Black RAL 9005

Material: Steel

Operating temperature: max 110 °C

Maximum working pressure: 10 bar

Maximum test pressure: 13 bar

Heating output:

- 55/45/20 °C 811 W

- 75/65/20 °C 1567 W

- 90/70/20 °C 1982 W

Connections:

- 4xG ½″ side

High-quality, durable coating - DIN 99500

Features side cover and removable top cover

Includes: brackets, installation kit, blanking plugs, and air vent

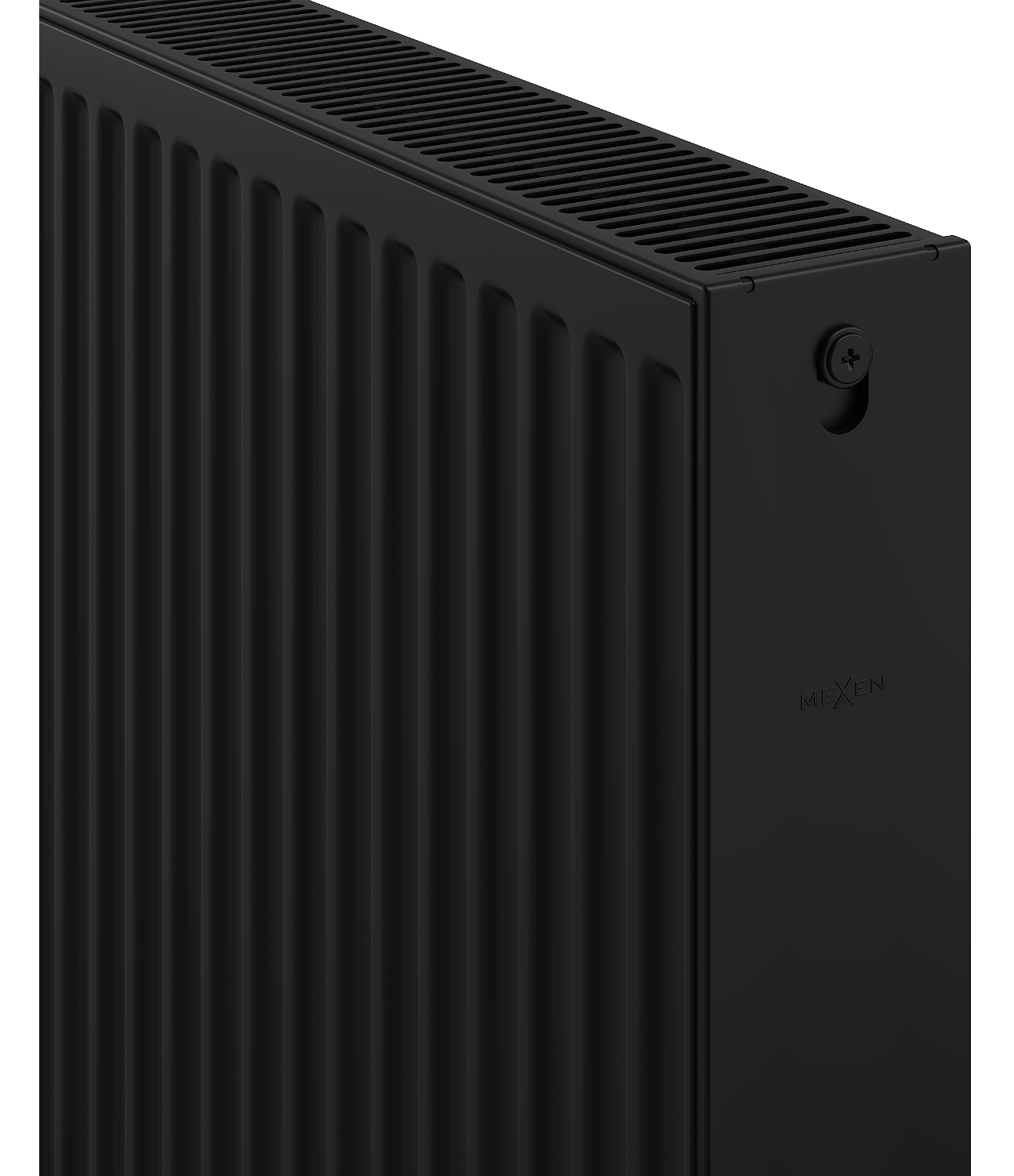

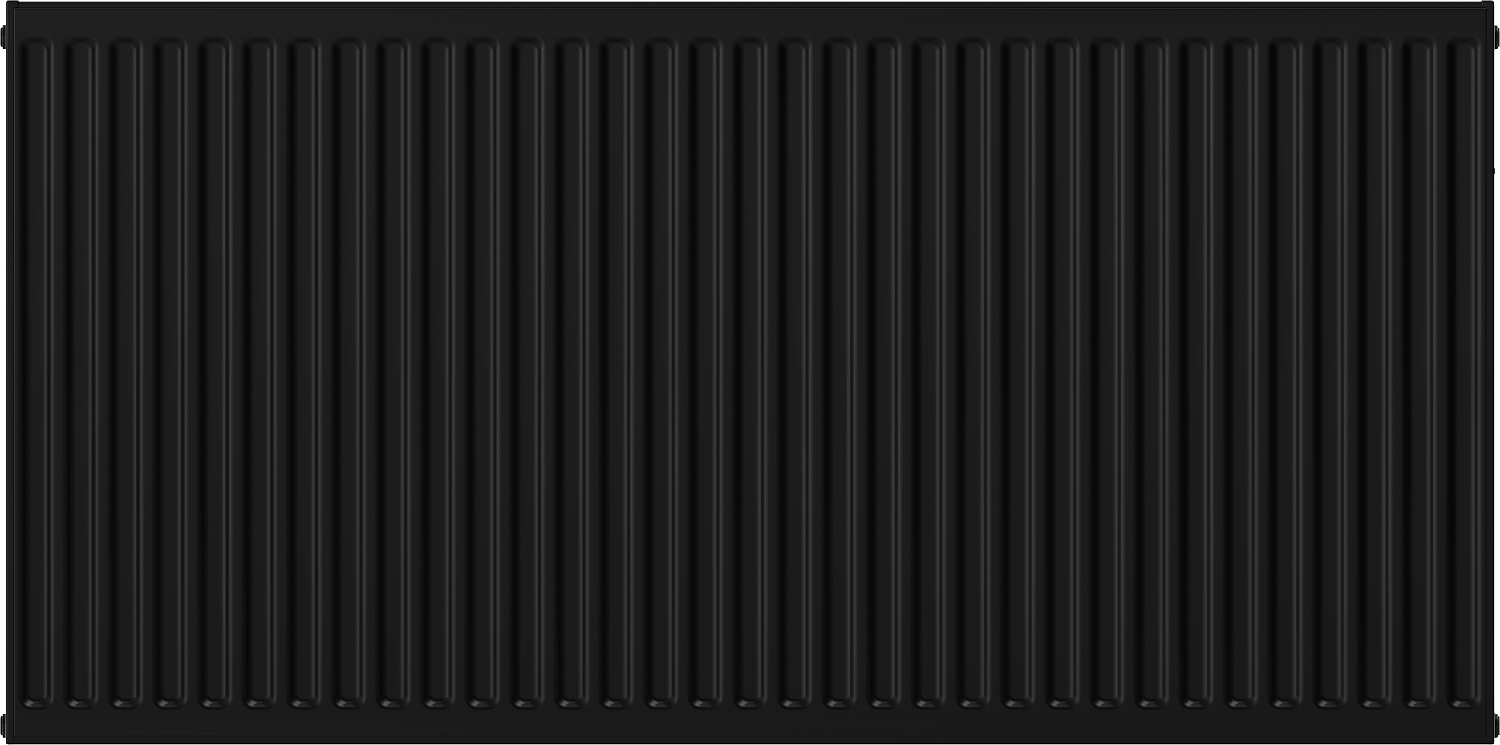

Pictures show the radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

PZH Hygiene Certificate

The product has a certificate issued by the National Institute of Hygiene, confirming compliance with safety standards - it indicates that it does not negatively affect human health or the natural environment in any way. nr B.BK.60112.0464.2022 valid until 13.02.2028

Series
C22
Width
1100 mm
Height
500 mm
Depth
103 mm
Type
Plate / Panel
Heating power
1567 W
Color
Black
Material
Steel
Type
22
Installation Orientation
Universal
Connection spacing
45 cm
Connection
Side
Orientation
Horizontal
