Mexen Uni-Term radiator valve dual-pipe DN50, straight 1/2"x3/4", nickel - W912-012-01

Brodziki EN

Brodziki EN

(0)
Questions
(0)

Mexen Uni-Term radiator valve dual-pipe DN50, straight 1/2"x3/4", nickel - W912-012-01

Mexen Uni-Term radiator valve dual-pipe DN50, straight 1/2"x3/4", nickel - W912-012-01
search
  • Mexen Uni-Term radiator valve dual-pipe DN50, straight 1/2"x3/4", nickel - W912-012-01
  • Mexen Uni-Term radiator valve dual-pipe DN50, straight 1/2"x3/4", nickel - W912-012-01
  • Mexen Uni-Term radiator valve dual-pipe DN50, straight 1/2"x3/4", nickel - W912-012-01
Mexen Uni-Term radiator valve dual-pipe DN50, straight 1/2"x3/4", nickel - W912-012-01
Mexen Uni-Term radiator valve dual-pipe DN50, straight 1/2"x3/4", nickel - W912-012-01 Mexen Uni-Term radiator valve dual-pipe DN50, straight 1/2"x3/4", nickel - W912-012-01 Mexen Uni-Term radiator valve dual-pipe DN50, straight 1/2"x3/4", nickel - W912-012-01
Brass Brass
1 Mpa 1 Mpa
Connections G 1/2" and G 3/4" Connections G 1/2" and G 3/4"
Brand:
Mexen
Series:
Uni-Term
Ean:
5905315054081
Index:
W912-012-01
Type:
Straight
Color:
Nickel
Inlet Diameter:
G 1/2", G 3/4"
Color - Nickel - ()

Mexen Uni-Term radiator valve dual-pipe DN50, straight 1/2"x3/4", nickel - W912-012-01

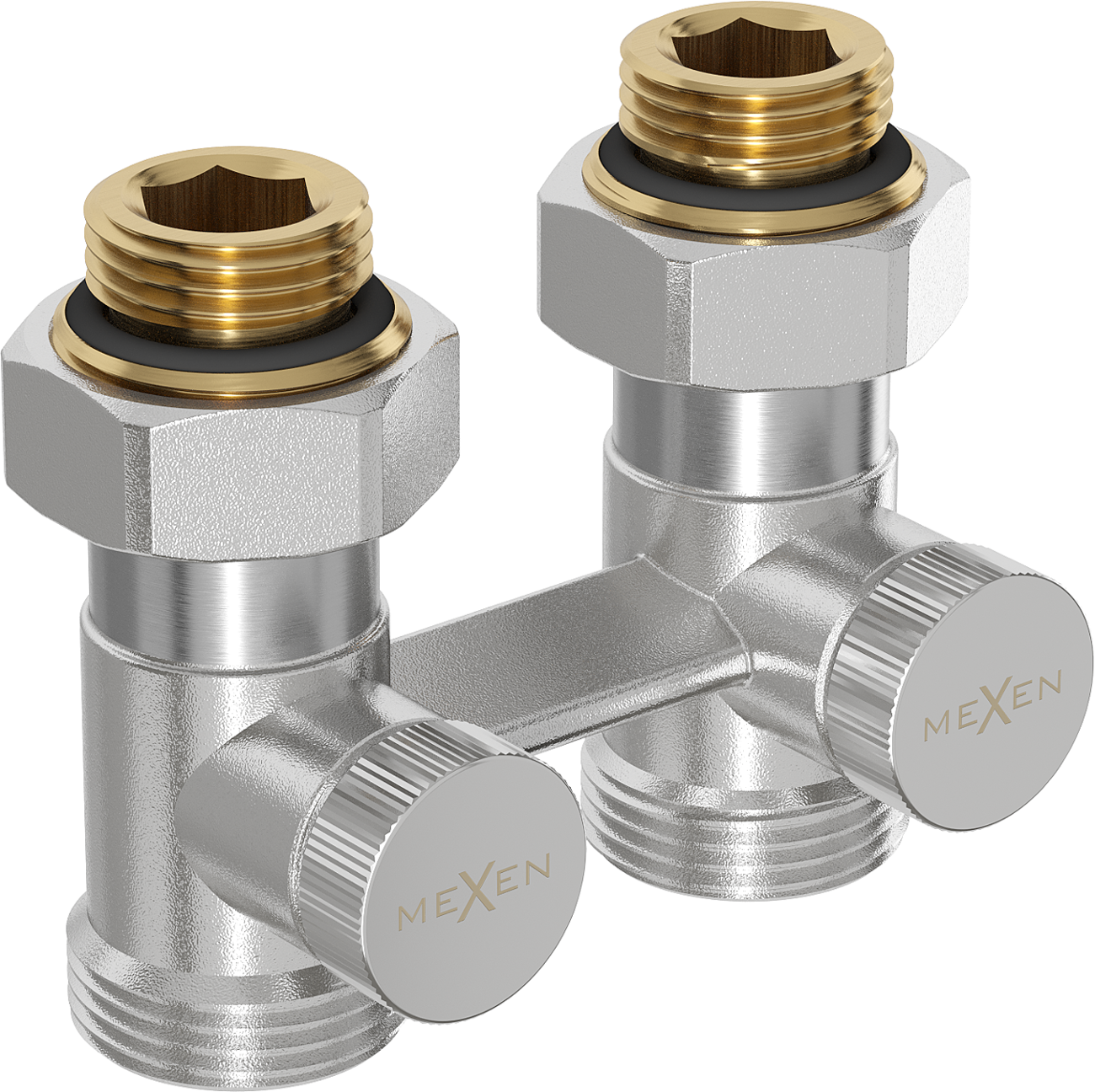

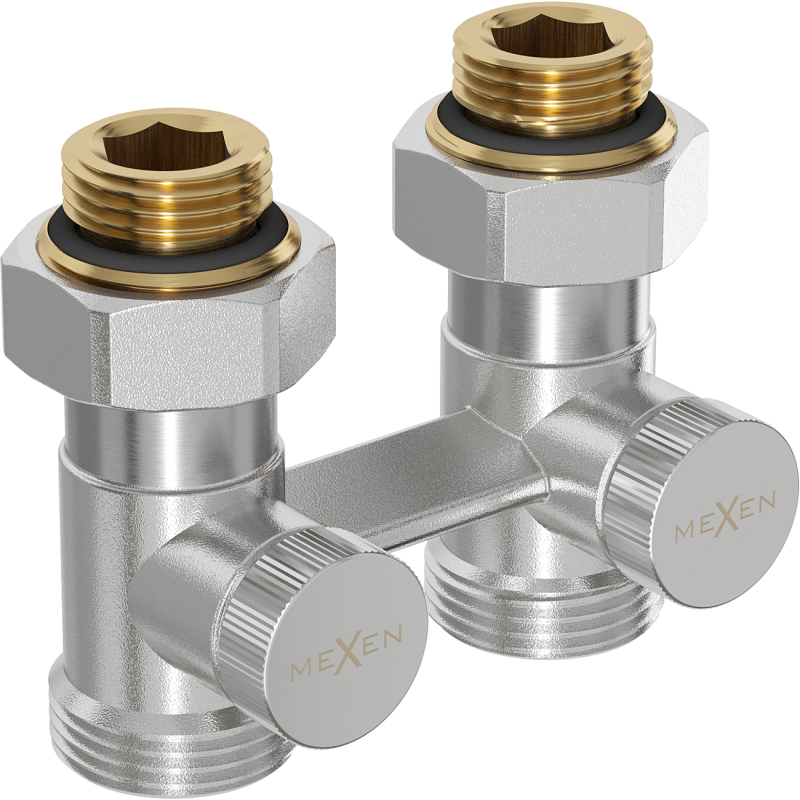

The Mexen DN50, two-pipe radiator valve, straight 1/2"x3/4", nickel is a high-quality product made of brass, with an elegant nickel-plated finish. It ensures reliability thanks to its capability to operate at temperatures up to 120°C and pressures up to 10 bar. With standard connection diameters of G 1/2" and G 3/4", and a bottom connection with 50 mm spacing, it is easy to install and compatible with various heating systems. An ideal choice for supplying and shutting off heating circuits.

Technical data:

Material: Brass

Colour: Nickel

Connection diameter: G 1/2" and G 3/4"

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

Supply and shut-off radiator valve

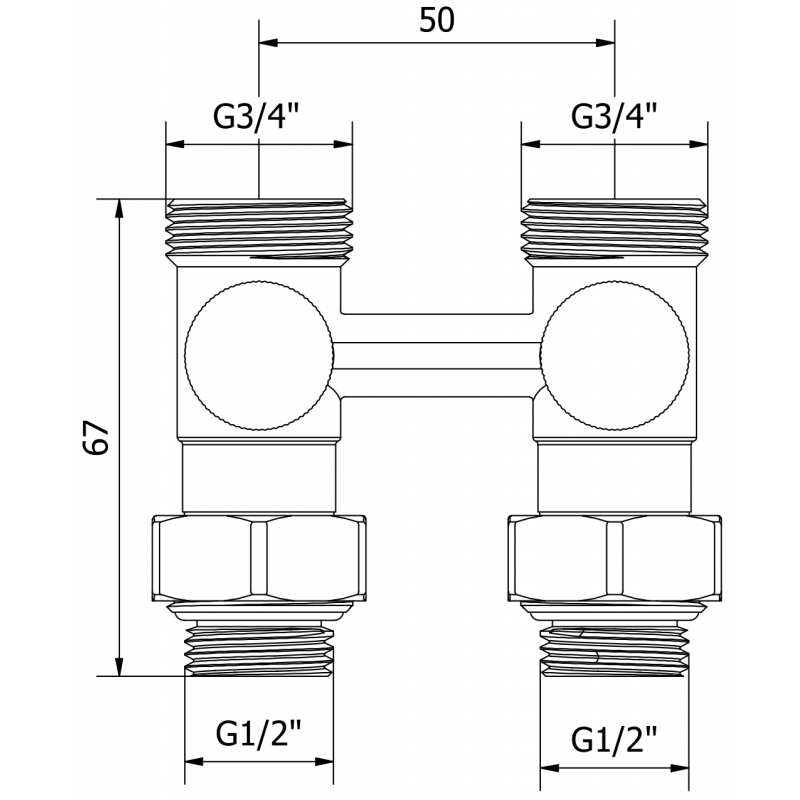

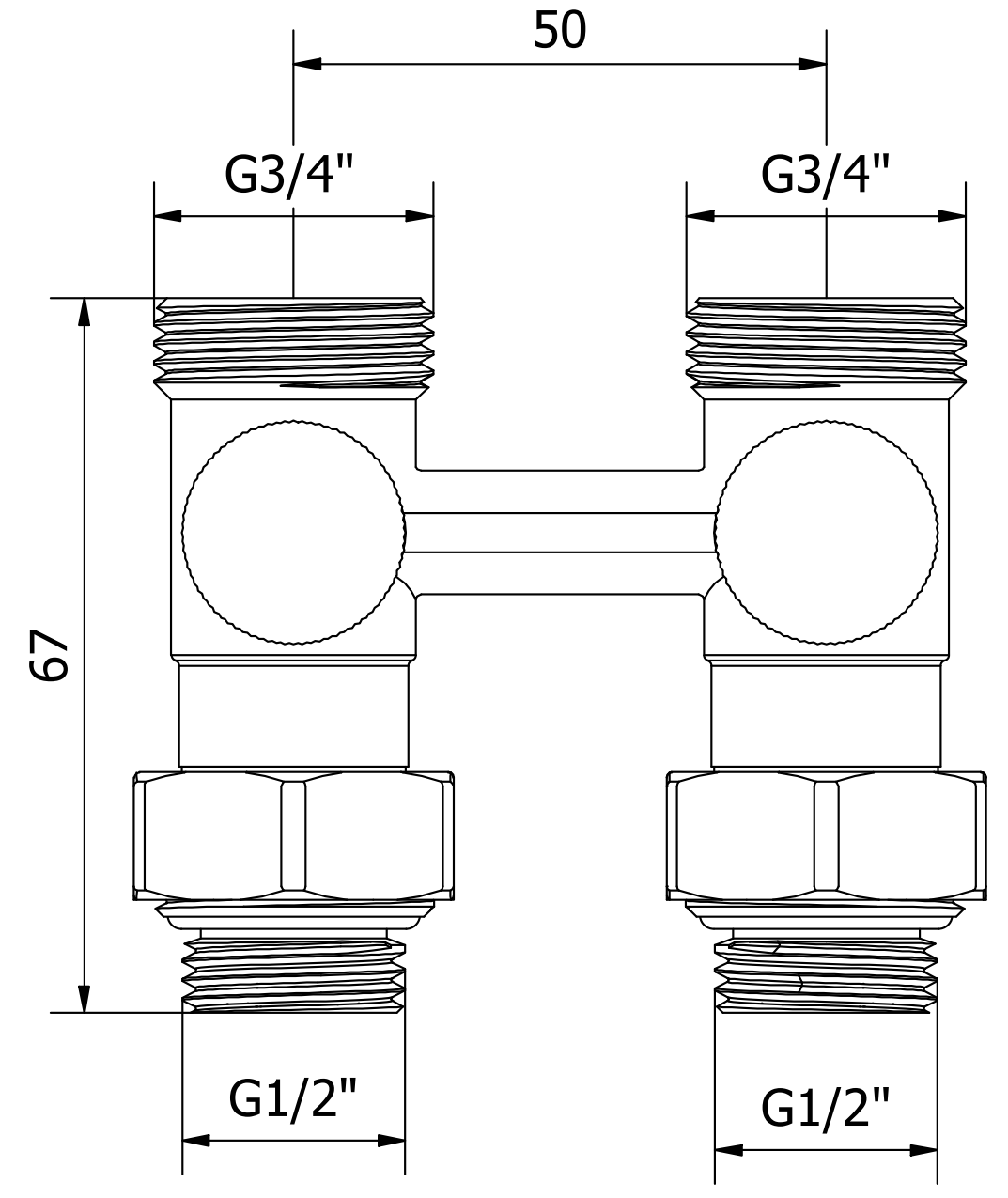

Bottom connection with 50 mm spacing

Innovative solutions used in this product

Brass

Making the product from brass ensures its durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and fluctuating temperatures.

1 Mpa

The product is designed to operate in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Connections G 1/2" and G 3/4"

A radiator valve with a threaded connection 1/2" and 3/4" is a popular type of valve used in heating installations. These threads are standard in many heating systems and serve to connect radiators to central heating systems.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Series
Uni-Term
Type
Straight
Color
Nickel
Inlet Diameter
G 1/2" , G 3/4"
User manual
Download
Safety Information
Download
Warranty conditions
Download
Manufacturer
See
