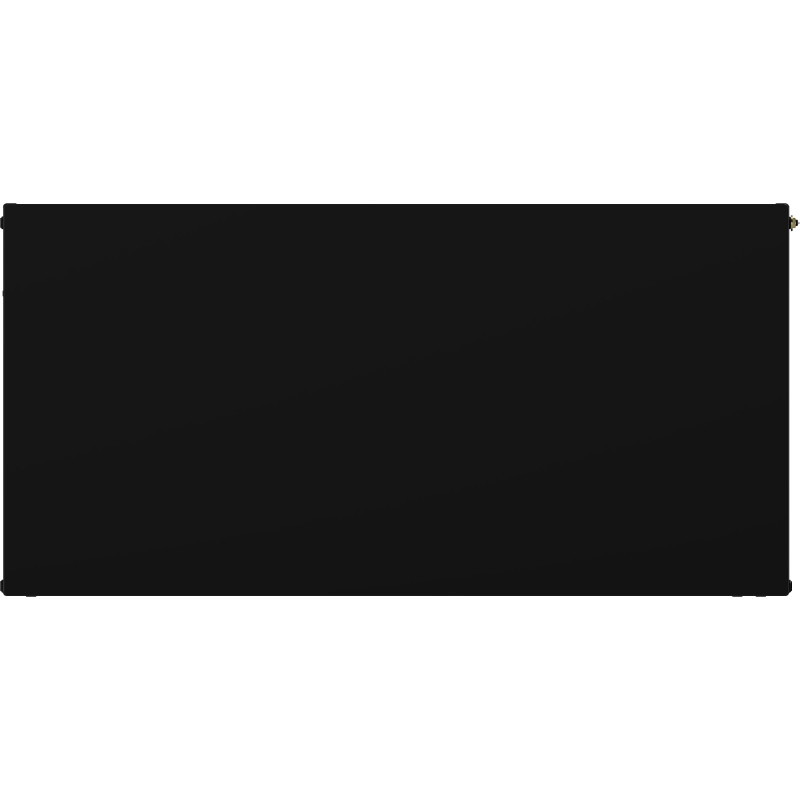

Mexen CVF21 Flat panel radiator 600 x 800 mm, bottom connection, 968 W, black - W621F-060-080-70

Mexen Flat is a modern panel radiator with dimensions of 600 x 800 mm, ideal for spaces requiring efficient heating. Its heating power is up to 968 W at 75/65/20°C, ensuring quick and effective room heating. The radiator is made of steel, with a durable paint coating compliant with DIN 99500, guaranteeing durability and an aesthetic appearance. Thanks to versatile connections, both from the bottom and side, installation is simple and flexible. The product is available in an elegant black color RAL 9005, adding a modern look. The maximum working pressure is 10 bar, and the working temperature reaches 110 °C. The set includes suspension, installation kit, sealing plugs, air vent, and valve insert, providing complete radiator equipment in one package.

Technical data:

Height (Y): 600 mm

Width (X): 800 mm

Depth: 73 mm

Connection spacing: 5 cm

Vertical water channel spacing: 33.3 mm

Color: Black RAL 9005

Material: Steel

Working temperature: max 110 °C

Maximum working pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 506 W

- 75/65/20 °C 968 W

- 90/70/20 °C 1220 W

Connections:

- 2xG ½″ from the bottom on the right or left side

- 4xG ½″ side

High-quality, durable paint coating - DIN 99500

Features side cover and removable top cover

Includes: suspension, installation set, sealing plugs, air vent, and valve insert

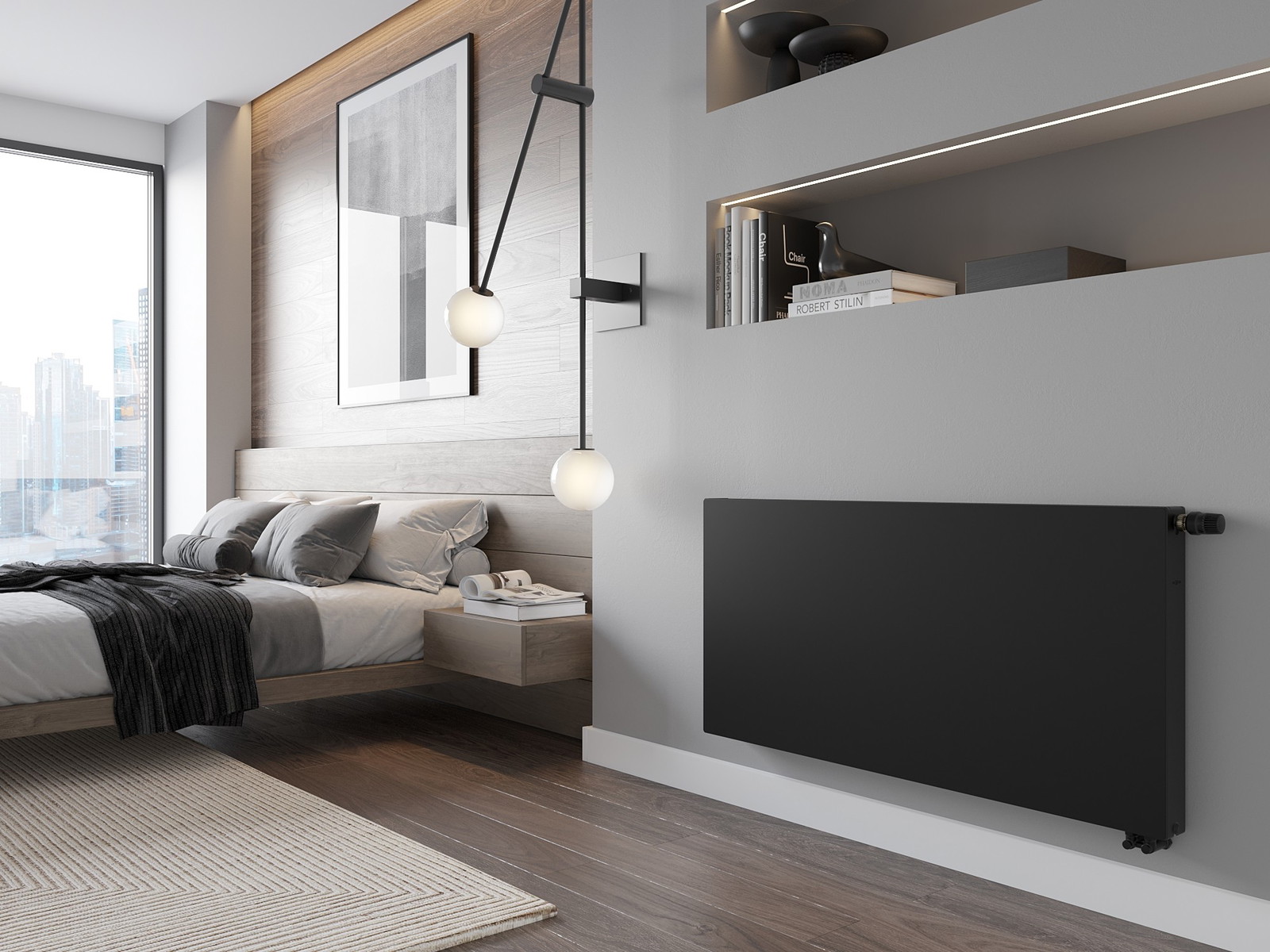

Images show the radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CVF21
Width
800 mm
Height
600 mm
Depth
73 mm
Type
Plate / Panel
Heating power
968 W
Color
Black
Material
Steel
Type
21
Installation Orientation
Universal
Connection spacing
5 cm
Connection
Bottom
Orientation
Horizontal
