Mexen Flat is an elegant plate radiator measuring 500 x 400 mm with a bottom connection, offering impressive heating power up to 960 W. Made of durable steel and in a stylish black color (RAL 9005), it blends perfectly with modern interiors. Thanks to its compact size and high-quality lacquered finish compliant with DIN 99500, it ensures durability and aesthetics. Equipped with a set of mounting accessories, including an air vent and valve insert, it guarantees easy installation and reliable operation.

Technical data:

Height (Y): 500 mm

Width (X): 400 mm

Depth: 164 mm

Connection spacing: 5 cm

Vertical water channel spacing: 33.3 mm

Color: Black RAL 9005

Material: Steel

Operating temperature: max 110 °C

Maximum working pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 396 W

- 75/65/20 °C 760 W

- 90/70/20 °C 960 W

Connections:

- 2xG ½″ from the bottom on the right

- 4xG ½″ side

High quality, durable paint finish - DIN 99500

Includes side cover and removable top cover

Includes: hangers, mounting kit, sealing plugs, air vent and valve insert

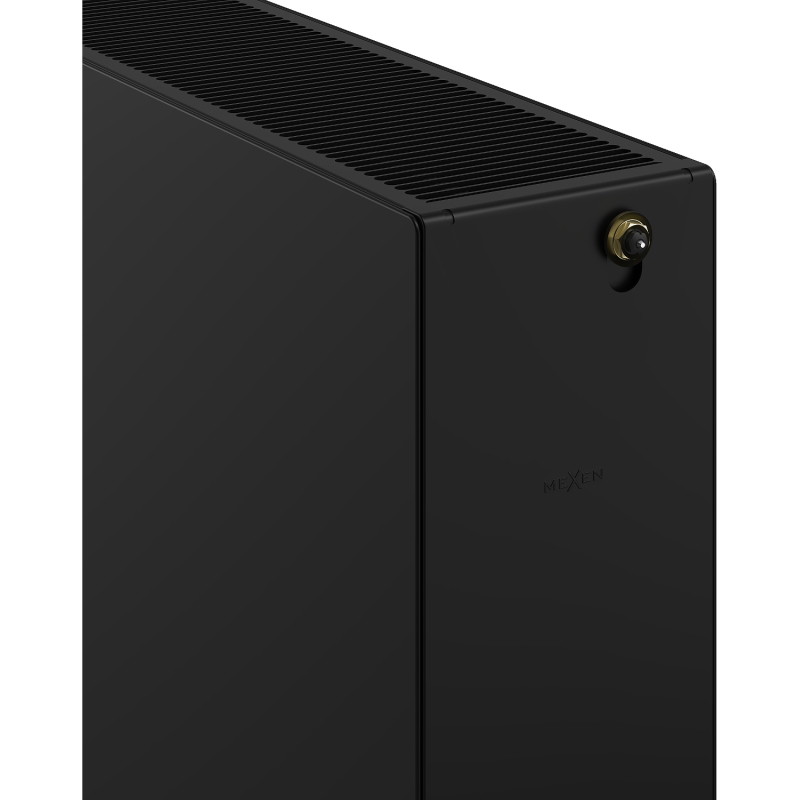

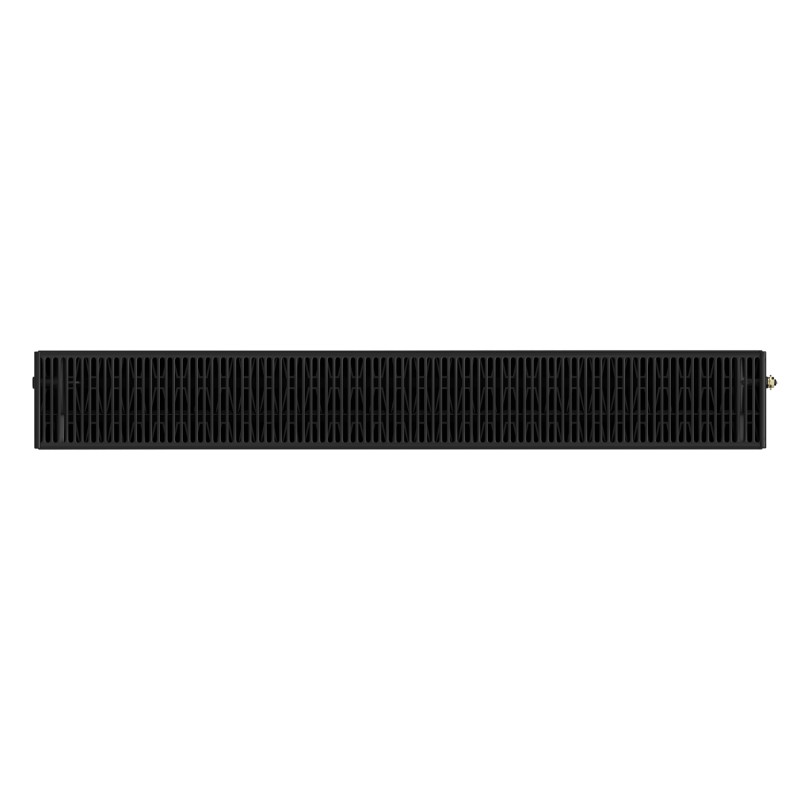

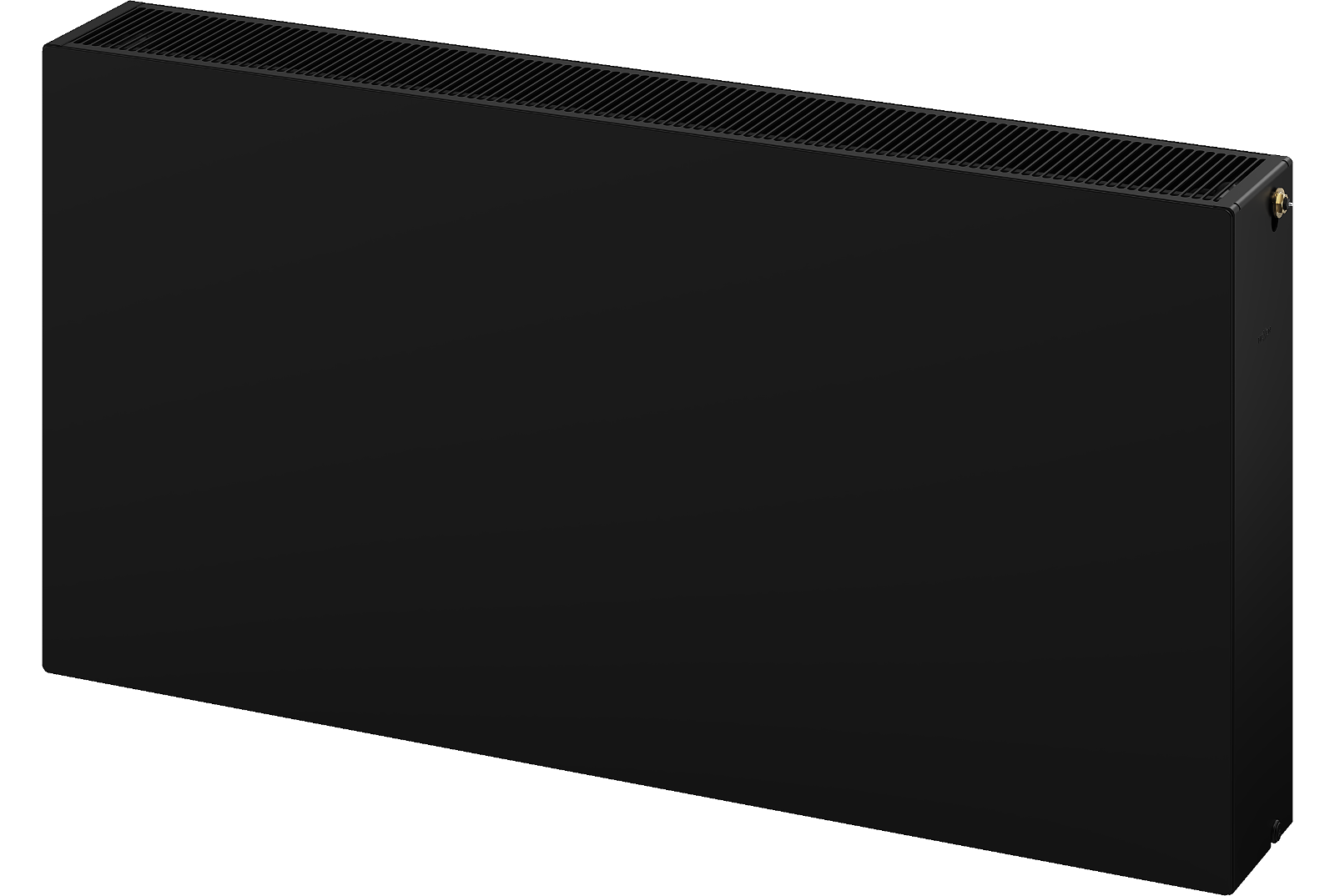

Photos show the radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CVF33
Width
400 mm
Height
500 mm
Depth
164 mm
Type
Plate / Panel
Heating power
760 W
Color
Black
Material
Steel
Type
33
Installation Orientation
Right
Connection spacing
5 cm
Connection
Bottom
Orientation
Horizontal
