Mexen CCF22 Flat panel radiator 300 x 1800 mm, bottom middle connection, 1621 W, white - W6C22F-030-180-00

Mexen Flat CCF22 is a modern panel radiator with dimensions of 300 x 1800 mm, which fits perfectly into any interior thanks to its middle bottom connection. Its steel construction ensures durability, while the high-quality white paint finish in RAL 9016 adds elegance. The radiator offers high heating power, reaching 1621 W at a temperature of 75/65/20 °C. The maximum working temperature is 110 °C, making it highly efficient. The product is equipped with practical connections and additional mounting accessories.

Technical data:

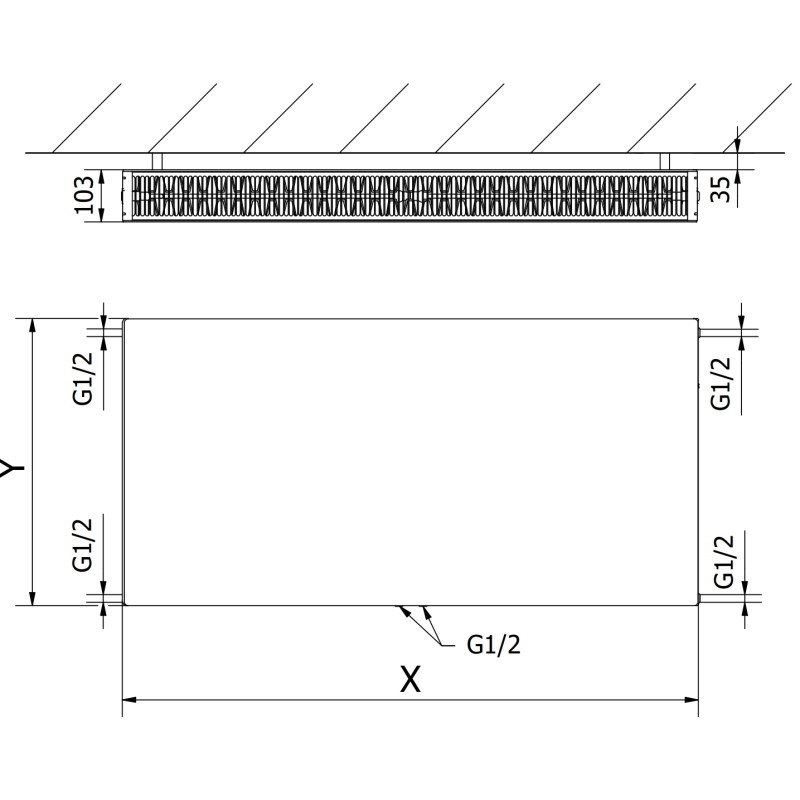

Height (Y): 300 mm

Width (X): 1800 mm

Depth: 103 mm

Connection spacing: 5 cm

Vertical water channel spacing: 33.3 mm

Color: White RAL 9016

Material: Steel

Working temperature: max 110 °C

Maximum working pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 853 W

- 75/65/20 °C 1621 W

- 90/70/20 °C 2039 W

Connections:

- 2xG ½″ bottom middle

- 4xG ½″ side

High-quality, durable paint coating - DIN 99500

Includes side cover and removable top cover

Included: brackets, installation kit, sealing plugs, air vent, and valve insert

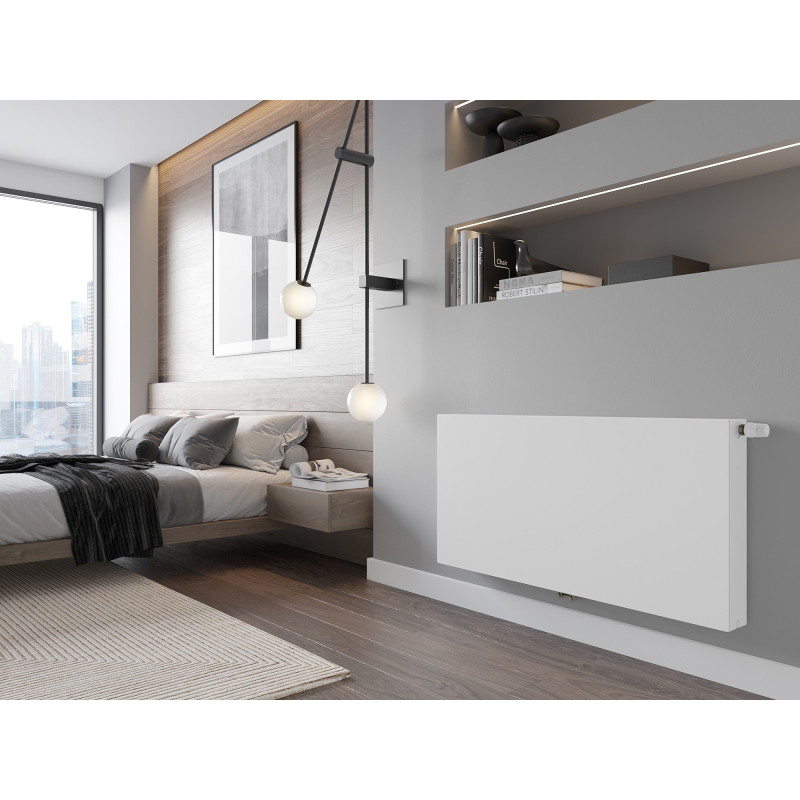

Photos show the radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CCF22
Width
1800 mm
Height
300 mm
Depth
103 mm
Type
Plate / Panel
Heating power
1621 W
Color
White
Material
Steel
Type
22
Installation Orientation
Universal
Connection spacing
5 cm
Connection
Bottom center
Orientation
Horizontal
