Mexen Line CCL11 panel radiator 500 x 400 mm, centre bottom connection, 273 W, white - W6C11L-050-040-00

Brodziki EN

Brodziki EN

(0)
Questions
(0)

Mexen Line CCL11 panel radiator 500 x 400 mm, centre bottom connection, 273 W, white - W6C11L-050-040-00

Mexen Line CCL11 panel radiator 500 x 400 mm, centre bottom connection, 273 W, white - W6C11L-050-040-00
search
  • Mexen Line CCL11 panel radiator 500 x 400 mm, centre bottom connection, 273 W, white - W6C11L-050-040-00
  • Mexen Line CCL11 panel radiator 500 x 400 mm, centre bottom connection, 273 W, white - W6C11L-050-040-00
  • Mexen Line CCL11 panel radiator 500 x 400 mm, centre bottom connection, 273 W, white - W6C11L-050-040-00
  • Mexen Line CCL11 panel radiator 500 x 400 mm, centre bottom connection, 273 W, white - W6C11L-050-040-00
  • Mexen Line CCL11 panel radiator 500 x 400 mm, centre bottom connection, 273 W, white - W6C11L-050-040-00
  • Mexen Line CCL11 panel radiator 500 x 400 mm, centre bottom connection, 273 W, white - W6C11L-050-040-00
Mexen Line CCL11 panel radiator 500 x 400 mm, centre bottom connection, 273 W, white - W6C11L-050-040-00
Mexen Line CCL11 panel radiator 500 x 400 mm, centre bottom connection, 273 W, white - W6C11L-050-040-00 Mexen Line CCL11 panel radiator 500 x 400 mm, centre bottom connection, 273 W, white - W6C11L-050-040-00 Mexen Line CCL11 panel radiator 500 x 400 mm, centre bottom connection, 273 W, white - W6C11L-050-040-00 Mexen Line CCL11 panel radiator 500 x 400 mm, centre bottom connection, 273 W, white - W6C11L-050-040-00 Mexen Line CCL11 panel radiator 500 x 400 mm, centre bottom connection, 273 W, white - W6C11L-050-040-00 Mexen Line CCL11 panel radiator 500 x 400 mm, centre bottom connection, 273 W, white - W6C11L-050-040-00
Steel Steel
High thermal efficiency High thermal efficiency
Paint Coating: DIN 99500 Paint Coating: DIN 99500
Brand:
Mexen
Series:
CCL11
Ean:
5905315836069
Index:
W6C11L-050-040-00
Height:
500 mm
Color:
White
Width:
400 mm
Heating power:
273 W
Width - 400 mm - ()
400 mm
500 mm
600 mm
700 mm
800 mm
900 mm
1000 mm
1100 mm
1200 mm
1300 mm
1400 mm
1500 mm
1600 mm
1800 mm
2000 mm
Height - 500 mm - ()
300 mm
400 mm
500 mm
600 mm
900 mm
Color - White - ()

Mexen Line CCL11 panel radiator 500 x 400 mm, centre bottom connection, 273 W, white - W6C11L-050-040-00

Technical data:

Height (Y): 500 mm

Width (X): 400 mm

Depth: 59 mm

Connection spacing: 5 cm

Spacing of vertical water channels: 33.3 mm

Colour: White RAL 9016

Material: Steel

Working temperature: max 110 °C

Maximum operating pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 145 W

- 75/65/20 °C 273 W

- 90/70/20 °C 342 W

Connections:

- 2xG ½″ centre bottom

- 4xG ½″ side

High quality, durable coating - DIN 99500

Includes side cover and removable top cover

Set includes: hangers, installation kit, sealing plugs, air vent, and valve insert

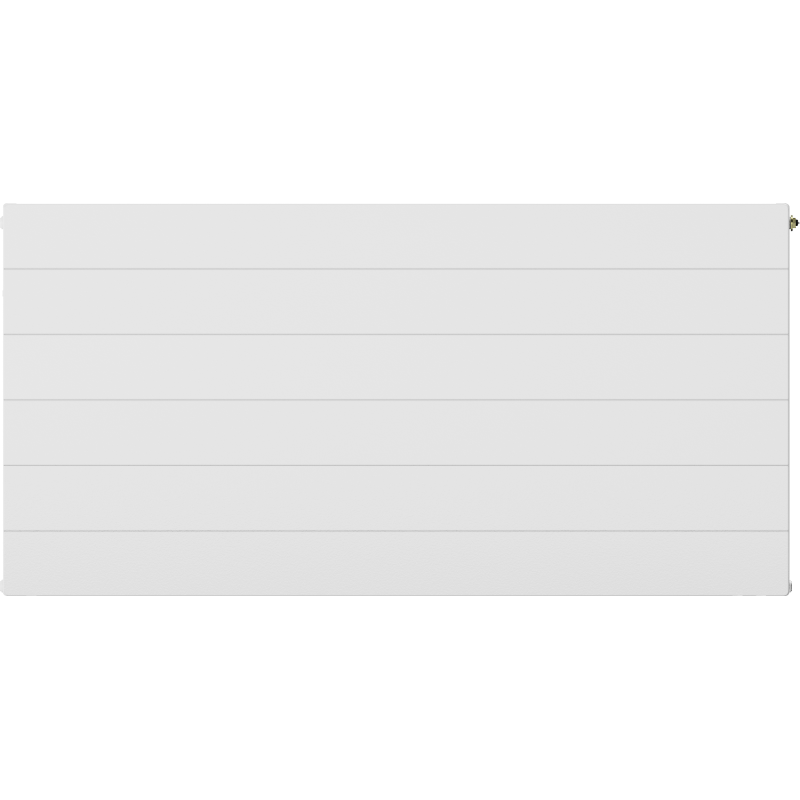

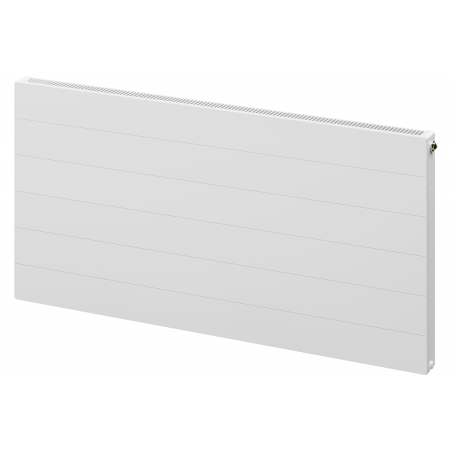

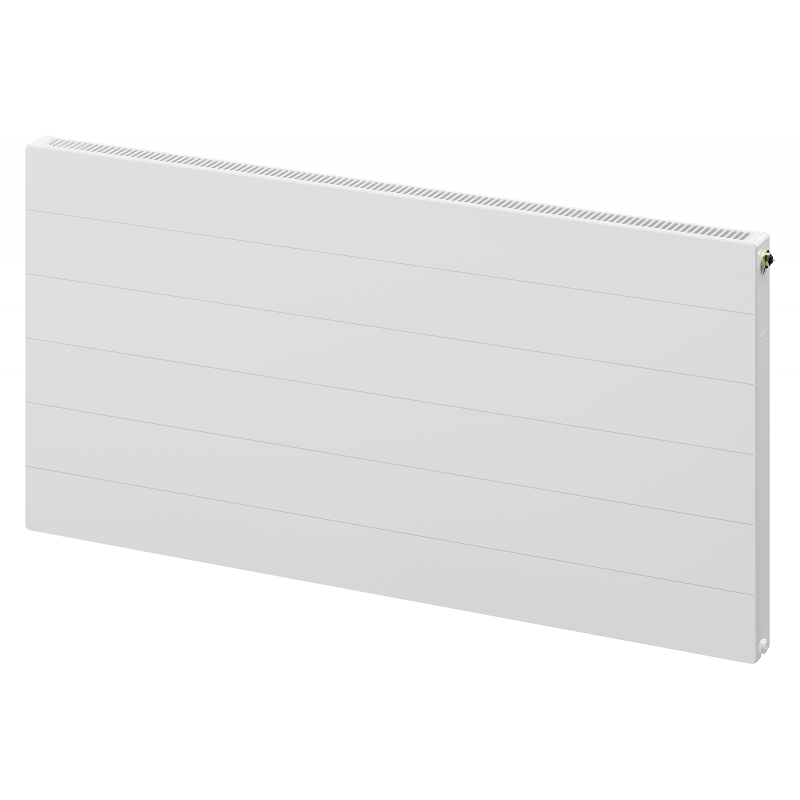

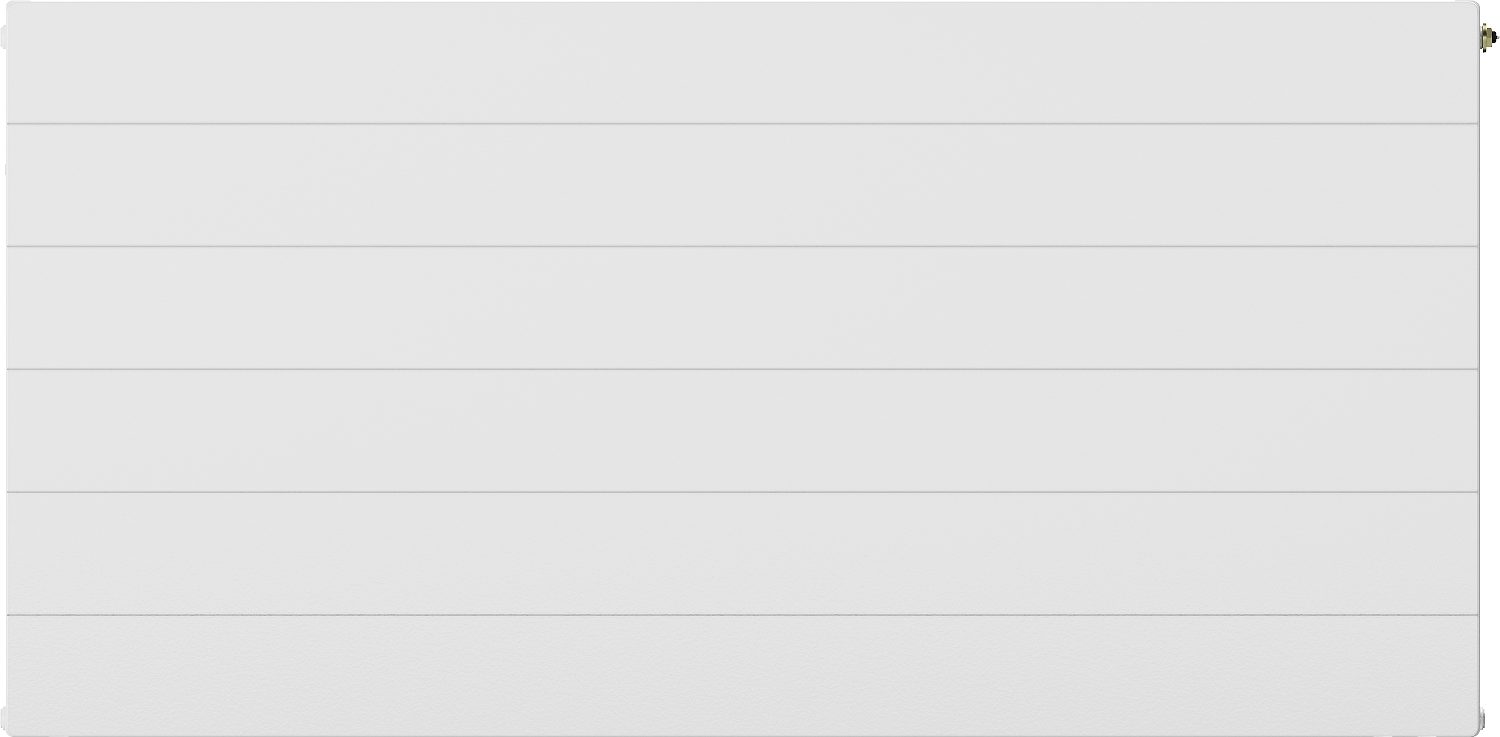

The pictures show a radiator size of 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CCL11
Width
400 mm
Height
500 mm
Depth
59 mm
Type
Plate / Panel
Heating power
273 W
Color
White
Material
Steel
Type
11
Installation Orientation
Universal
Connection spacing
5 cm
Connection
Bottom center
Orientation
Horizontal
User manual
Download
Safety Information
Download
Warranty conditions
Download
Manufacturer
See
