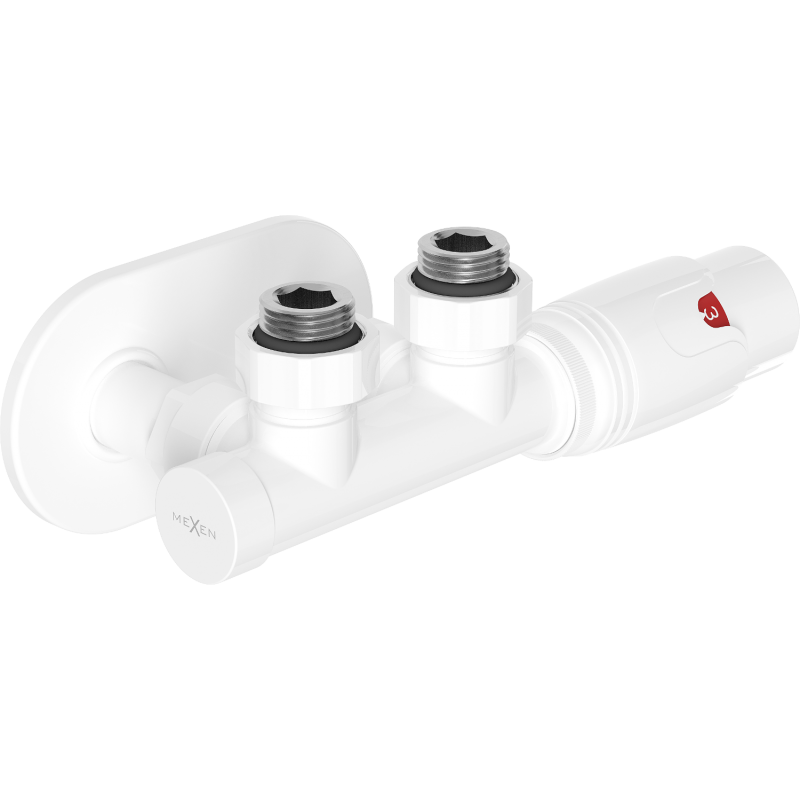

Mexen G00 angle thermostatic set with cover R, Duplex, DN50, white - W907-900-905-20

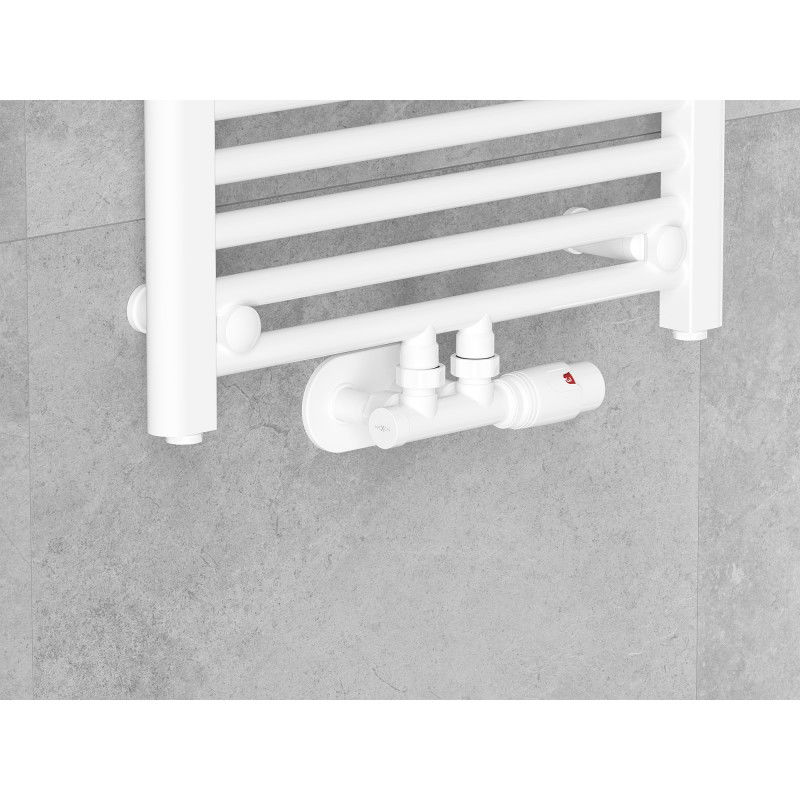

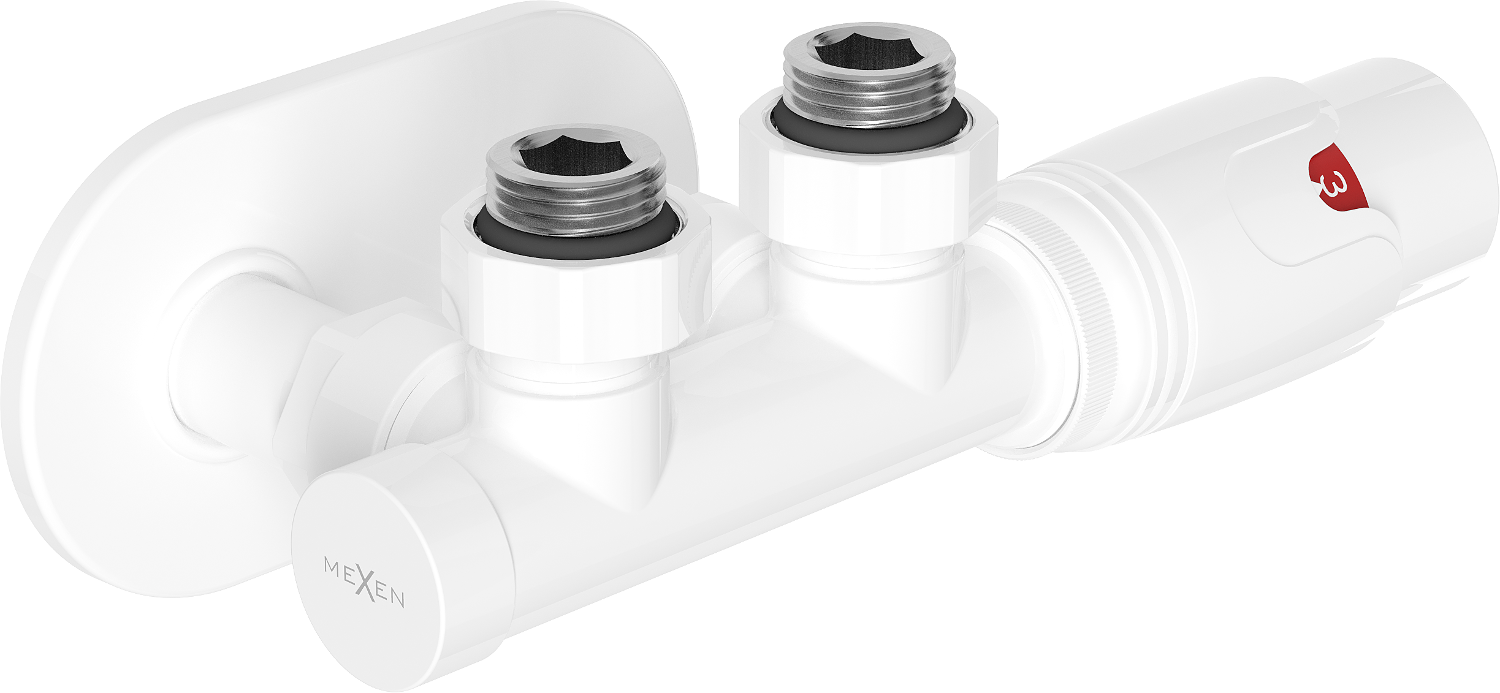

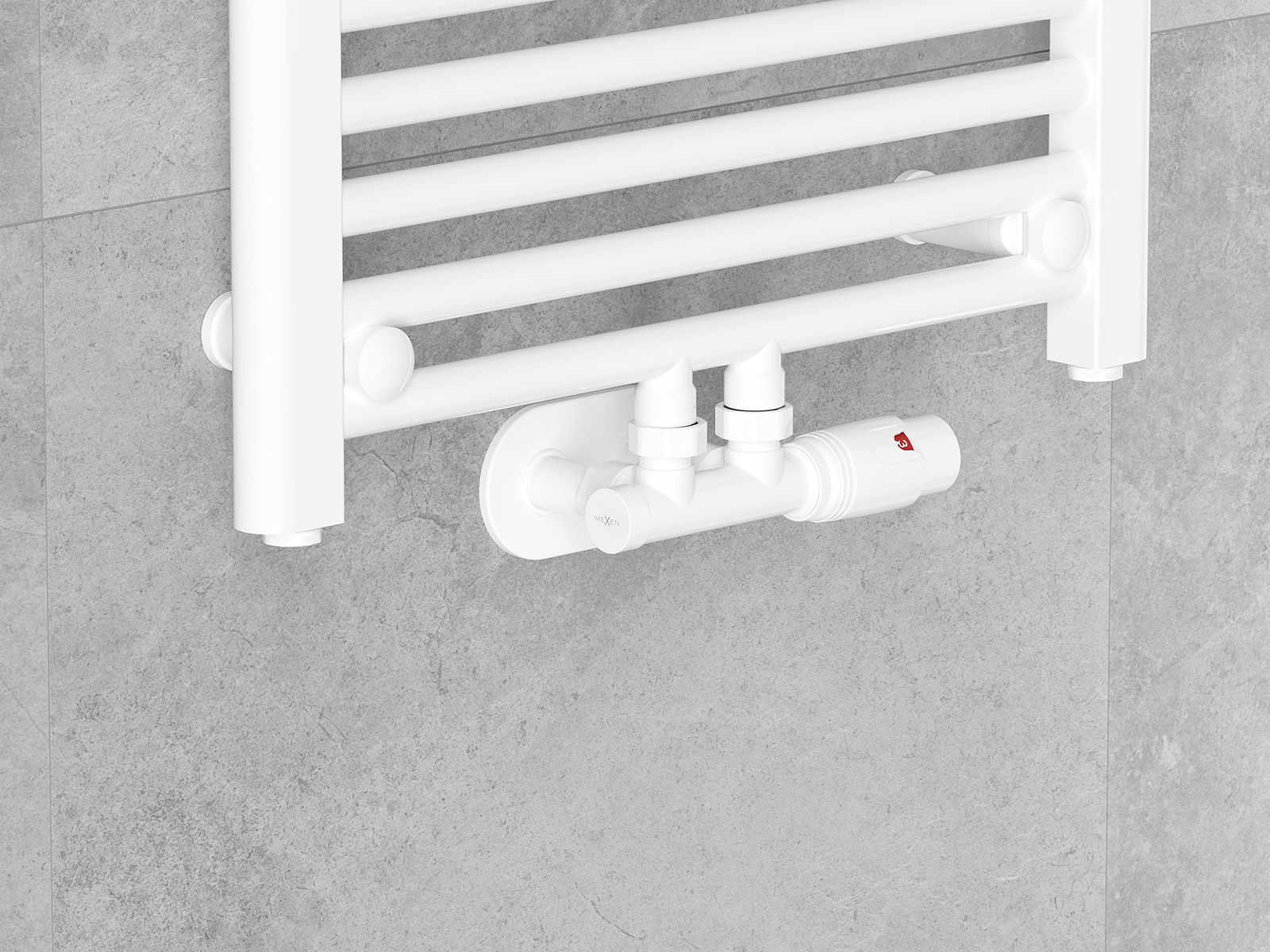

The Mexen G00 angular thermostatic set with cover R, Duplex, DN50, white, is the perfect solution for your heating system. The brass valve with a G 1/2" connection diameter features a white colour and a maximum operating temperature of up to 120°C and a working pressure of 10 bar. Its design allows for bottom connection with a spacing of 50 mm, and mounting of the head on the left or right side of the valve. The set includes a cover with a double rosette and brass sleeves, ensuring an aesthetic appearance and durability.

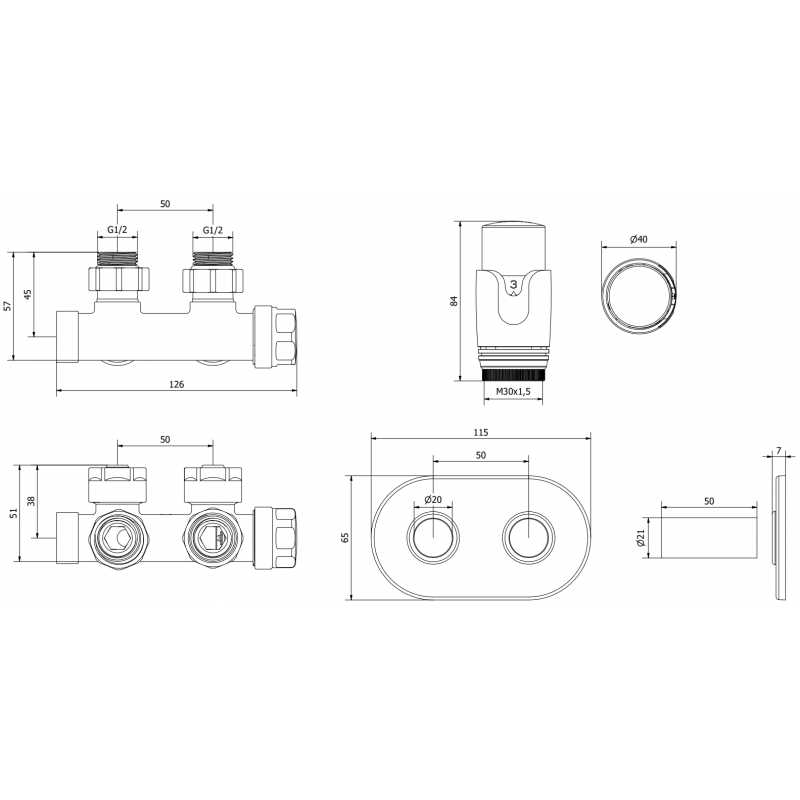

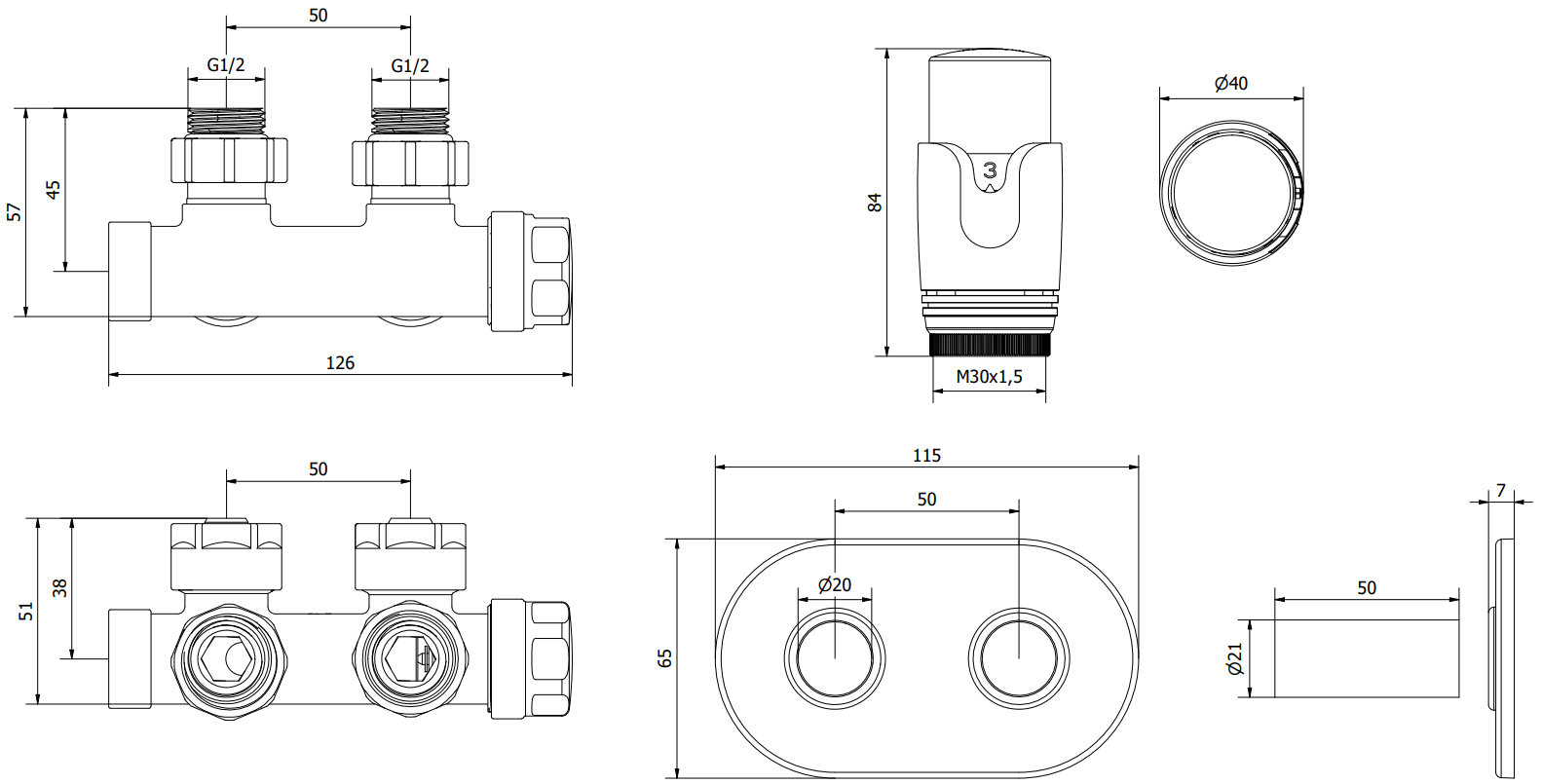

Technical data:

Valve material: Brass

Valve colour: White

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Supply and shut-off radiator valve

Bottom connection with a spacing of 50 mm

Head thread: M30 x 1.5 mm

Head colour: White

Adjustment scale: 0-5

Temperature regulation range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Possibility to connect the head on the left or right side of the valve

Cover colour: White

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Internal hole diameter: 21 mm

Sleeve material: Brass

Sleeve length: 50 mm

Internal sleeve diameter: 20 mm

Spacing of radiator connection holes: 50 mm

The cover consists of a double rosette and two sleeves

The set includes additional connectors for multi-layer pipes 16x2 mm and connectors for copper pipes 15 mm

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed to operate in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Immunity and Durability

Set with a stainless steel rosette and brass sleeve combines two materials with exceptional properties. Stainless steel provides an aesthetic finish and resistance to corrosion, while brass guarantees durability and strength when connecting the elements of the heating system.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.
