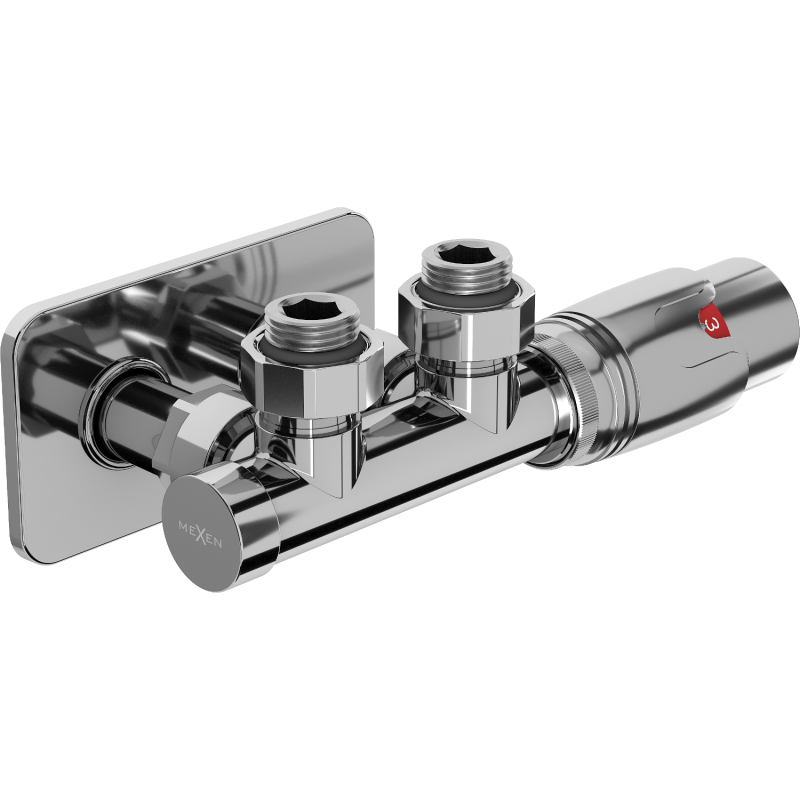

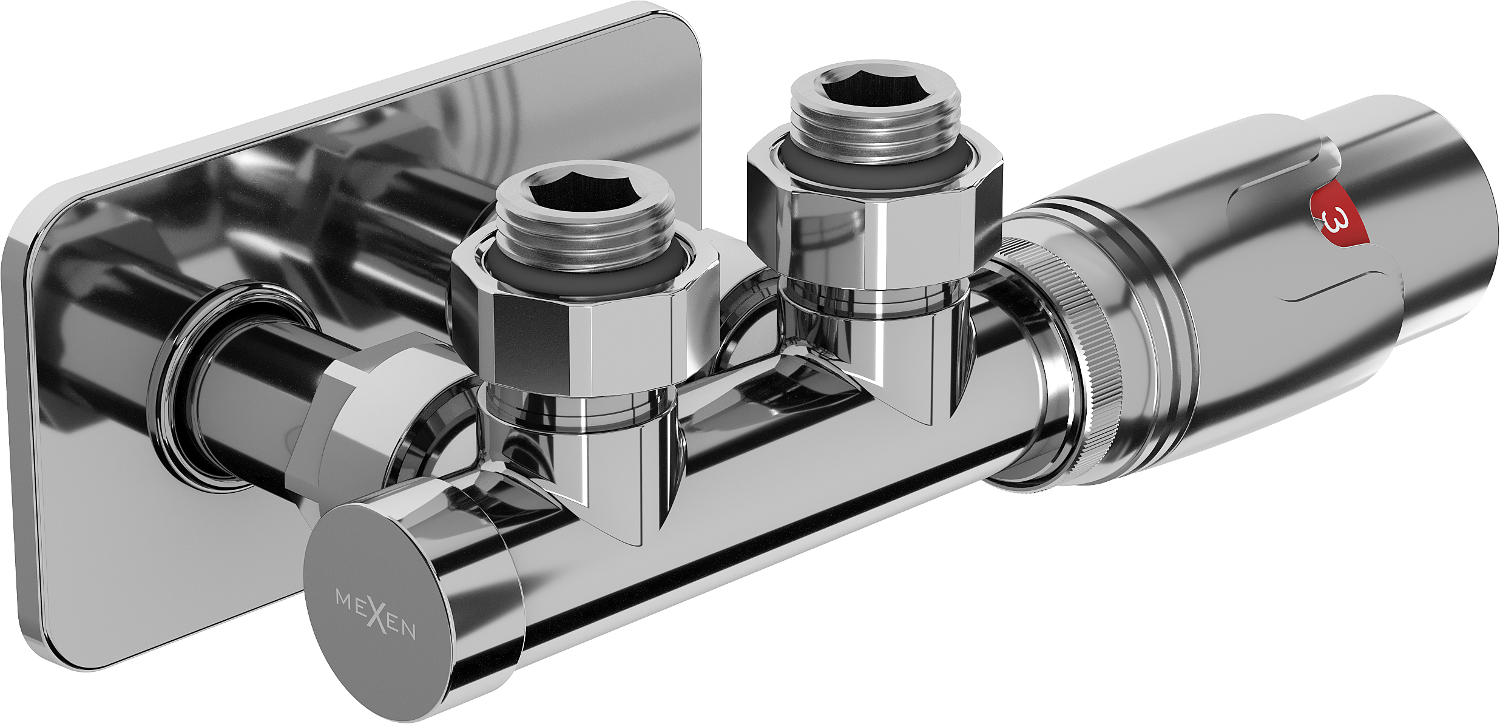

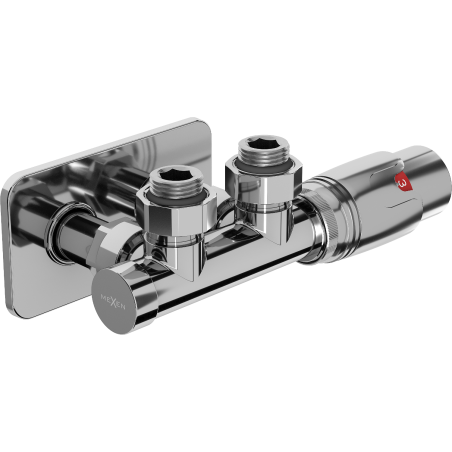

Mexen G00 angled thermostatic set with cover S, Duplex, DN50, chrome - W907-900-910-01

Mexen G00 angled thermostatic set with cover S, Duplex, DN50, chrome ensures not only a stylish appearance with its chrome finish but also durability with a brass valve. Ideal for radiators, it offers supply and shut-off functionality, while its angled design and cover add elegance. High operating temperature (up to 120°C) and maximum pressure (10 bar) guarantee reliability. Head thread M30 x 1.5 mm and temperature adjustment range 0-29°C ensure versatility.

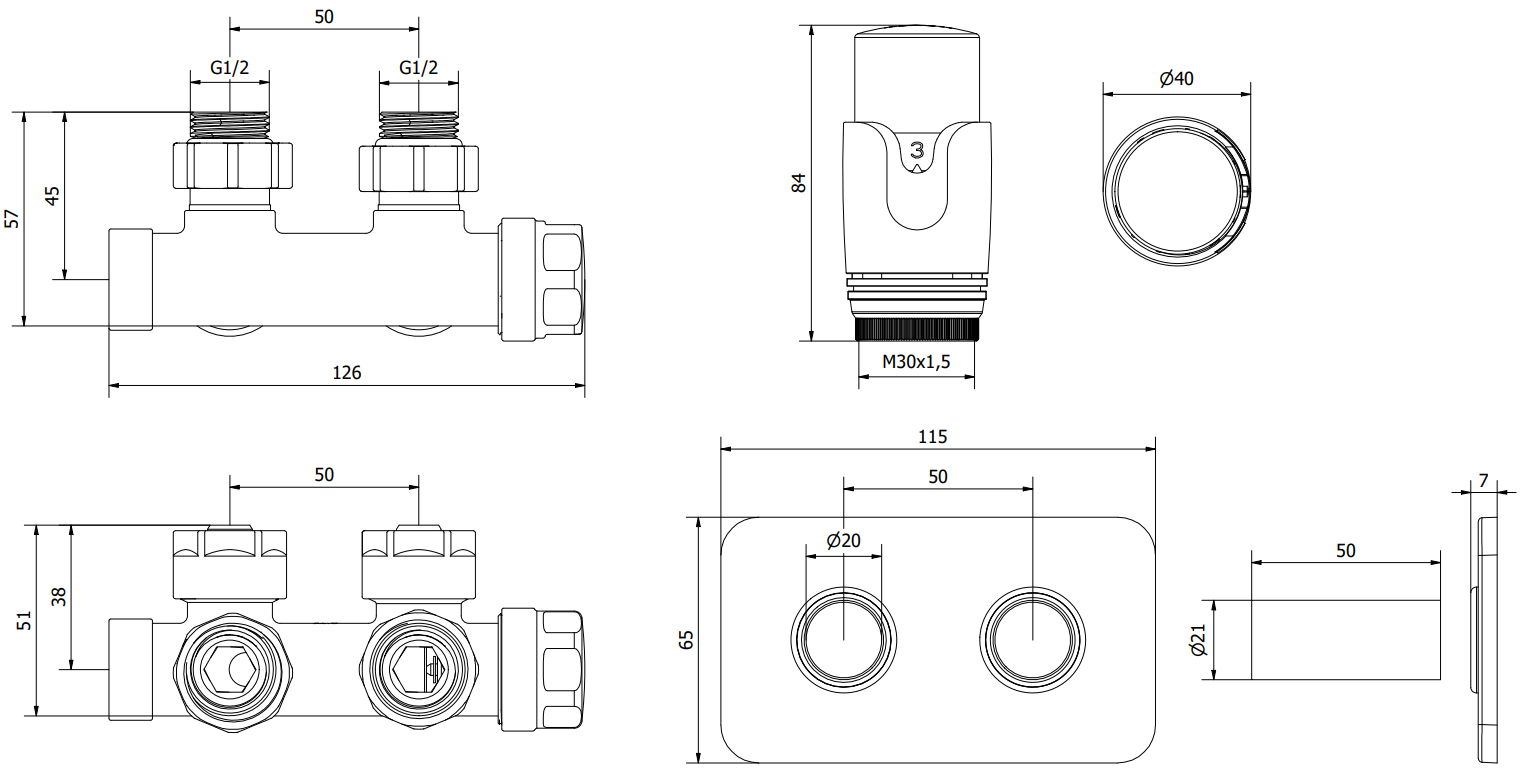

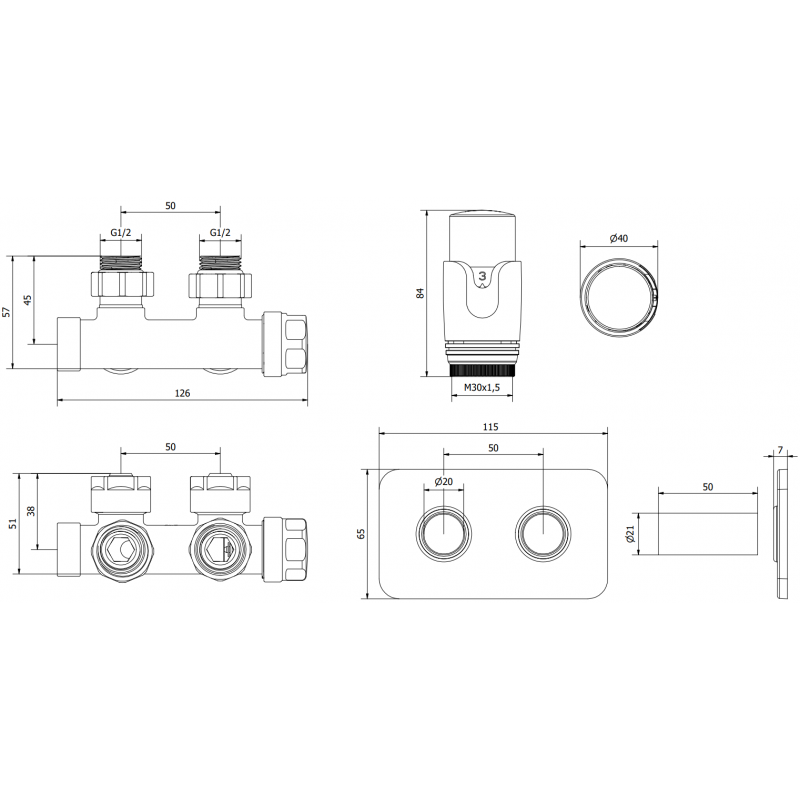

Technical data:

Valve material: Brass

Valve color: Chrome

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Supply and shut-off radiator valve

Bottom connection with 50 mm spacing

Head thread: M30 x 1.5 mm

Head color: Chrome

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Possibility to connect the head on the left or right side of the valve

Cover color: Chrome

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Internal hole diameter: 21 mm

Sleeve material: Brass

Sleeve length: 50 mm

Internal sleeve diameter: 20 mm

Spacing of holes for radiator connections: 50 mm

The cover consists of a double rosette and two sleeves

Includes additional connectors for 16x2 mm multilayer pipes and 15 mm copper pipe connectors

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Immunity and Durability

Set with a stainless steel rosette and brass sleeve combines two materials with exceptional properties. Stainless steel provides an aesthetic finish and resistance to corrosion, while brass guarantees durability and strength when connecting the elements of the heating system.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
G00
Type
Angular
Colour
Chrome
Connection diameter
G 1/2"
Cover
Yes
Warranty conditions
Download
Manufacturer
See
