Mexen Line CCL22 flat radiator 400 x 700 mm, bottom centre connection, 797 W, anthracite - W6C22L-040-070-66

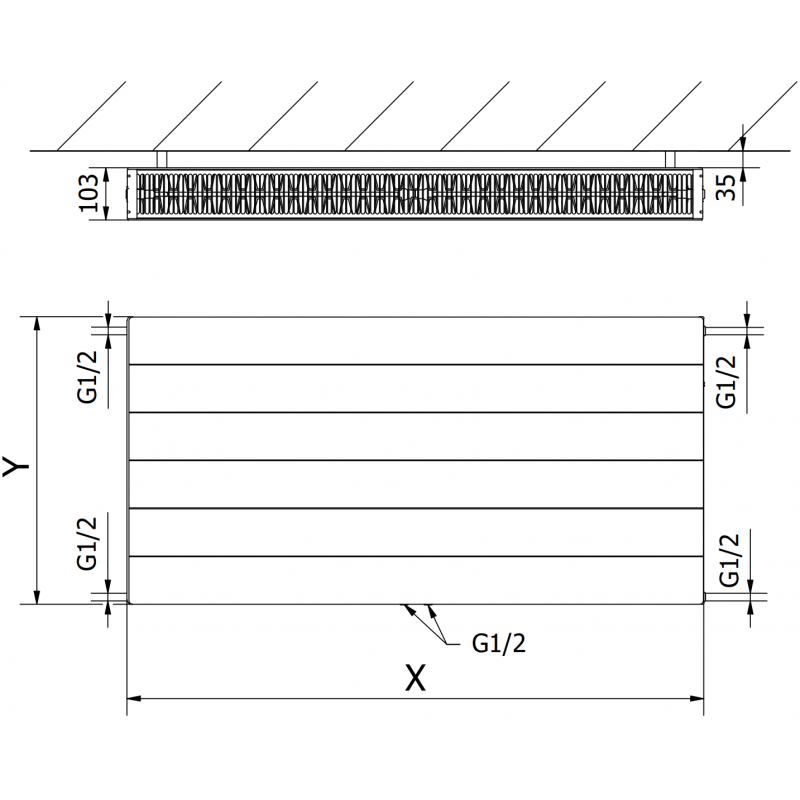

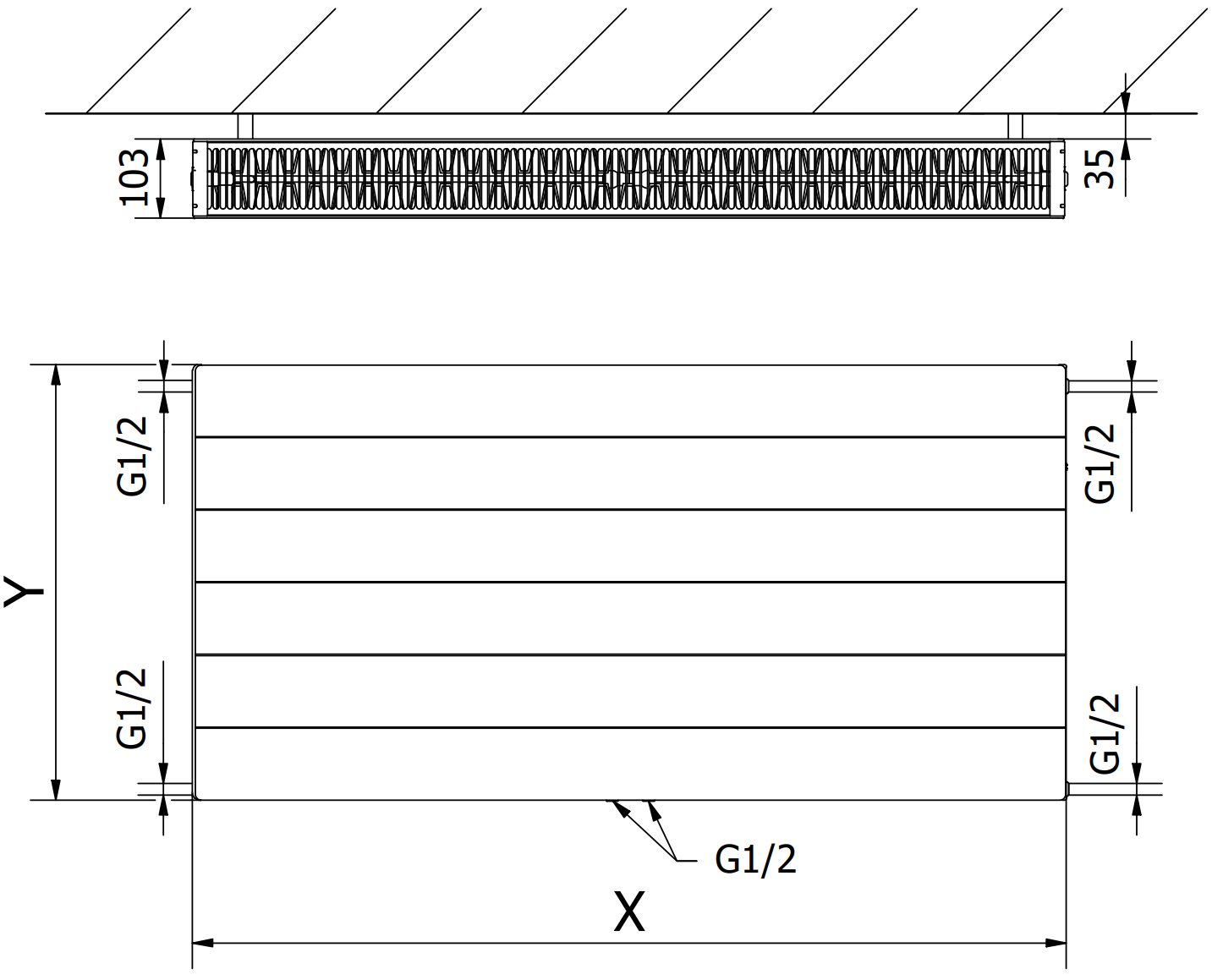

Technical data:
Height (Y): 400 mm
Width (X): 700 mm
Depth: 103 mm
Connection spacing: 5 cm
Spacing of vertical water channels: 33.3 mm
Colour: Anthracite RAL 7016
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 418 W
- 75/65/20 °C 797 W
- 90/70/20 °C 1003 W
Connections:
- 2xG ½″ bottom centre
- 4xG ½″ side
High quality, durable paint coating - DIN 99500
Features a side shield and a removable top cover
Included: brackets, installation kit, sealing plugs, air vent, and valve insert

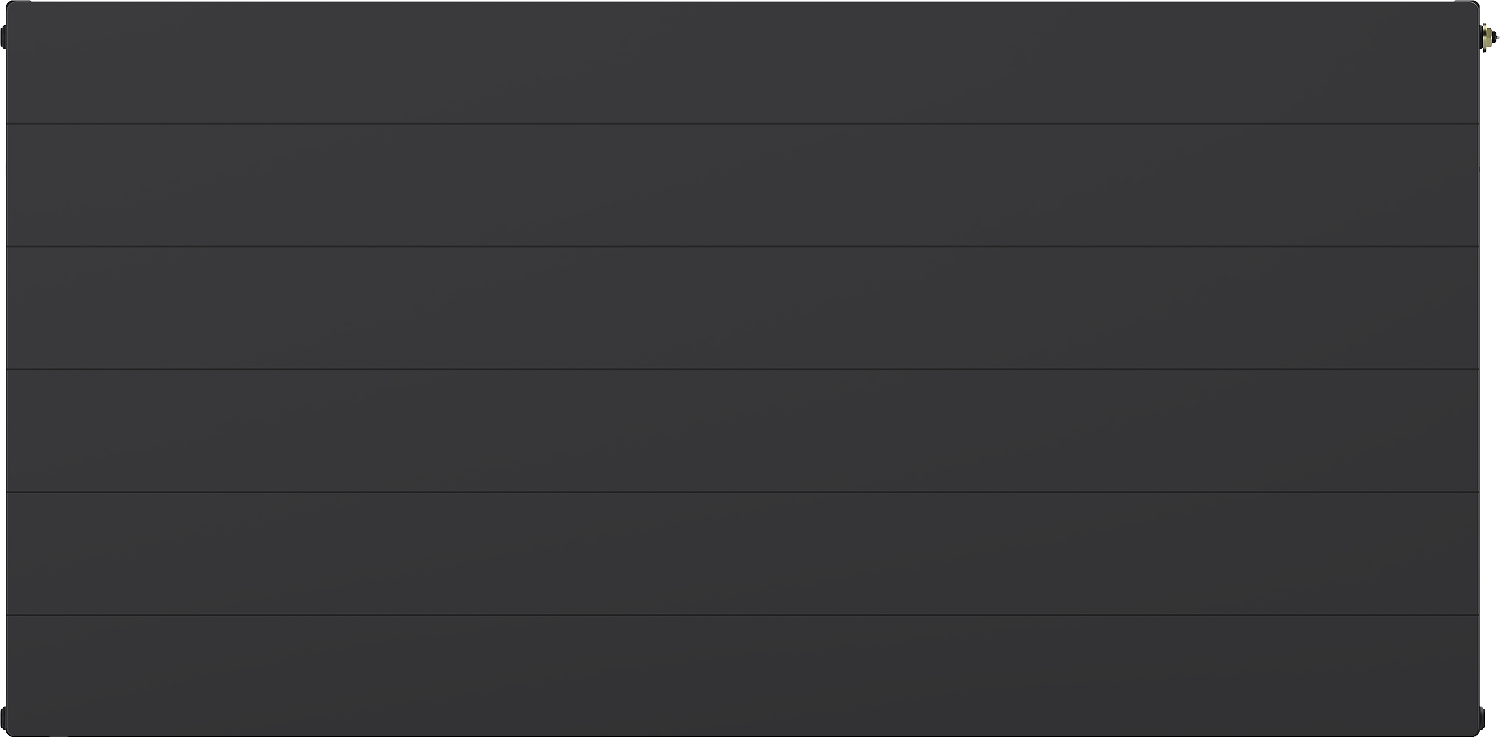

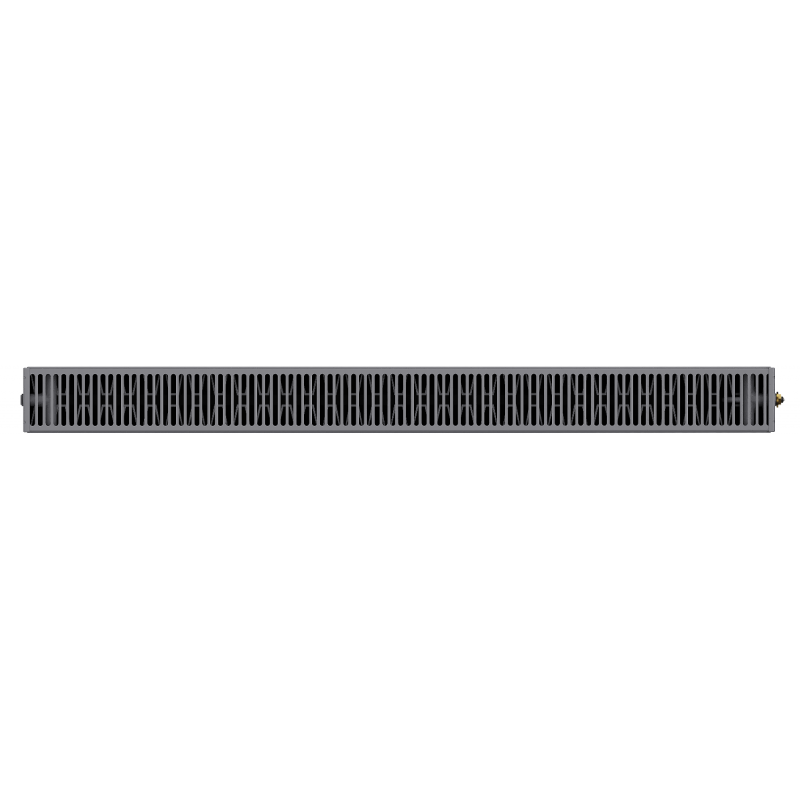

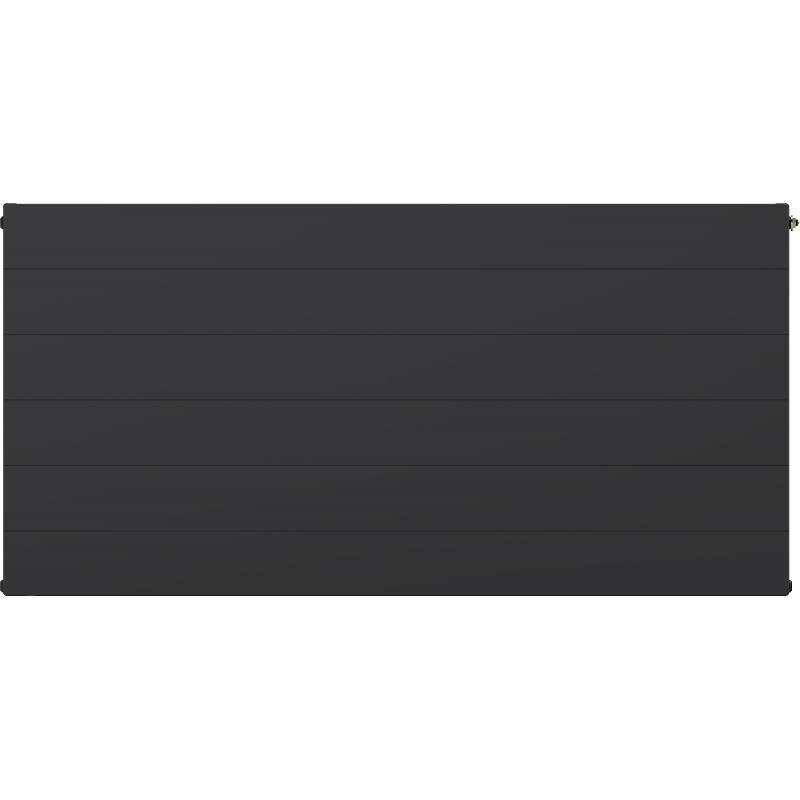

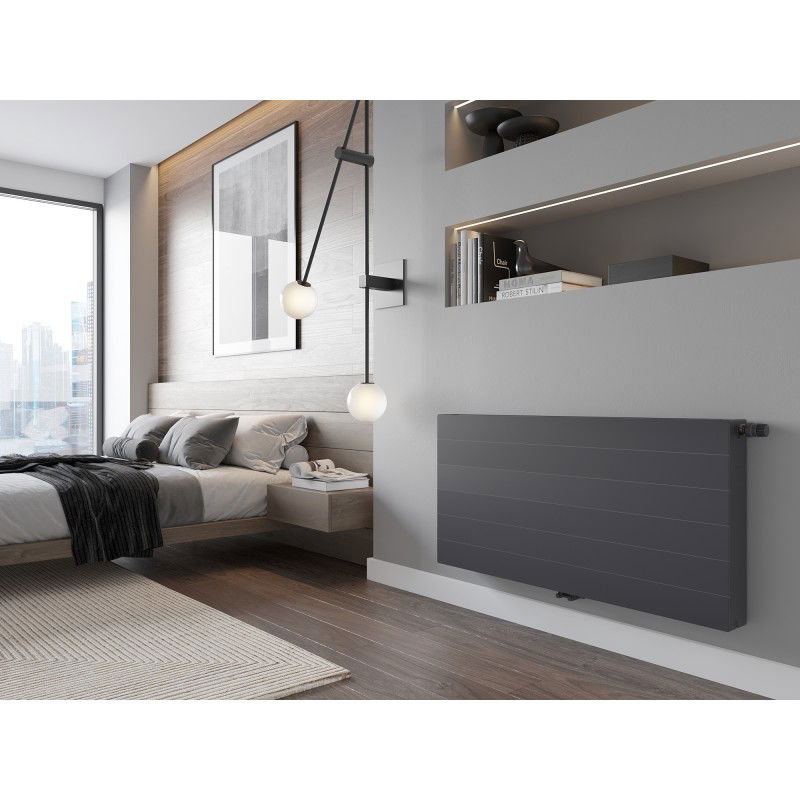

The photos show a radiator size 600 x 1200 mm.
