Mexen Line CCL22 Plate Radiator 400 x 2000 mm, Bottom Centre Connection, 2276 W, Anthracite - W6C22L-040-200-66
Technical specifications:

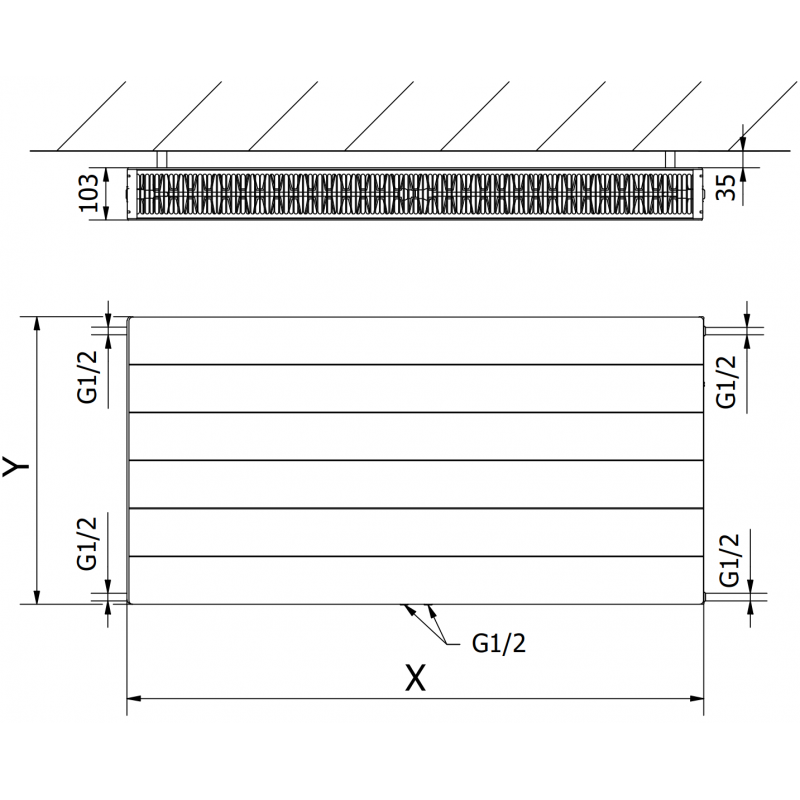

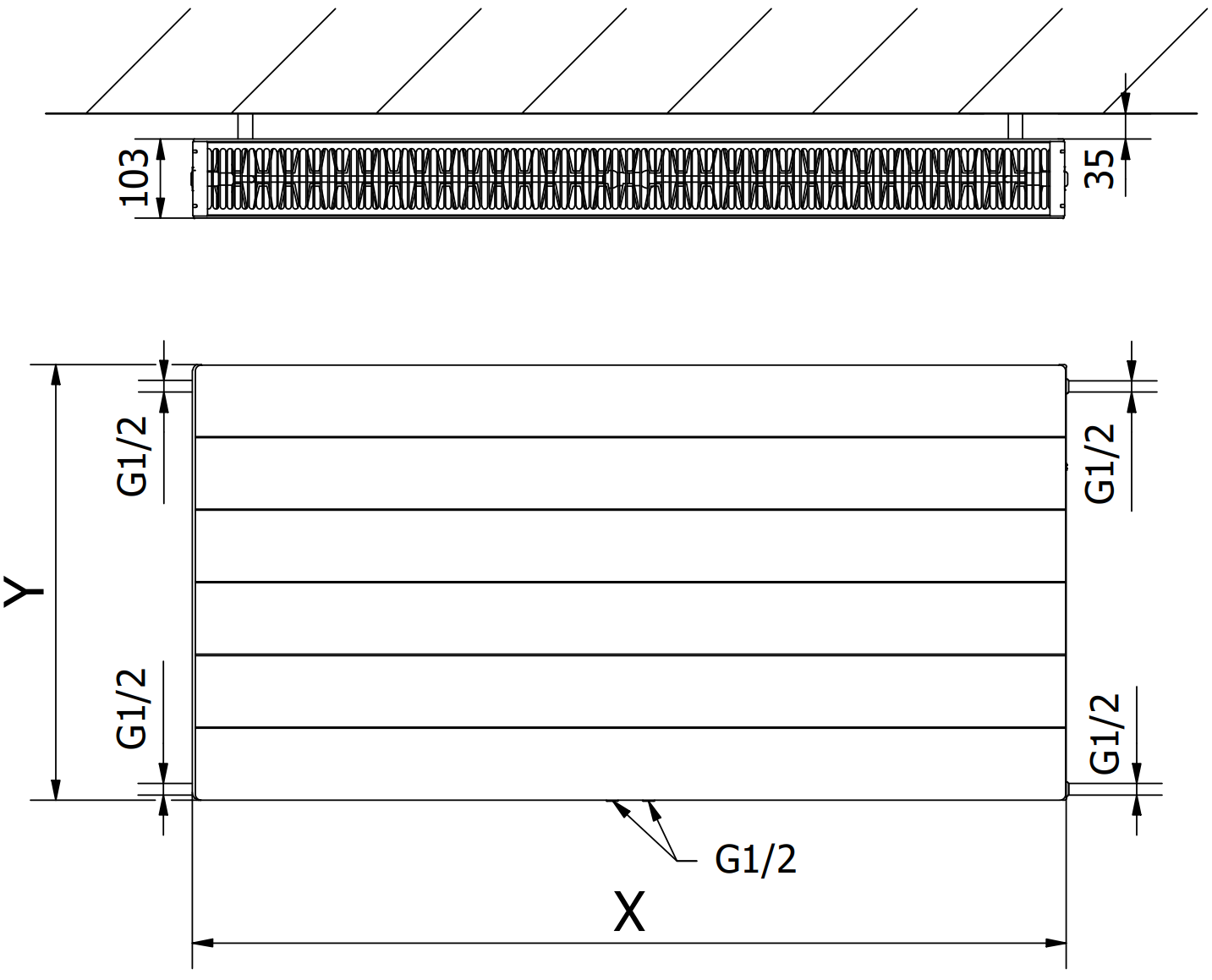

Height (Y): 400 mm
Width (X): 2000 mm
Depth: 103 mm
Connection spacing: 5 cm
Vertical water channel spacing: 33.3 mm
Colour: Anthracite RAL 7016
Material: Steel
Operating temperature: max 110 °C
Maximum operating pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 1194 W
- 75/65/20 °C 2276 W
- 90/70/20 °C 2865 W
Connections:
- 2xG ½″ bottom centre
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500
Features a side cover and a removable top cover
Includes: brackets, assembly kit, sealing plugs, vent and valve insert

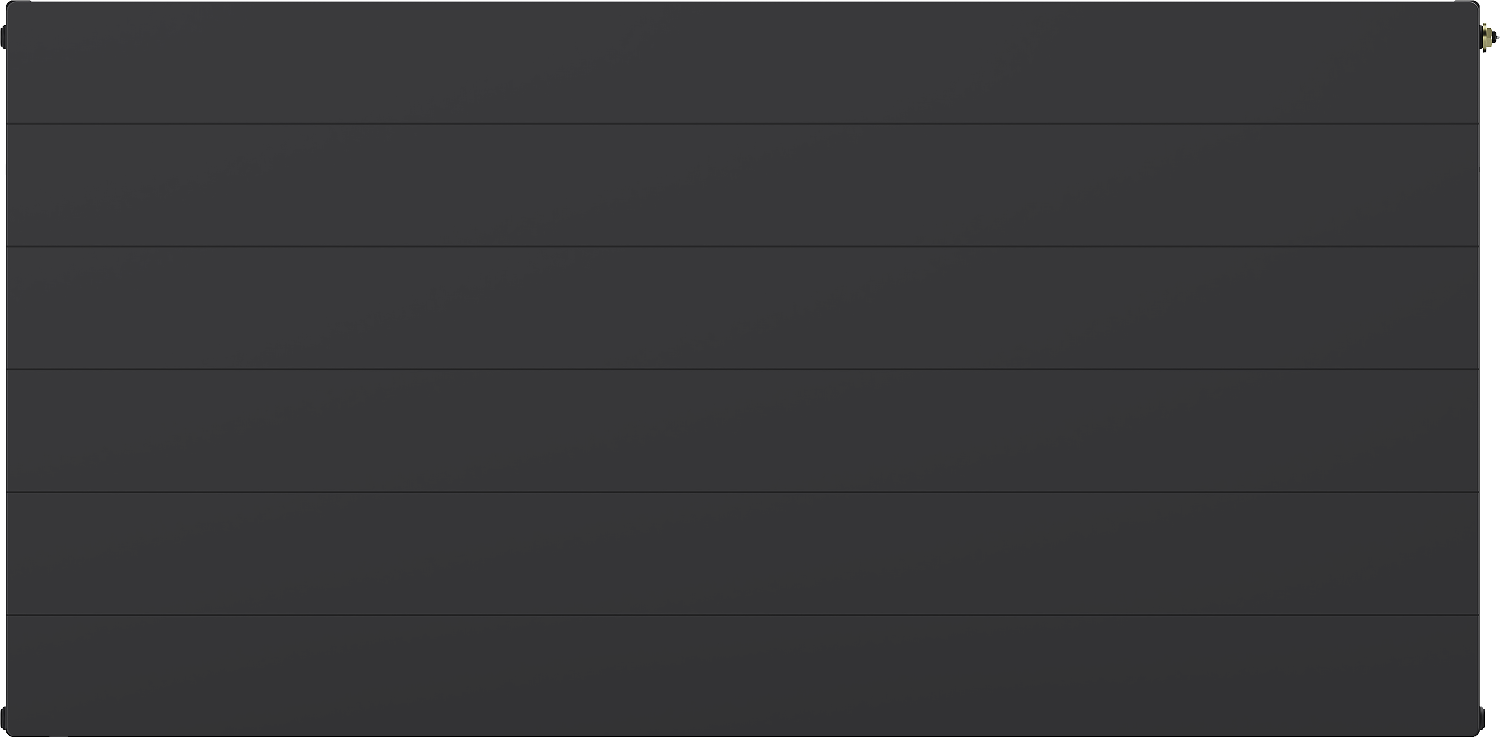

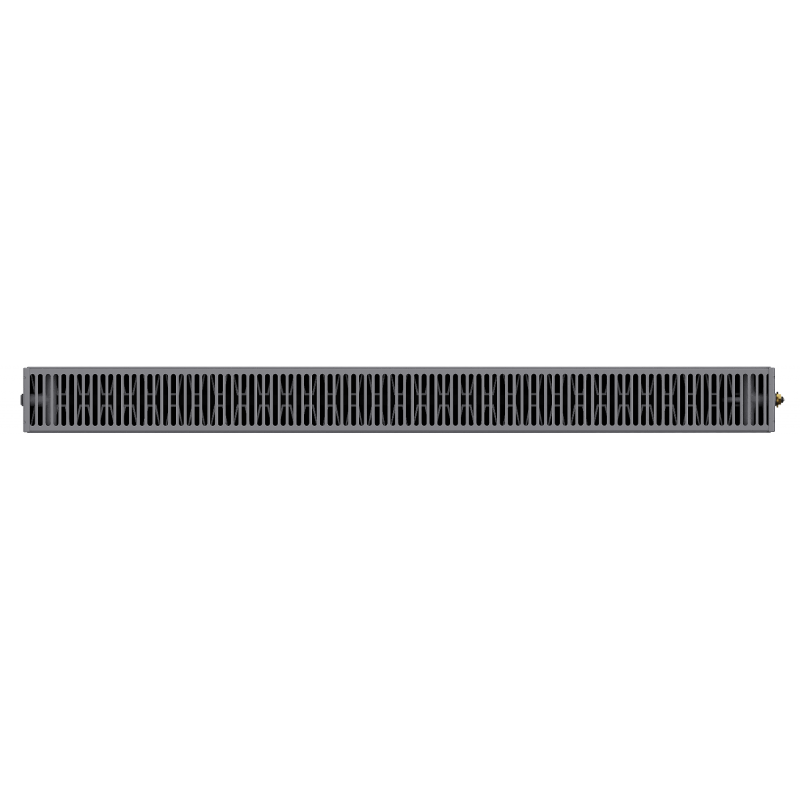

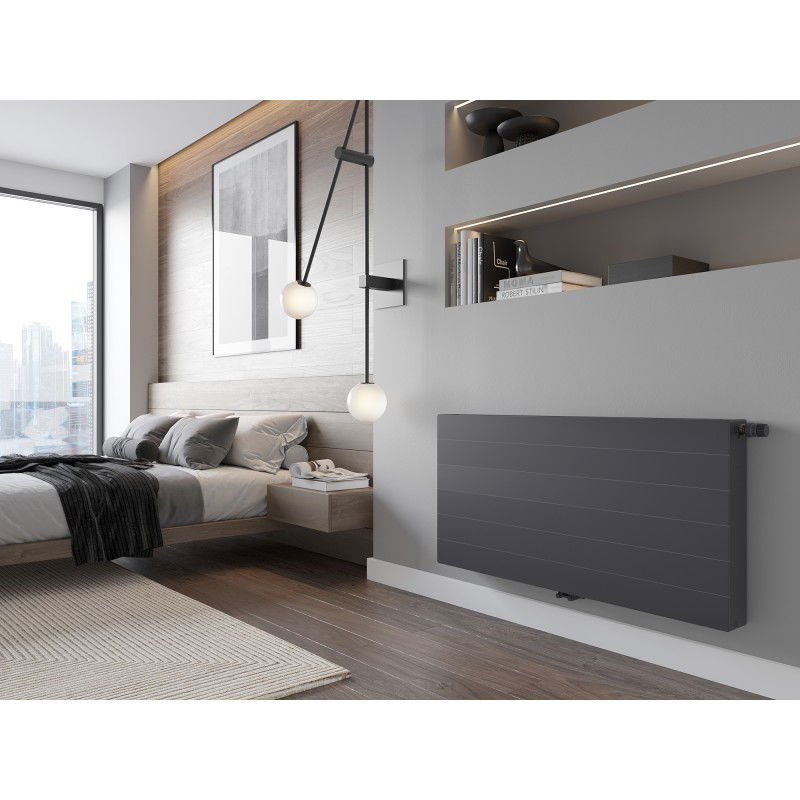

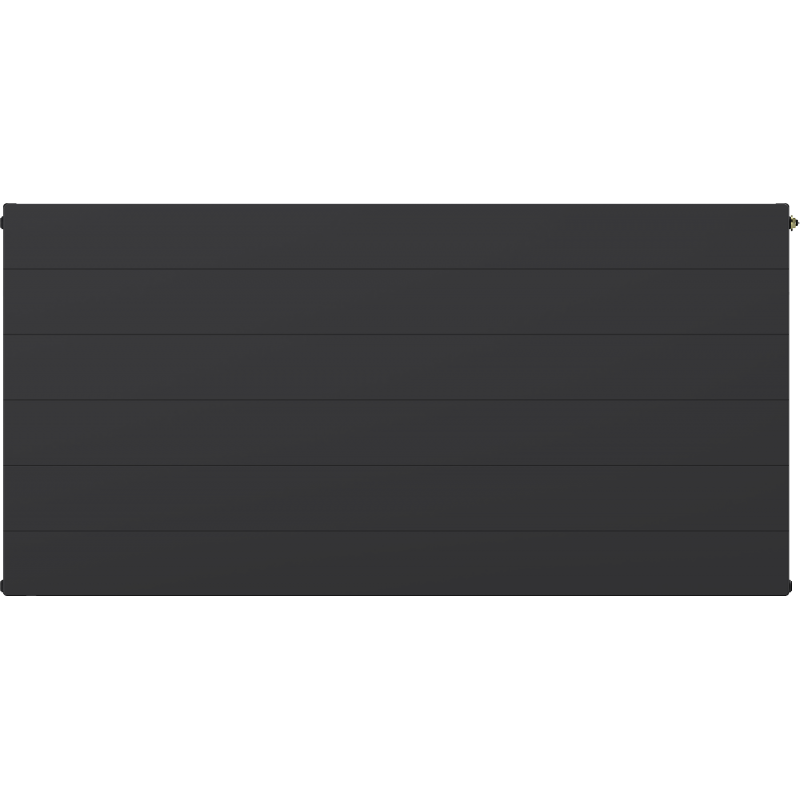

The pictures show the radiator in size 600 x 1200 mm.
