Mexen Line CCL22 panel radiator 600 x 600 mm, bottom centre connection, 949 W, anthracite - W6C22L-060-060-66
Technical data:

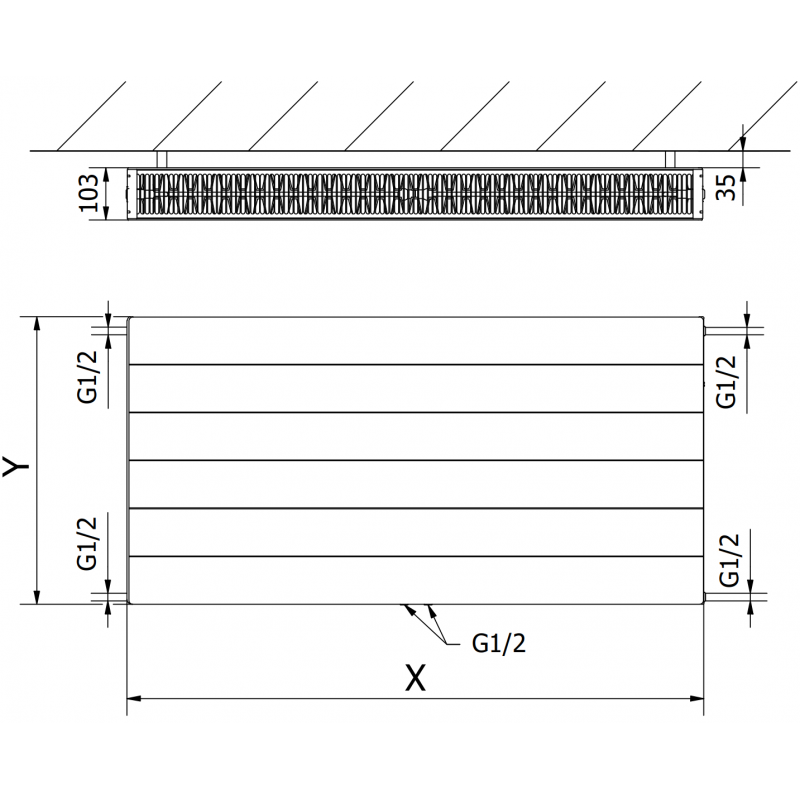

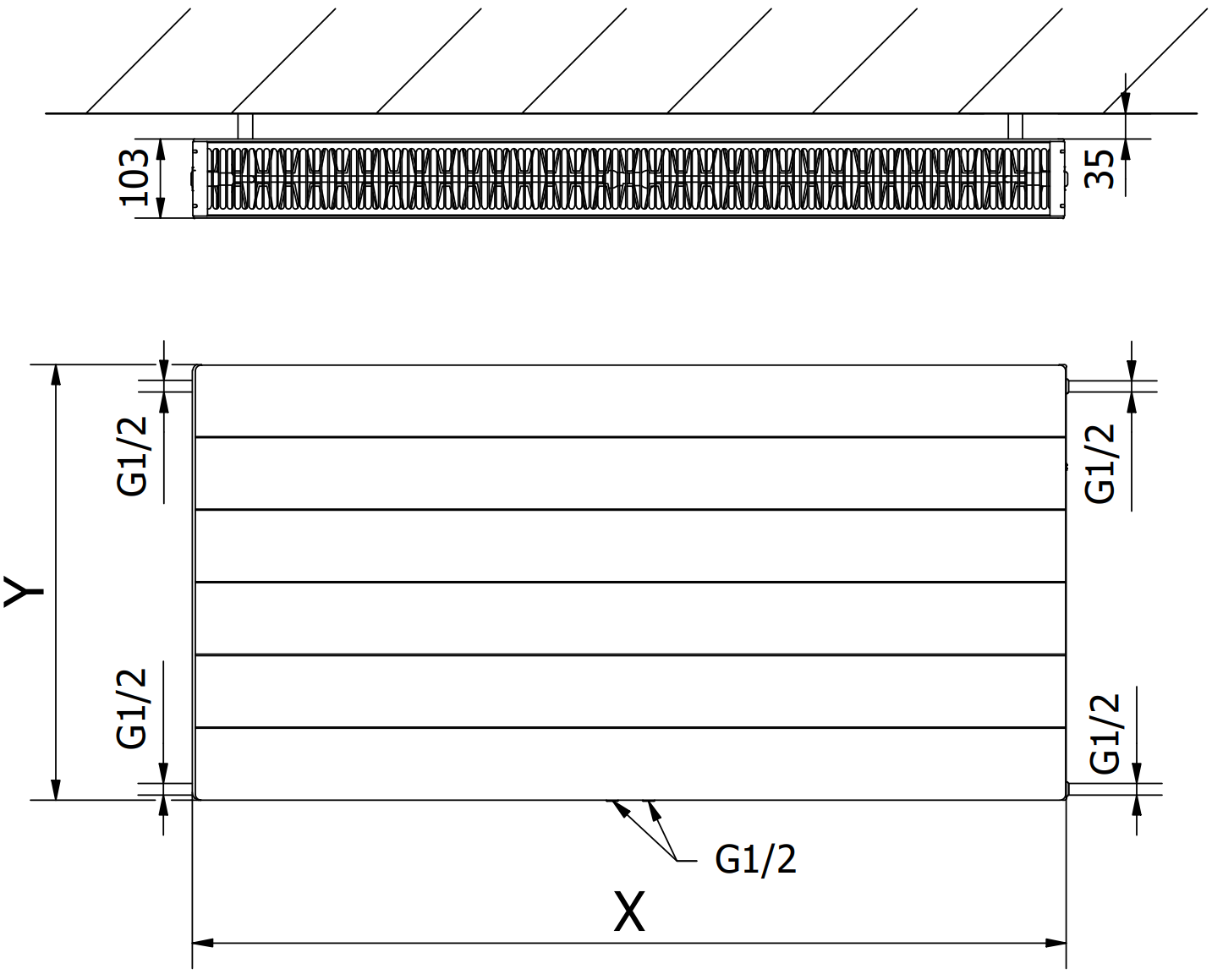

Height (Y): 600 mm
Width (X): 600 mm
Depth: 103 mm
Connection spacing: 5 cm
Vertical water channel spacing: 33.3 mm
Colour: Anthracite RAL 7016
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 496 W
- 75/65/20 °C 949 W
- 90/70/20 °C 1197 W
Connections:
- 2xG ½″ bottom centre
- 4xG ½″ side
High quality, durable coating - DIN 99500
Has a side cover and removable top cover
Includes: hangers, assembly set, sealing plugs, air vent and valve insert

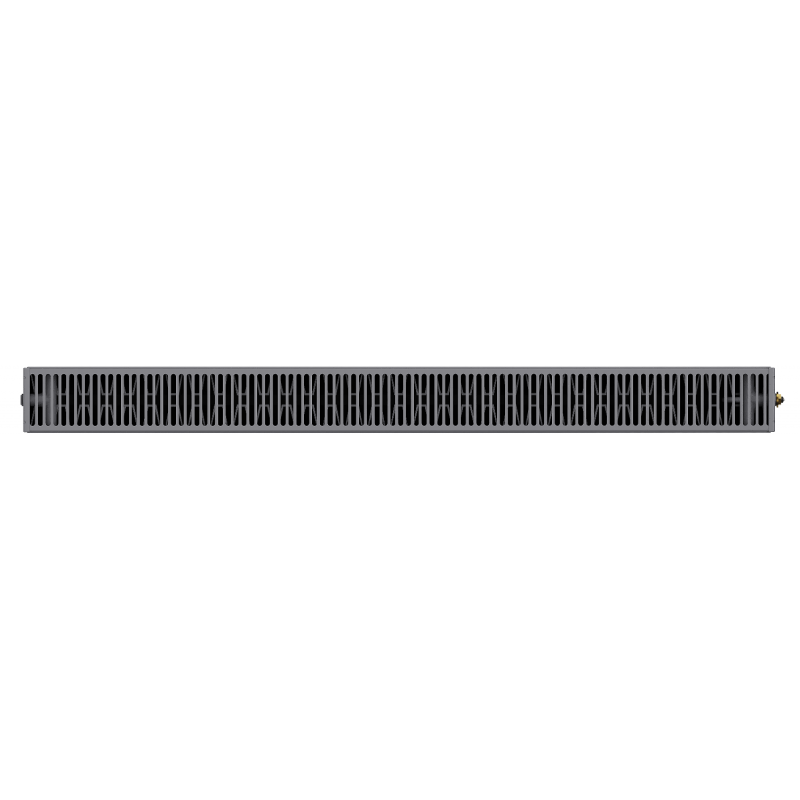

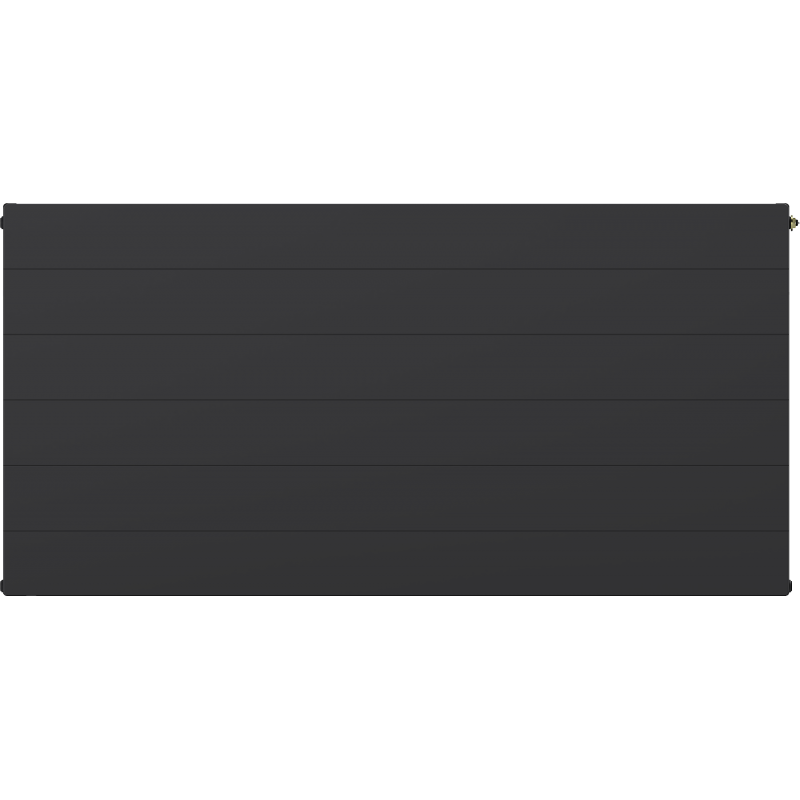

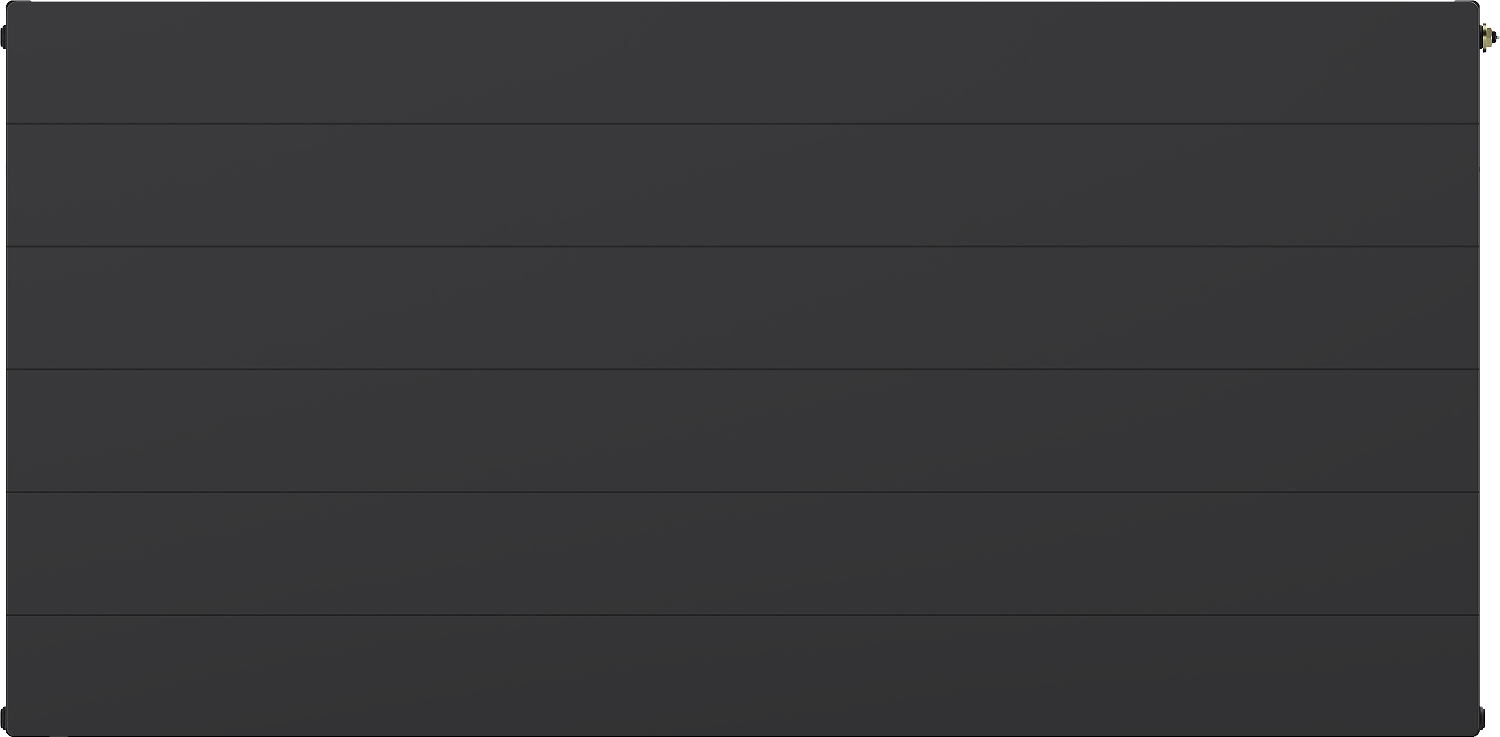

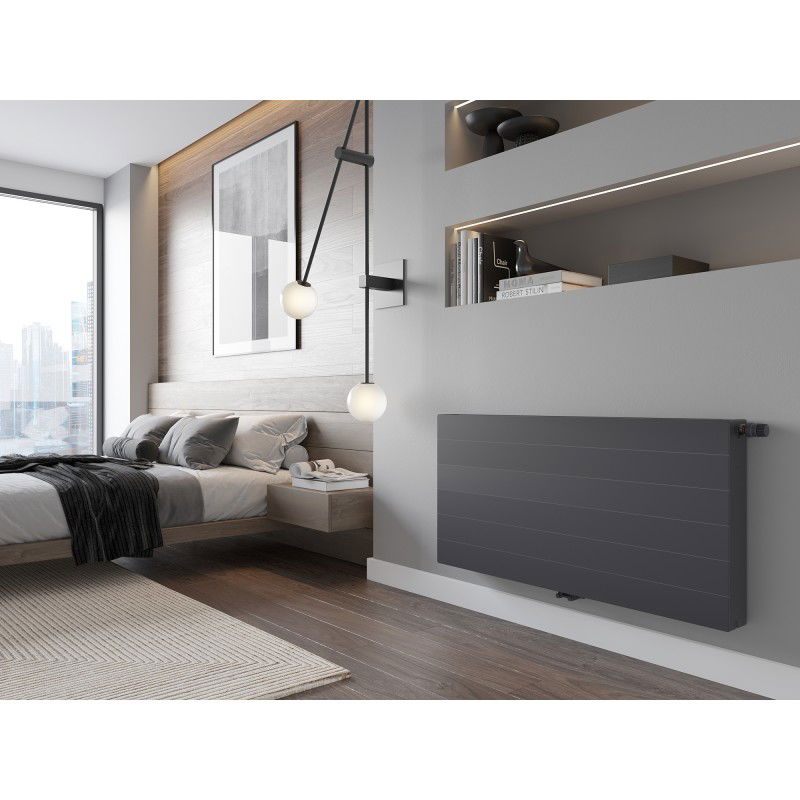

Photos show the radiator in size 600 x 1200 mm.
