Mexen Line CCL22 panel radiator 600 x 1600 mm, central bottom connection, 2532 W, anthracite - W6C22L-060-160-66

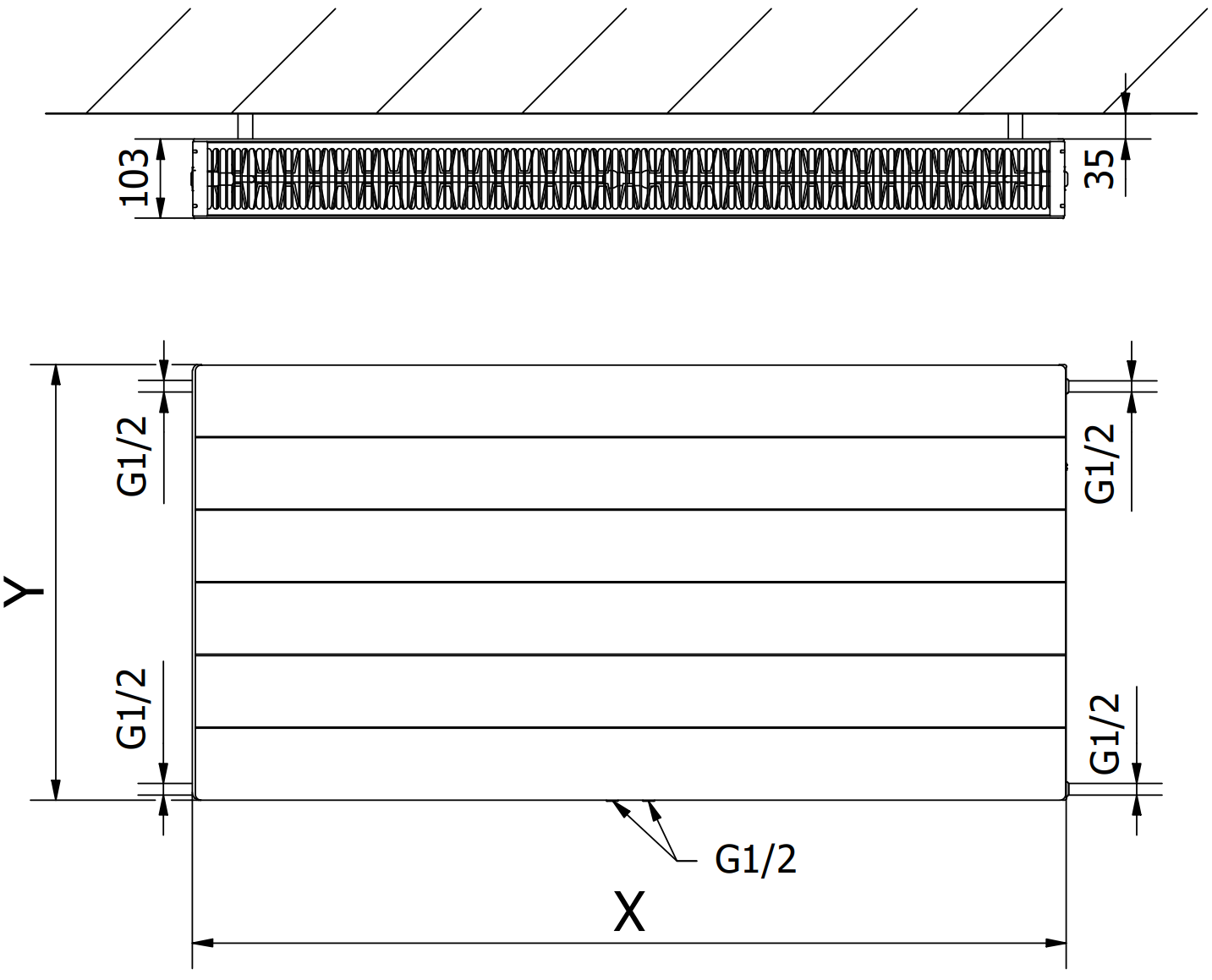

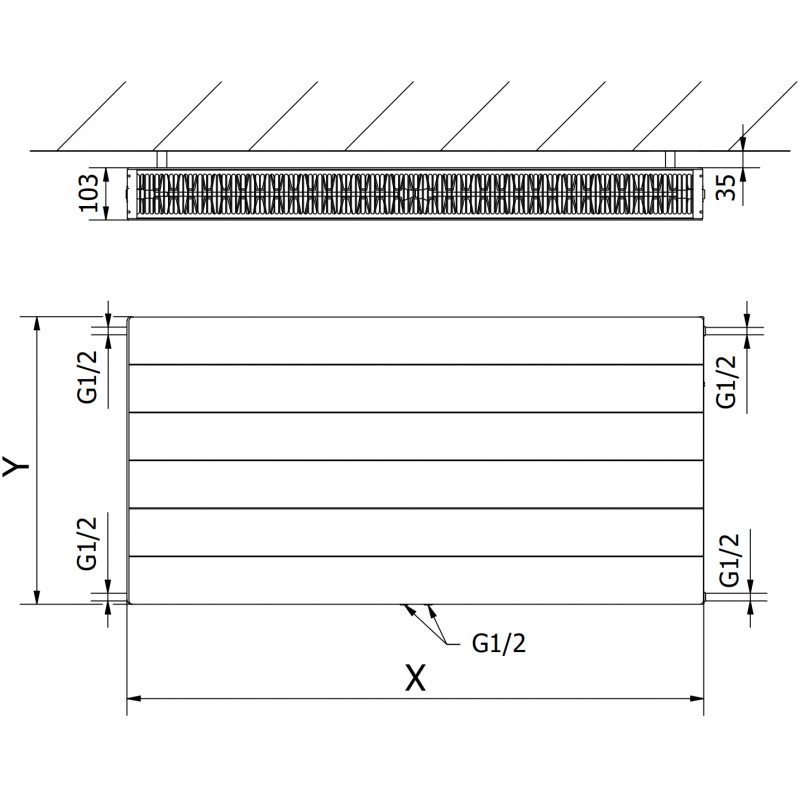

Technical data:
Height (Y): 600 mm
Width (X): 1600 mm
Depth: 103 mm
Connection spacing: 5 cm
Vertical water channel spacing: 33.3 mm
Colour: Anthracite RAL 7016
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 1322 W
- 75/65/20 °C 2532 W
- 90/70/20 °C 3193 W
Connections:
- 2xG ½″ central bottom
- 4xG ½″ lateral
High quality, durable paint coating - DIN 99500
Features side cover and removable top cover
Included: brackets, mounting kit, sealing plugs, air vent and valve insert

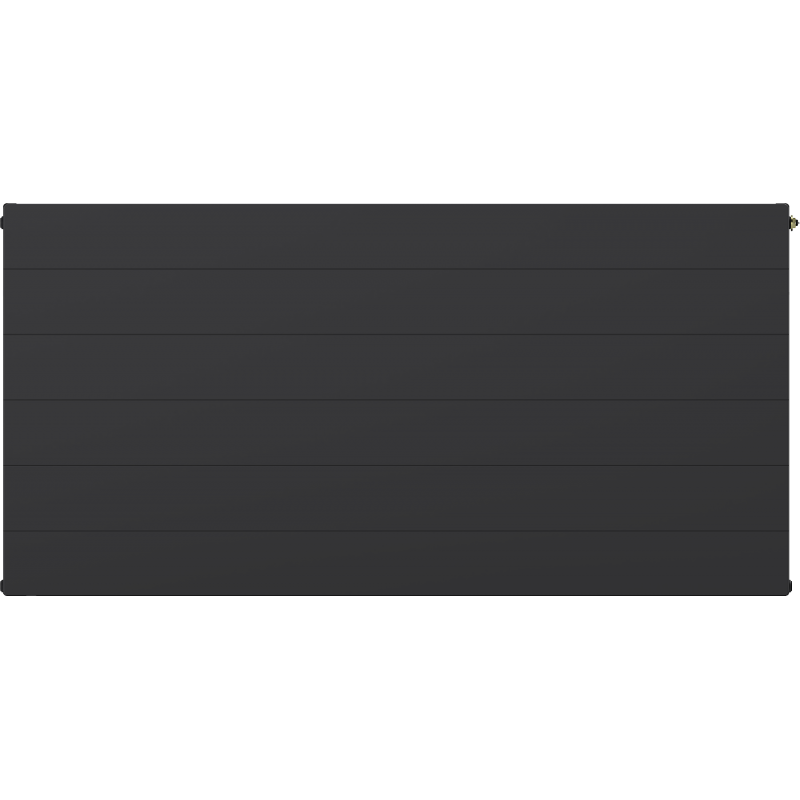

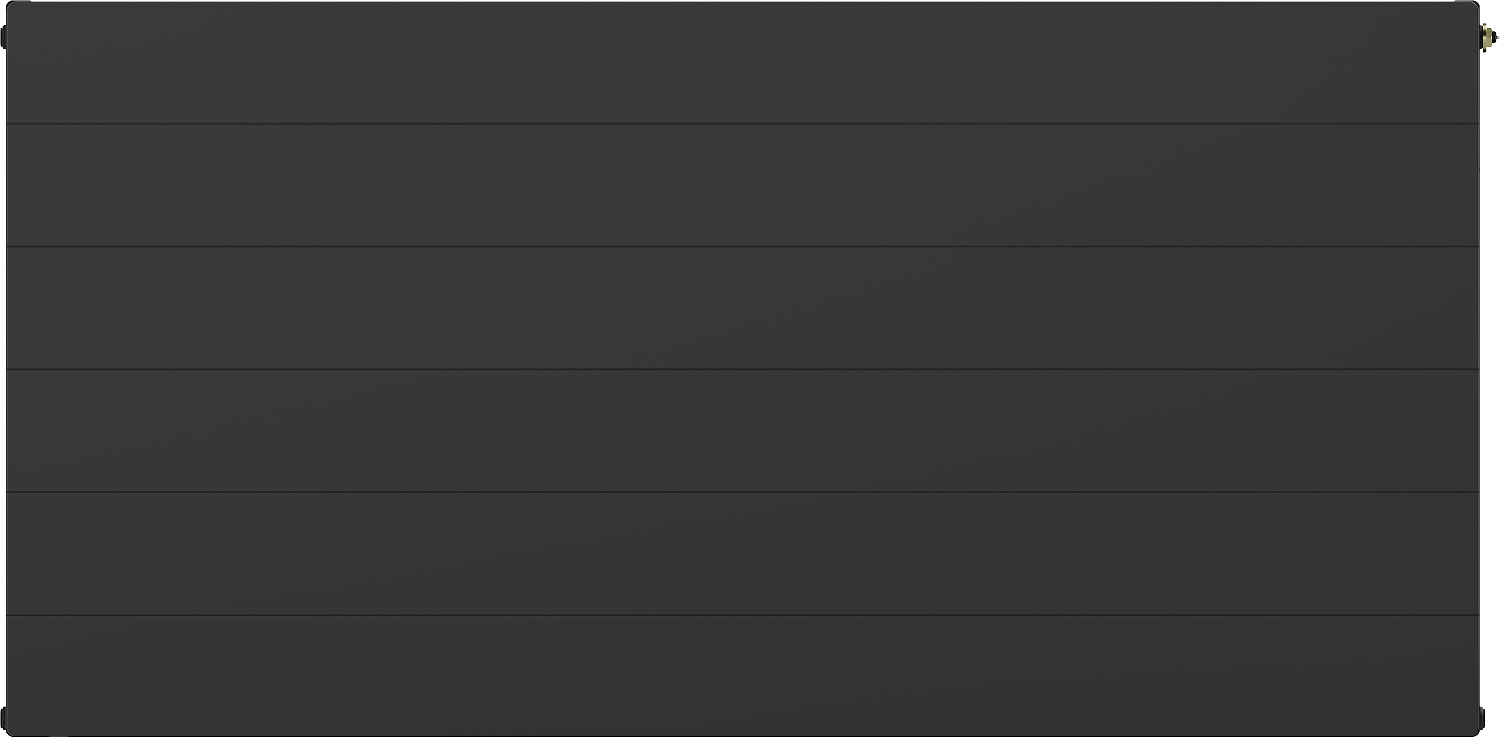

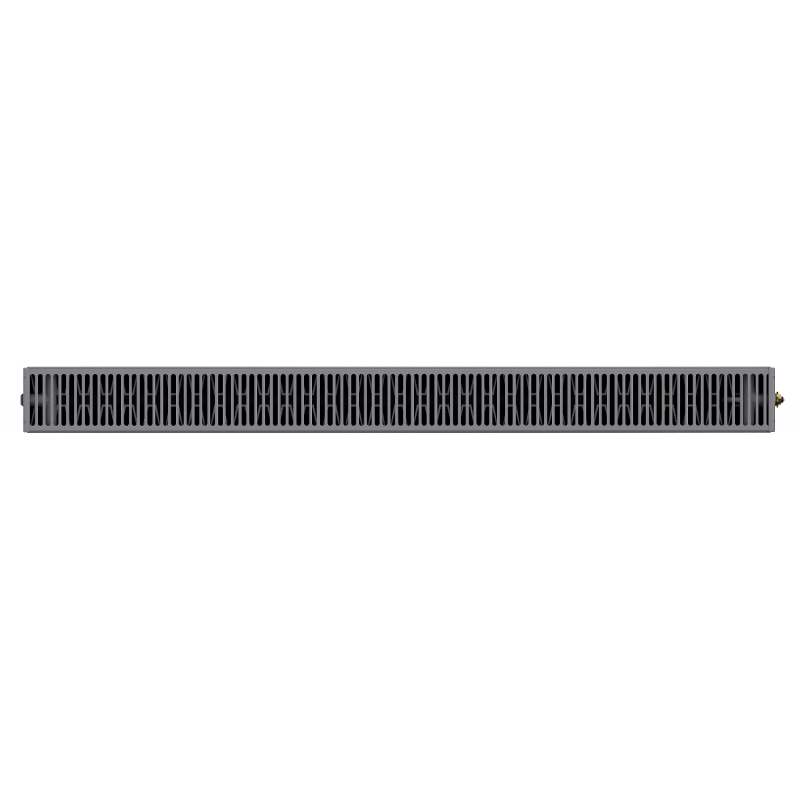

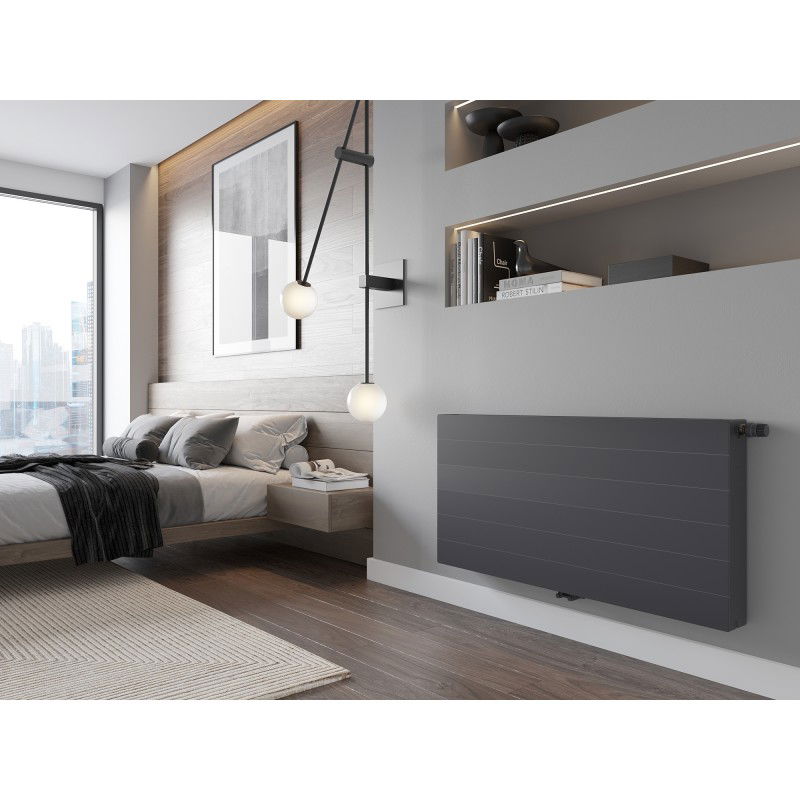

Images show the radiator in size 600 x 1200 mm.
