Mexen Line CCL21 panel radiator 900 x 1600 mm, central bottom connection, 2543 W, black - W6C21L-090-160-70

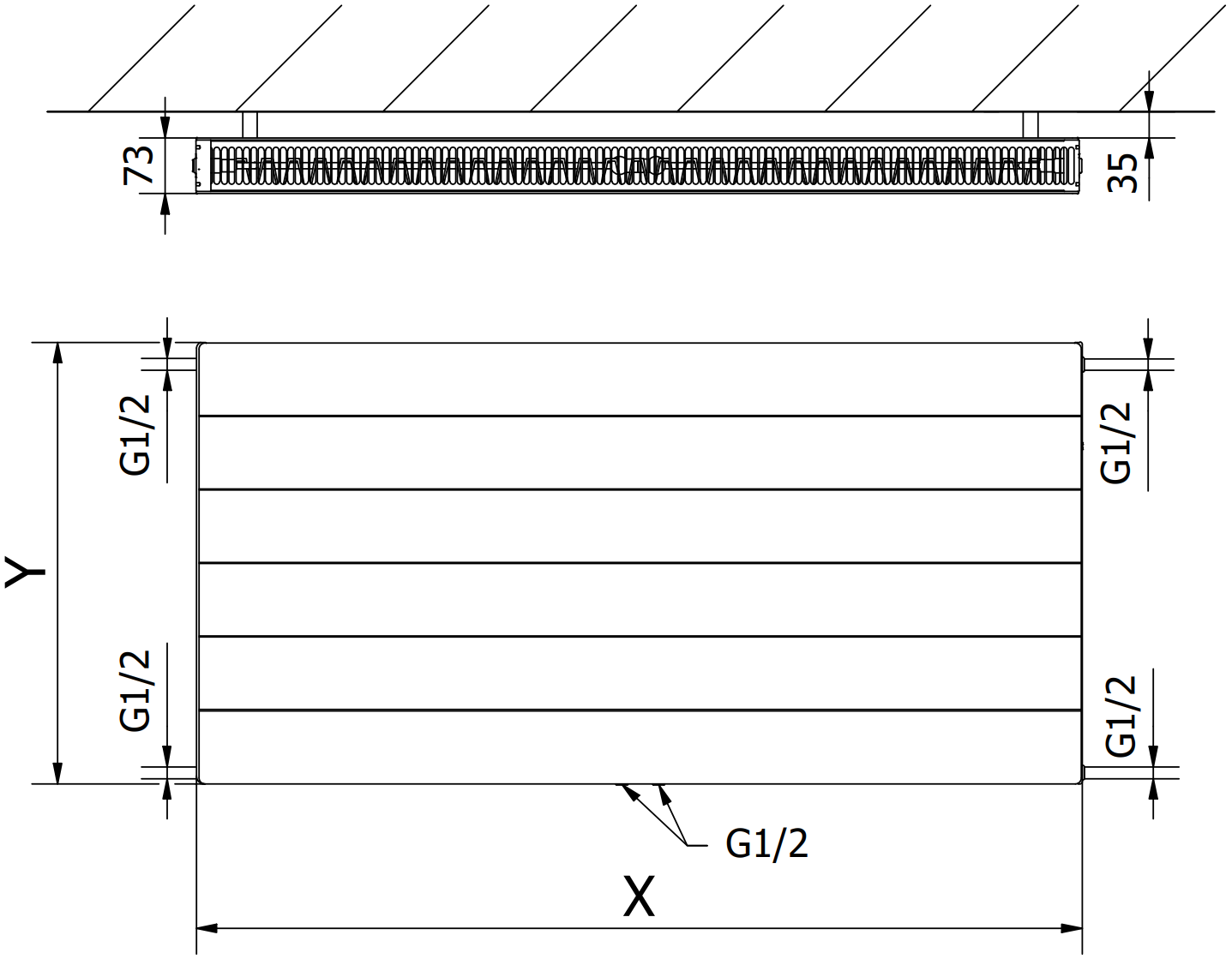

Technical data:

Height (Y): 900 mm

Width (X): 1600 mm

Depth: 73 mm

Connection spacing: 5 cm

Vertical water channel spacing: 33.3 mm

Colour: Black RAL 9005

Material: Steel

Operating temperature: max 110 °C

Maximum operating pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 1386 W

- 75/65/20 °C 2543 W

- 90/70/20 °C 3159 W

Connections:

- 2xG ½″ central bottom

- 4xG ½″ side

High quality, durable coating - DIN 99500

Features side panel and removable top cover

Includes: brackets, installation kit, blanking plugs, air vent and valve insert

Images show the radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum operating pressure is 1 Mpa (10 bars). This means the radiator can operate safely and efficiently under standard usage conditions. It ensures optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. This allows for effective and efficient heating of the room, while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Serial
CCL21
Width
1600 mm
Height
900 mm
Type
Plate / Panel
Heating power
2543 W
Colour
Black
Material
Steel
Type
21
Installation Strength
Universal
Depth
73 mm
Connection spacing
5 cm
Connection
Bottom middle
Orientation
Horizontal
User manual
Download
Safety Information
Download
Warranty conditions
Download
Manufacturer
See
