Mexen Line CCL22 Panel Radiator 400 x 400 mm, Central Bottom Connection, 455 W, Black - W6C22L-040-040-70

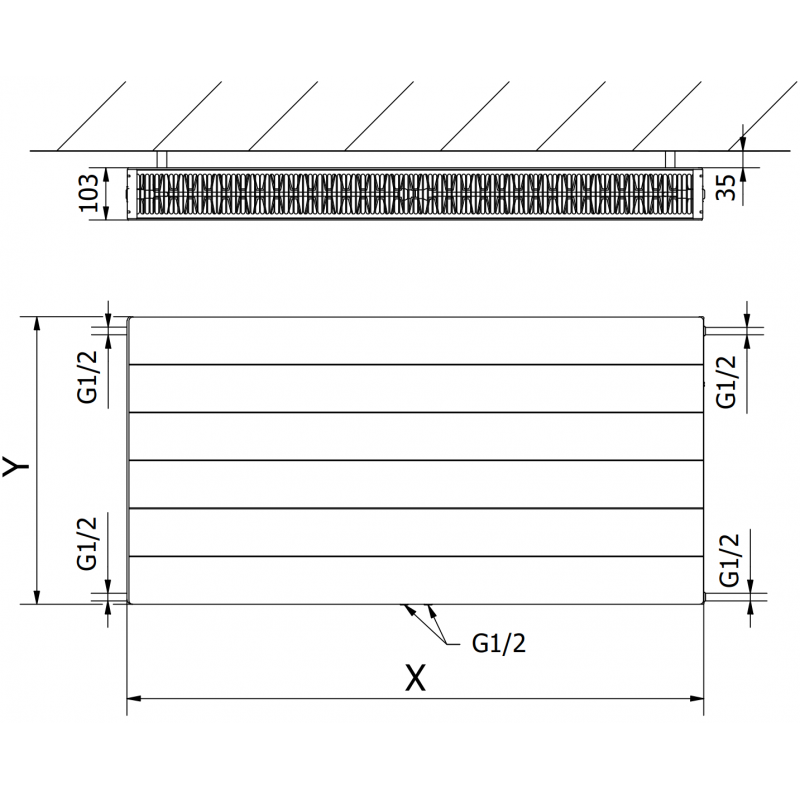

Technical Data:
Height (Y): 400 mm
Width (X): 400 mm
Depth: 103 mm
Connection Spacing: 5 cm
Vertical Water Channel Spacing: 33.3 mm
Colour: Black RAL 9005
Material: Steel
Operating Temperature: max 110 °C
Maximum Operating Pressure: 10 bar
Maximum Test Pressure: 13 bar
Heating Power:
- 55/45/20 °C 239 W
- 75/65/20 °C 455 W
- 90/70/20 °C 573 W
Connections:
- 2xG ½″ Central Bottom
- 4xG ½″ Side
High-quality, durable paint finish - DIN 99500
Includes side cover and removable top cover
Includes: brackets, installation kit, end caps, air vent, and valve insert
The pictures show the radiator in size 600 x 1200 mm.
