Mexen CHF20 Hygiene Flat panel radiator 300 x 800 mm, side connection, 454 W, white - W420HF-030-080-00
Technical data:
Height (Y): 300 mm
Width (X): 800 mm
Depth: 103 mm
Connection spacing: 25 cm
Vertical water channel spacing: 33.3 mm
Colour: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 251 W
- 75/65/20 °C 454 W
- 90/70/20 °C 561 W
Connections:
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500
Designed for rooms with increased hygiene standards
Includes: brackets, mounting kit, blanking plugs, and air vent

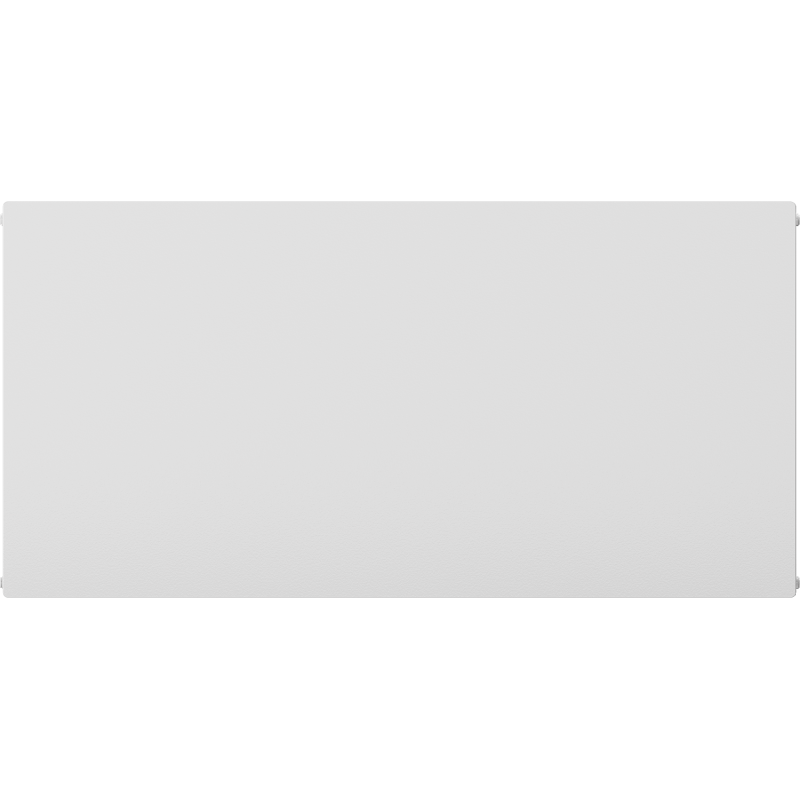

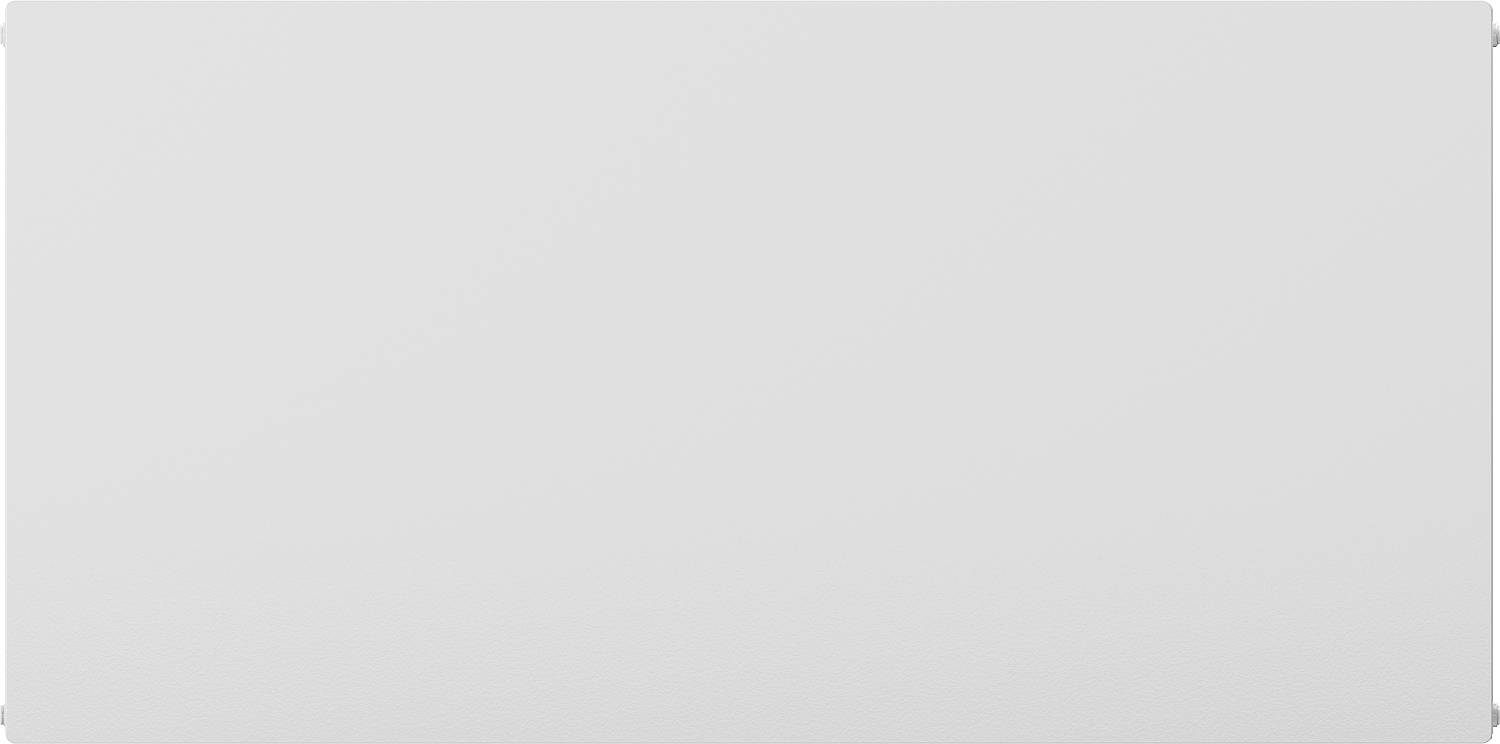

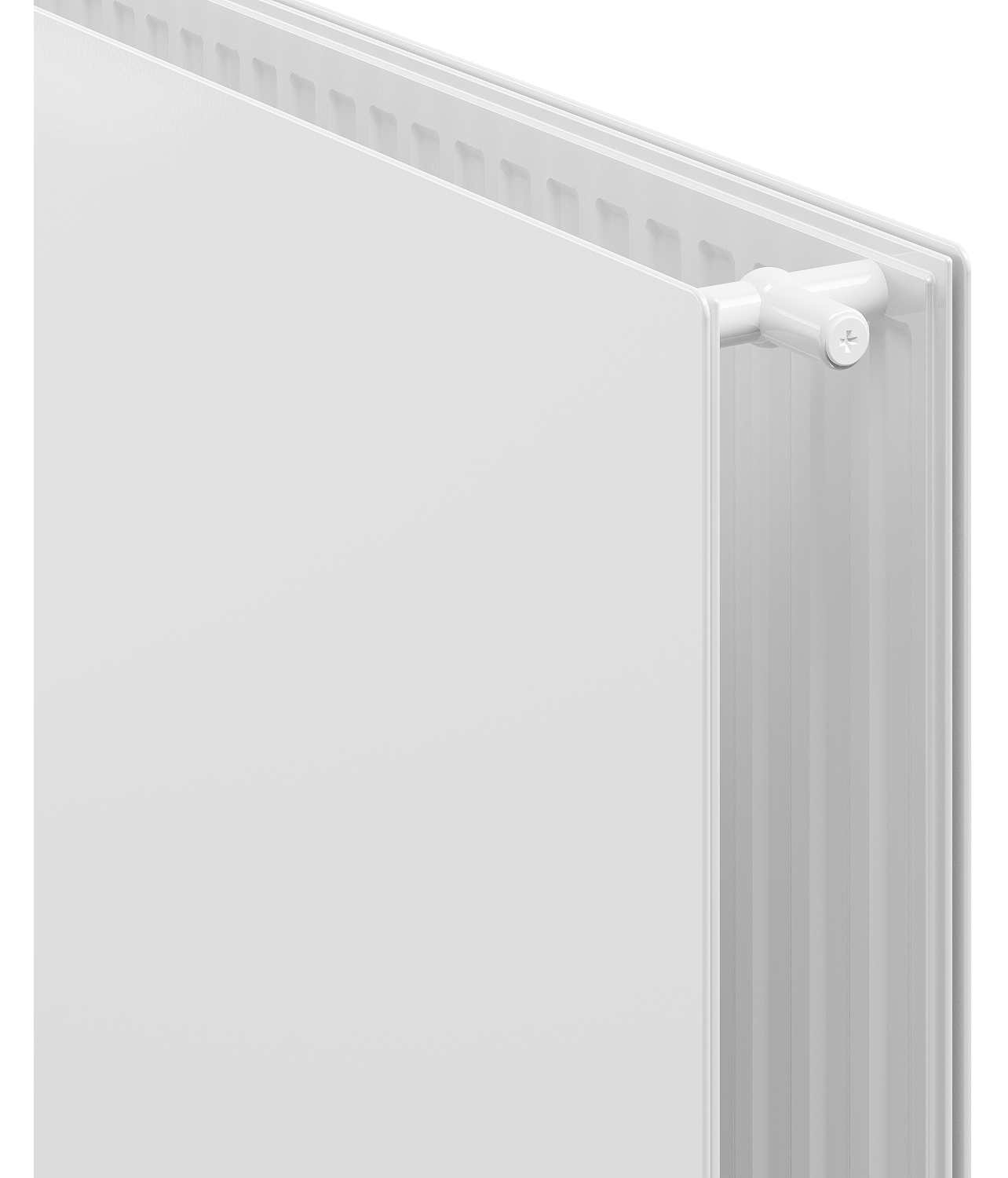

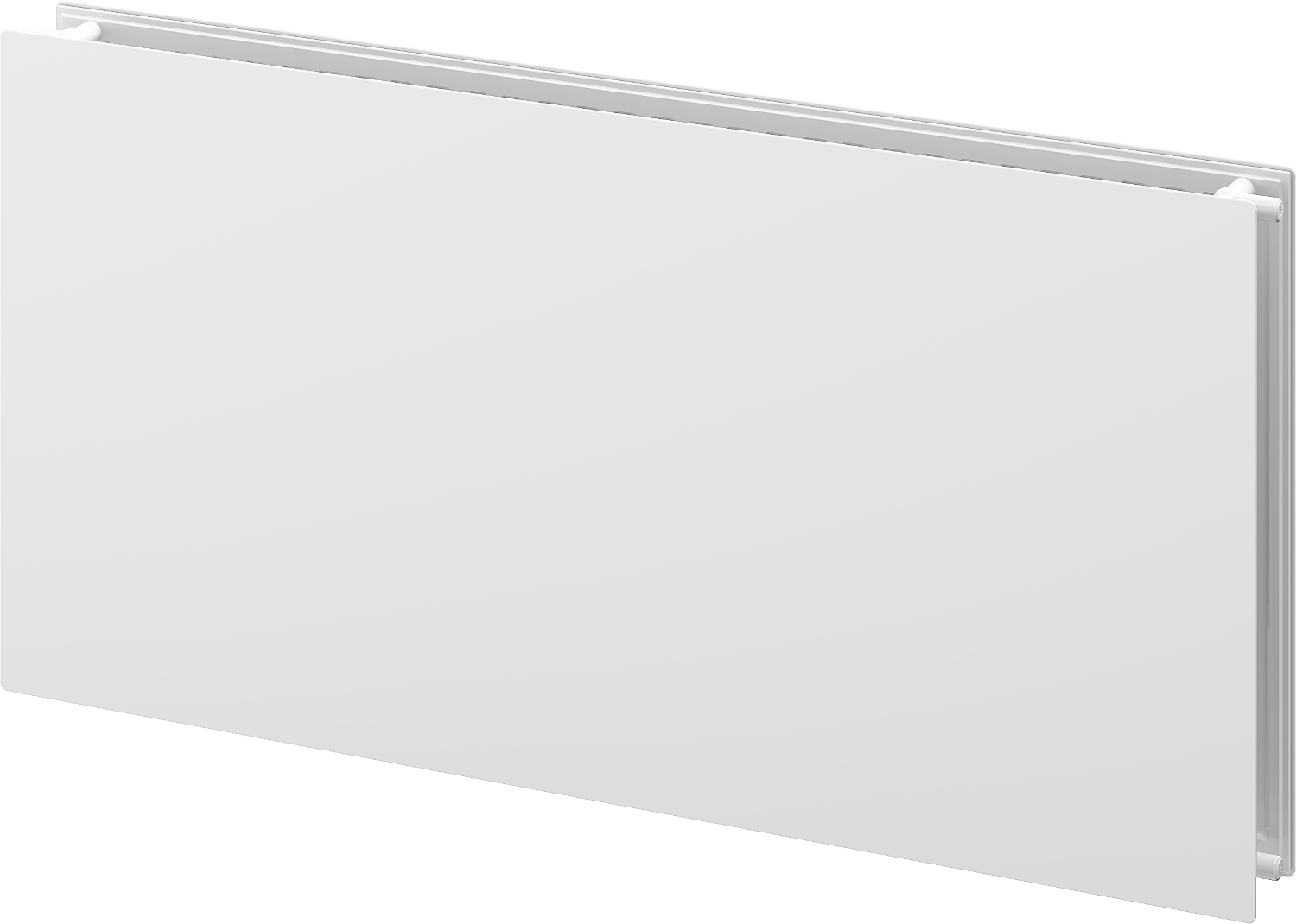

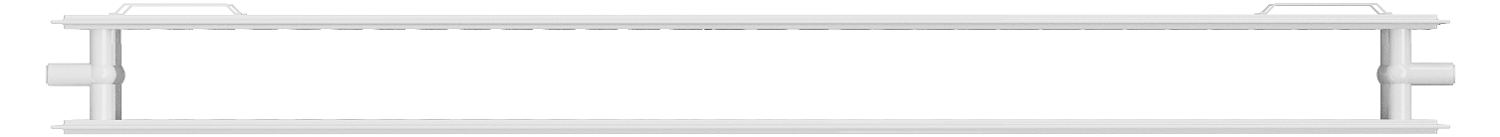

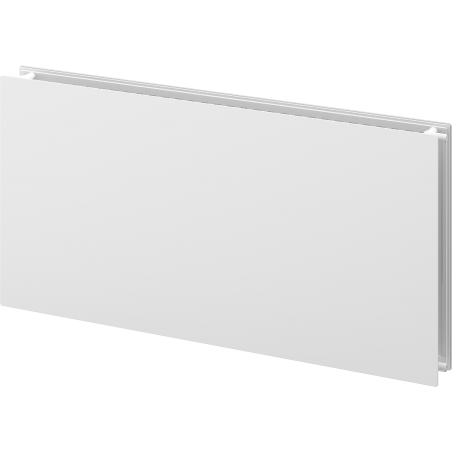

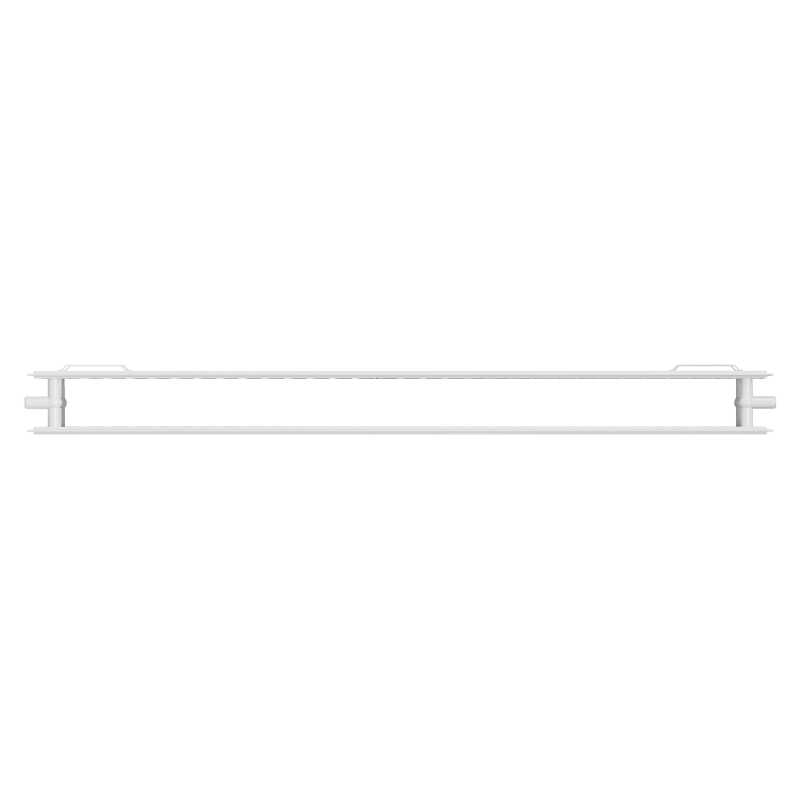

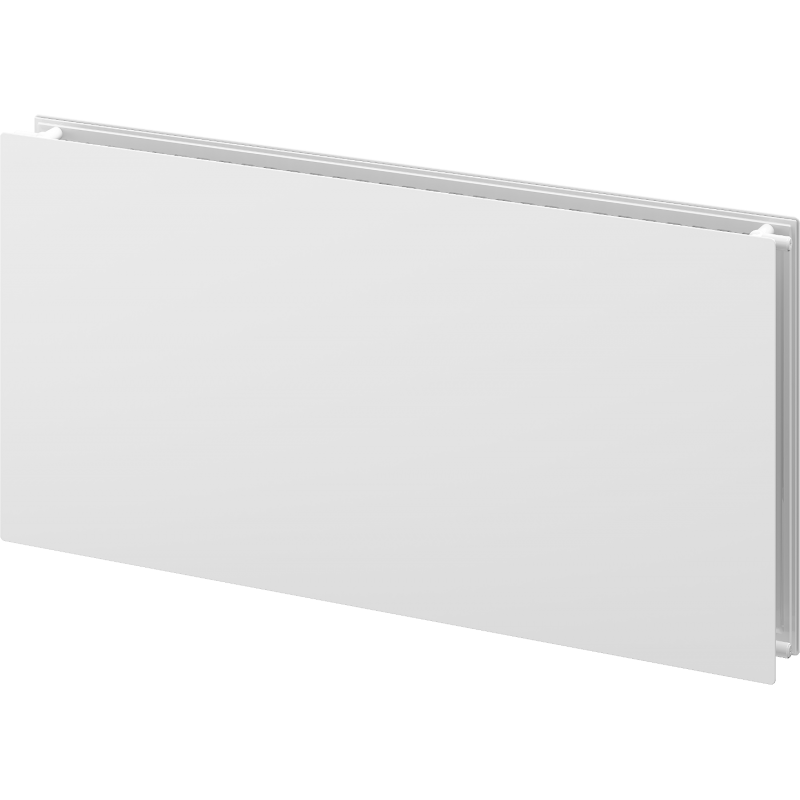

The pictures show a radiator in the size of 600 x 1200 mm.
