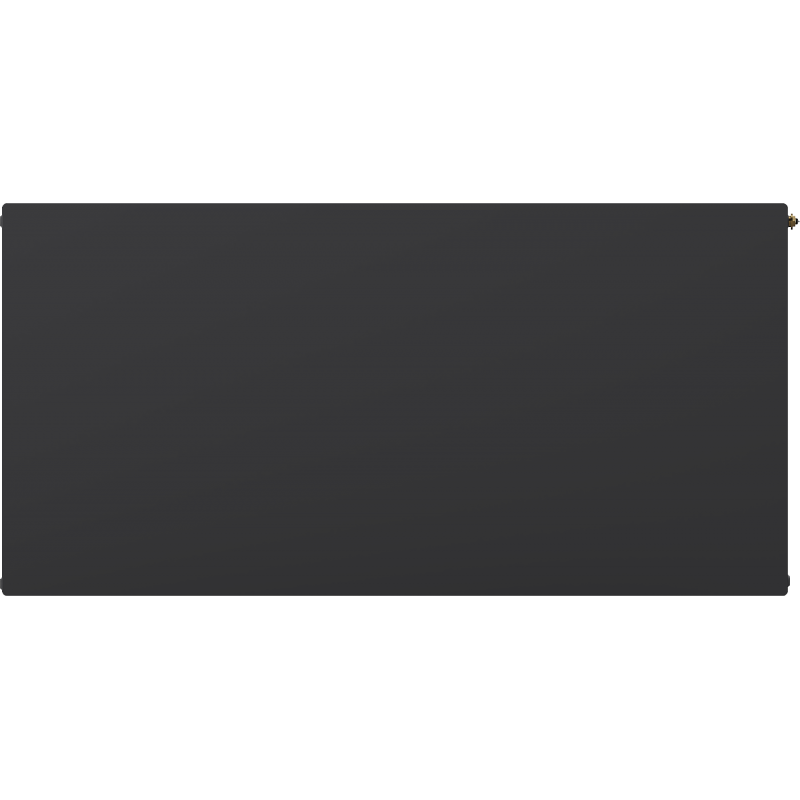

Mexen CVHF20 Hygiene Flat Panel Radiator 400 x 700 mm, Bottom Connection, 503 W, Anthracite - W620HF-040-070-66
Mexen CVHF20 Hygiene is a panel radiator that combines elegance with high functionality. Offering a heating power of up to 503 W, it provides an optimal temperature in your home. Made of steel and covered with a durable paint coating (DIN 99500), it is resistant to high temperatures up to 110 °C and working pressure up to 10 bar. Its anthracite color (RAL 7016) adds a modern style to rooms. Specially designed for spaces with higher hygiene standards, it features a bottom connection and includes all necessary installation accessories.
Technical data:
Height (Y): 400 mm
Width (X): 700 mm
Depth: 103 mm
Connection spacing: 5 cm
Vertical water channel spacing: 33.3 mm
Color: Anthracite RAL 7016
Material: Steel
Working temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 276 W
- 75/65/20 °C 503 W
- 90/70/20 °C 624 W
Connections:
- 2xG ½″ bottom right
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500
Designed for rooms with higher hygiene standards
Includes: hangers, installation kit, blocking plugs, air vent, and valve insert

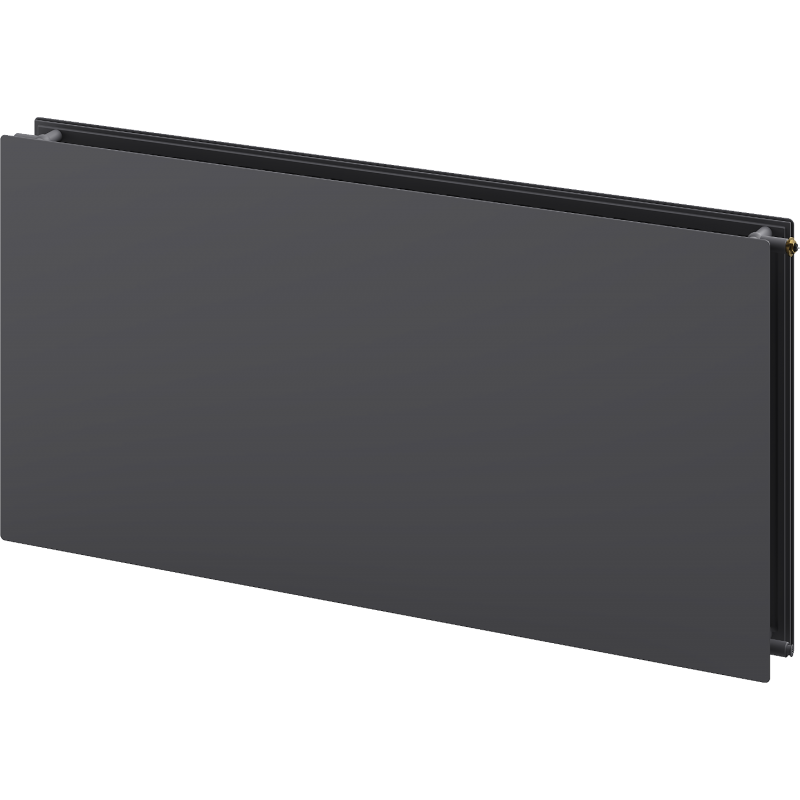

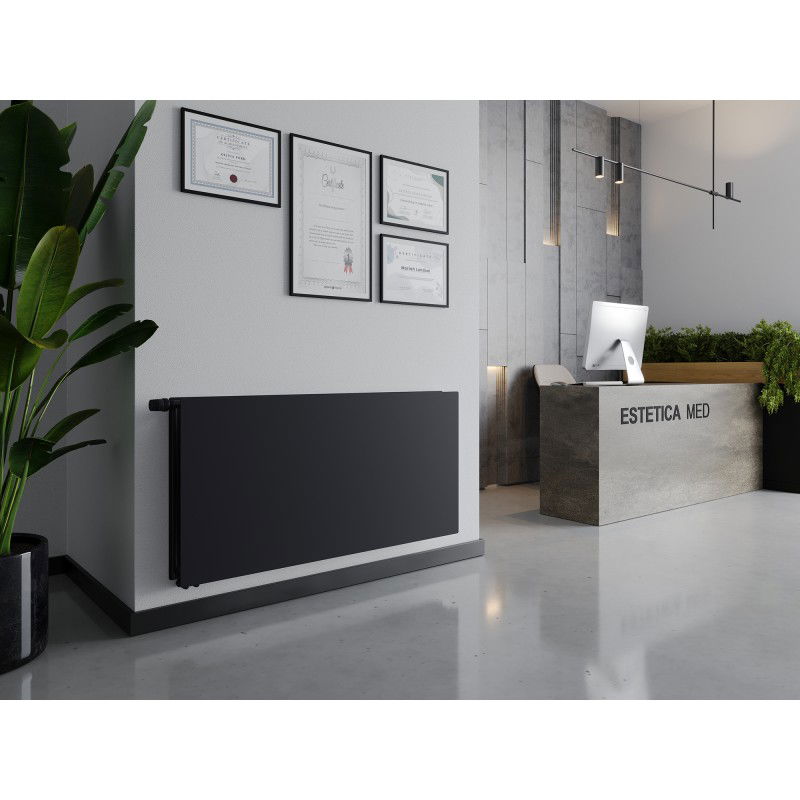

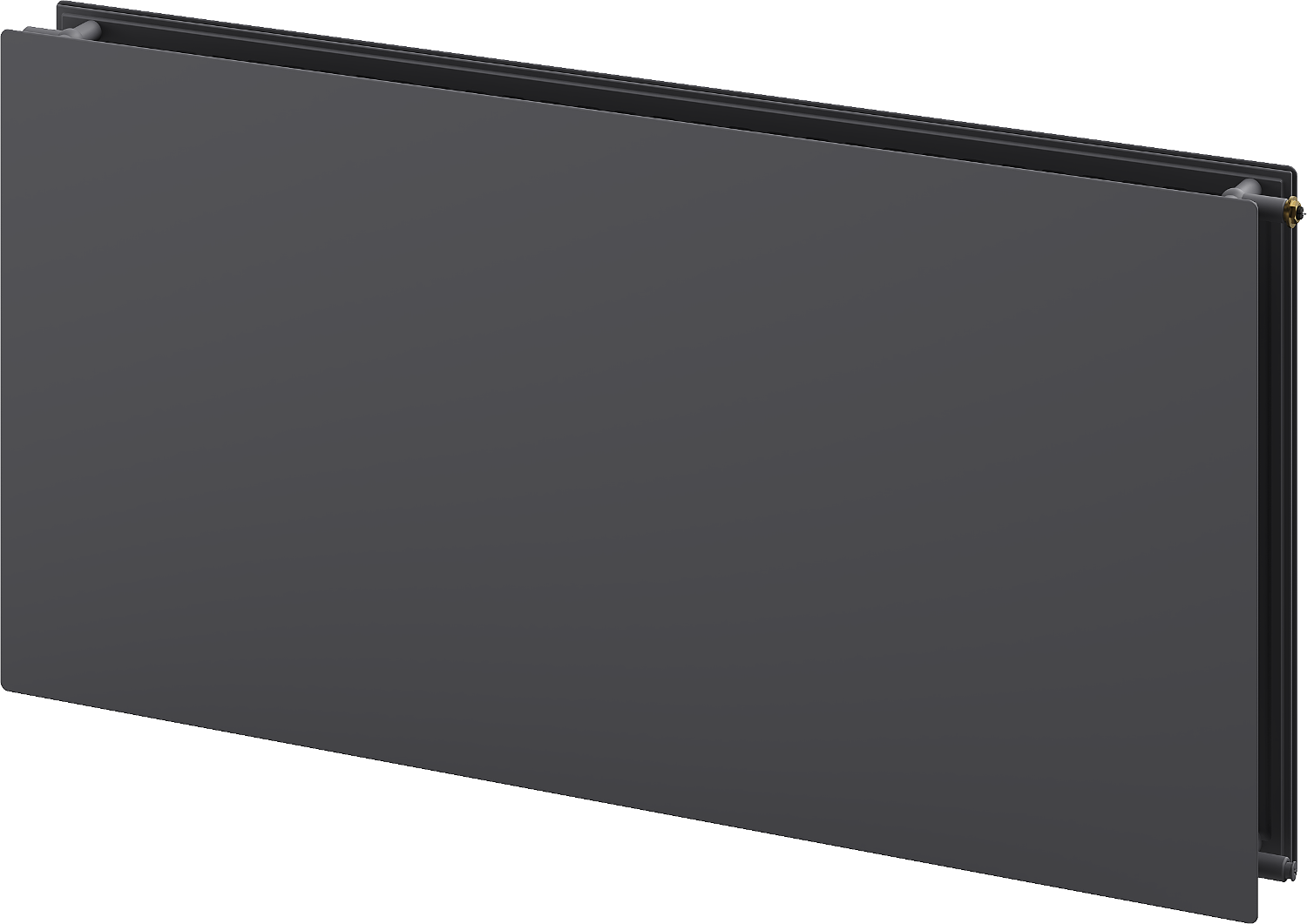

Photos show the radiator in size 600 x 1200 mm.
