Mexen CVHF20 Hygiene Flat Panel Radiator 500 x 800 mm, Bottom Connection, 690 W, Anthracite - W620HF-050-080-66
Technical data:
Height (Y): 500 mm
Width (X): 800 mm
Depth: 103 mm
Connection distance: 5 cm
Vertical water channel distance: 33.3 mm
Colour: Anthracite RAL 7016
Material: Steel
Working temperature: max 110 °C
Maximum operating pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 379 W
- 75/65/20 °C 690 W
- 90/70/20 °C 855 W
Connections:
- 2xG ½″ bottom right
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500
Designed for rooms with enhanced hygiene standards
Included: hangers, installation kit, sealing caps, vent and valve insert

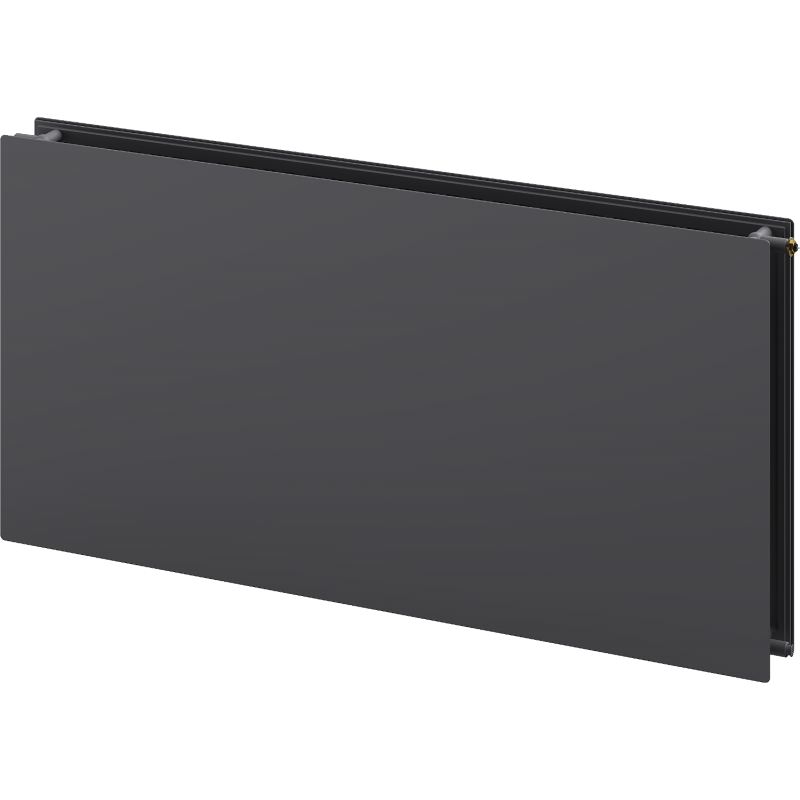

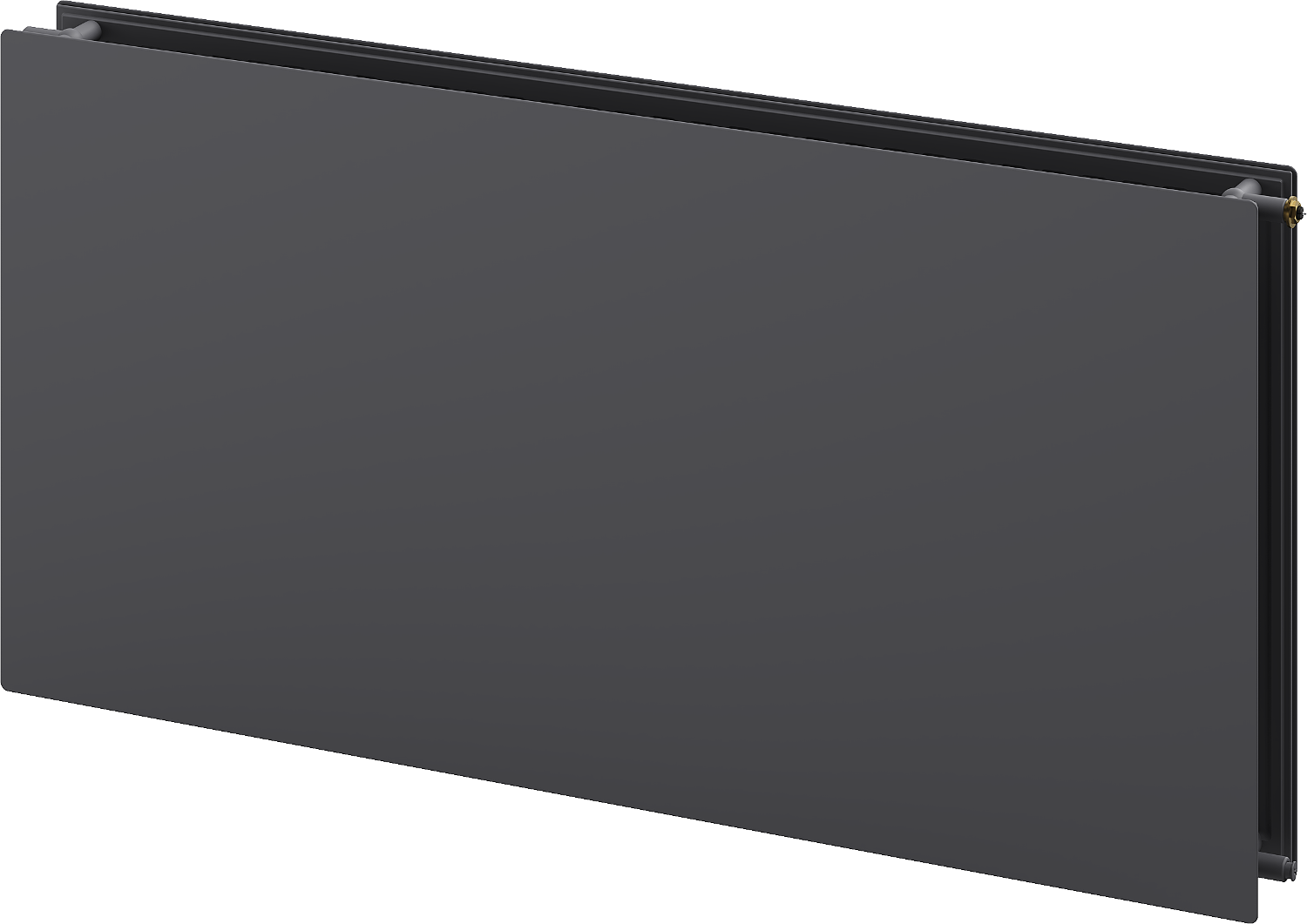

Images show the radiator in size 600 x 1200 mm.
