Mexen Flat VS20S panel radiator 2200 x 400 mm, bottom central connection, 1013 W, anthracite - W6VS20S-220-040-66

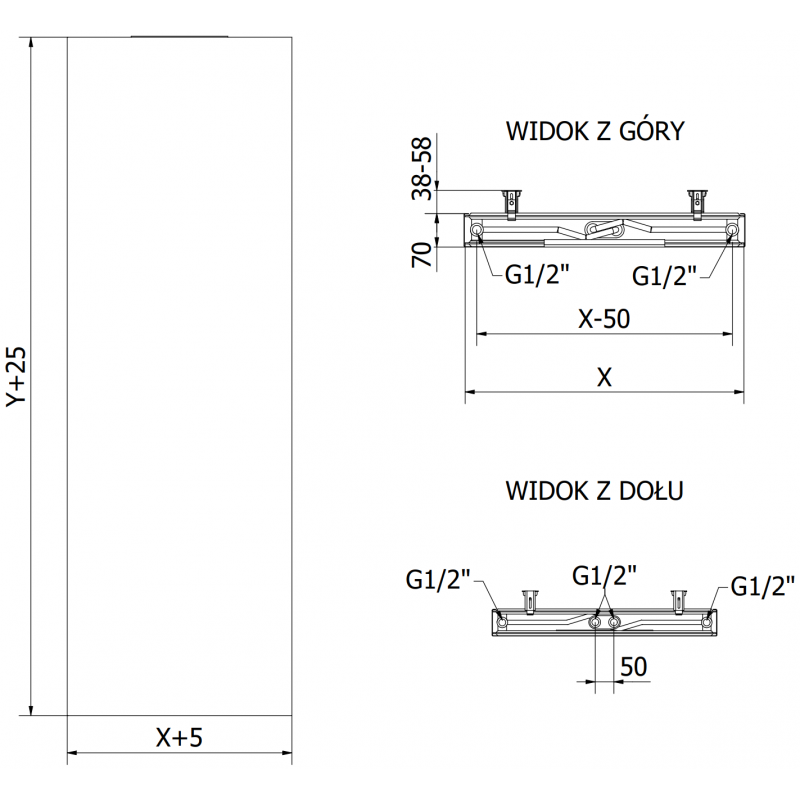

Technical data:<\/p>

Height (Y): 2200 mm<\/p>

Width (X): 400 mm<\/p>

Depth: 70 mm<\/p>

Connection spacing: 5 cm<\/p>

Spacing of vertical water channels: 33.3 mm<\/p>

Color: Anthracite RAL 7016<\/p>

Material: Steel<\/p>

Operating temperature: max 110 °C <\/p>

Maximum working pressure: 10 bar<\/p>

Maximum test pressure: 13 bar<\/p>

Heating power:<\/p>

- 55/45/20 °C 526 W<\/p>

- 75/65/20 °C 1013 W<\/p>

- 90/70/20 °C 1280 W <\/p>

Connections:<\/p>

- 2xG ½″ bottom central<\/p>

- 4xG ½″ side<\/p>

High-quality, durable lacquer finish - DIN 99500<\/p>

The set includes: brackets, mounting kit, sealing plugs, and vent<\/p>

<\/p>

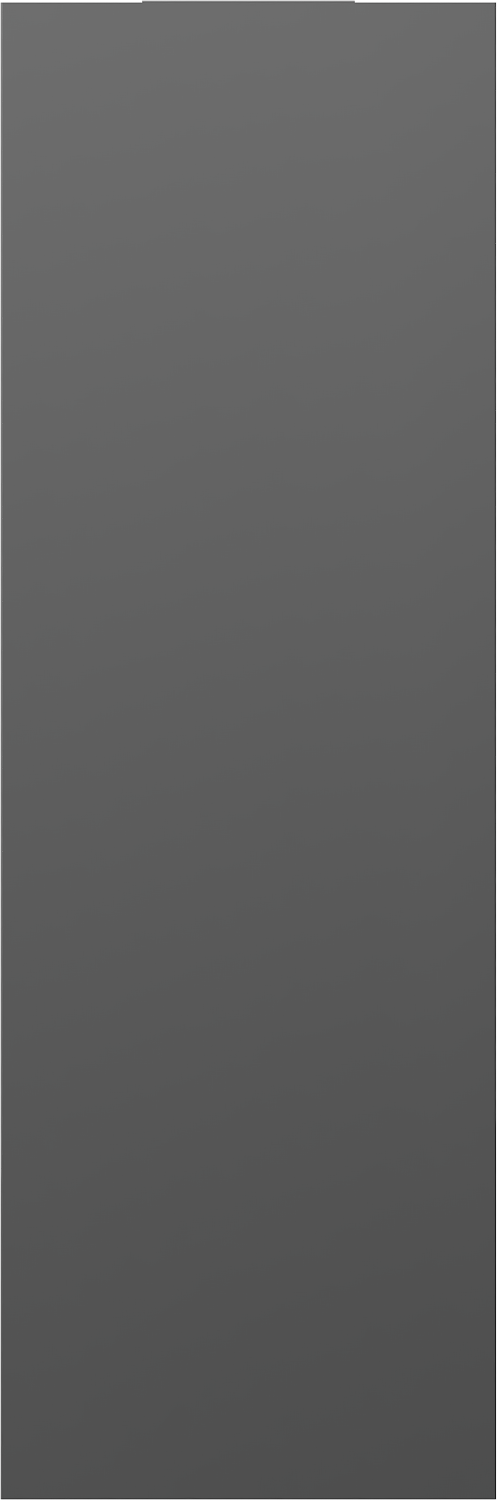

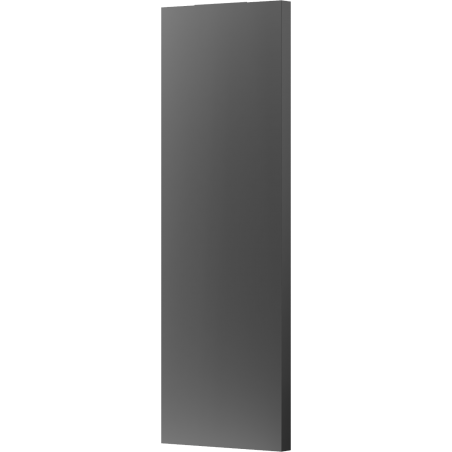

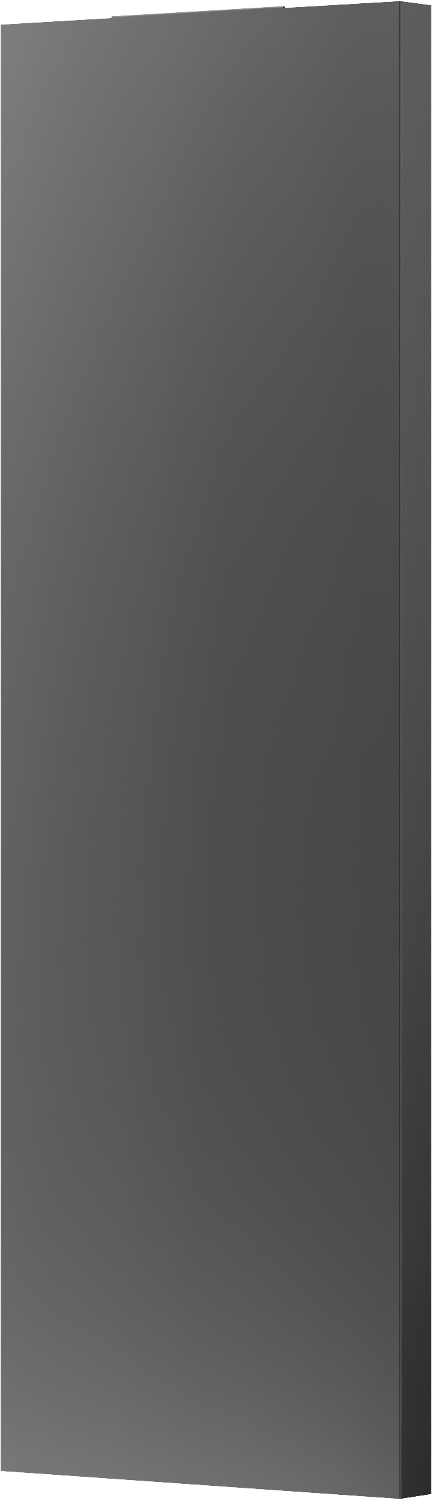

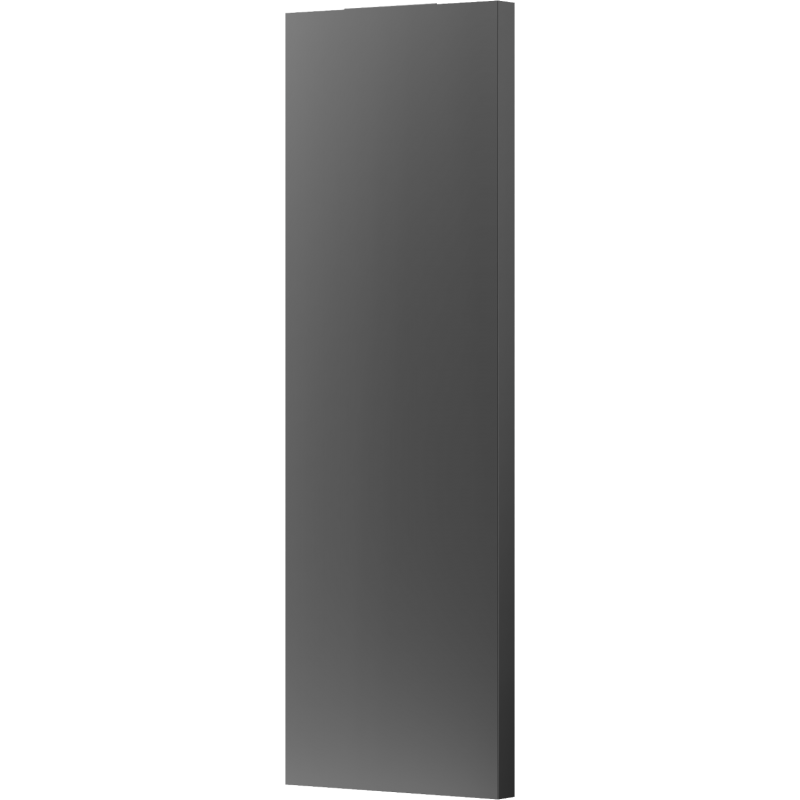

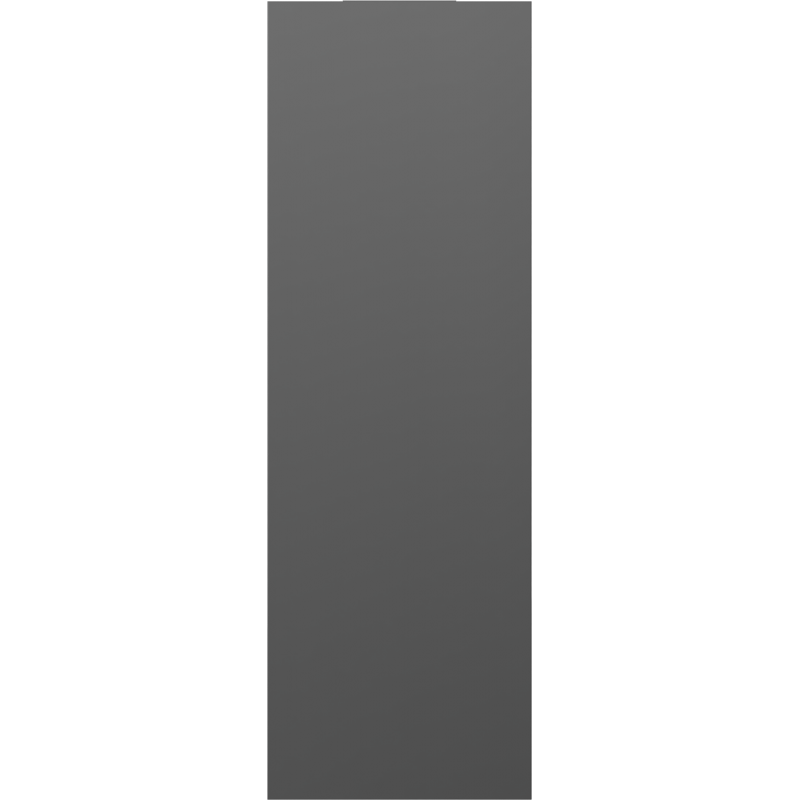

Photos show the radiator in size 600 x 1800 mm.<\/p>

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum operating pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. This allows for effective and efficient heating of the room while ensuring safety for users and the surfaces surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
VS20S
Width
400 mm
Height
2200 mm
Depth
70 mm
Type
Plate / Panel
Heating power
1013 W
Color
Anthracite
Material
Steel
Type
20
Mounting Position
Universal
Connection spacing
5 cm
Connection
Bottom center
Orientation
Vertical
