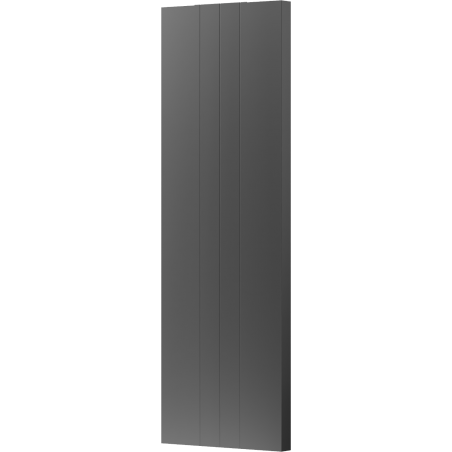

The Mexen Line VS20SL 2200 x 400 mm flat panel radiator in anthracite is a stylish and efficient solution for your home. With a heating power of up to 1013 W at 75/65/20 °C, it provides comfortable warmth. Made from high-quality steel and coated with a durable paint finish, it ensures long-lasting durability. It features a bottom-center connection 2xG ½″ and side 4xG ½″. The set includes hangers, installation kit, sealing plugs, and air vent. Ideal for modern interiors.

Technical Data:

Height (Y): 2200 mm

Width (X): 400 mm

Depth: 70 mm

Connection spacing: 5 cm

Vertical water channel spacing: 33.3 mm

Color: Anthracite RAL 7016

Material: Steel

Operating temperature: max 110 °C

Maximum working pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 526 W

- 75/65/20 °C 1013 W

- 90/70/20 °C 1280 W

Connections:

- 2xG ½″ bottom-center

- 4xG ½″ side

High-quality, durable paint coating - DIN 99500

Includes: hangers, installation kit, sealing plugs, and air vent

Images show the radiator size 600 x 1800 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
VS20SL
Width
400 mm
Height
2200 mm
Depth
70 mm
Type
Plate / Panel
Heating power
1013 W
Color
Anthracite
Material
Steel
Type
20
Installation Orientation
Universal
Connection spacing
5 cm
Connection
Bottom center
Orientation
Vertical
