Mexen Flat VR20S radiator panel 1600 x 300 mm, bottom central connection, 596 W, black - W6VR20S-160-030-70

Multirabaty EN

Multirabaty EN

Mexen Flat VR20S radiator panel 1600 x 300 mm, bottom central connection, 596 W, black - W6VR20S-160-030-70

  • Mega Discounts
Mexen Flat VR20S radiator panel 1600 x 300 mm, bottom central connection, 596 W, black - W6VR20S-160-030-70
search
  • Mexen Flat VR20S radiator panel 1600 x 300 mm, bottom central connection, 596 W, black - W6VR20S-160-030-70
  • Mexen Flat VR20S radiator panel 1600 x 300 mm, bottom central connection, 596 W, black - W6VR20S-160-030-70
  • Mexen Flat VR20S radiator panel 1600 x 300 mm, bottom central connection, 596 W, black - W6VR20S-160-030-70
  • Mexen Flat VR20S radiator panel 1600 x 300 mm, bottom central connection, 596 W, black - W6VR20S-160-030-70
  • Mexen Flat VR20S radiator panel 1600 x 300 mm, bottom central connection, 596 W, black - W6VR20S-160-030-70
  • Mexen Flat VR20S radiator panel 1600 x 300 mm, bottom central connection, 596 W, black - W6VR20S-160-030-70
  • Mexen Flat VR20S radiator panel 1600 x 300 mm, bottom central connection, 596 W, black - W6VR20S-160-030-70
Mexen Flat VR20S radiator panel 1600 x 300 mm, bottom central connection, 596 W, black - W6VR20S-160-030-70
Mexen Flat VR20S radiator panel 1600 x 300 mm, bottom central connection, 596 W, black - W6VR20S-160-030-70 Mexen Flat VR20S radiator panel 1600 x 300 mm, bottom central connection, 596 W, black - W6VR20S-160-030-70 Mexen Flat VR20S radiator panel 1600 x 300 mm, bottom central connection, 596 W, black - W6VR20S-160-030-70 Mexen Flat VR20S radiator panel 1600 x 300 mm, bottom central connection, 596 W, black - W6VR20S-160-030-70 Mexen Flat VR20S radiator panel 1600 x 300 mm, bottom central connection, 596 W, black - W6VR20S-160-030-70 Mexen Flat VR20S radiator panel 1600 x 300 mm, bottom central connection, 596 W, black - W6VR20S-160-030-70 Mexen Flat VR20S radiator panel 1600 x 300 mm, bottom central connection, 596 W, black - W6VR20S-160-030-70
Steel Steel
High thermal efficiency High thermal efficiency
Paint Coating: DIN 99500 Paint Coating: DIN 99500
Brand:
Mexen
Series:
VR20S
Ean:
5905315923172
Index:
W6VR20S-160-030-70
Height:
1600 mm
Color:
Black
Width:
300 mm
Heating power:
596 W
Width - 300 mm - ()
300 mm
400 mm
500 mm
600 mm
Height - 1600 mm - ()
1400 mm
1600 mm
1800 mm
2000 mm
Color - Black - ()

Mexen Flat VR20S radiator panel 1600 x 300 mm, bottom central connection, 596 W, black - W6VR20S-160-030-70

Technical data:

Height (Y): 1600 mm

Width (X): 300 mm

Depth: 80 mm

Connection spacing: 5 cm

Spacing of vertical water channels: 33.3 mm

Color: Black RAL 9005

Material: Steel

Operating temperature: max 110 °C

Maximum working pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 312 W

- 75/65/20 °C 596 W

- 90/70/20 °C 750 W

Connections:

- 2xG ½” bottom central

- 4xG ½” side

High-quality, durable coating - DIN 99500

Included: hangers, mounting set, sealing plugs, and air vent

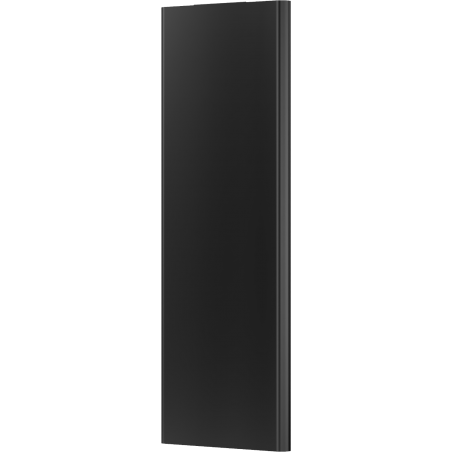

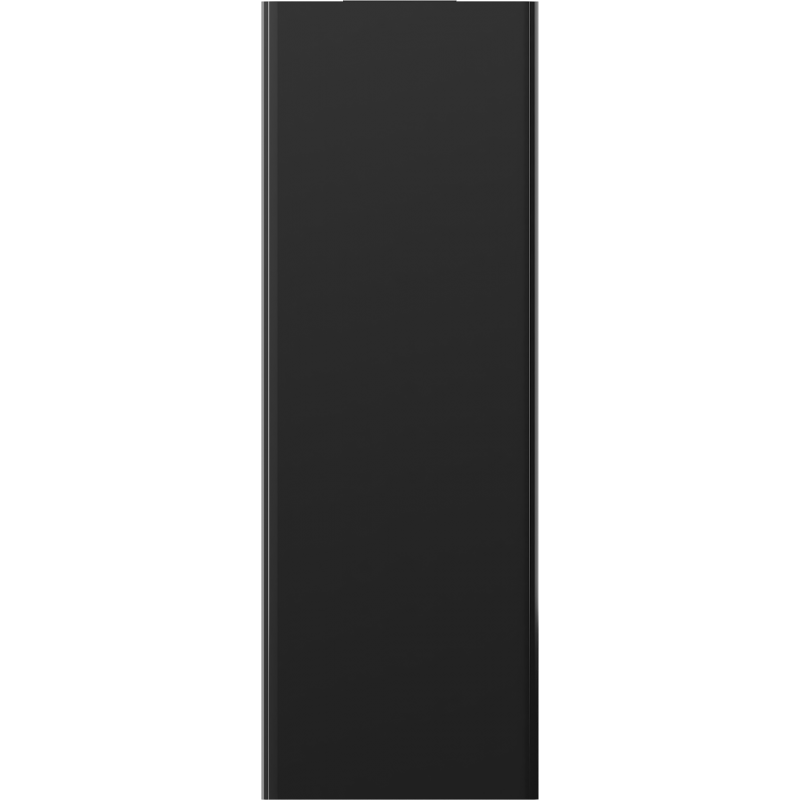

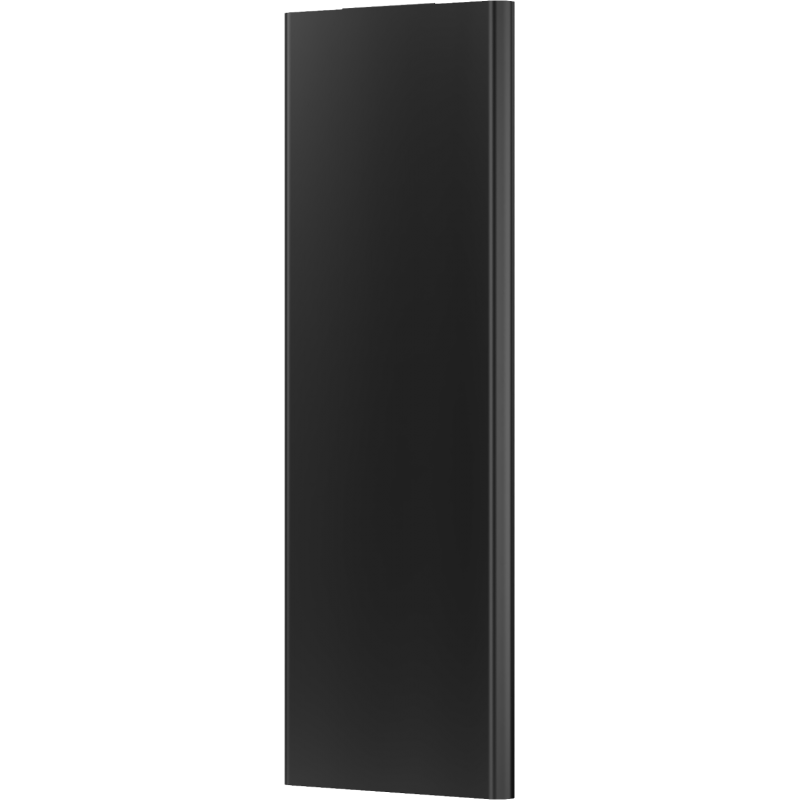

Photos show the radiator in the size 600 x 1800 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

1 Mpa

The maximum operating pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. This allows for effective and efficient heating of the room while ensuring safety for users and the surfaces surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
VR20S
Width
300 mm
Height
1600 mm
Depth
80 mm
Type
Plate / Panel
Heating power
596 W
Color
Black
Material
Steel
Type
20
Mounting Position
Universal
Connection spacing
5 cm
Connection
Bottom center
Orientation
Vertical
User manual
Download
Safety Information
Download
Warranty conditions
Download
