Mexen VS20S Flat panel radiator 1800 x 300 mm, center bottom connection, 654 W, black - W6-180-030-70 - W6VS20S-180-030-70

The Mexen Flat VS20S is a modern panel radiator measuring 1800 x 300 mm with a bottom center connection. It offers a heating power of up to 654 W, ensuring effective heating on cold days. Finished in elegant black RAL 9005, it fits perfectly with modern interiors. Made of steel, it features a durable paint coating in compliance with the DIN 99500 standard. The maximum operating temperature is 110 °C, and the maximum working pressure is 10 bar. The set includes brackets, an installation kit, and an air vent.

Technical data:

Height (Y): 1800 mm

Width (X): 300 mm

Depth: 70 mm

Connection spacing: 5 cm

Vertical water channel spacing: 33.3 mm

Color: Black RAL 9005

Material: Steel

Operating temperature: max 110 °C

Maximum working pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 342 W

- 75/65/20 °C 654 W

- 90/70/20 °C 824 W

Connections:

- 2xG ½″ center bottom

- 4xG ½″ side

High-quality, durable paint coating - DIN 99500

Included: brackets, installation kit, sealing plugs, and air vent

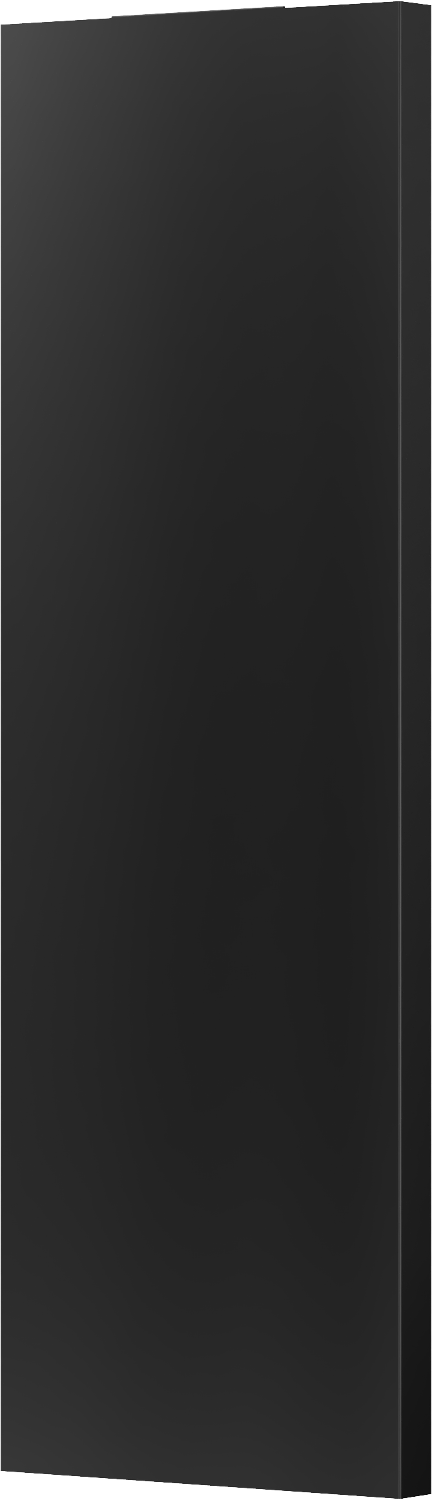

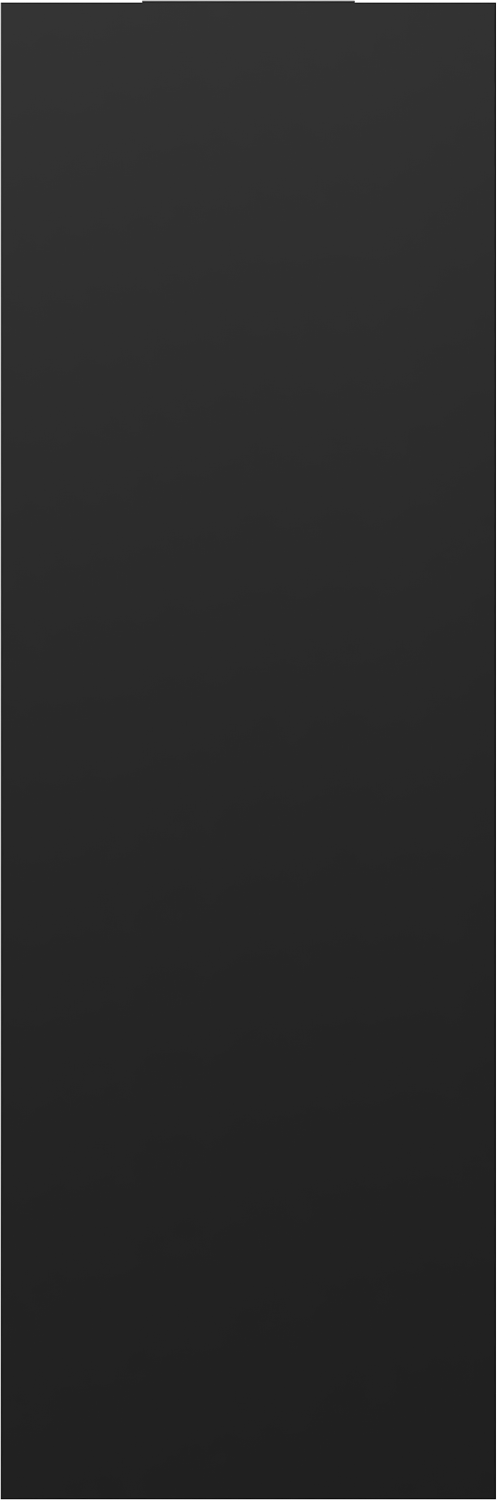

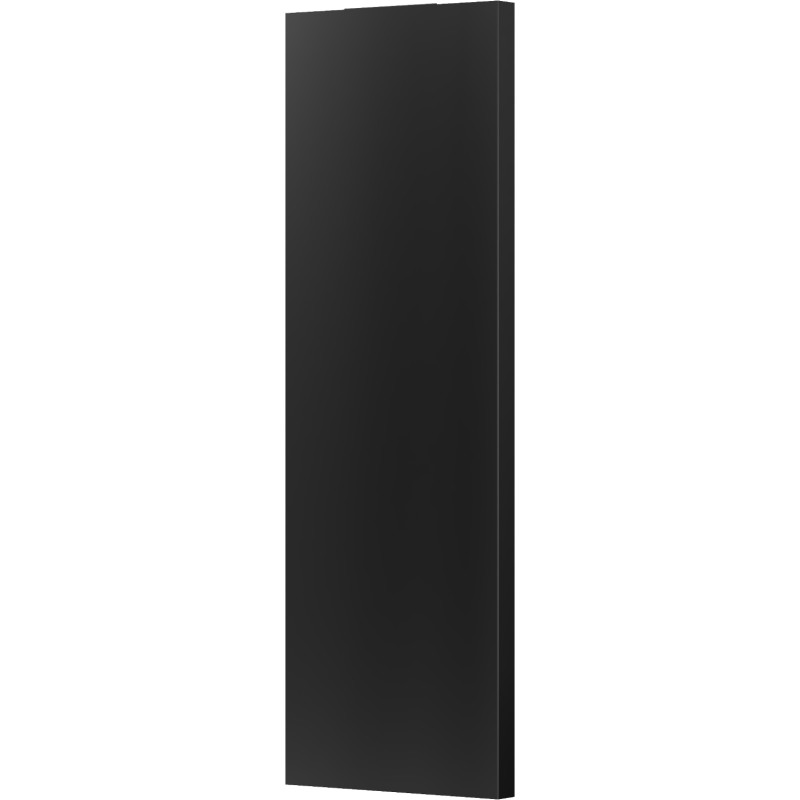

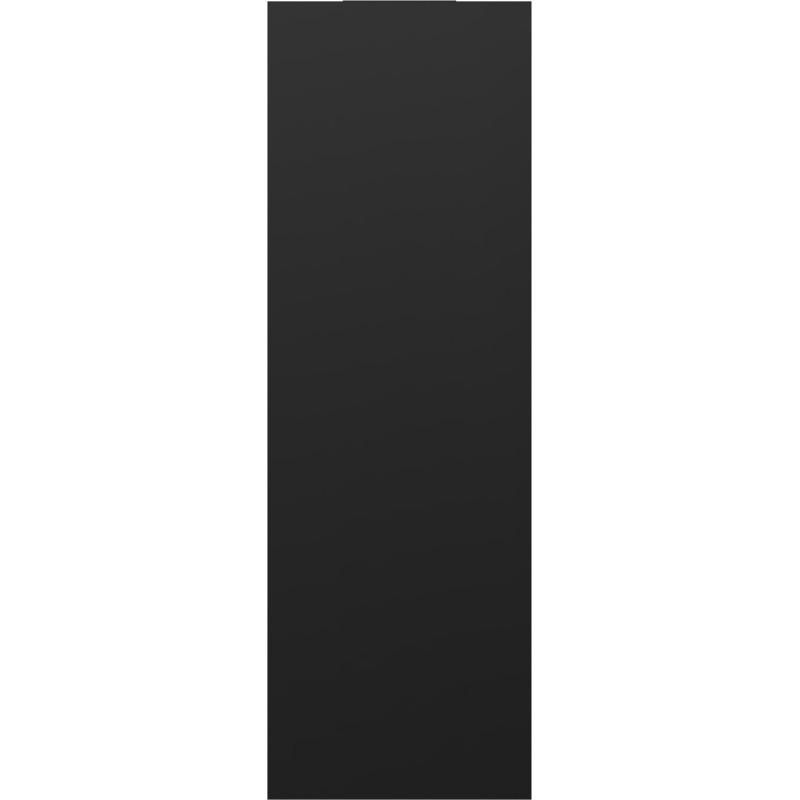

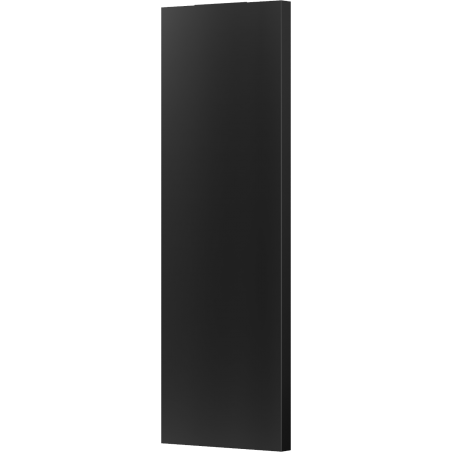

The pictures show a radiator in the size 600 x 1800 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
VS20S
Width
300 mm
Height
1800 mm
Depth
70 mm
Type
Plate / Panel
Heating power
654 W
Color
Black
Material
Steel
Type
20
Installation Orientation
Universal
Connection spacing
5 cm
Connection
Bottom center
Orientation
Vertical
