Mexen VS20S Flat panel radiator 1800 x 400 mm, bottom central connection, 872 W, black - W6-180-040-70 - W6VS20S-180-040-70

Mexen Flat VS20S is an excellent choice for those seeking stylish and efficient heating. The 1800 x 400 mm panel radiator in elegant black (RAL 9005) provides heating power of up to 872 W at 75/65/20 °C. Due to its compact connection spacing of 5 cm and depth of 70 mm, it fits perfectly into various interiors. The durable steel construction, high operating temperature up to 110 °C, and pressure resistance up to 13 bar ensure reliability and longevity. The set includes brackets, installation kit, sealing plugs, and air vent.

Technical data:

Height (Y): 1800 mm

Width (X): 400 mm

Depth: 70 mm

Connection spacing: 5 cm

Vertical water channel spacing: 33.3 mm

Color: Black RAL 9005

Material: Steel

Operating temperature: max 110 °C

Maximum working pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 457 W

- 75/65/20 °C 872 W

- 90/70/20 °C 1098 W

Connections:

- 2xG ½″ bottom central

- 4xG ½″ side

High-quality, durable lacquer coating - DIN 99500

Included: brackets, installation kit, sealing plugs and air vent

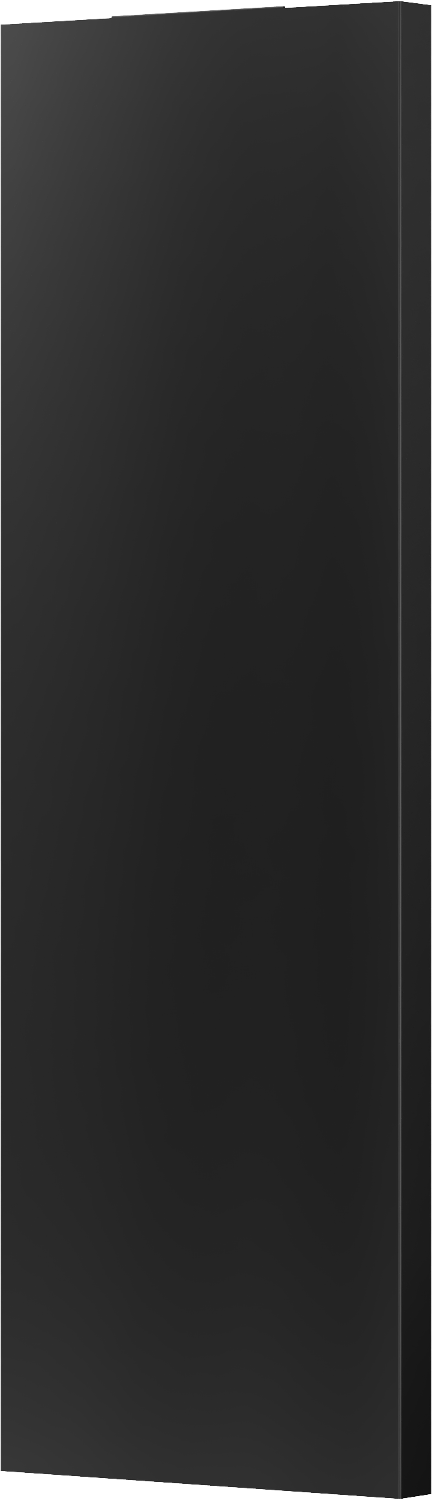

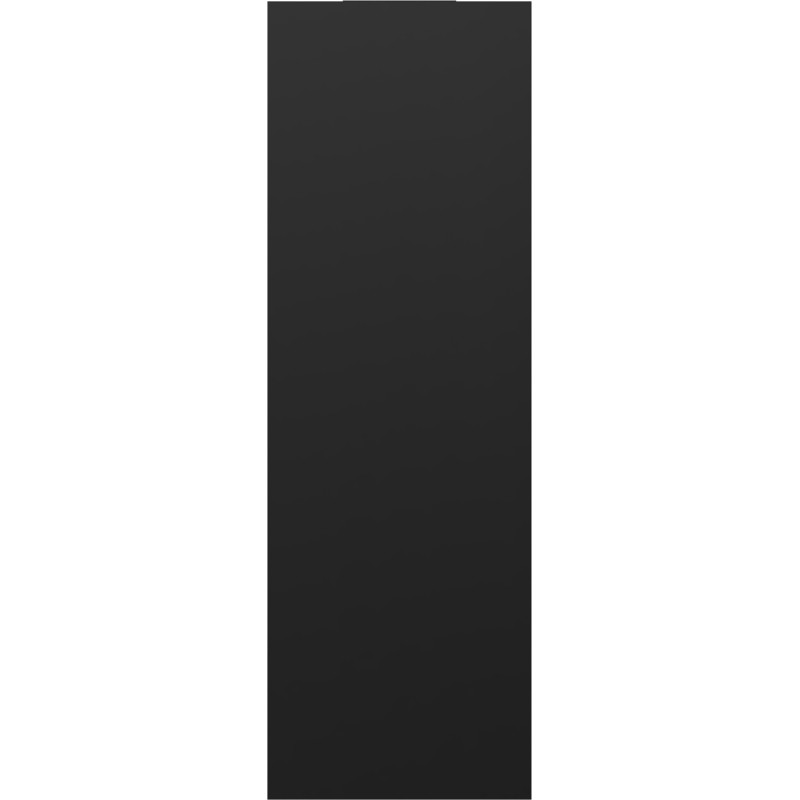

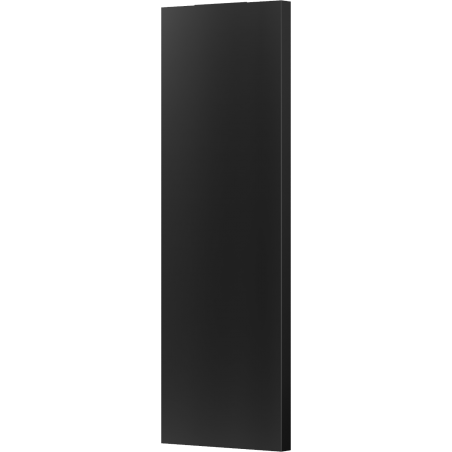

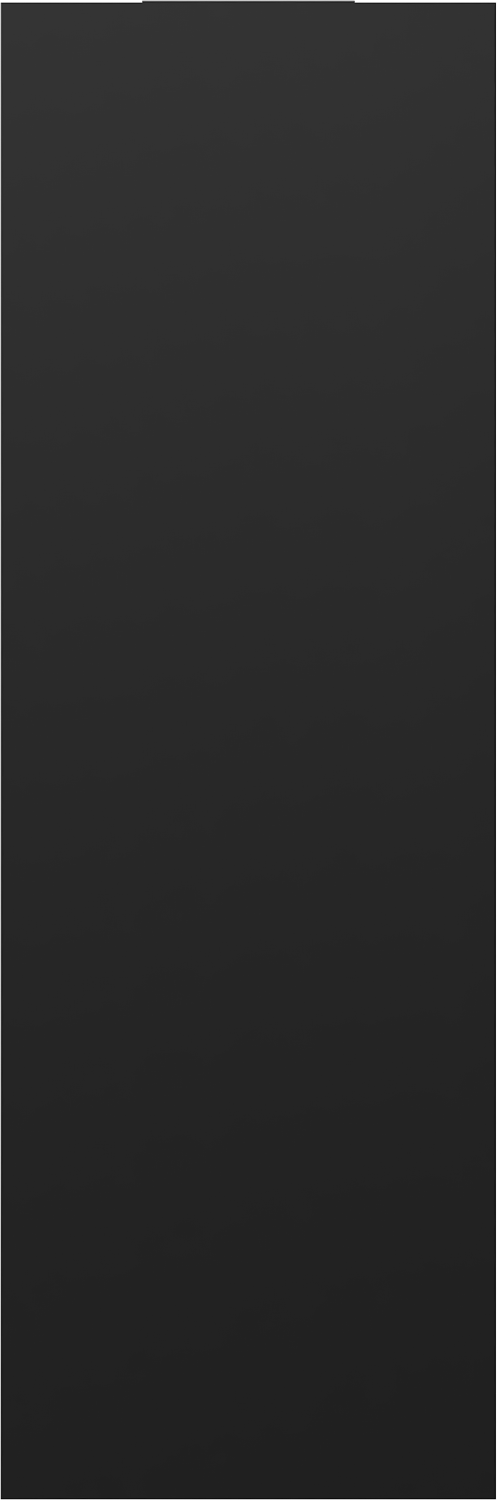

Images show the radiator in size 600 x 1800 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
VS20S
Width
400 mm
Height
1800 mm
Depth
70 mm
Type
Plate / Panel
Heating power
872 W
Color
Black
Material
Steel
Type
20
Installation Orientation
Universal
Connection spacing
5 cm
Connection
Bottom center
Orientation
Vertical
