Mexen Flat ABS linear drain 2-in-1 90 cm, stainless steel- 1069090
Mexen Flat ABS linear drain 2-in-1 90 cm, stainless steel- 1069090 Mexen Flat ABS linear drain 2-in-1 90 cm, stainless steel- 1069090 Mexen Flat ABS linear drain 2-in-1 90 cm, stainless steel- 1069090 Mexen Flat ABS linear drain 2-in-1 90 cm, stainless steel- 1069090 Mexen Flat ABS linear drain 2-in-1 90 cm, stainless steel- 1069090 Mexen Flat ABS linear drain 2-in-1 90 cm, stainless steel- 1069090 Mexen Flat ABS linear drain 2-in-1 90 cm, stainless steel- 1069090
Reliable Material Reliable Material
High throughput High throughput
Option to apply tile Option to apply tile
Brand:
Mexen
Seria:
Flat Abs
Ean:
5905315933966
Index:
1069090
Size:
90 cm
Rotary Siphon:
No
In the set:
Complete set
Colour:
Inox
Size - 90 cm - ()
60 cm
70 cm
80 cm
90 cm
Colour - Inox - ()
Colour Inox
Colour Black

Mexen Flat ABS linear drain 2-in-1 90 cm, stainless steel- 1069090

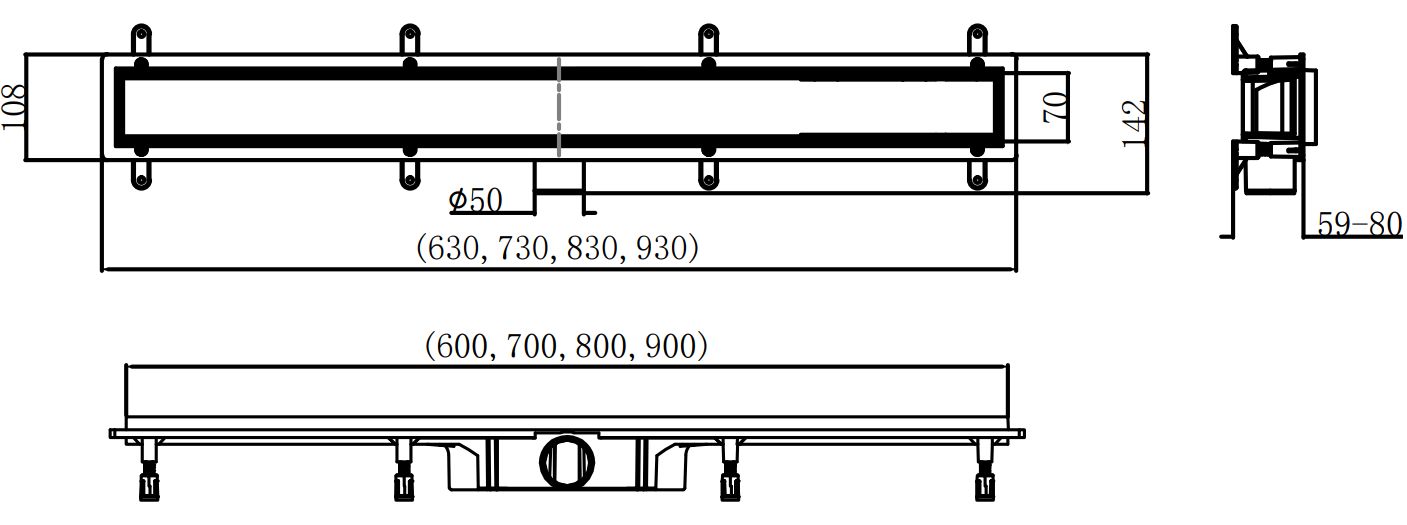

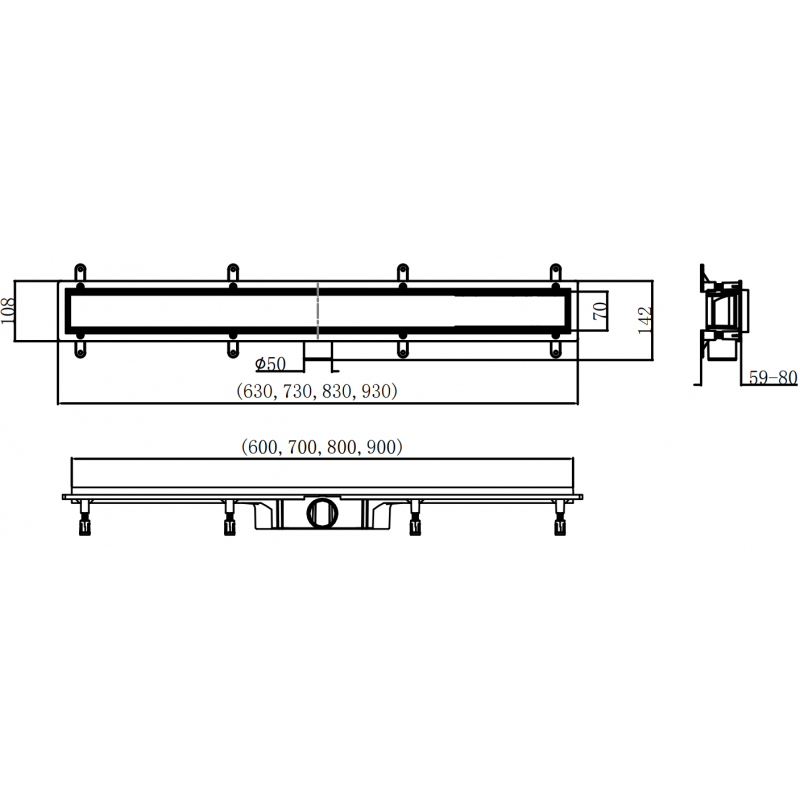

Product specification:

Material: Cover - Stainless steel AISI 304, Body - ABS

Finish: Stainless steel

Width: 90 cm

Installation depth: 74 mm

Flow rate: 30 l/min

Tile-in grill width 53 mm

Channel and grill thickness 2 mm

Grill depth - 11 mm

Collar - 1.6 cm

Included:

Double-sided cover with damping spacers

Removable dirt filter

Siphon to block unpleasant odors

Water drainage channel

Adjustable feet

50/40 mm reduction

Sealing collar

Hook for cover removal

Innovative solutions used in this product

Reliable Material

The product consists of a cover made from AISI 304 stainless steel and a body made from the highest quality plastic. This ensures high resistance to corrosion and damage, guaranteeing many years of reliable use.

High throughput

Throughput with a value of 30l/min, which means that drainage within 1 minute is capable of discharging up to 40 litres of water. This allows the user to enjoy the comfort of bathing without worrying about excessive amounts of accumulated water.

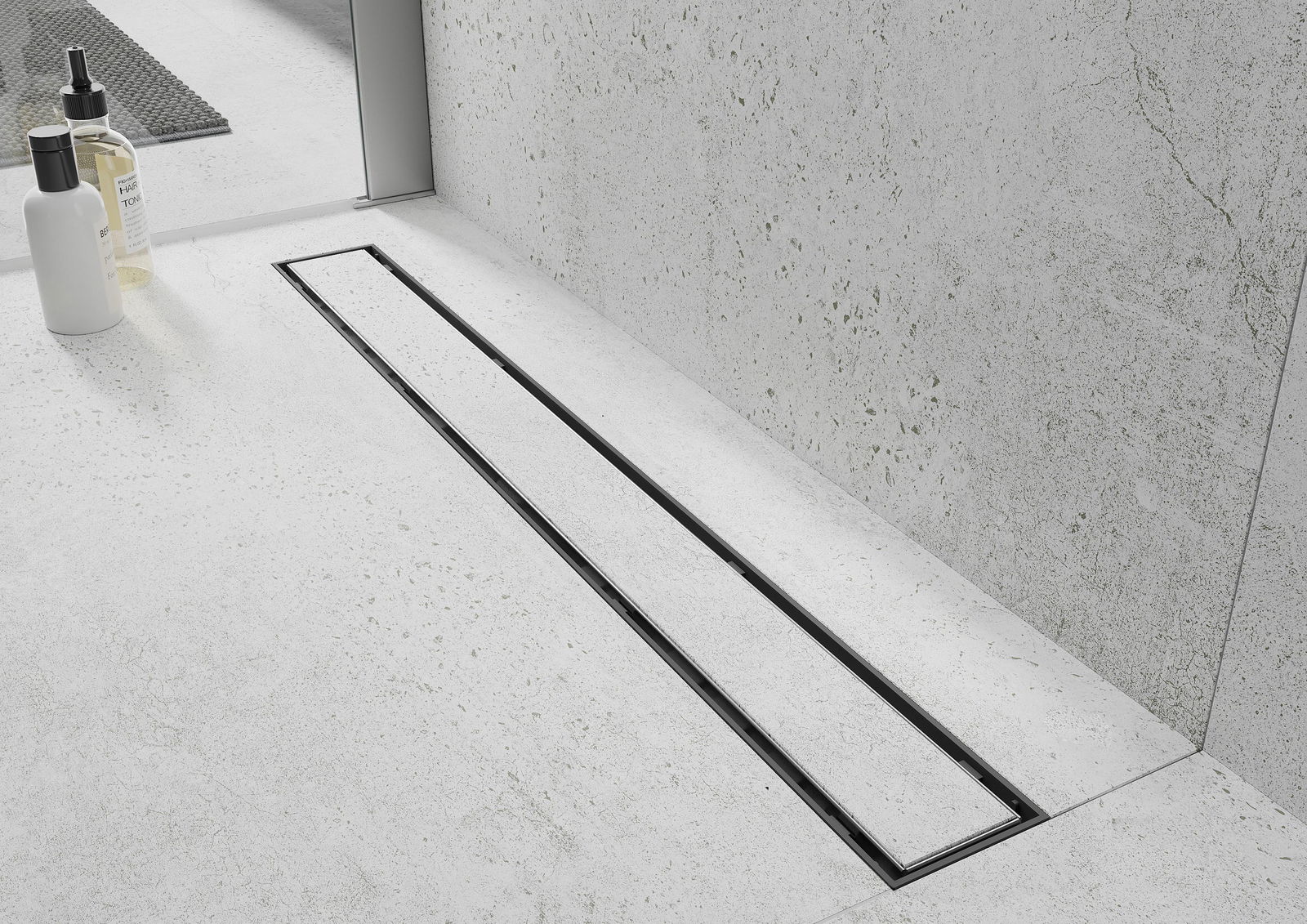

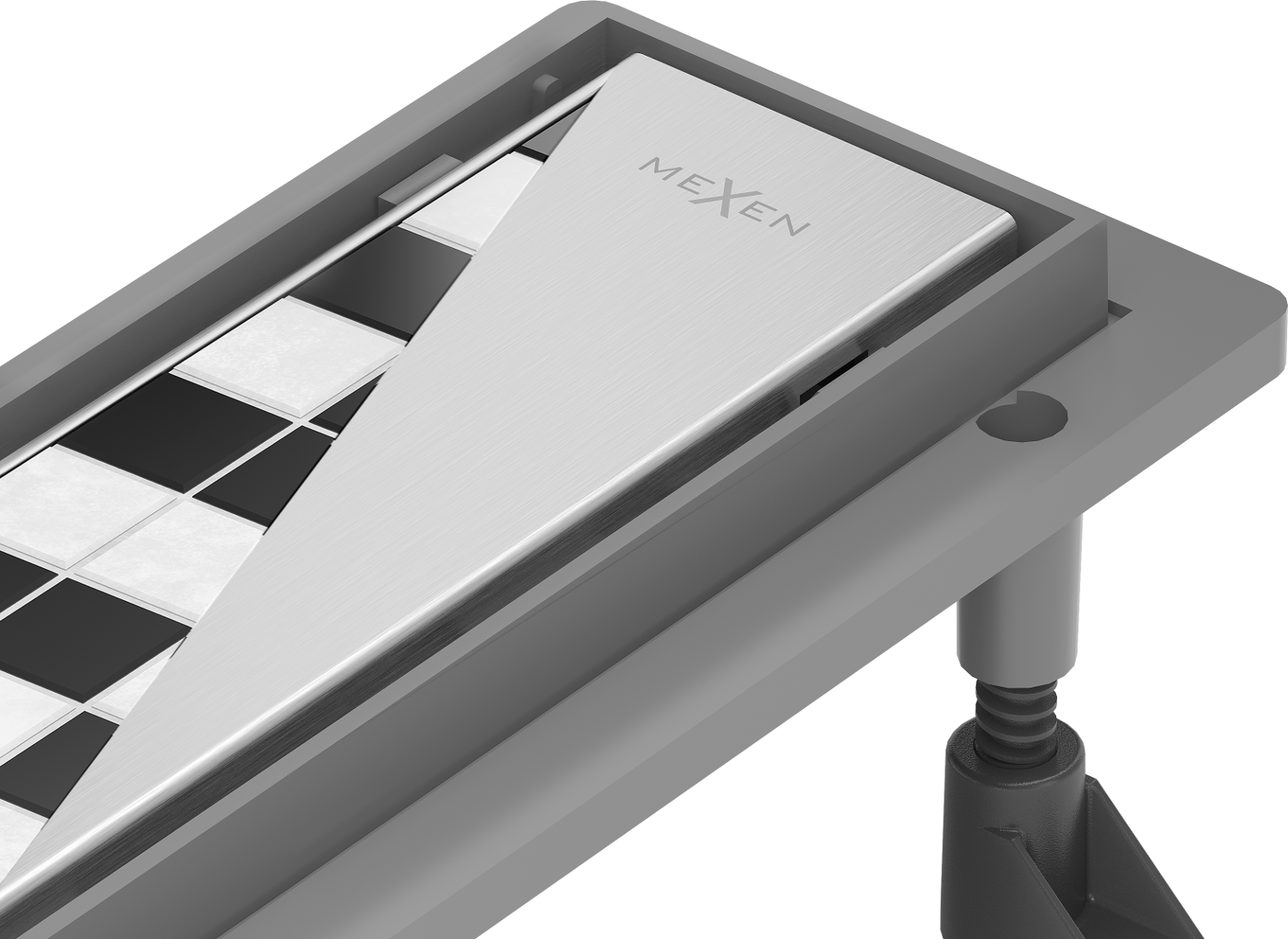

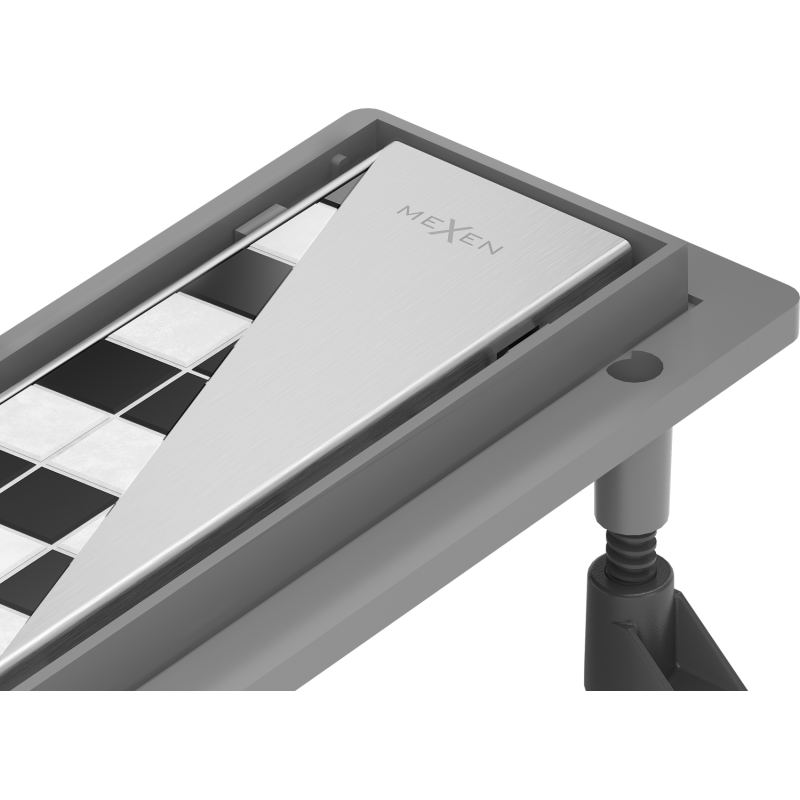

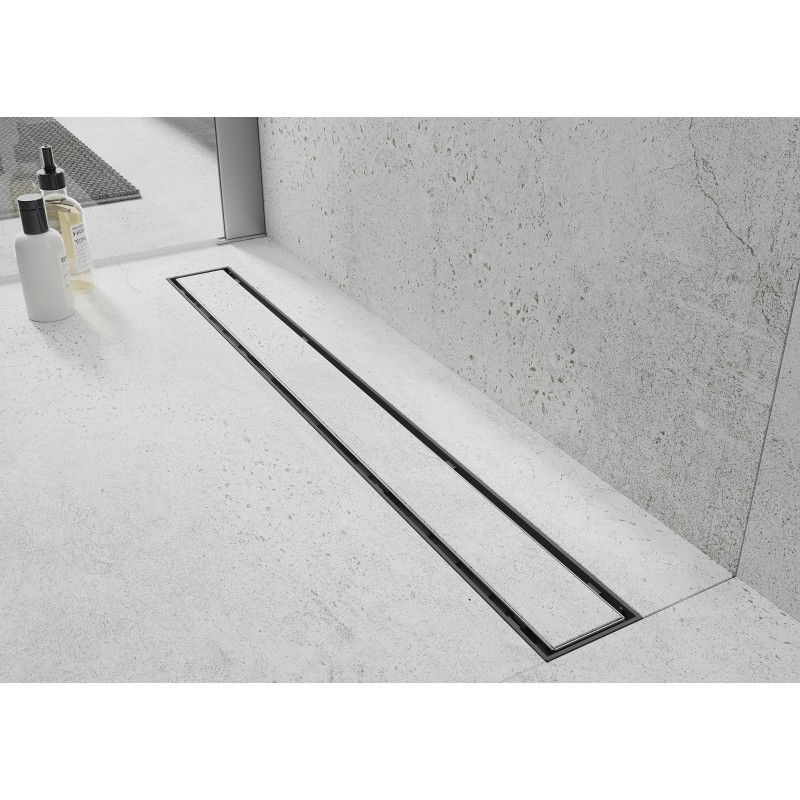

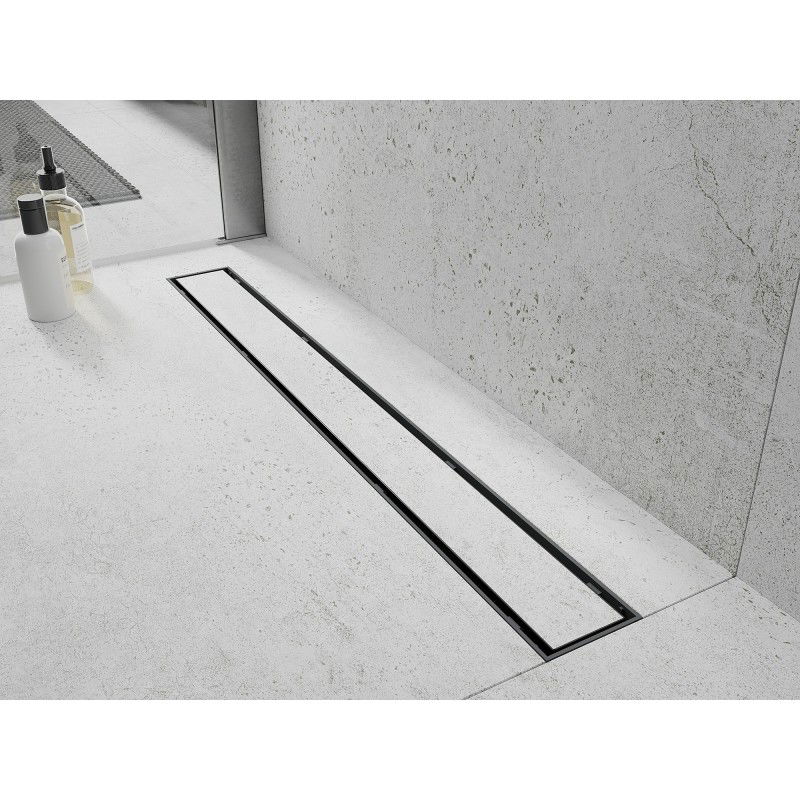

Option to apply tile

A double-sided cover with the option to rotate at any moment allows for changing the arrangement. On one side, there is smooth stainless steel; when reversed, the cover can be tiled to create a connection with the floor.

Stops unpleasant odours

The drain is equipped with a trap, whose task is to discharge used water while providing effective protection against the backflow of unpleasant odours from the sewage system. Comfort of use and a high level of hygiene.

Removable dirt filter

A system that makes cleaning the siphon even easier and faster. Simply remove the top, movable part, remove the dirt, and rinse it under water. An ideal support in maintaining hygiene and cleanliness in the bathroom.

Damping spacers

Damping spacers ensure the grille is evenly positioned, providing an aesthetic appearance. They effectively prevent the grate from rubbing against the housing and reduce the noise generated when water falls directly onto the drain.

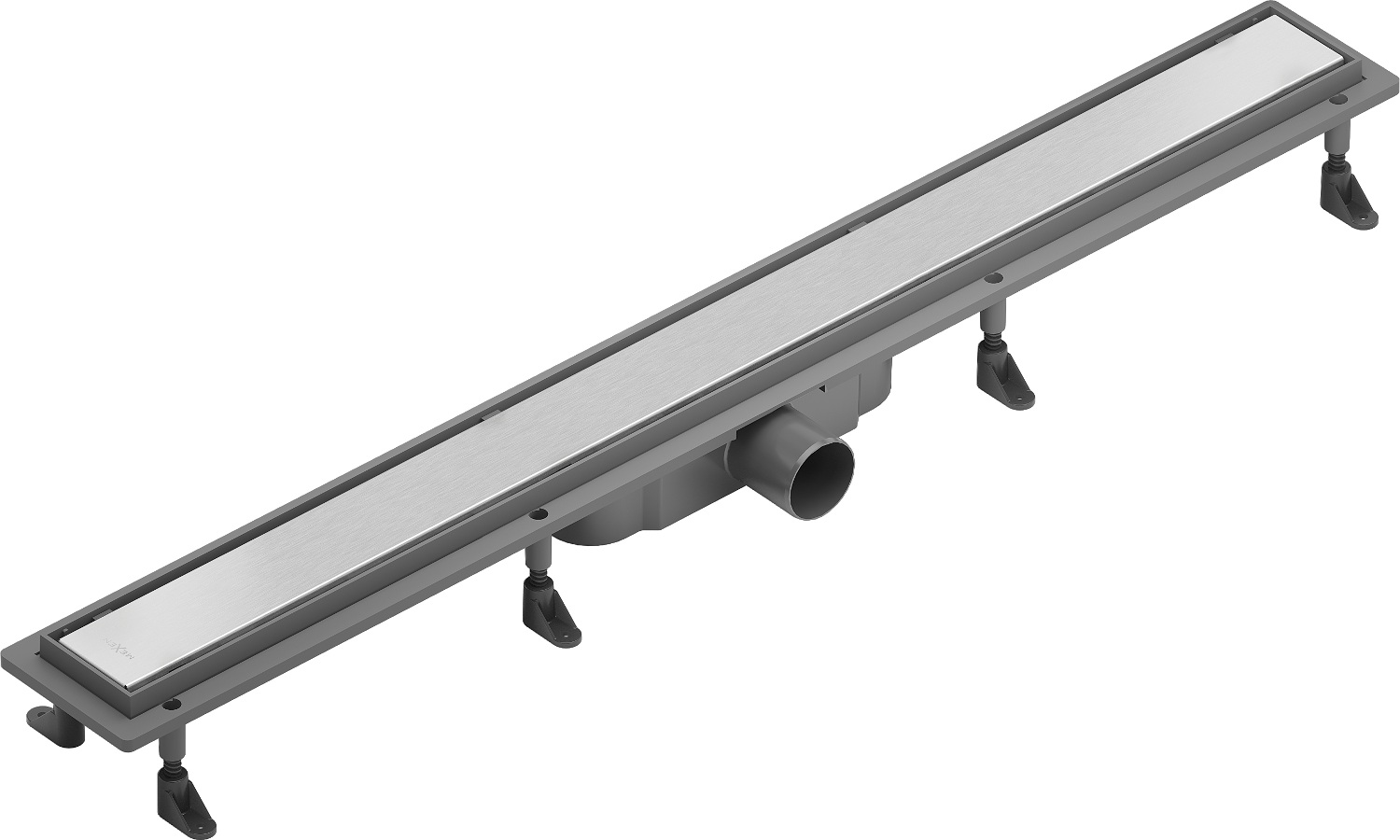

Adjustable Feet

The drain is equipped with adjustable feet, which allow for setting the appropriate height of the drain and leveling on an uneven surface. This way, the drain is even better suited to the conditions of the particular bathroom.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Hygiene Certificate PZH

The product has a certificate issued by the National Institute of Hygiene, confirming compliance with safety standards - indicating that it in no way adversely affects human health and the natural environment. No. B.BK.60110.1719.2023 valid until 14.02.2027

Serial
Flat Abs
Size
90 cm
Colour
Inox
In the set
Complete set
Slim version
No
Rotary Siphon
No
Possibility of Installing a Tile
Yes
User manual
Download
Safety Information
Download
Warranty conditions
Download
PZH Certificate
Download
Manufacturer
See
