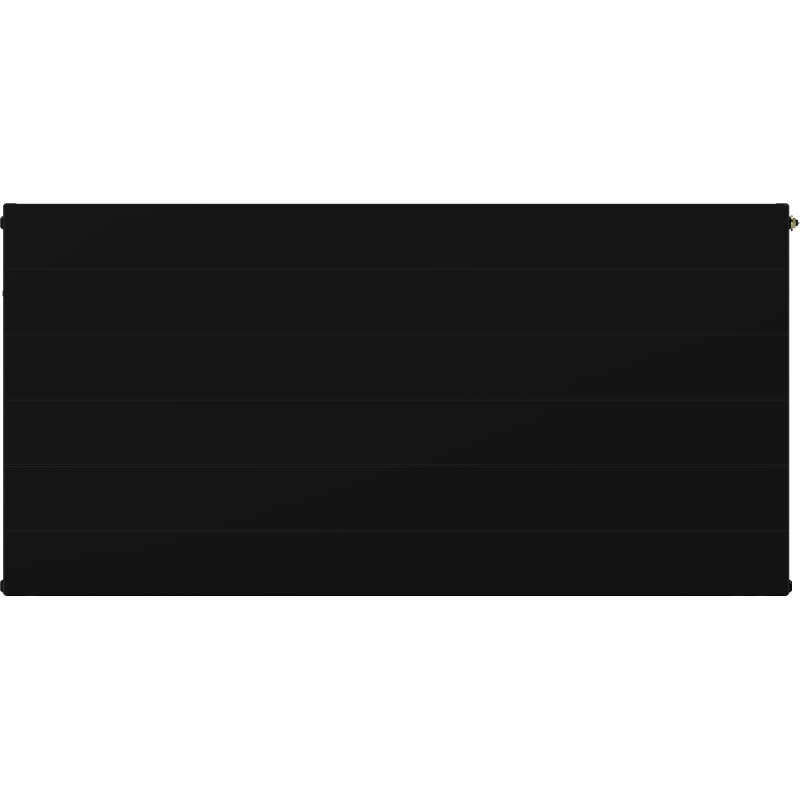

Mexen Line CCL11 Panel Radiator 900 x 500 mm, Central Bottom Connection, 546 W, Black - W6C11L-090-050-70
Technical Data:
Height (Y): 900 mm
Width (X): 500 mm
Depth: 59 mm
Connection Spacing: 5 cm
Vertical Water Channel Spacing: 33.3 mm
Colour: Black RAL 9005
Material: Steel
Operating Temperature: max 110 °C
Maximum Operating Pressure: 10 bar
Maximum Test Pressure: 13 bar
Heating Power:
- 55/45/20 °C 291 W
- 75/65/20 °C 546 W
- 90/70/20 °C 683 W
Connections:
- 2xG ½″ Central Bottom
- 4xG ½″ Side
High-quality, durable paint finish - DIN 99500
Includes a side panel and removable top cover
Set includes: brackets, installation kit, sealing plugs, air vent, and valve insert

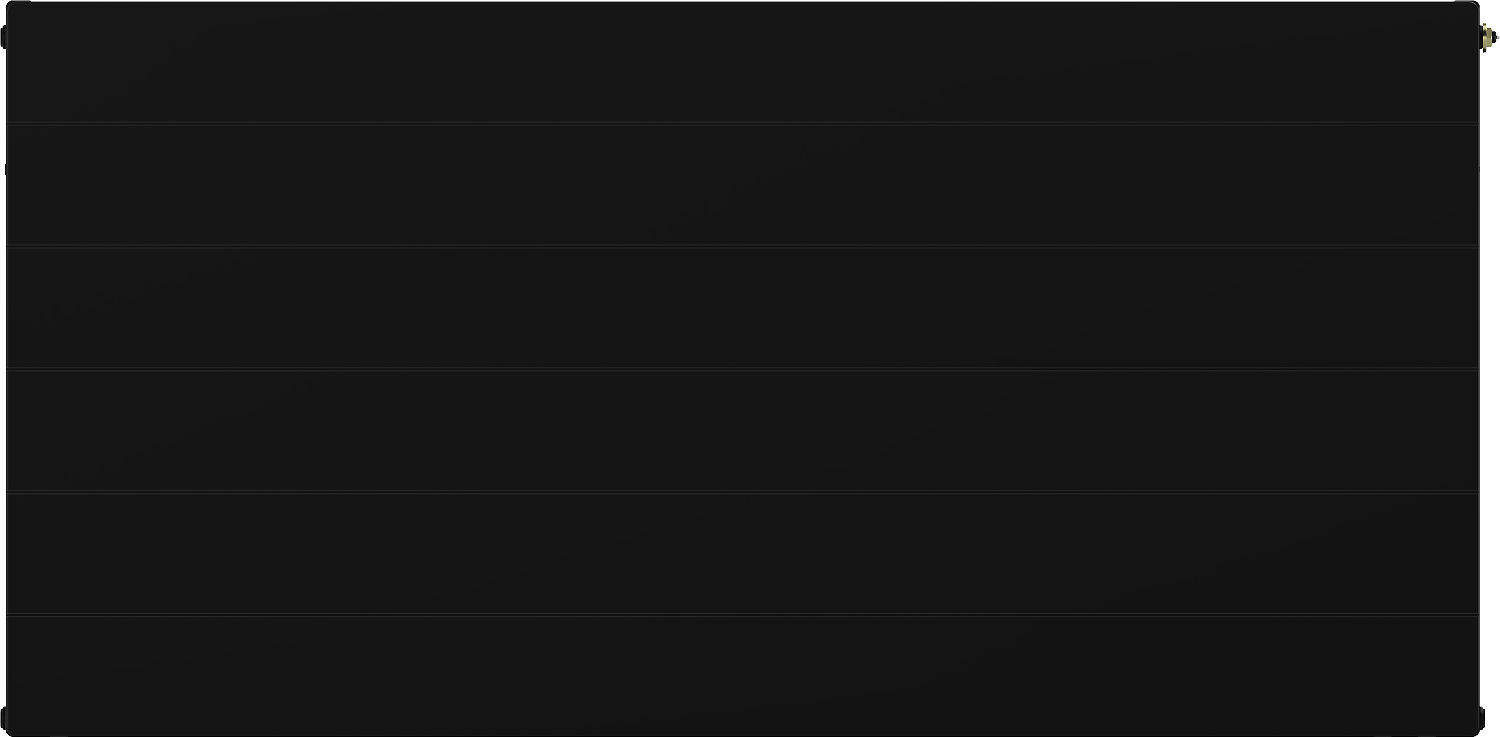

The pictures show the radiator in size 600 x 1200 mm.
