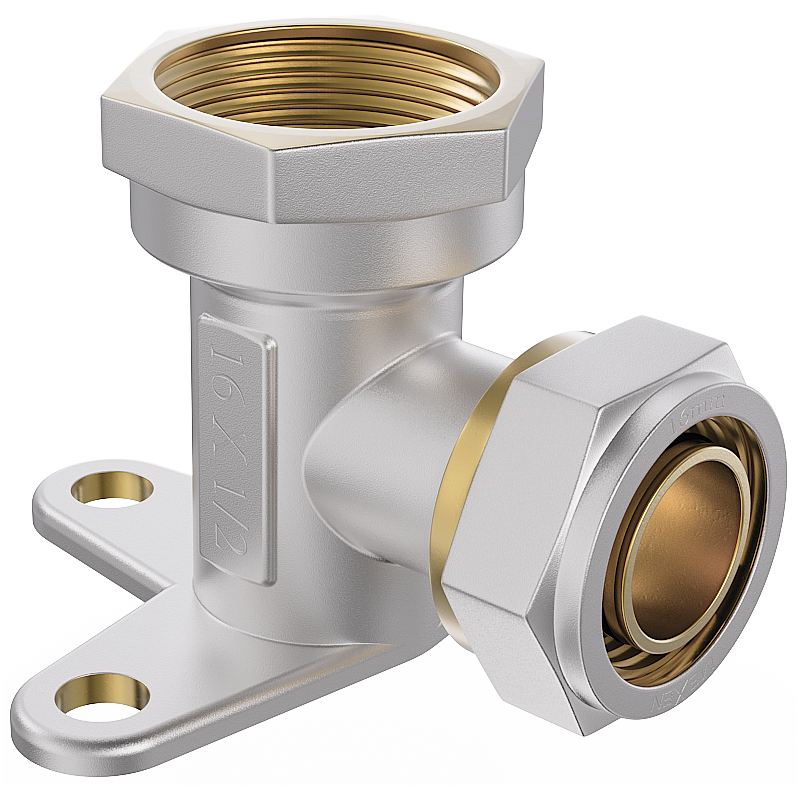

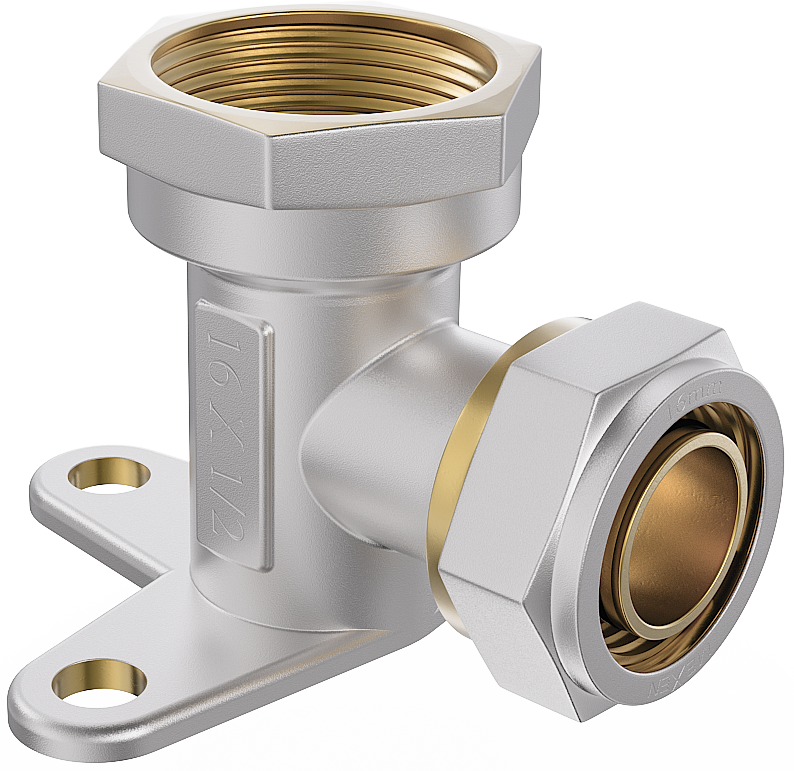

Mexen PEX-S wall-mounted screw elbow with clamp PEX 20 x 3/4 female thread - W97228-2034F-00

  • Mexen in Black
Mexen PEX-S wall-mounted screw elbow with clamp PEX 20 x 3/4 female thread - W97228-2034F-00
search
  • Mexen PEX-S wall-mounted screw elbow with clamp PEX 20 x 3/4 female thread - W97228-2034F-00
Mexen PEX-S wall-mounted screw elbow with clamp PEX 20 x 3/4 female thread - W97228-2034F-00
Brass Brass
1 Mpa 1 Mpa
Resistance to high temperature Resistance to high temperature
Brand:
Mexen
Seria:
PEX-S
Ean:
5905315927002
Index:
W97228-2034F-00
Connector Diameter 1:
20 mm
Connector Diameter 2:
3/4" FF
Type:
Elbow

Mexen PEX-S wall-mounted screw elbow with clamp PEX 20 x 3/4 female thread - W97228-2034F-00

Technical data:

Connection diameter 1: 20 mm

Connection diameter 2: 3/4" male thread

Body: Brass with nickel coating

Gasket: PTFE

O-rings: NBR

Working temperature: max 95 °C

Maximum working pressure: 10 bar

Innovative solutions used in this product

Brass

The product is made using high-quality brass, which is characterised by exceptional durability. Brass is resistant to moisture and corrosion, maintaining its good appearance and high functionality for a long time.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Resistance to high temperature

The product is characterised by extraordinary resistance to high temperatures, not deforming even with prolonged exposure to hot water. The material is also resistant to damage and cracks caused by sudden temperature changes.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

PZH Hygiene Certificate

The product holds a certificate issued by the National Institute of Hygiene, confirming compliance with safety standards - it indicates that it does not adversely affect human health or the natural environment in any way. nr B.BK.60110.1255.2024 valid until 27.03.2028

Serial
PEX-S
Type
Elbow
Connector Diameter 1
20 mm
Connector Diameter 2
3/4" FF
Installation instructions
Download
Safety information
Download
Warranty conditions
Download
PZH Certificate
Download
Manufacturer
See
