Mexen C33 panel radiator 400 x 2400 mm, side connection, 4053 W, white - W433-040-240-00
Technical data:
Height: 400 mm
Width: 2400 mm
Depth: 164 mm
Connection spacing: 35 cm
Vertical water channel spacing: 33.3 mm
Color: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 2097 W
- 75/65/20 °C 4053 W
- 90/70/20 °C 5128 W
Connections:
- 4xG ½” side
High quality, durable paint coating - DIN 99500
Includes side cover and removable top cover
Set includes: brackets, installation kit, end caps, and air vent

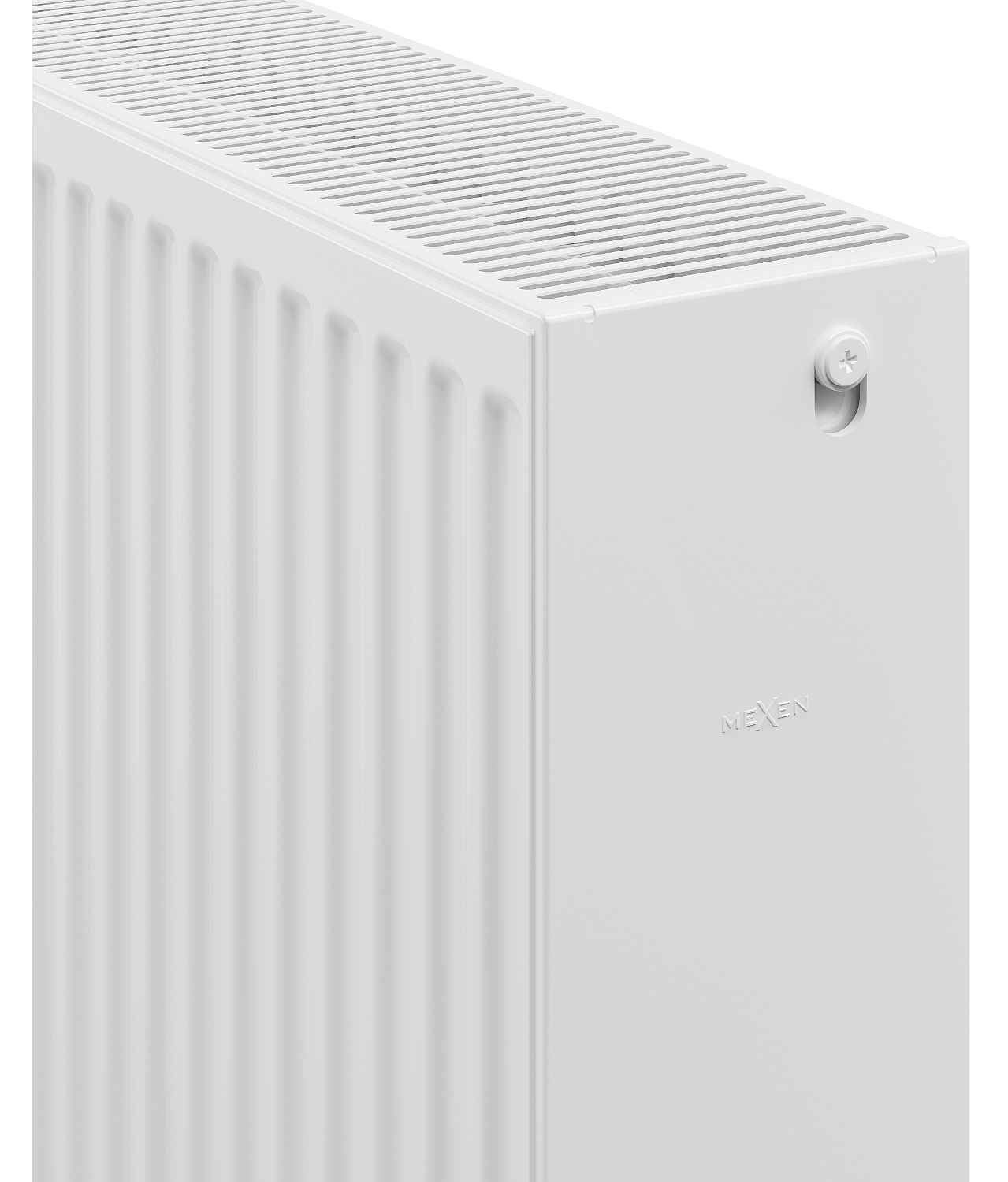

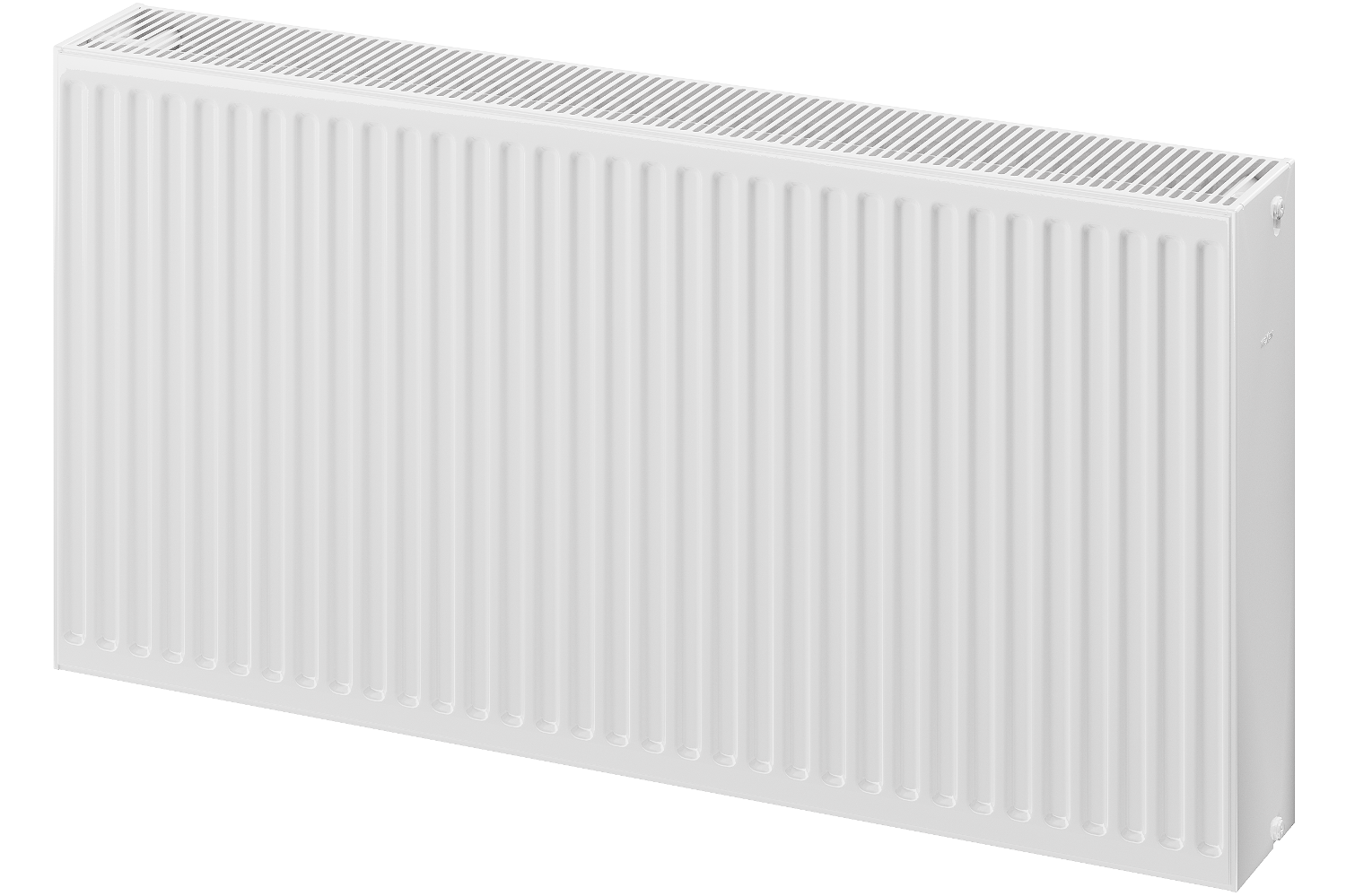

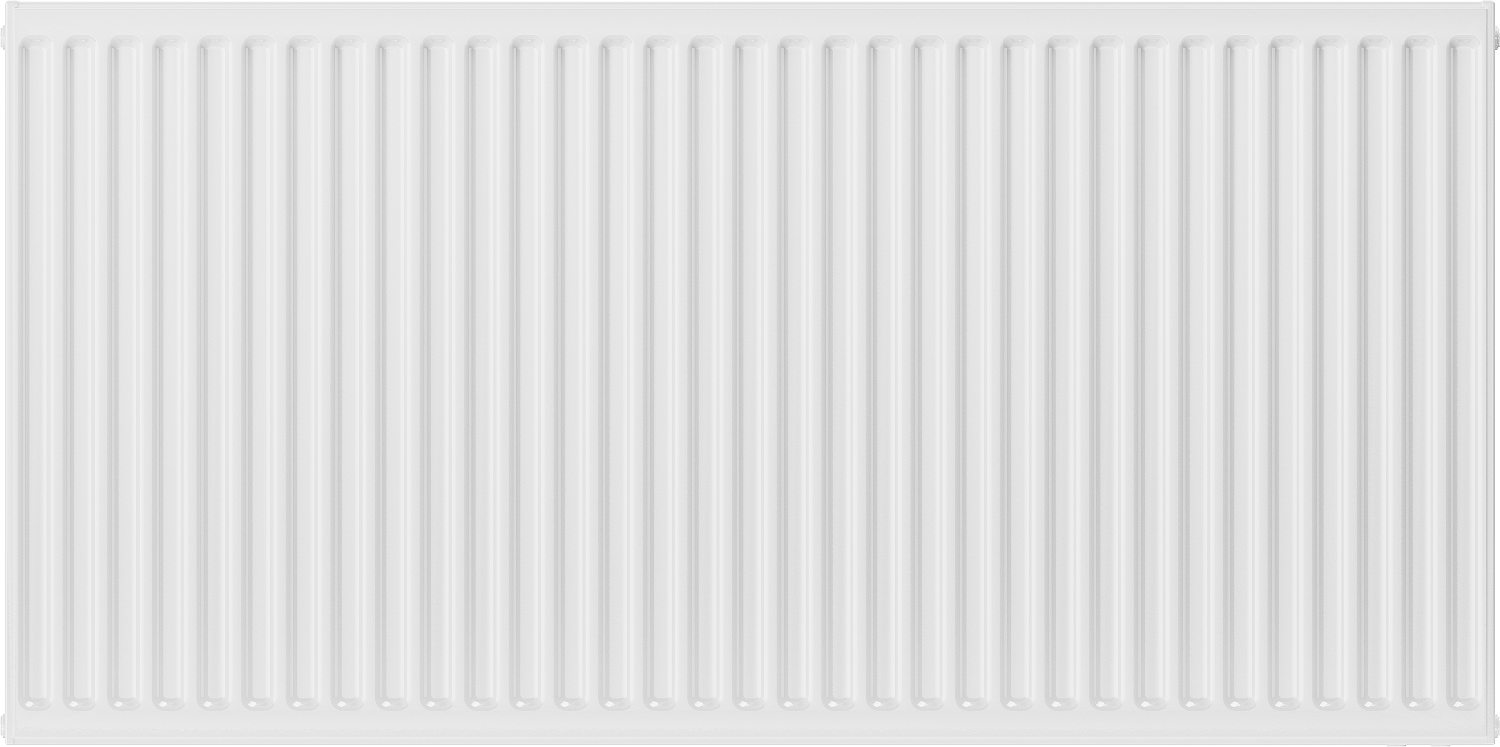

Images show the radiator in size 600 x 1200 mm.
